XJ Rear 4 Link Coil Spring Swap Brackets

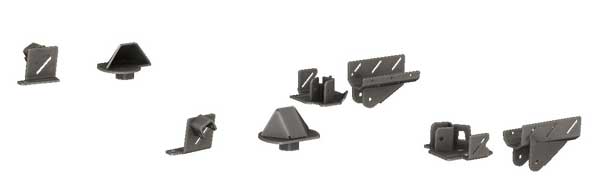

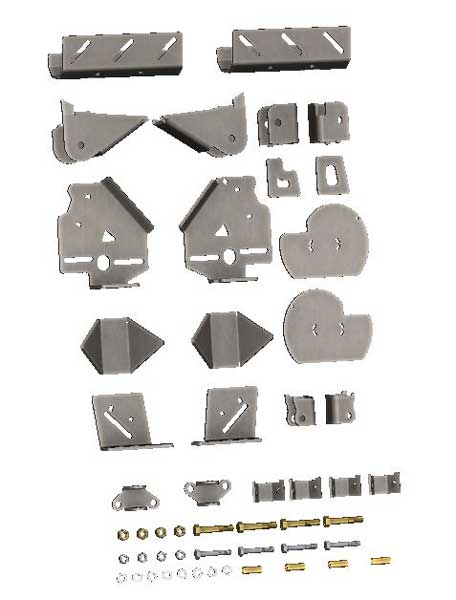

If your looking to convert your Jeep XJ to a rear long arm suspension then we have made it way easer. Barnes 4WD is proud to introduce our XJ rear 4 link coil spring swap long arm suspension bracket kit. This bracket kit has been designed to improve ride quality, enhance geometry, and improve reliability. The 4 link bracket system is cut from 1/4" American steel and offers 2 5/8" mounting width lower brackets and 2" mounting width uppers brackets with a 9/16" bolt hole. This kit can run either enduro joints or hiem joints. The kit includes upper and lower control arm brackets, upper shock mounts, coil spring mounts and sway bar mounts. Installation of this kit will required welding and fabrication.  All components will need to painted or powder coated during installation.

• Converts leaf spring suspension to coil spring long arm suspension
• 4 link rear suspension
• Achieves minimum 4" of rear suspension lift
• All components key together
• Works with heim joints or rebuildable enduro joints
• Optimized suspension geometry
