Xd Cylinder Assist® Steering Gear – Jeep Wrangler Jk/Jku (2007–2018)

The SG684 Series gives you the right steering gear for your Jeep Wrangler JK or JKU—whether you're replacing a worn-out factory box or stepping up to a full Cylinder Assist® setup.

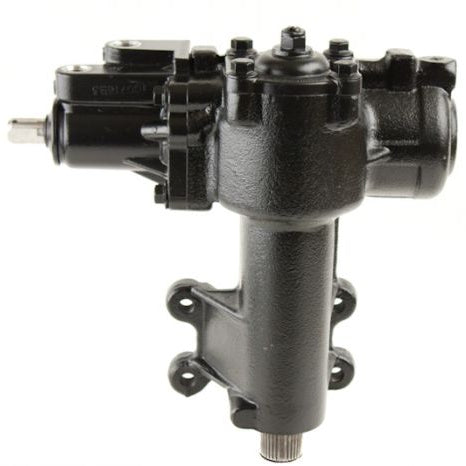

At the base level, the SG684 is a brand-new OEM-style replacement that bolts in like stock and restores proper steering feel. No core, no rebuild, no guessing.

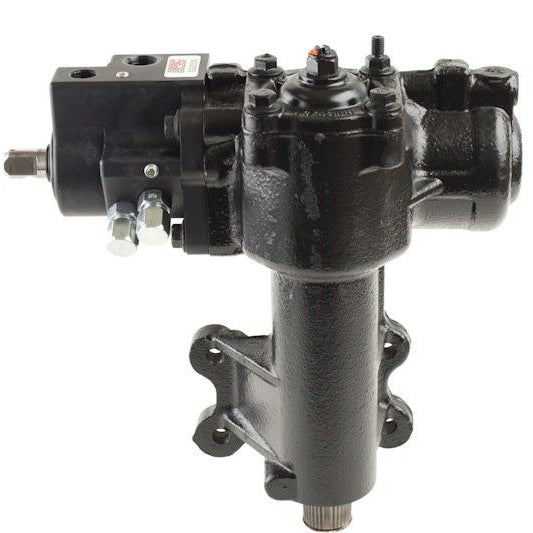

For builds that need more control and strength, the SG684R Cylinder Assist® gears take it further. These units are equipped with PSC’s integrated valve housing and upgraded components to run a hydraulic assist cylinder—giving you the steering authority you need for bigger tires, tougher terrain, and real off-road use.

Available in both left-hand drive and right-hand drive configurations depending on your build.

Heads‑up for installers

• Verify LHD vs RHD before ordering
• Cylinder Assist® gears require a full assist setup (cylinder, lines, pump, and reservoir)
• Proper system bleeding is critical for performance and longevity
• Always check pump condition, fluid, and hoses when replacing a steering gear

What’s included

• SG684 or SG684R Steering Gear (Pump kits and Cylinder Assist Cylinder or Axle Kits sold separately)

Use it with

• PSC Cylinder Assist® kits (for SG684R models)
• Upgraded PSC pumps and remote reservoirs
• Fresh fluid and properly matched steering components

Install Instructions

Bolt placement for SG688R for 2007-18 Jeep JK/JKU

OEM Cross Reference

Direct Replacement for:

• Mopar 68052897AE
• Mopar 52126348AE
