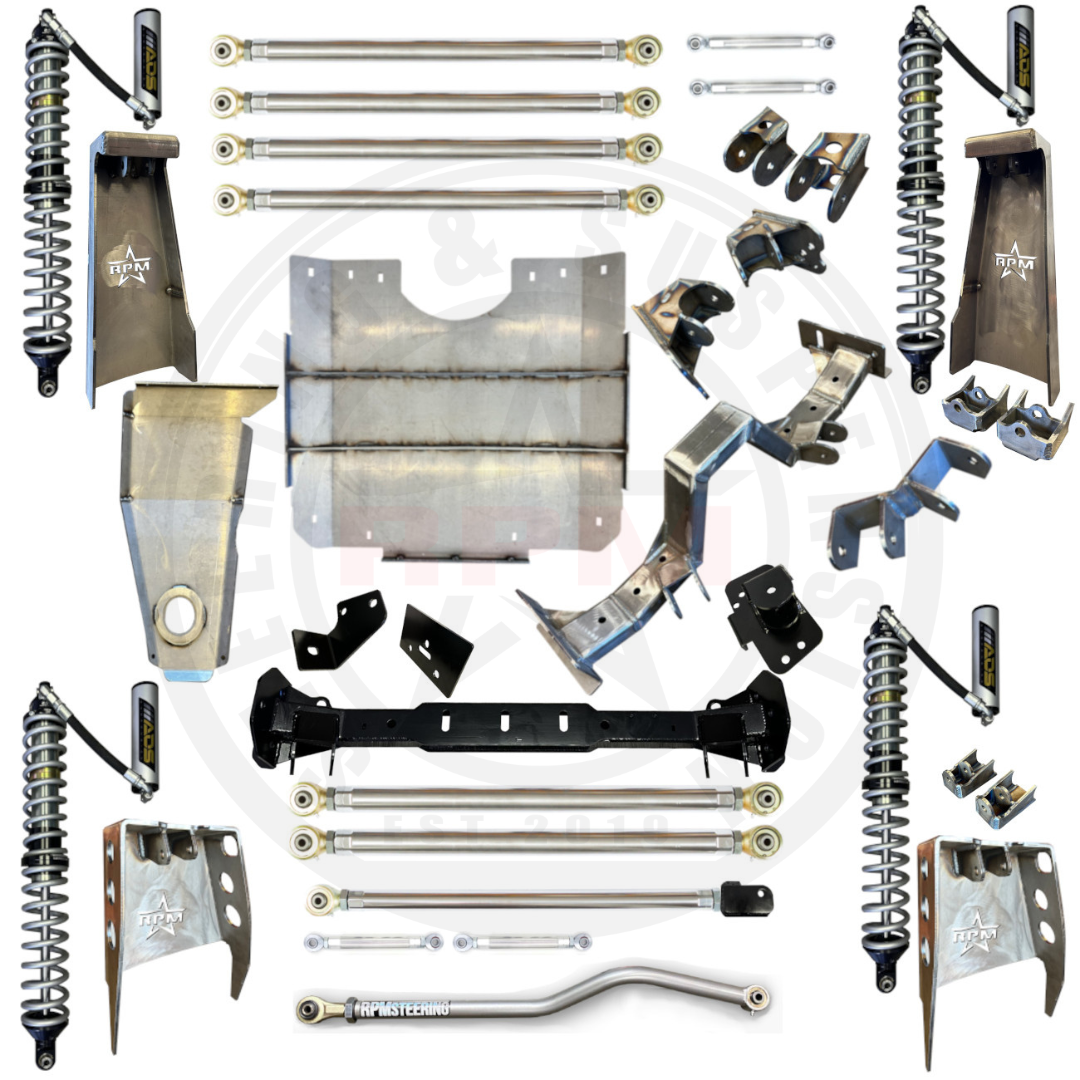

JLU 4 Door Wrangler STAGE 3 - Front 3 Link/Rear Double Triangulated Long Arm Lift Kit- ADS Front and Rear Coilovers
Ready to take your Jeep to the next level?
For around a decade, RPM Steering and Suspension has been manufacturing premium suspension components like our Ultimate 7075 T6 Aluminum control arms, track bars, and sway links. We are now bringing all of these parts together and pairing them with some of the top springs in the industry to bring complete RPM Steering and Suspension lift kits.
These kits will feature our USA-sourced and milled aluminum links with Rock Jock Narrow Johnny joints at each end for the best articulating long arms in the industry. At the same time, the Rock Jock ends provide a superior on-road feel and comfort. Our ultimate track bar have been performing for years using 1-3/8" .281 wall DOM for a perfect balance between comfort and strength with Rock Jock joints at both ends for industry-leading durability. As always, our parts come with our lifetime bend or break replacement warranty (see warranty page for details).
Now let's take that Jeep to the next level!
*****Rear Triangulated suspension requires a gas tank relocation behind the rear axle. Due to required diesel DEF systems this suspensions is only compatible for GAS Models or DEF deleted offroad only diesel models. Diesel owners check out our parallel long arm system that does not require a gas tank relocation.
THIS KIT REQUIRES CUTTING AND WELDING:
- Front cross member and supporting brackets are primarily bolt-on after some drilling and cutting away the factory control arm mounting brackets.
- Rear Crossmember/ Upper/ Lower Control Arm mounts require welding on the frame and axle side.
- A Flat Top Rear Axle Truss Is Required To Mount Your Upper Control Arm Mount Bracket. (Not included in this kit)
- Cutting away the factory control arm brackets is required.
- The gas tank is required to be relocated behind the rear axle for suspension clearance
- Front coil bucket and shock mounts required to be cut off
- Front inner liners will need to be modified or modified aftermarket liners to clear the coilover towers
MADE IN THE USA
*NOTE* 3.6L Gas Engine users will need to install an Exhaust Loop Delete kit such as the AFE Part number 48-48024 or Magnaflow Part number 19432 or similar.
Please Note
- This kit requires:
- Custom exhaust modification
- Cutting, Drilling and Welding
- The factory fuel tank must be removed and replaced with an aftermarket gas tank rear of the axle or in the bed.
- Rear axle to have a truss (not included)
- 68.5'' Min Width Axles
- Stock Rubicon/ Wide Track Axles require minimum 3.5'' backspace wheels up to 40's
- Hemi Swapped? Call for correct spring rates.
- Deleted Diesel? Call for details.
- Rear requires Rock Jock Anti Rock Sway Bar System
- Custom Length Brake Lines and Routing Required
