STAGE 3 JKU - 4.5'' Front 3 Link/Rear Double Triangulated Long Arm Lift Kit
Regular price
$15,719.98
Sale price
$15,719.98
Regular price
Unit price
STAGE 3 JKU - 4.5'' Front 3 Link/Rear Double Triangulated Long Arm Lift Kit
Product description
Kit Includes
Shipping

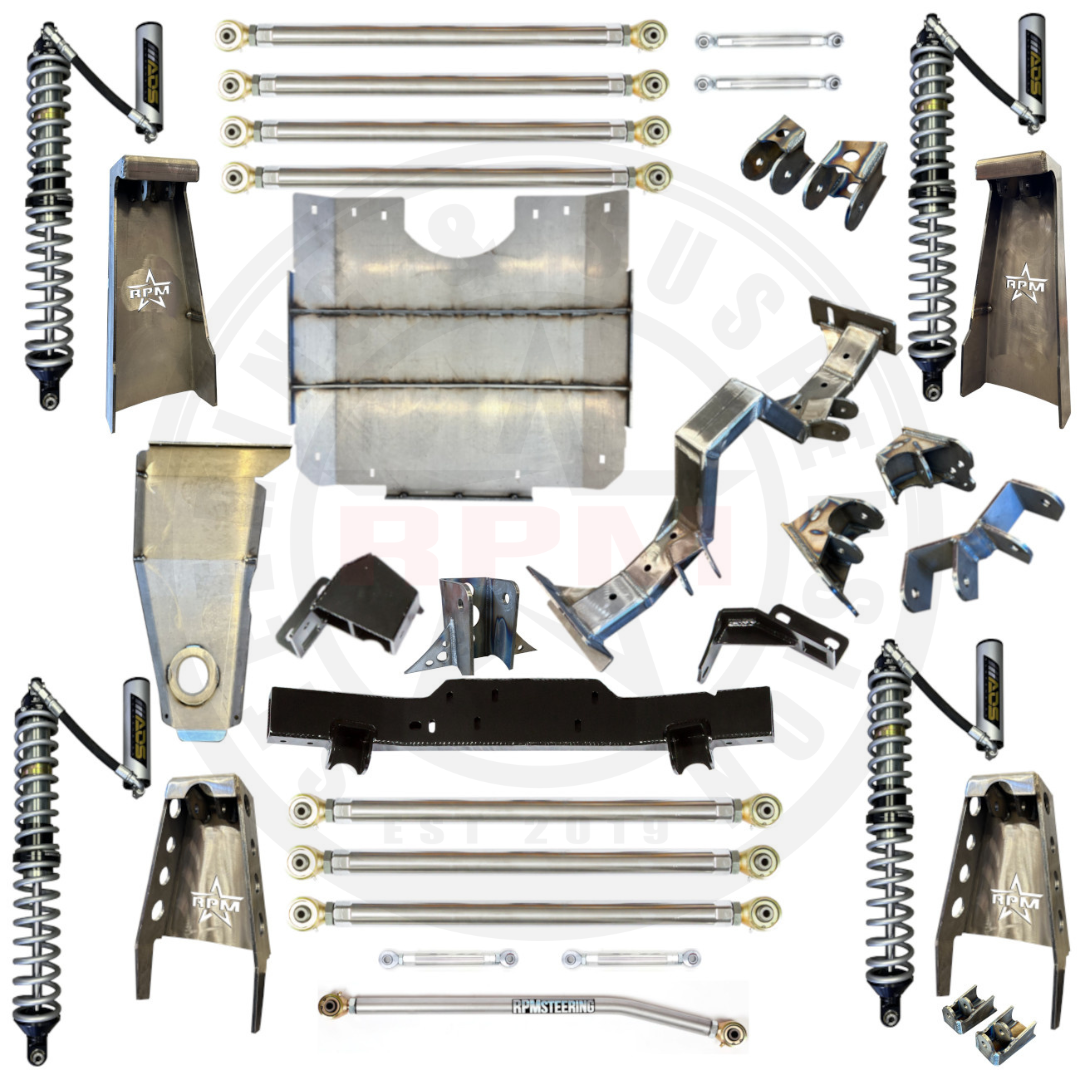

JKU 4 Door Wrangler STAGE 3 - Front 3 Link/Rear Double Triangulated Long Arm Lift Kit- ADS Front and Rear Coilovers
Ready to take your Jeep to the next level?
For around a decade, RPM Steering and Suspension has been manufacturing premium suspension components like our Ultimate 7075 T6 Aluminum control arms, track bars, and sway links. We are now bringing all of these parts together and pairing them with some of the top springs in the industry to bring complete RPM Steering and Suspension lift kits.
These kits will feature our USA-sourced and milled aluminum links with Rock Jock Narrow Johnny joints at each end for the best articulating long arms in the industry. At the same time, the Rock Jock ends provide a superior on-road feel and comfort. Our ultimate track bar have been performing for years using 1-3/8" .281 wall DOM for a perfect balance between comfort and strength with Rock Jock joints at both ends for industry-leading durability. As always, our parts come with our lifetime bend or break replacement warranty (see warranty page for details).
Now let's take that Jeep to the next level!
*Rear triangulated suspension requires a gas tank relocation behind the rear axle. (Not included in kit)
THIS KIT REQUIRES CUTTING AND WELDING:
- Front cross member and supporting brackets are primarily bolt-on after some drilling and cutting away the factory control arm mounting brackets.
- Rear Crossmember/ Upper/ Lower Control Arm mounts require welding on the frame and axle side.
- A Flat Top Rear Axle Truss Is Required To Mount Your Upper Control Arm Mount Bracket. (Truss Not included in this kit)
- Cutting away the factory control arm brackets is required.
- The gas tank is required to be relocated behind the rear axle for suspension clearance
MADE IN THE USA
Please Note
- This kit requires:
- Custom exhaust modification
- Evap canister will need to be relocated
- Cutting, Drilling and Welding
- The side factory fuel tank must be removed and replaced with an aftermarket gas tank rear of the axle.
- Rear axle to have a truss (not included)
- 68.5'' Min Width Axles
- Stock Rubicon/ Wide Track Axles require min 3.5'' BS wheels up to 40's
- Hemi Swapped? Call for correct spring rates
- Rear requires Rock Jock Anti Rock Sway Bar System
- Custom Length Brake Lines and Routing Required
