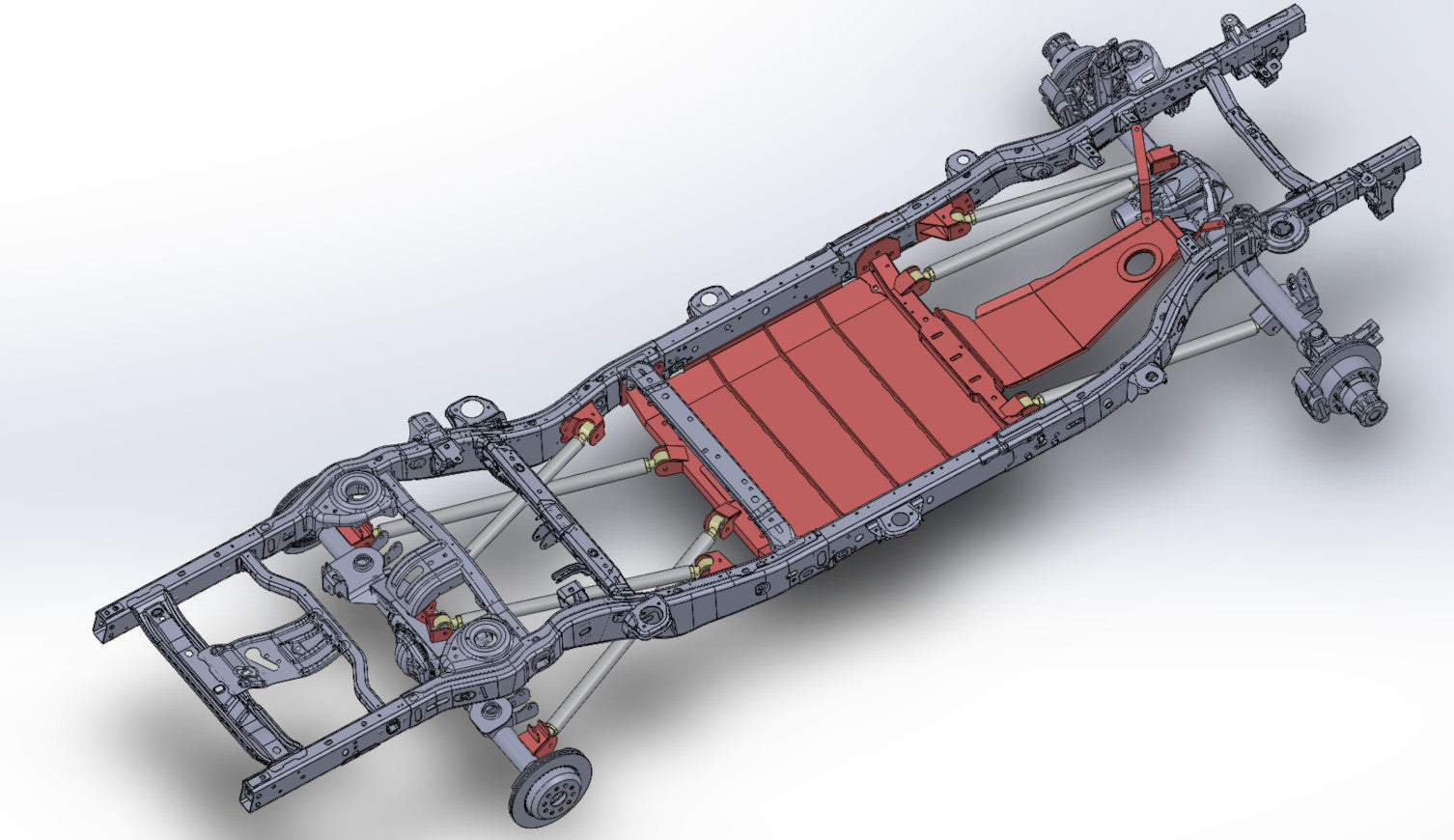

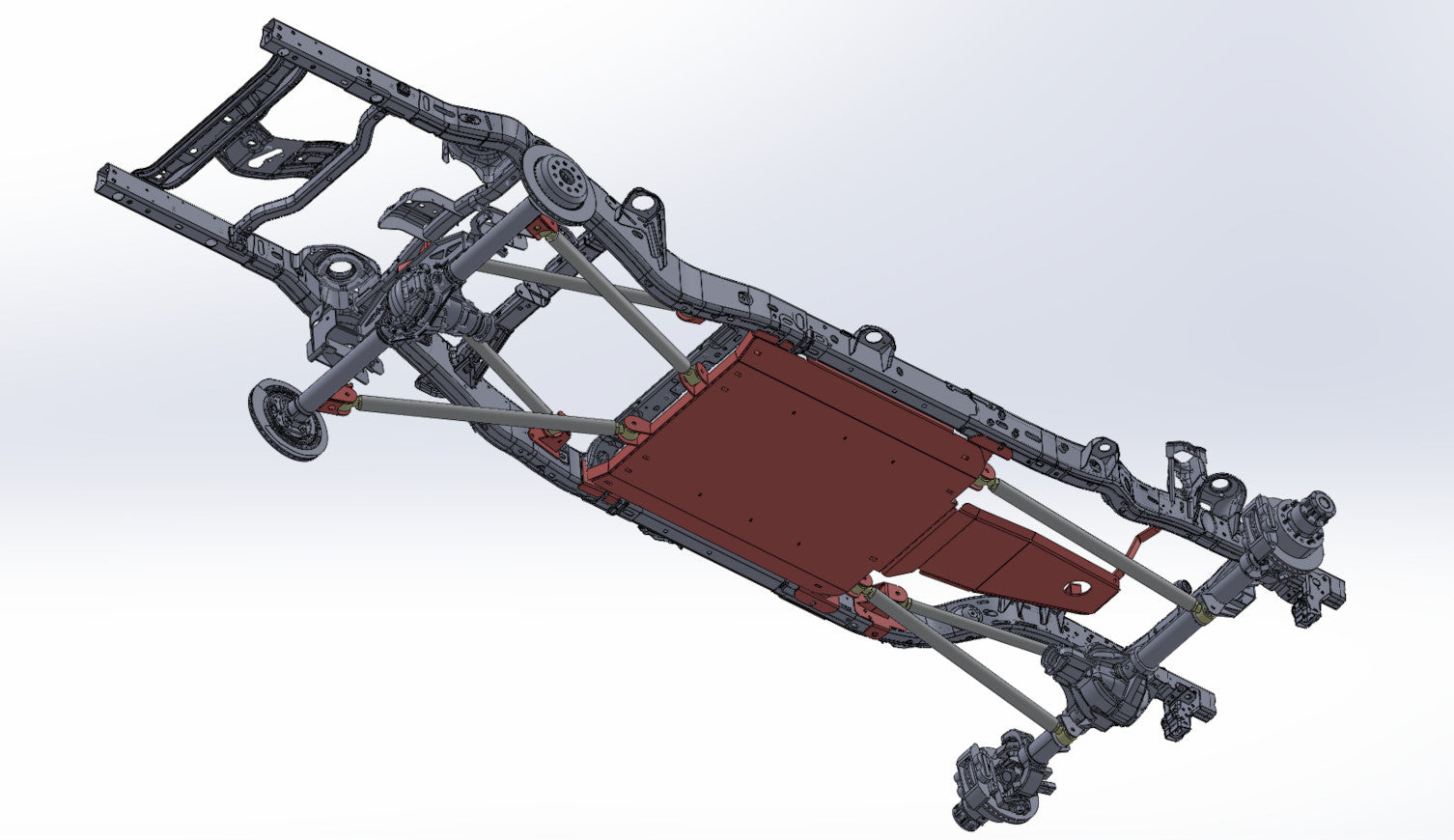

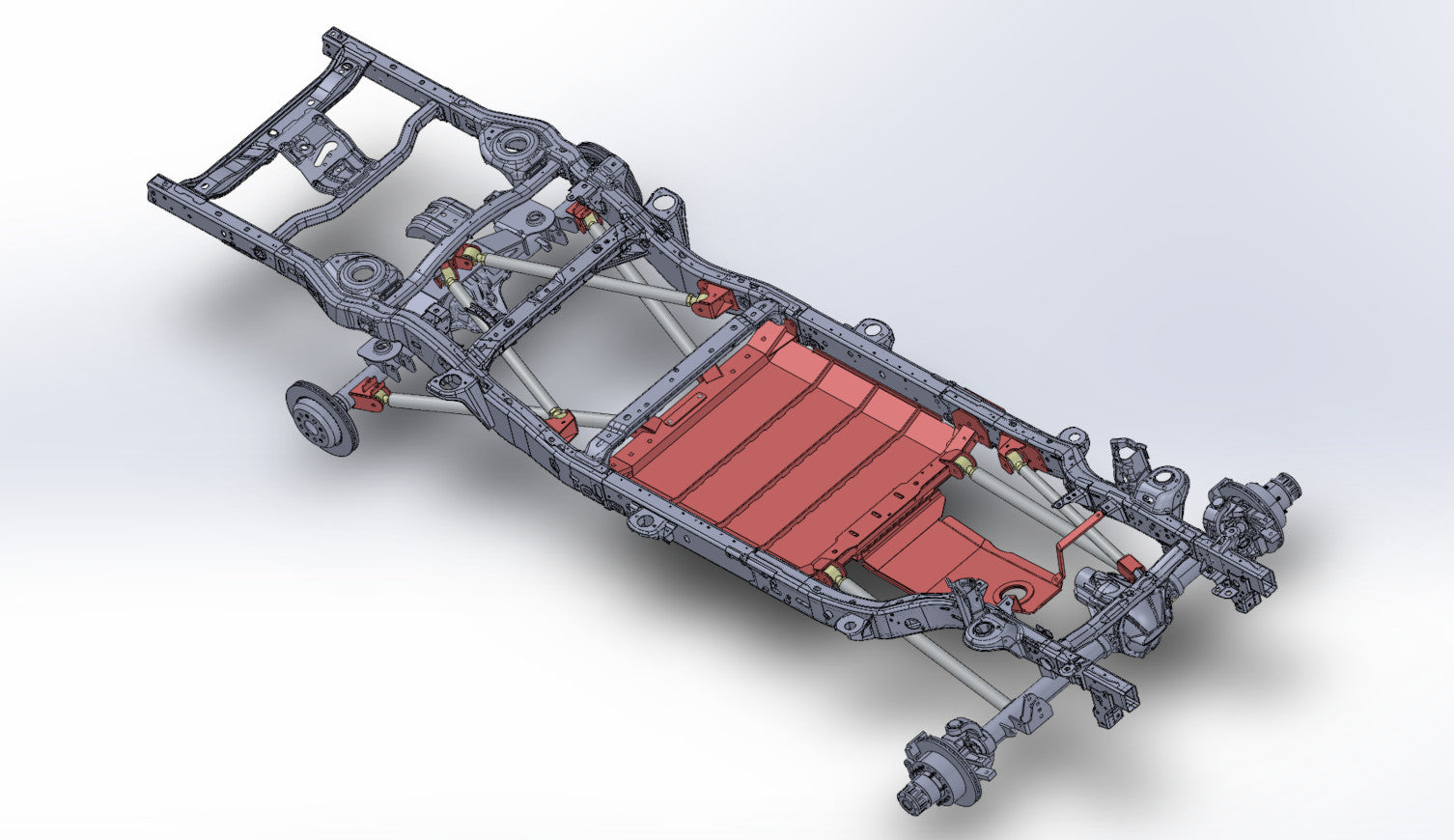

JT Bolt-In 3 Link Front and 4 Link Rear Double Triangulated Long Arm Kit

We set out years ago to design a double triangulation for the JKU that solved many challenges and restrictions with the JK platform. Now we are taking that technology into the JL/ JT platforms. We gave up a small amount of belly height (not a flat belly) to achieve better anti-squat and roll center numbers. The results were incredible and if our recommended rear axle separation is used a 94 anti-squat can be achieved on a JT. There is no need to remove the body for installation.

Please Note

  • This kit requires:
    • Custom exhaust modification
    • Cutting, Drilling and Welding

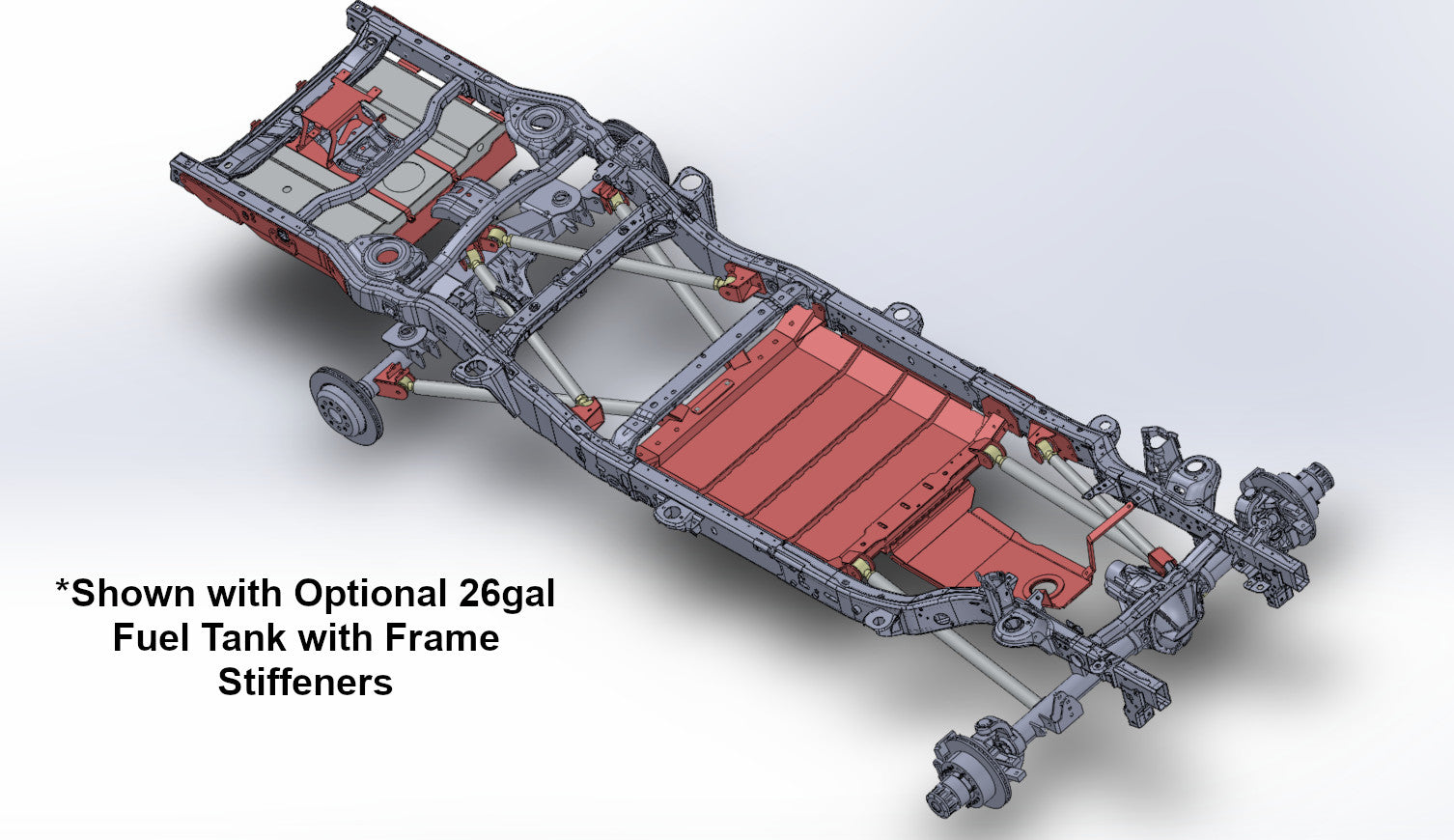

    • The side JT factory fuel tank must be removed and replaced with an aftermarket gas tank rear of the axle or in the bed.
    • Rear axle to have a truss (not included)
  • 68.5'' Min Width Axles
  • Stock Axles require min 3.5'' BS wheels up to 40's
  • Hemi Swapped? Call for correct spring rates
  • Deleted Diesel? Call for details.
  • Rear requires Rock Jock Anti Rock Sway Bar System
  • Custom Length Brake Lines and Routing Required

****NOTE**** 3.6L Gas Engine users will need to install an Exhaust Loop Delete kit such as the AFE Part number 48-48024 or Magnaflow Part number 19432 or similar.

  • Bolt-in front cross member with lower link mounts
  • Bolt-in driver side frame third link mount
  • Bolt-in reinforcement brackets for driver side cross member
  • 2.25" 7075 T6 aluminum lower links w/Rock Jock narrow joints at both ends
  • 1.75" 7075 T6 aluminum upper link w/Rock Jock narrow joint at frame and custom uniball at axle
  • (1) Pair Front Quick Disconnect Sway Links (Optional Rubicon Aluminum Pro Links. Pictured in stock photo.)
  • Rear weld in laser cut crossmember with lower link mounts
  • Rear weld in upper link frame side mounts
  • Truss top 4 link mounts (truss not included)
  • Axle side lower control arm mounts
  • (2) 1.75" solid 7075 T6 aluminum links with narrow Rock Jock Johnny Joints
  • (2) 2.25" solid 7075 T6 aluminum links with narrow Rock Jock Johnny Joints
  • (1) Skid Plate 1/4" laser cut and CNC broke smooth bottom
  • (1) Engine Skid Plate 1/4'' laser cut and CNC broke
  • Includes all grade 8/10.9 hardware
