Rocker Guards for Factory Flares for Jeep LJ Unlimited

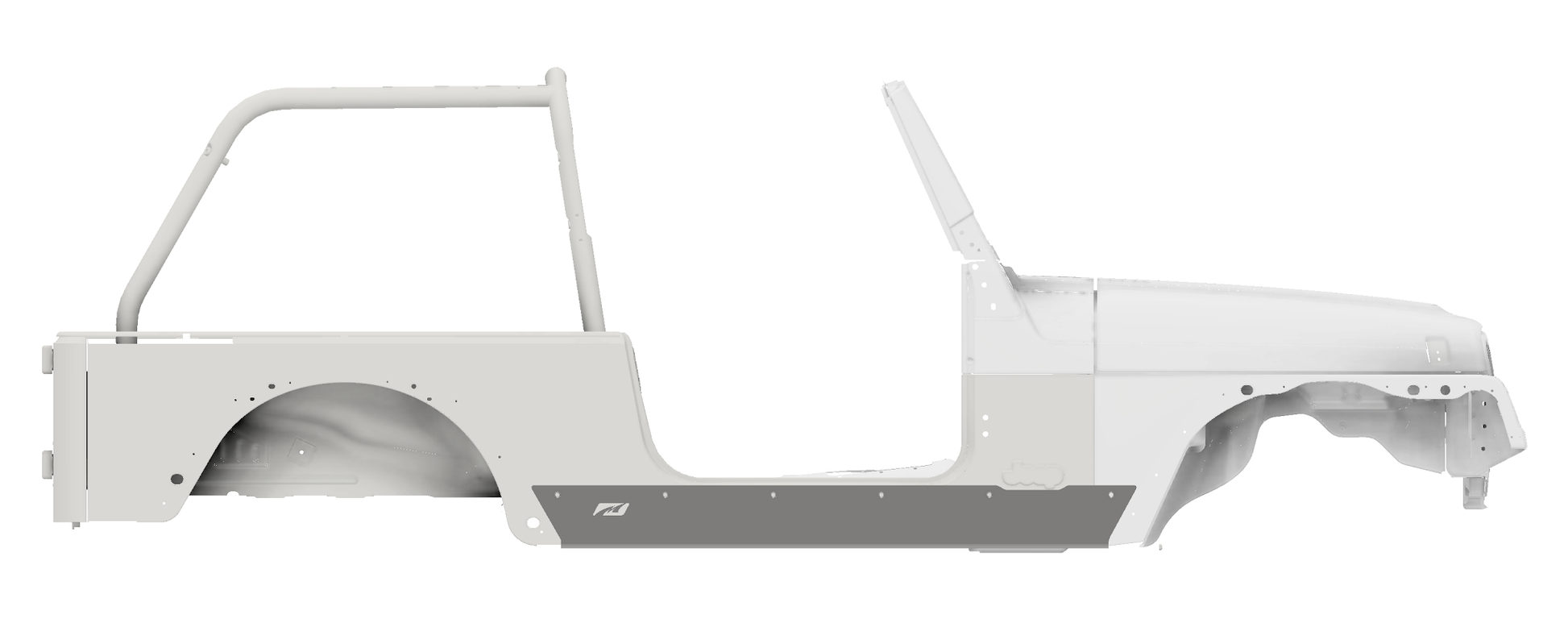

The rocker area on an LJ takes constant abuse. Doors, lower tub, and body mounts are all exposed once the rocks get tight.

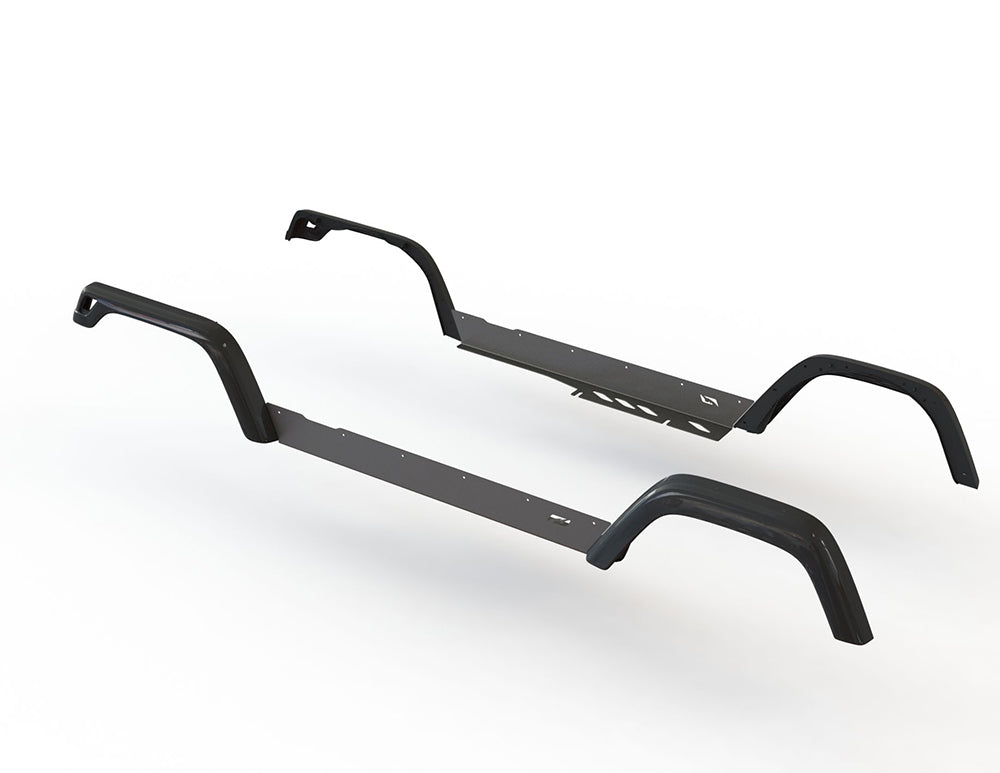

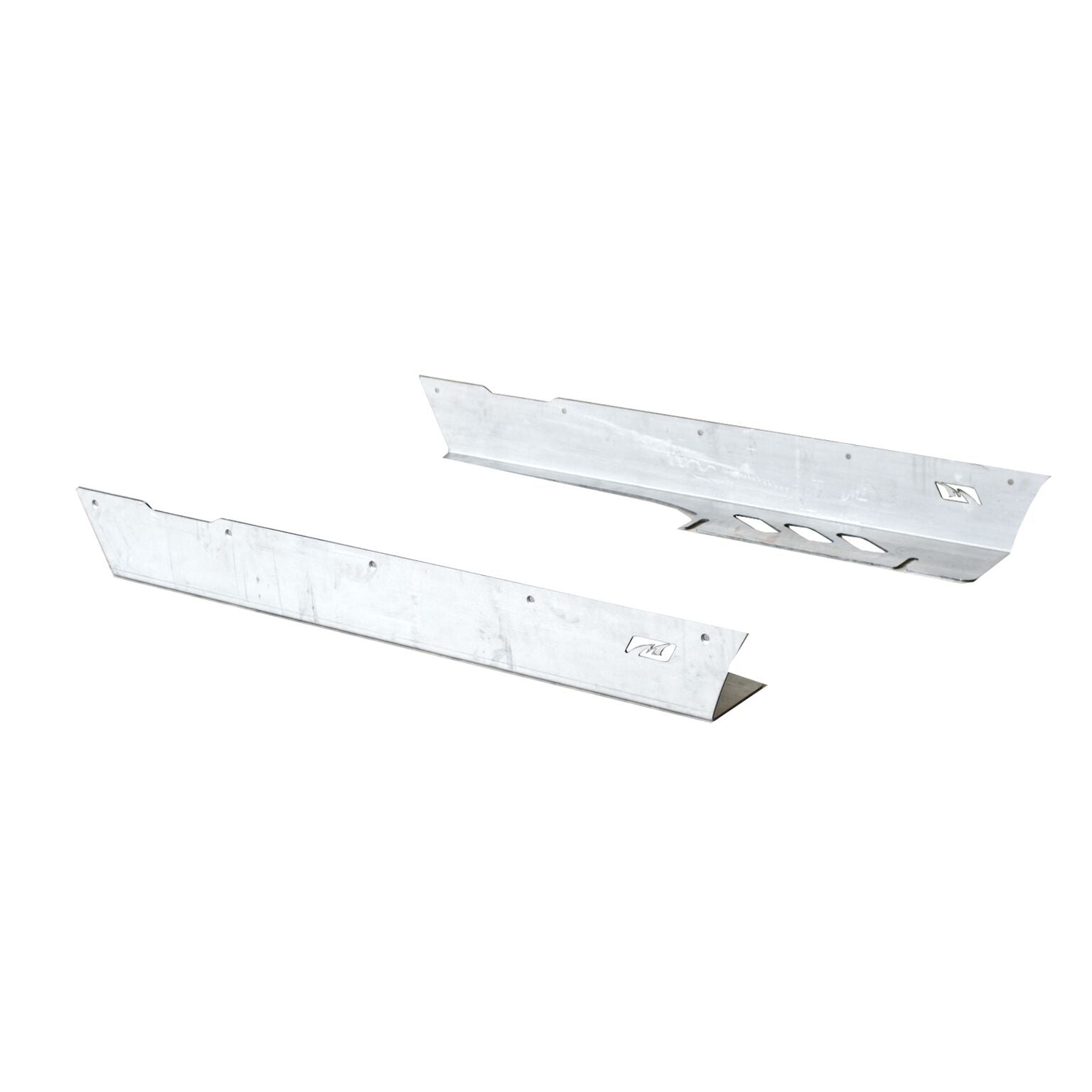

Motobilt Jeep LJ Unlimited rocker guards are built from 3/16 inch thick steel plate and designed to work with factory Jeep fender flares. They protect the section between the flares while extending underneath the body and tying into the body mounts for added structural support.

These guards are laser cut and CNC formed for precise fitment. The wrap-under design reinforces the lower tub and spreads impact across more than just the outer sheet metal. Instead of relying on thin body panels, the load transfers into stronger mounting points.

Mounting holes are countersunk for a smooth installed finish. The lower section features laser cut clean-out slots so mud, sand, and debris can be washed out after a long day on the trail.

This is full rocker protection built to take hits without compromising the body.

Important Information:

Drilling required for installation.

• Ships raw steel and must be painted or powder coated to prevent rust.
• 5/16 inch nut serts require a 17/32 inch drill bit for installation.
• Reuses factory 7/16”-14 body mount hardware.
