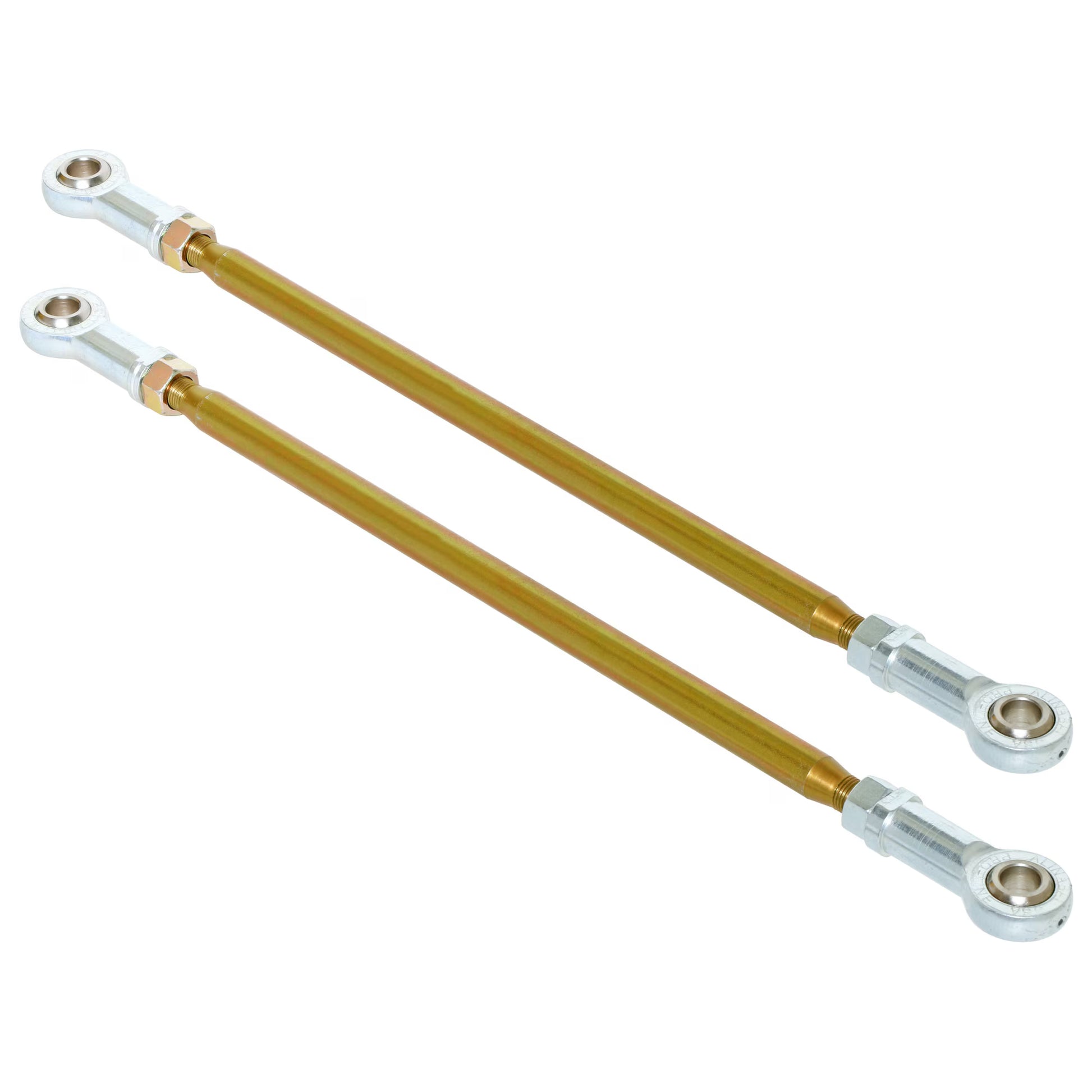

RJ-253200-101 - Antirock Sway Bar End Links w/ Heims (15 1/2 in. Rods)

RockJock's Adjustable Sway Bar End Link Set features 15 1/2 in. long link rods with a 5/8 in. diameter body (to maintain rigidity at this length) and 1 1/2 in. of 1/2 in.-20 LH thread and 1 1/2 in. of 1/2 in.-20 RH thread to provide adjustment.
Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
The heim joints in this kit feature 1/2 in. thru holes and nyloc nuts and jam nuts are included.

Kit Fits:

• Universal Use
• Included in JT Gladiator Rear Antirock Sway Bar Kits

Kit Includes:

• (2)  15 1/2 in. Link Rod (gold)
• (2)  1/2 in.-20 LH Thru-Bolt Heim Joint
• (2)  1/2 in.-20 RH Thru Bolt Heim Joint
• (2)  1/2 in.-20 LH Jam Nut
• (2)  1/2 in.-20 RH Jam Nut

Adjustment Range:

• Closed – 17 11/16 in.C-C
• Extended – 18 7/8 in.C-C

Component Specs.:

• Gold Rod Length  =  15 1/2 in. Long
• Gold Rod Diameter  =  5/8 in.
• Gold Rod LH Threads  =  1/2 in.-20 x 1 1/2 in. Long
• Gold Rod RH Threads  =  1/2 in.-20 x 1 1/2 in. Long
• Gold Rod Center Smooth Area  =  12 1/2 in. Long
• Heim Joints  =  req. 19mm wrench
• Jam Nuts  =  req. 3/4 in. wrench

Notes:

• These are the links that we include in our JT rear Antirock kits,

Parts List:

• 15 1/2 in. Link Rods (gold):  RJ-253200-1
• 1/2 in.-20 LH Thru-Bolt Heim Joint:  CE-99006BL
• 1/2 in.-20 RH Thru-Bolt Heim Joint:  CE-99006B
• 1/2 in.-20 LH Jam Nut:  CE-H0020
• 1/2 in.-20 RH Jam Nut:  CE-99002JN
