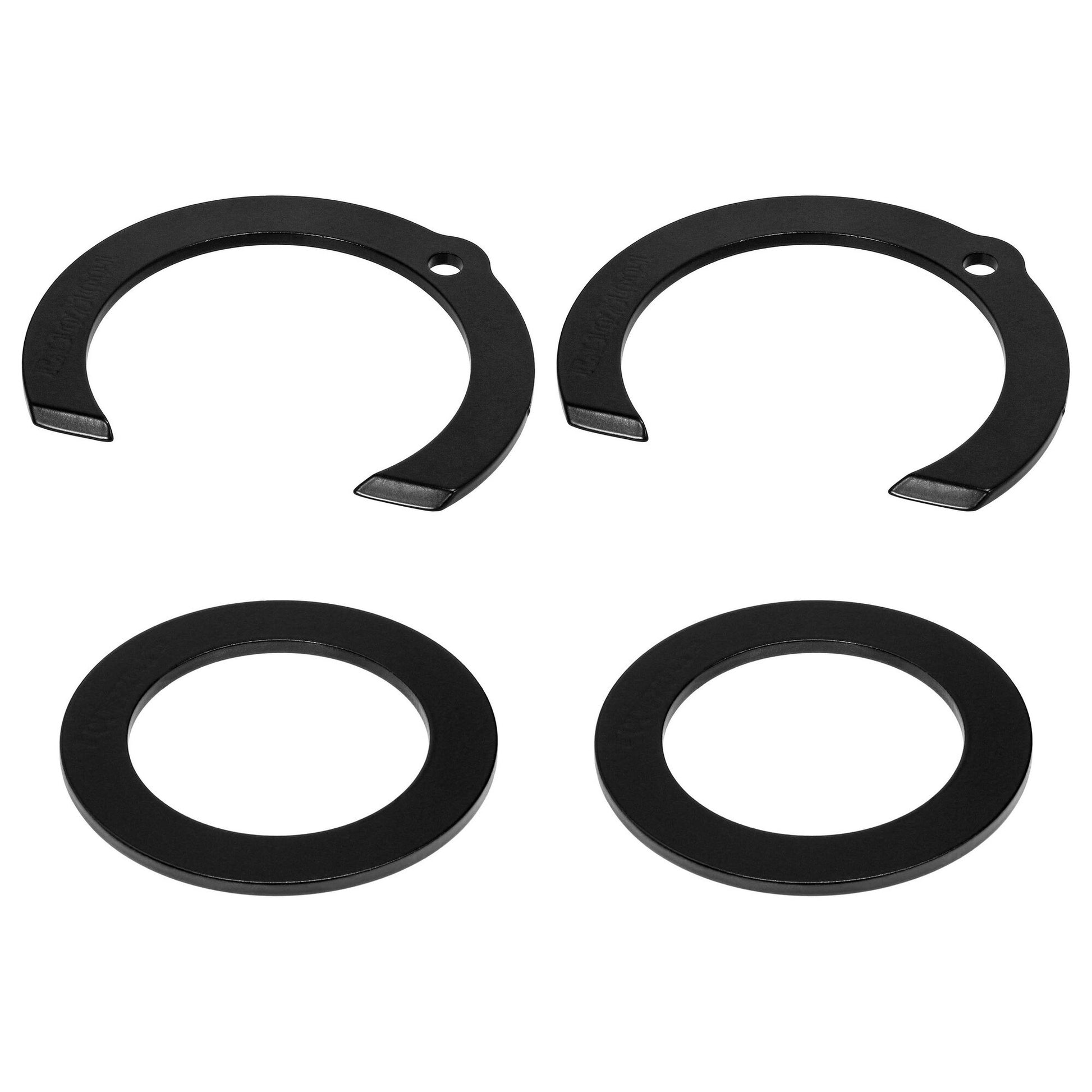

RJ-107SHIM-BDL - JL/JT Coil Spring Shim Pack

RockJock’s JL/JT Coil Spring Shim Pack is great to have on hand when building a custom vehicle! No 2 custom vehicle builds are the same, especially once they are loaded down and have some miles on the build.
Not intended to be coil spring spacers, having this shim pack handy allows you to shim your coils as needed to fine tune a lean by inserting a shim between the welded on coil spring axle pad and the coil spring isolator.

Kit Fits:

• JL Wrangler Unlimited (4-door) - All Models (front and rear)
• JL Wrangler (2-door) - All Models (front and rear)
• JT Gladiator - All Models (front only)

Kit Includes:

• (1)  3/16 in. Thick Front Coil Spring Shim (JL/JT)
• (1)  1/4 in. Thick Front Coil Spring Shim (JL/JT)
• (1)  3/16 in. Thick Rear Coil Spring Shim (JL only)
• (1)  1/4 in. Thick Rear Coil Spring Shim (JL only)

Components Specs.:

• Construction  =  laser cut steel
• Material  =  A36 steel
• Thickness  =  (2)  3/16 in.  /  (2)  .250 in.
• Stacking  =  3/16 in. shims can stack 2 high maximum, 1/4 in. shims do not stack
• Hole Diameter  =  .394 in.
• Finish  =  semi-gloss black

Notes:

• 3/16 in. thick shims may be stacked a maximum of 2 high
• 1/4 in. thick shims may not be stacked at all (with a 3/16 in. shim or another 1/4 in. shim

Parts List:

• Front Coil Spring Shim (3/16 in.):  RJ-107100-1
• Front Coil Spring Shim (1/4 in.):  RJ-107100-3
• Front Coil Spring Shim (3/16 in.):  RJ-107400-1
• Front Coil Spring Shim (1/4 in.):  RJ-107400-3
