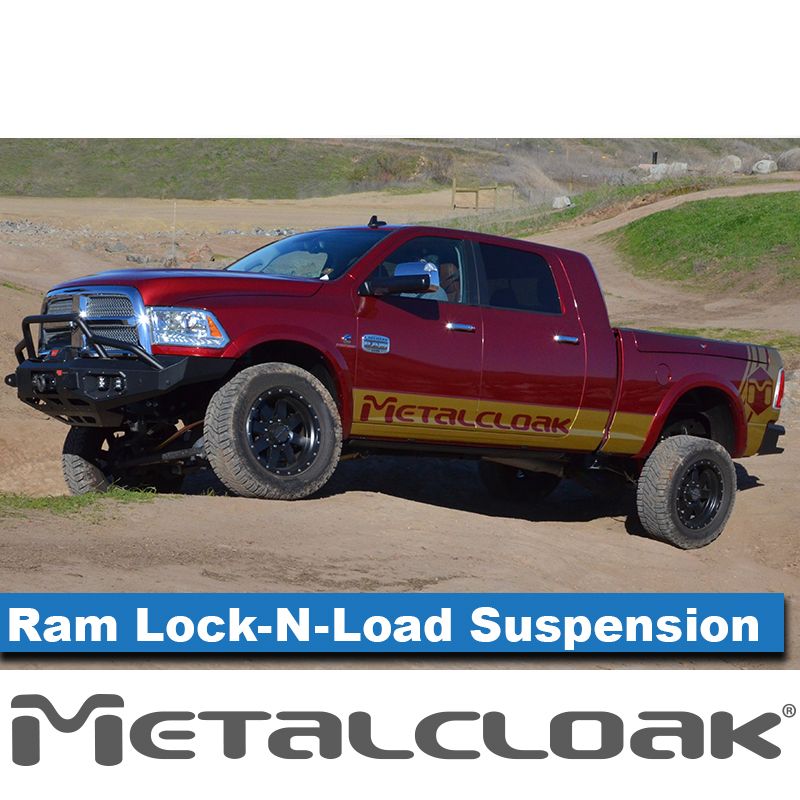

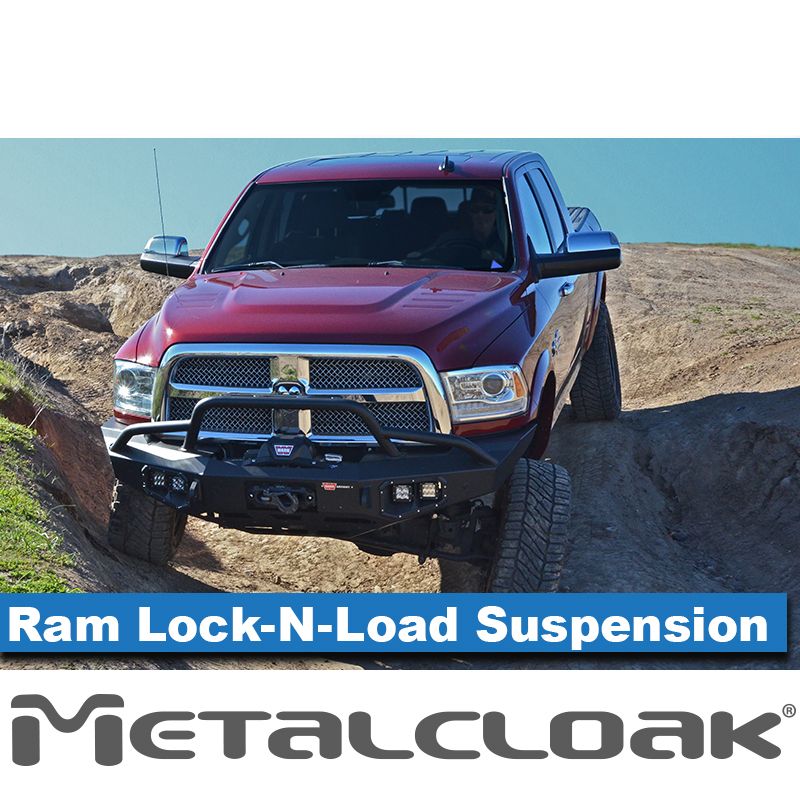

Ram 2500 3.5" Lock-N-Load Radius Arm Suspension & Lift Kit, [Diesel 2014 - 2018]

The RAM Lock-N-Load™ Radius Arm Suspension is the only Long Arm system that provides bind-free front radius arms, along with True Dual-Rate™ coils and Kevlar infused Duroflex™ joints for the best performance on or off-road, work or play.

The most Technologically advanced Suspension system available for the RAM Truck. Patented and proven technology ONLY available from MetalCloak makes this the Gold Standard for RAM Truck owners.

True Dual-Rate Coils with front anti-bow coils are supported with massive lower coil-correct captures with additional polyurethane upper coil capture/isolators for the smoothest ride available.

Massive, Kevlar infused Duroflex joints are housed in Adjustable Forged Ends that thread into strong 2in OD DOM Control arms for amazing flex and NVH (noise/vibration/harshness) capabilities along with maintenance-free durability you demand for your truck.

Choose between the Ram Radius arm or the MetalCloak exclusive Ram Lock-N-Load upper control arm that allows for stability on the road for daily driving and unleashes the flex of the suspension when off-road situations require maximum tire contact.

The Front and Rear Track Bars come with the Patented Durotrak™ Bushing is a NVH (noise, vibration, harshness) bushing made with a proprietary elastomer compound unique to MetalCloak. The Durotrak™ two part bushing is comprised of two pieces that thread together making this bushing simple to install without a press, reduces vibration and harshness transferred to the driver, and improves vehicle steering input.

The Front track bar comes with a oversized 1" Heim Joint has carbon fiber-reinforced insert reducing wear and eliminates the need for lubrication. Made of strong steel, these rod ends handle higher loads over stainless steel, aluminum, and nylon rod ends. The heim joints are zinc plated to resist corrosion.

The Durotrak adjustable rear track bar for the Ram Truck is built with Patented Durotrak 2 piece bushing that is mounted to the solid 1.375 OD 4130 chromoly bar. The bar is finished in gold zinc for the ultimate in durability against the elements.

Front and Rear bump stops towers reposition the factory parts to function correctly for the added lift height.

This is a complete Game-Changing suspension system that will provide a smoother ride on the road while maximizing performance off--road. Work or play enjoy the Gold-Standard the MetalCloak Ram suspension provides.

Note: The MetalCloak Ram Suspension System is for Ram 2500 Diesel Trucks.

Note: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.

Note: We recommend you have a suspension specialist align your Ram once a MetalCloak suspension is installed.

Note: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.

Note: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.

IMPORTANT NOTES

Diesel: The MetalCloak Ram Suspension System is for Ram 2500 Diesel Trucks.

True Dual Rate Coils: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.

Suspension Alignment: We recommend you have a suspension specialist align your Ram once a MetalCloak suspension is installed.

System Customization: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.

System Components: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.

Select Shock Type

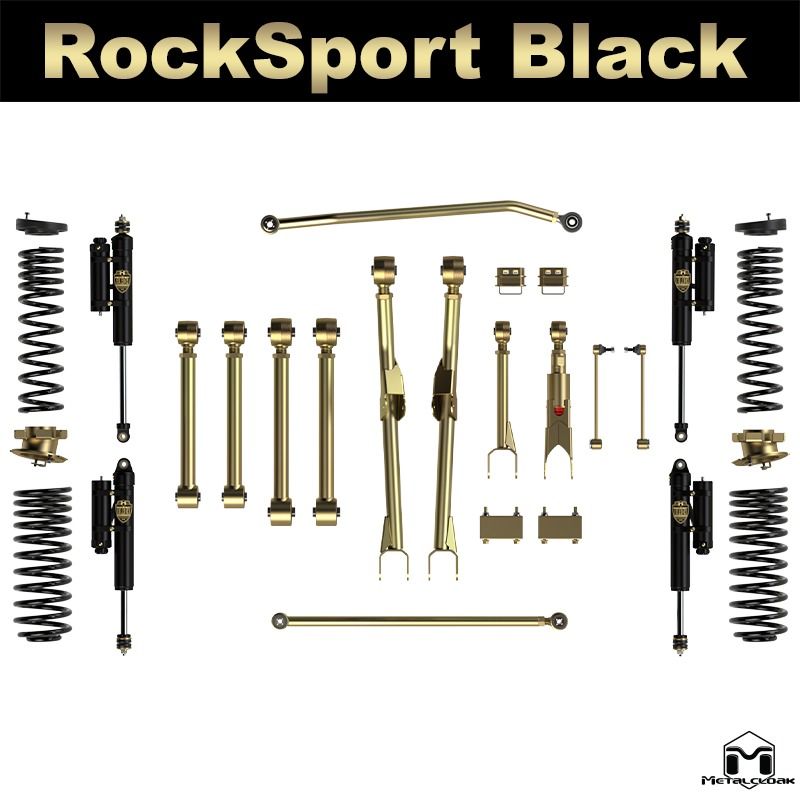

It's about choice. Use any shock set-up you choose; MetalCloak provides recommended shock options for ultimate performance:

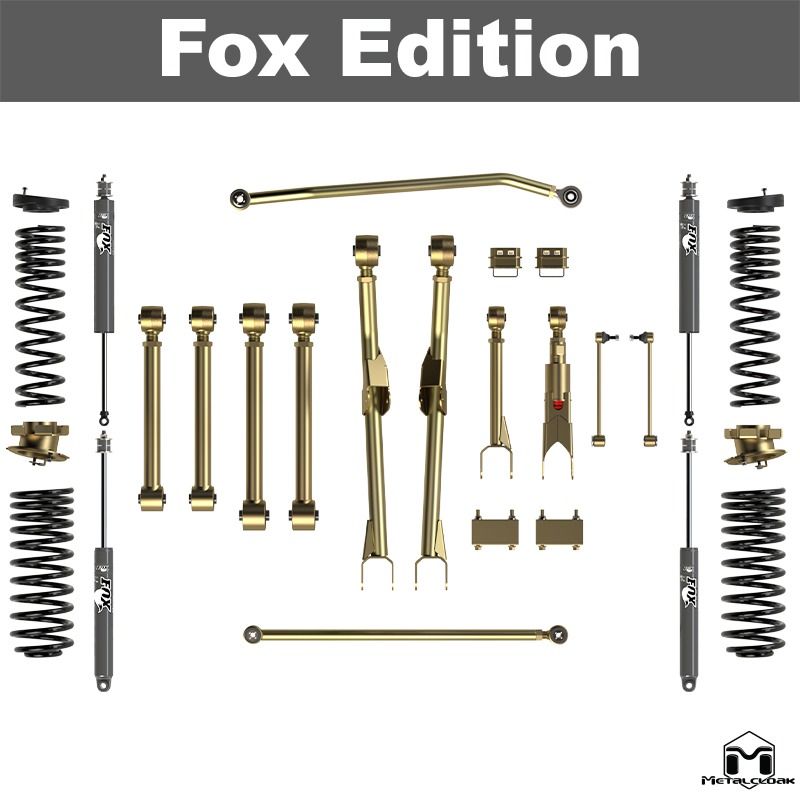

• Fox Shocks - Comes with Front & Rear Fox Shocks

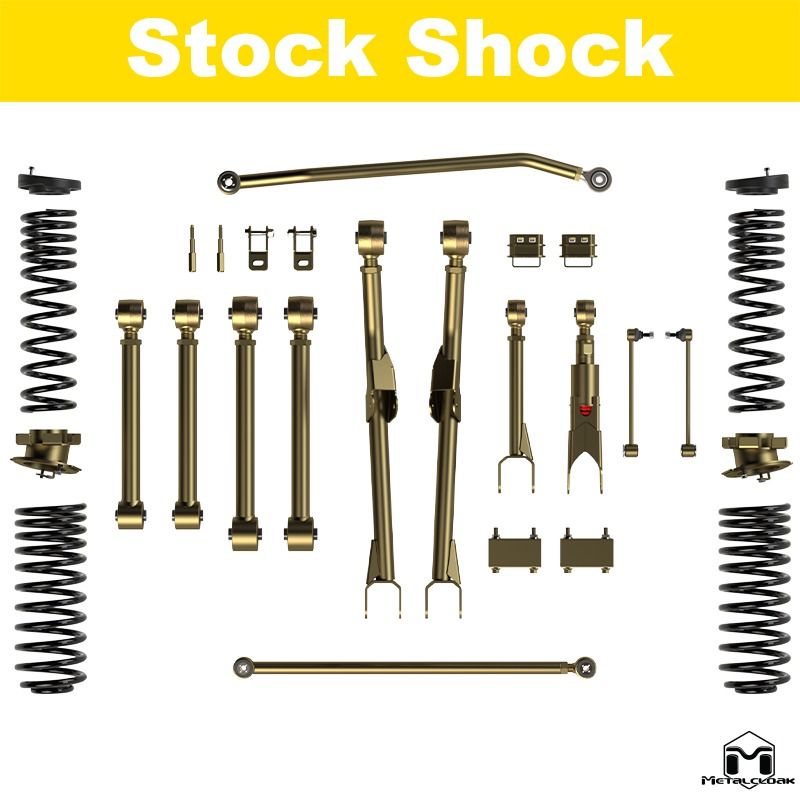

• Stock Shocks - Comes with Stock Shock Extension Kit

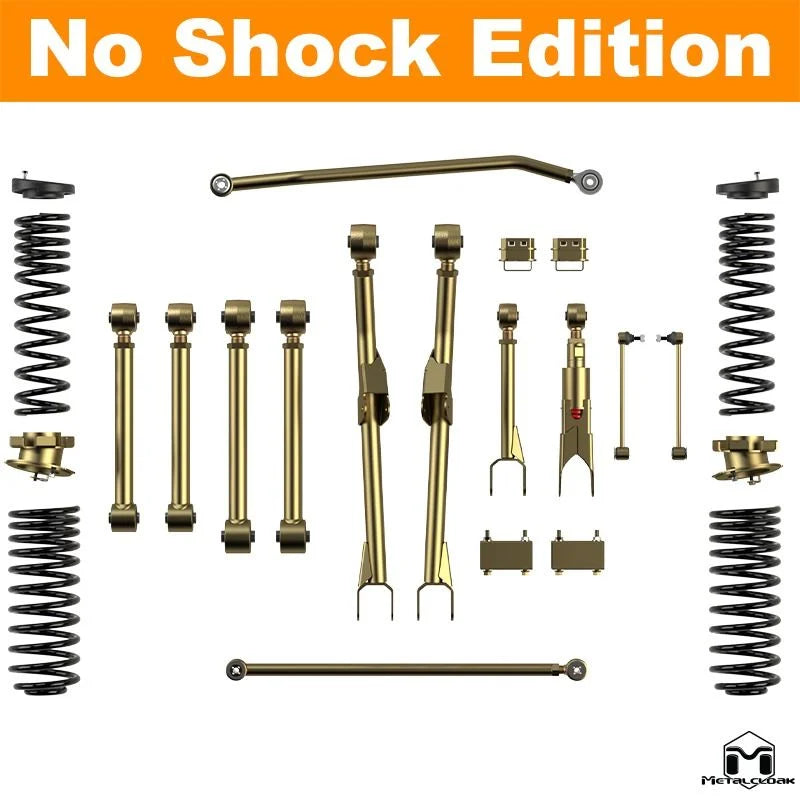

• No Shocks - No Additional Parts

INSTALLATION
