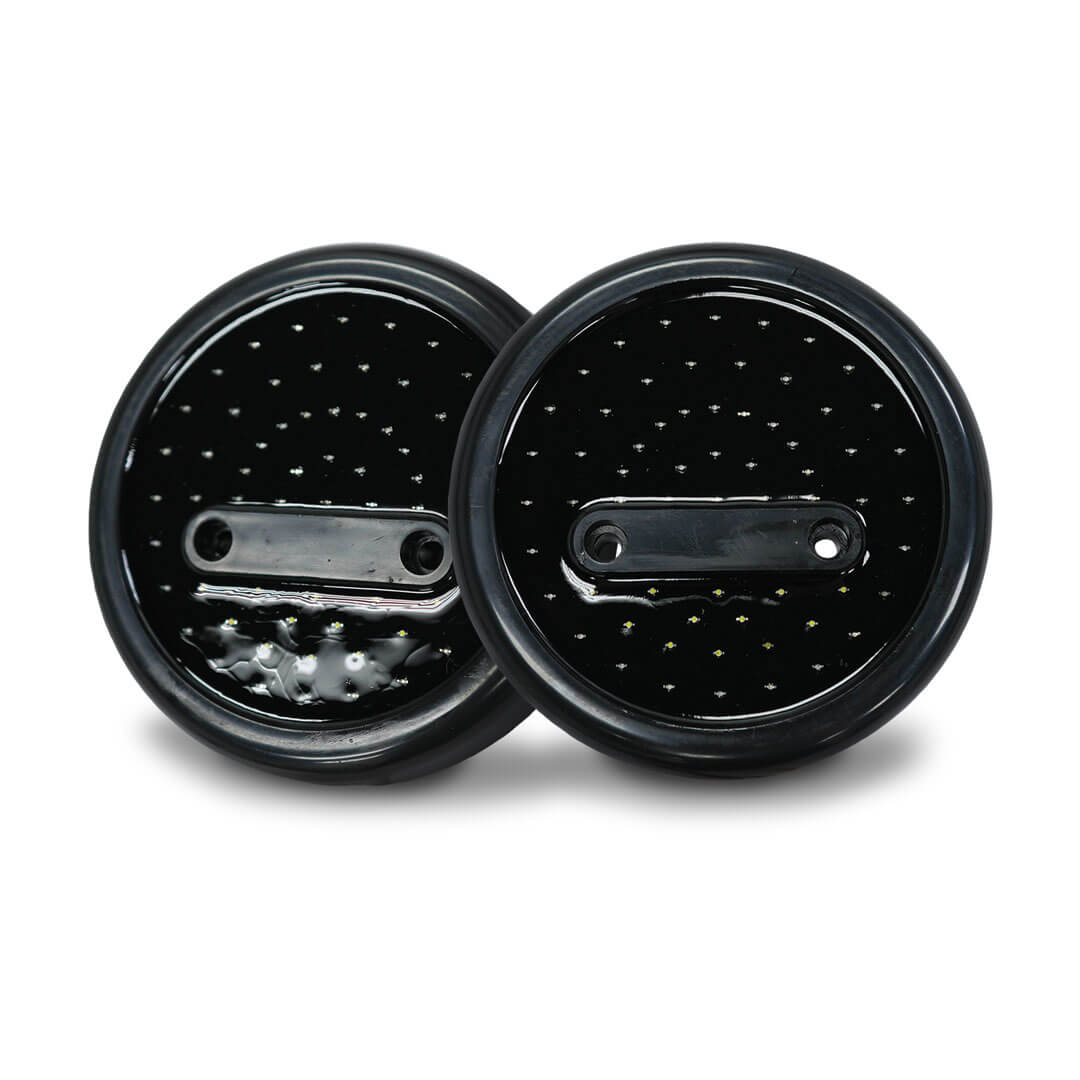

LED Round Taillight, 5" Round Surface Mount

LED taillights have a rugged low profile with a unique eye catching design that enhances your vehicle’s appearance. They are constructed of the highest quality materials and completely sealed making them water proof and nearly indestructible.

Built with 100% Solid-state circuitry they are shock and vibration proof¹. The left and right housings incorporate running, stop, turn, and reverse indicators along with side marker lights. Designed as a replacement for Jeep® trailer style tailights, taillights bolt onto Jeep® Wranglers™ TJs, YJs, and CJs without drilling.

Note: If not already installed, an LED rated flasher replacement is required to eliminate “Hyper Flash”. You will need an LED replacement flasher for 2001 to 2006 TJ’s that have the headlight switch on the turn signal stalk.

SOLD AS A PAIR

1. Models other than Jeep® Wrangler™ may require drilling to attach. OEM license plate mount on Jeep® TJ’s may require trimming to clear the taillight housing.

Features:
• These measure 5 inches in diameter and are mounted with 2 through bolts through the face
•
High density pattern of 69 LEDs: 54 red, 12 white, and 3 red side markers per housing.
• High intensity LEDs deliver crisp, sharp light.
• Taillights appear black when off.
• Low profile housing measures less than 1″ thick.
• Housings made of high impact poly carbonate and a clear acrylic urethane lens.
• Materials are UV stabilized to resist discoloration.
• Adhesive reflector tape included to allow user to comply with most vehicle regulations.

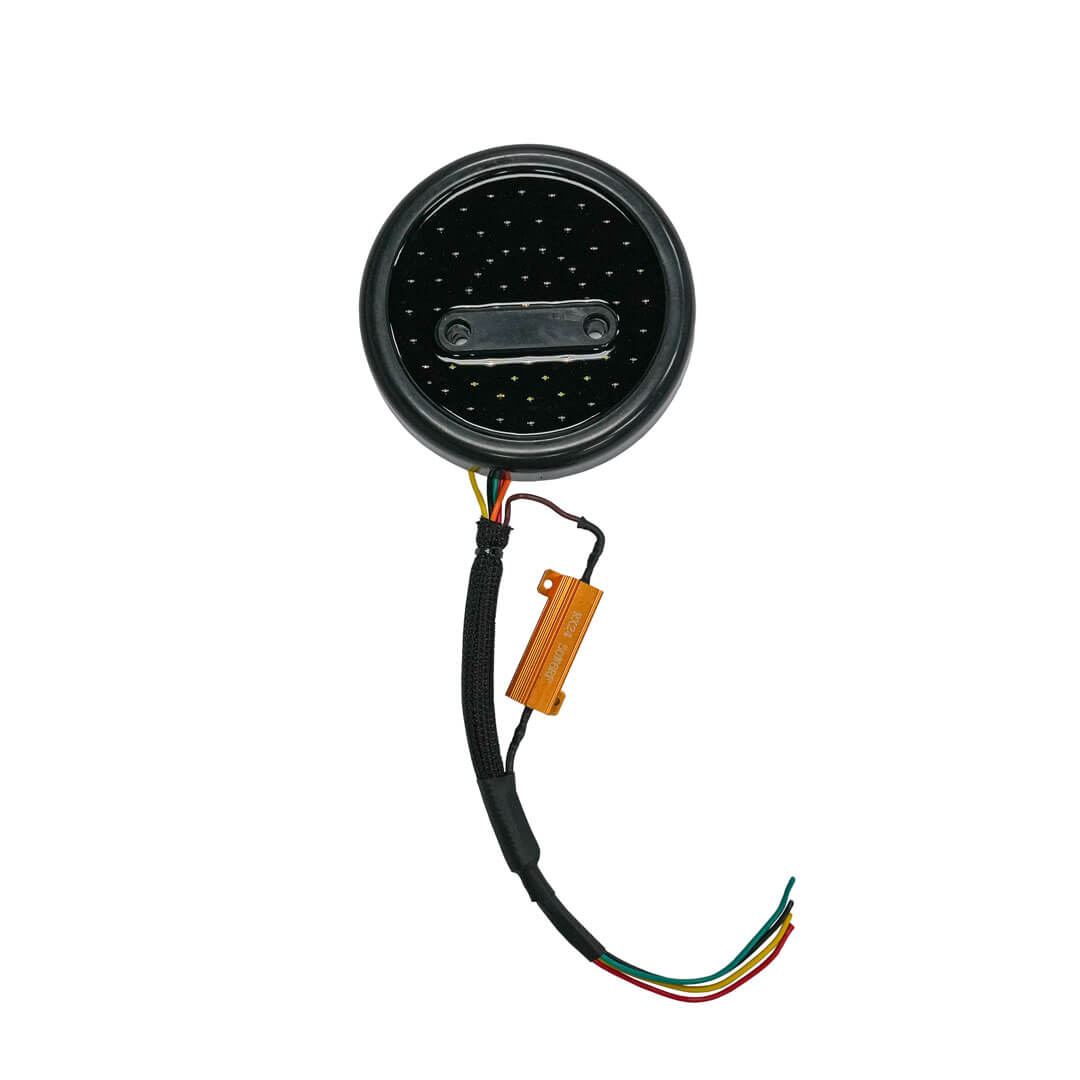

Wiring: resistor is only needed in JK and JL applications. If installing in a 1997-2000 TJ you will need a led flasher as well.

Red = Running light

Black = Ground

Green = Reverse

Yellow = Stop/Turn

Orange = Ground

Compatible With:

CJ, JL, JLU, JT, TJ, YJ
