JLU Double Triangulated 4-Link Rear Long Arm Bracket Kit

We set out 2 years ago to design a double triangulation for the JLU that solved many challenges and restrictions with the JL platform. We gave up a small amount of belly height (not a flat belly) to achieve better anti-squat and roll center numbers. The results were incredible and if our recommended rear axle separation is used a 94 anti-squat can be achieved on a JLU. There is no need to remove the body for installation.

Please Note

  • This kit requires:
    • An exhaust modification.
    • Cutting off factory mounts. Welding in new mounts.
    • The side JLU factory fuel tank be removed.
    • Rear axle truss required and sold separately.
  • Our skid plate can be modified to work with other front crossmembers (call for details)
  • Evaporative canister will need to be relocated
  • This kit DOES NOT INCLUDE control arms or joints. Build your own or order from us when you are ready!

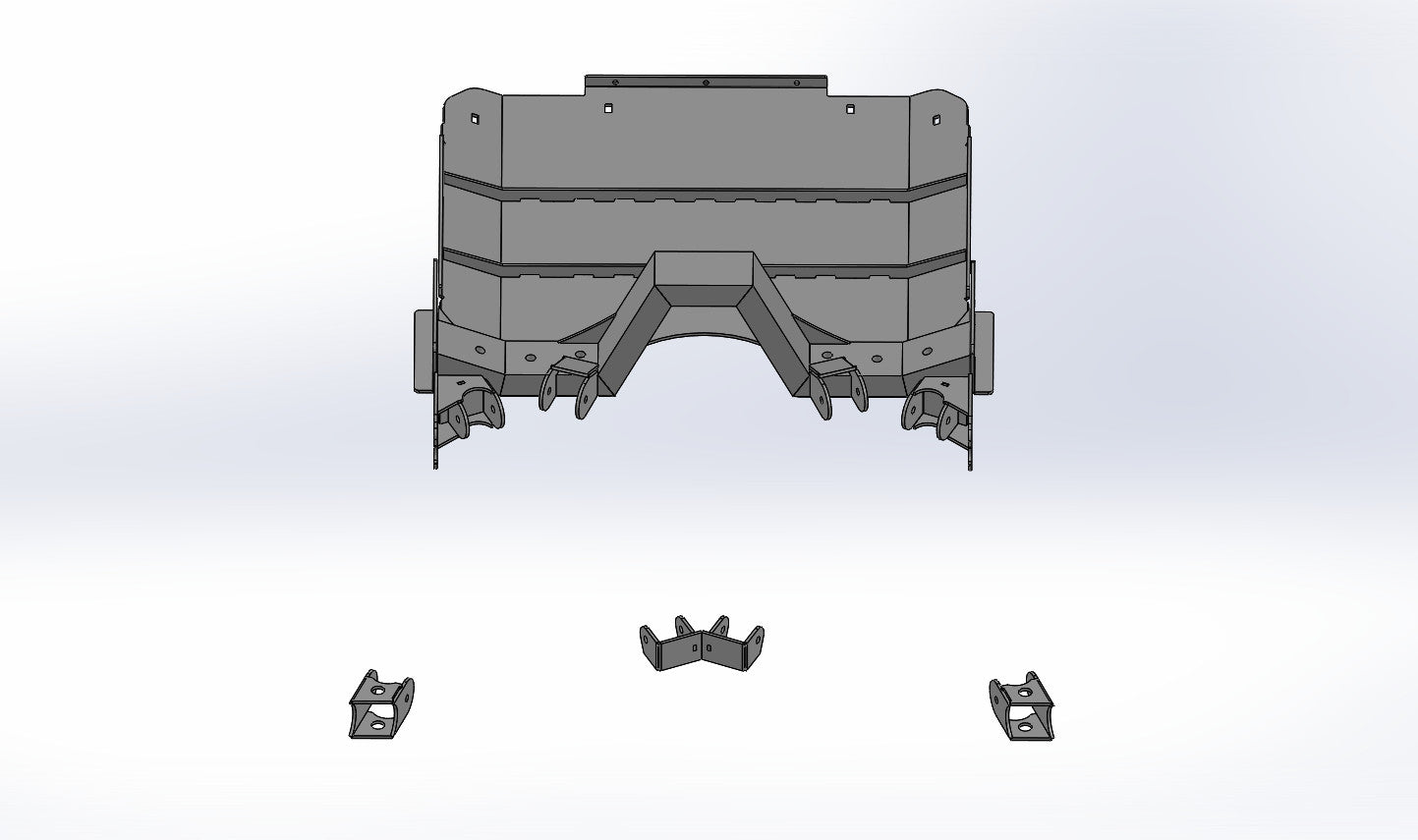

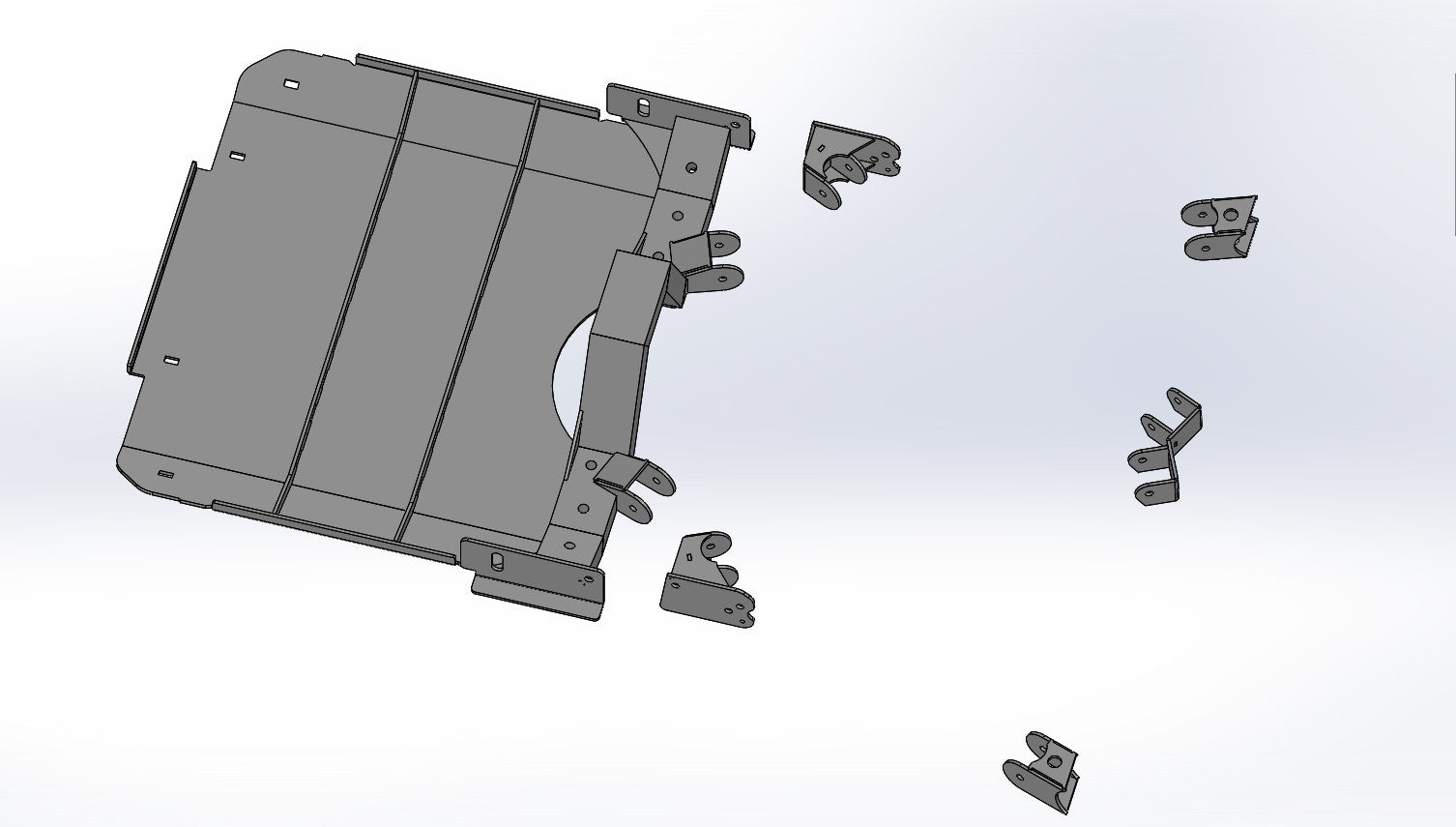

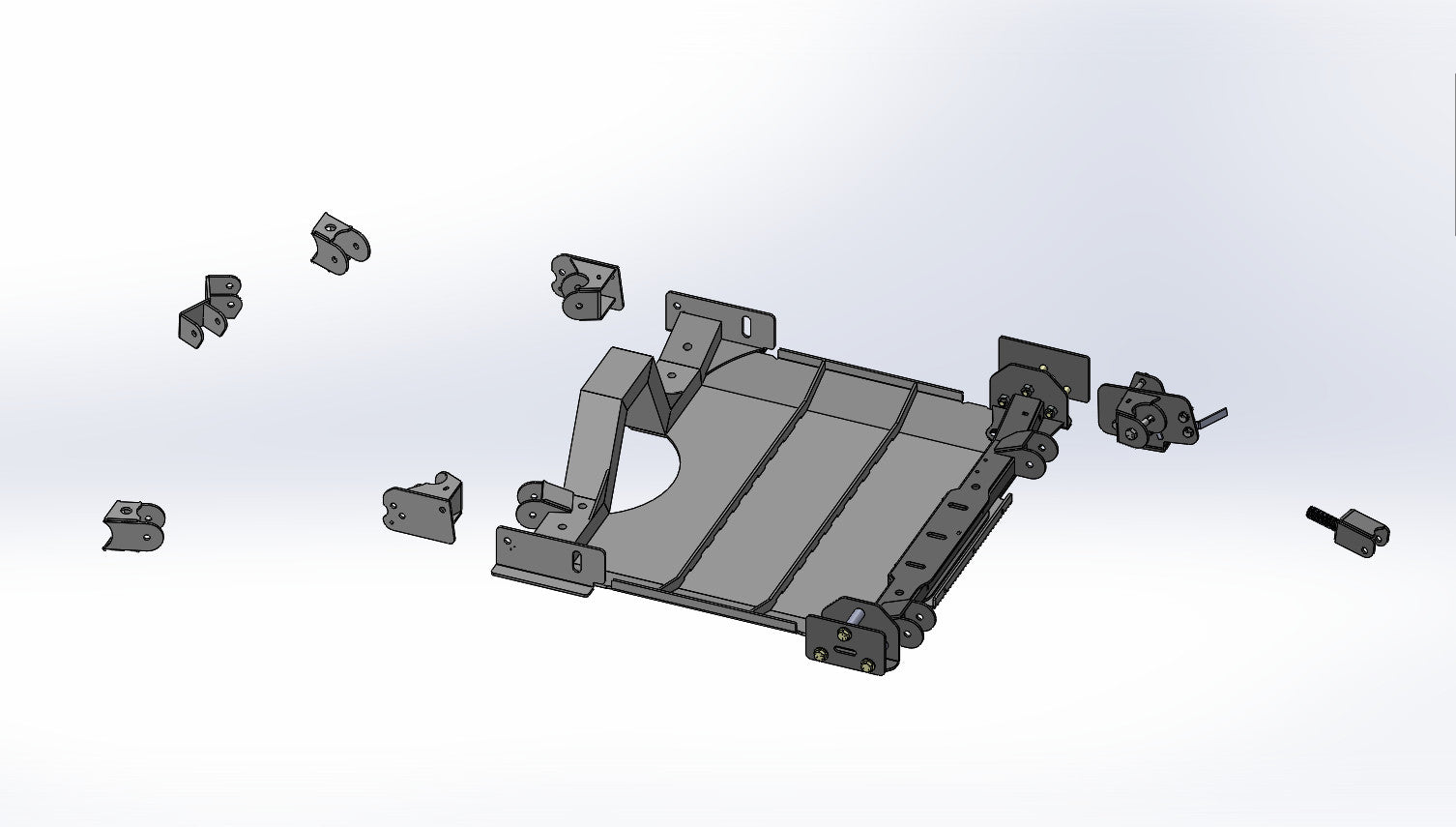

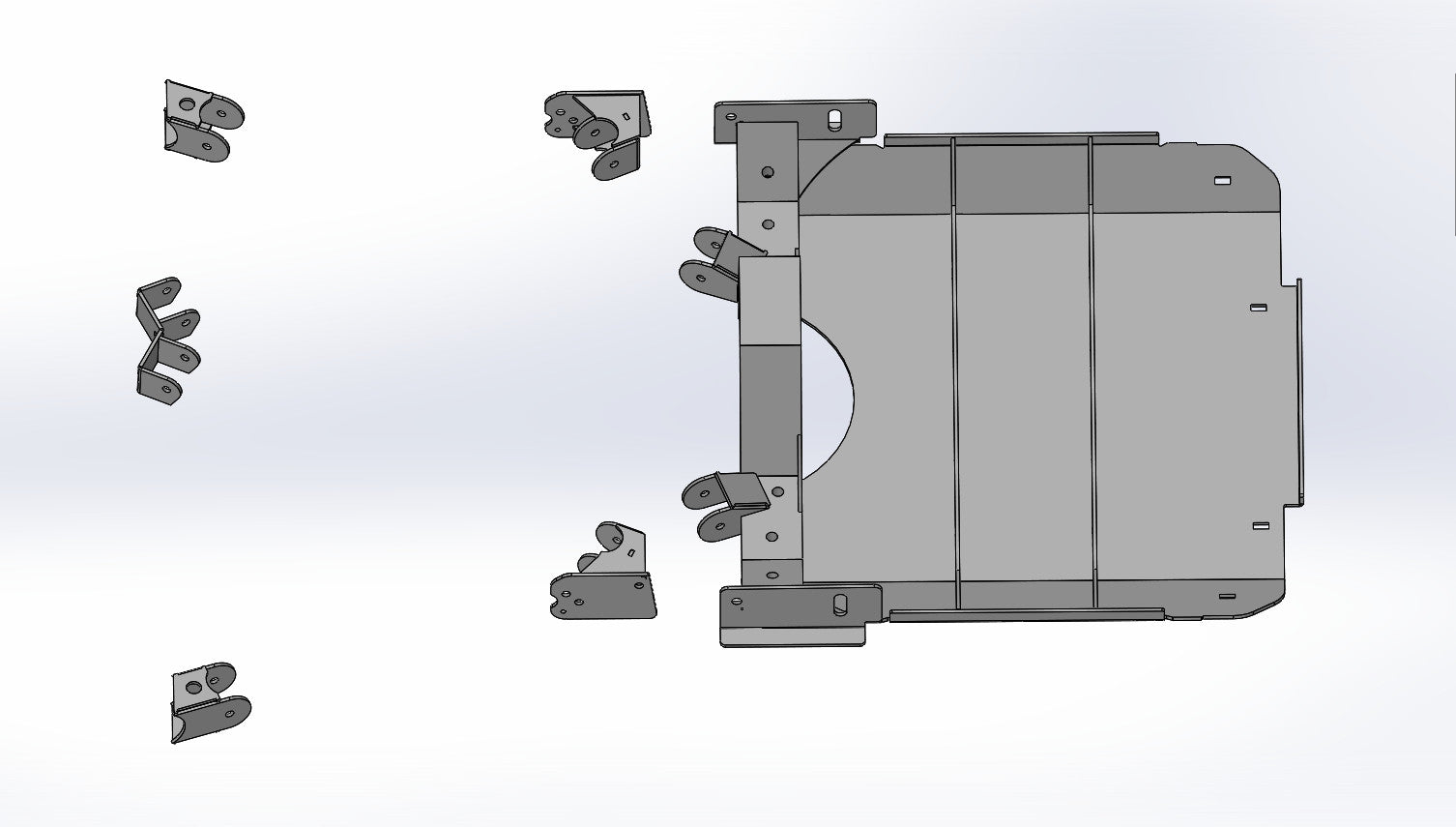

  • Rear weld in laser cut cross member with lower link mounts
  • Rear weld in upper link frame side mounts
  • Truss top 4-link mounts (truss not included)
  • Axle side lower control arm mounts
  • (1) Skid Plate 1/4" laser cut and CNC broke smooth bottom
  • Includes all grade 8/10.9 hardware

Installation Instructions
