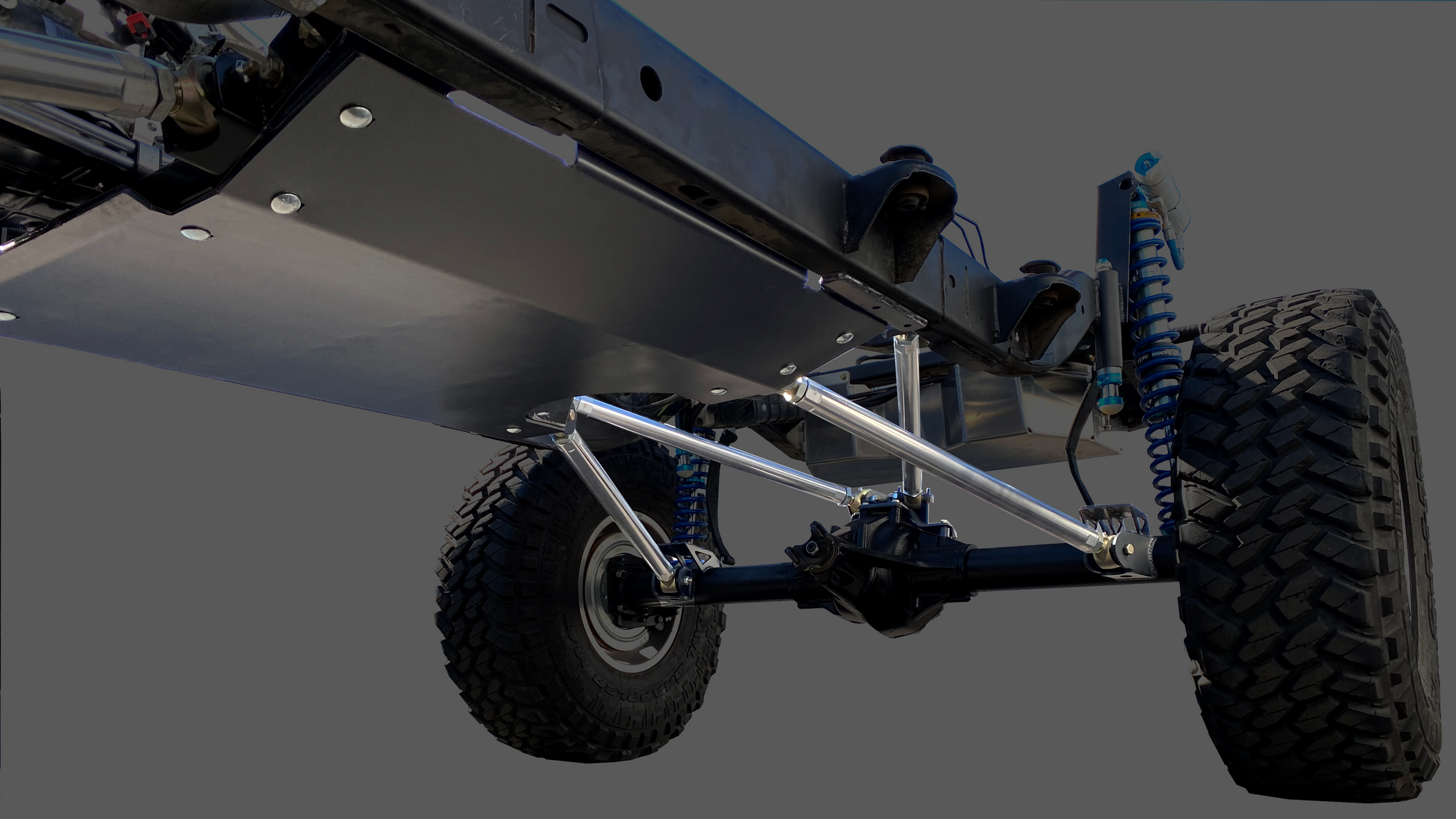

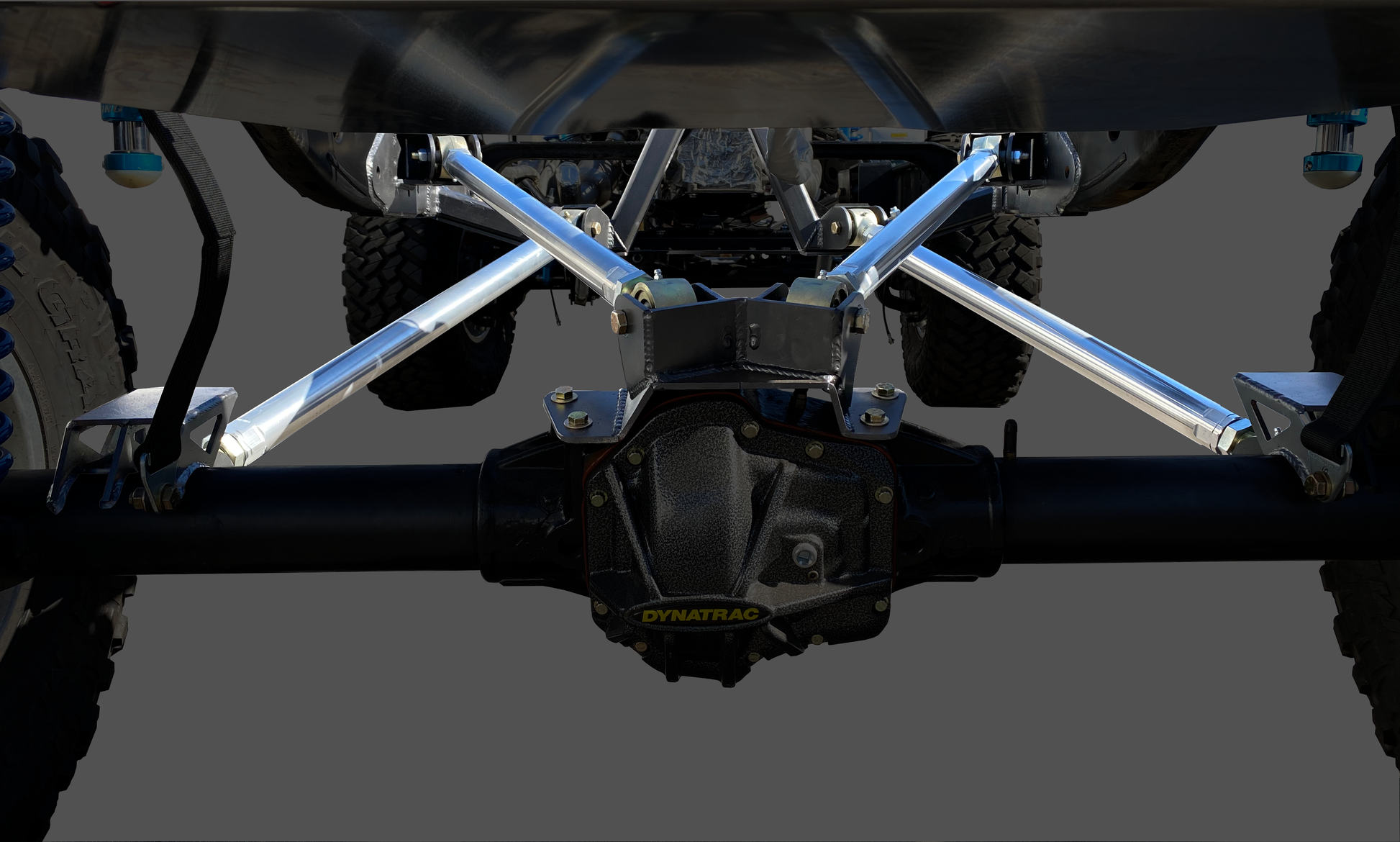

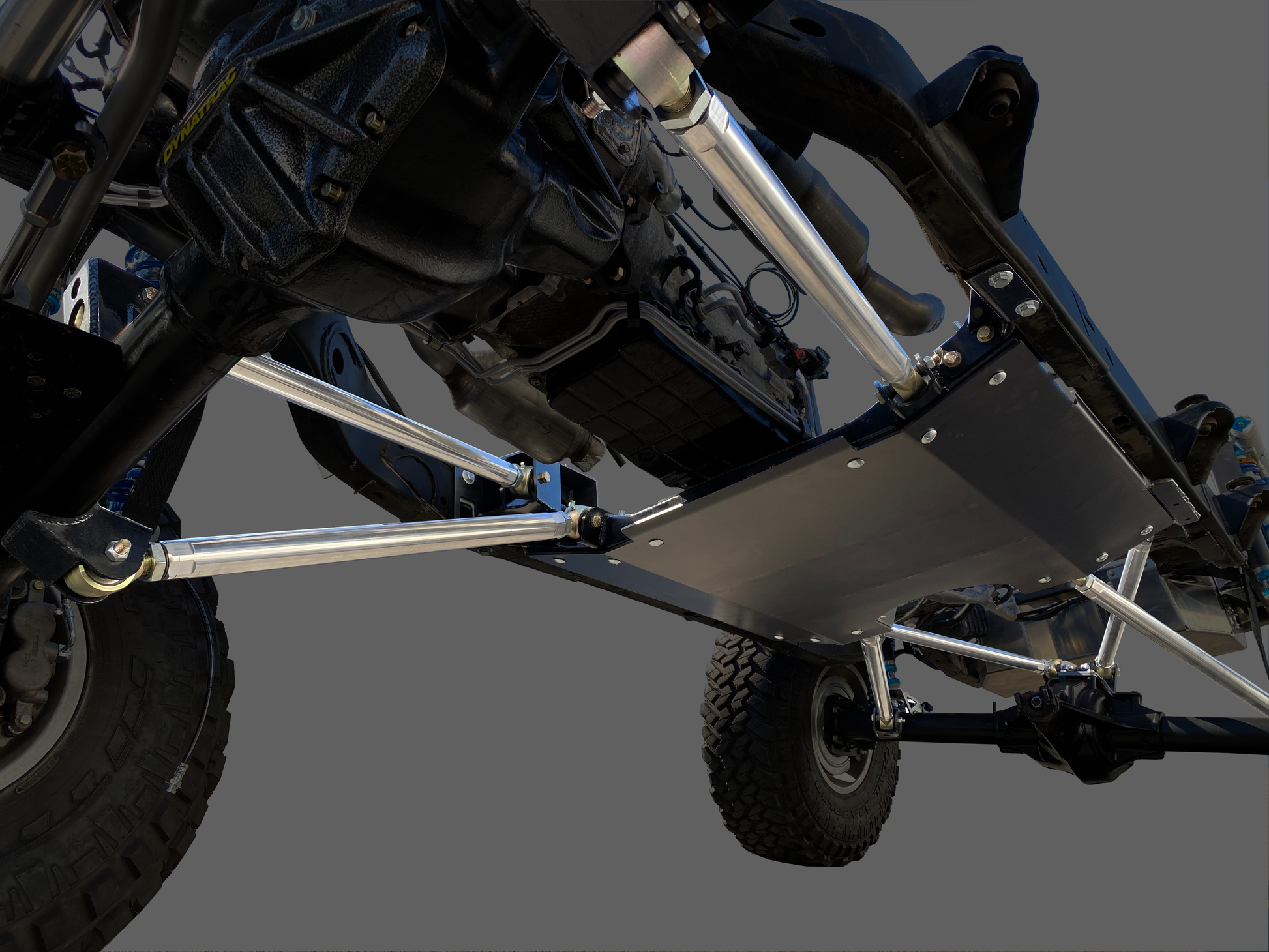

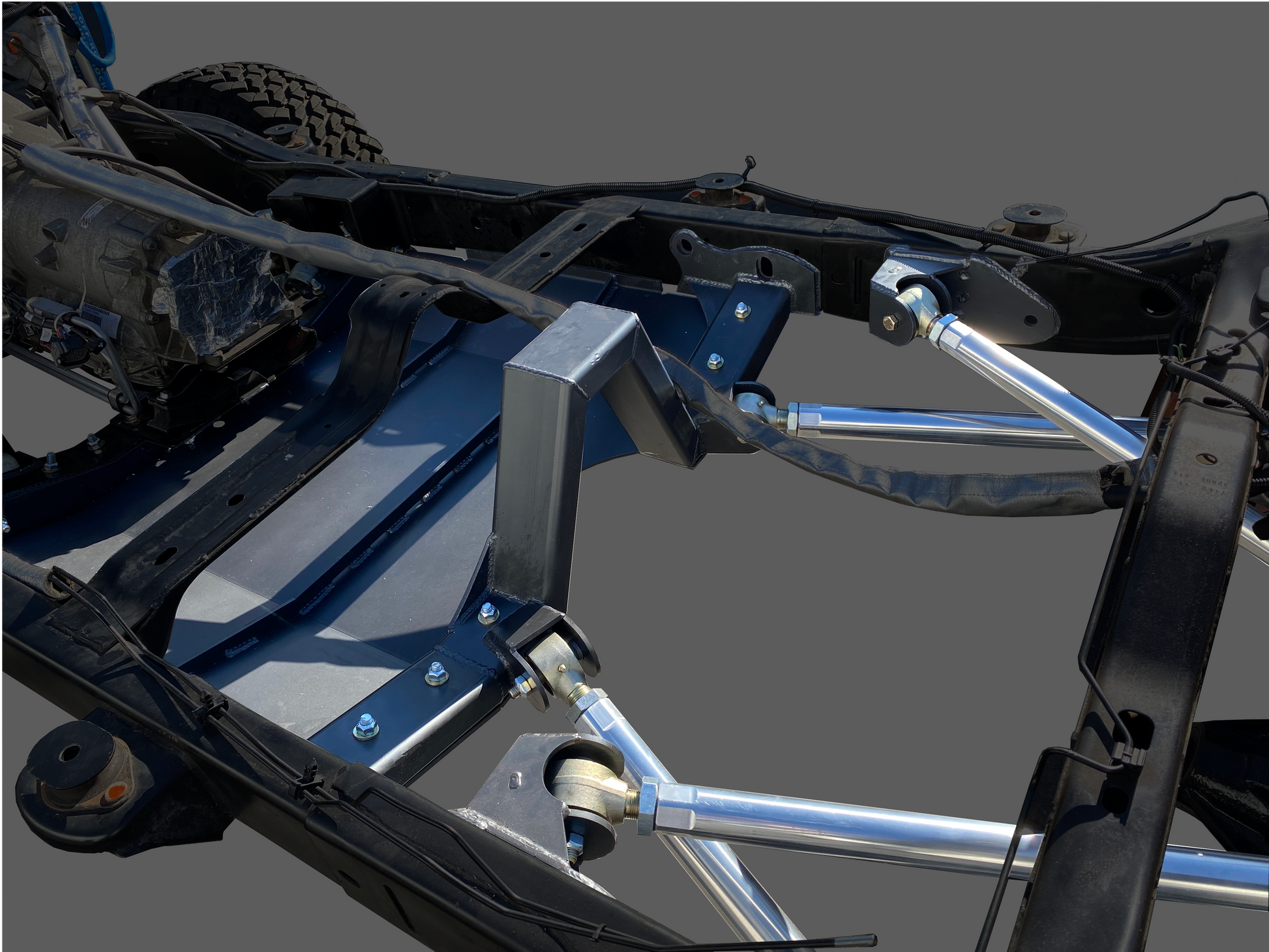

JLU Bolt-In 3-Link Front/4-Link Rear Double Triangulated Long Arm Upgrade

We set out 2 years ago to design a double triangulation for the JKU that solved many challenges and restrictions with the JK platform. Now we are taking that technology into the JL platform. We gave up a small amount of belly height (not a flat belly) to achieve better anti-squat and roll center numbers. The results were incredible and if our recommended rear axle separation is used a 94 anti-squat can be achieved on a JLU. There is no need to remove the body for installation.

****NOTE**** 3.6L Gas Engine users will need to install an Exhaust Loop Delete kit such as the AFE Part number 48-48024 or Magnaflow Part number 19432 or similar.

Please Note

  • This kit requires:
    • Custom exhaust modification
    • Drilling one hole and welding a third link mount on the axle or truss
    • The side JLU factory fuel tank be removed
    • Rear axle to have a truss (not included)
  • Our skid plate can be modified to work with other front crossmembers (call for details)
  • Gas vehicle only

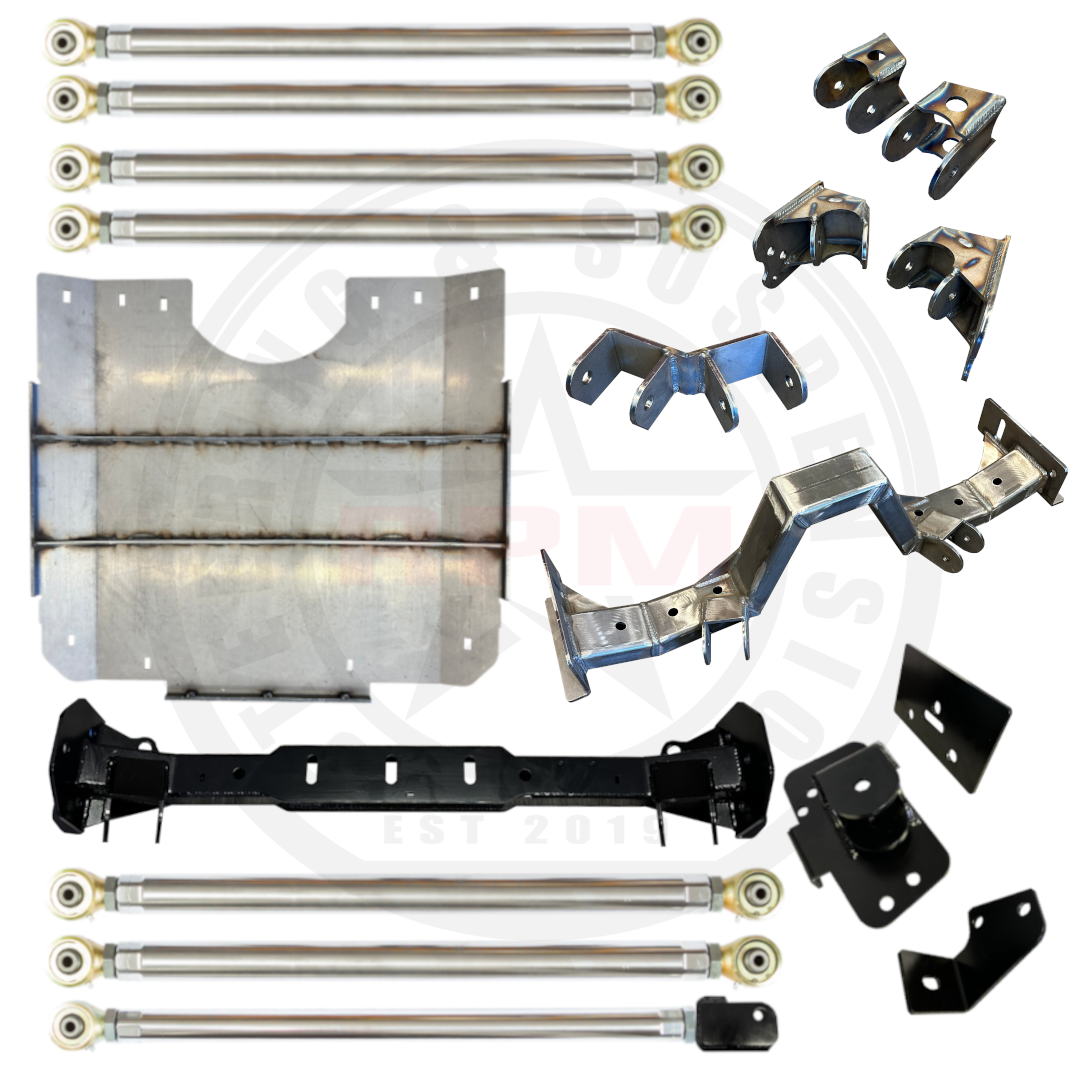

  • Bolt-in front cross member with lower link mounts
  • Bolt-in driver frame side third link mount
  • Bolt-in reinforcement brackets for driver side cross member
  • 2" 7075 T6 aluminum lower links w/Rock Jock narrow joints at both ends
  • 1.75" 7075 T6 aluminum upper link w/Rock Jock narrow joint at frame and custom uniball at axle
  • Rear weld in laser cut crossmember with lower link mounts
  • Rear weld in upper link frame side mounts
  • Truss top 4-link mounts (truss not included)
  • Axle side lower control arm mounts
  • (2) 1.75" solid 7075 T6 aluminum links with narrow Rock Jock Johnny Joints
  • (2) 2" solid 7075 T6 aluminum links with narrow Rock Jock Johnny Joints
  • (1) Skid Plate 1/4" laser cut and CNC broke smooth bottom
  • Includes all grade 8/10.9 hardware
