JLU 3 Link Front & Double Triangulated 4 Link Rear Long Arm Bracket Kit
Regular price
$4,950.00
Sale price
$4,950.00
Regular price
Unit price
JLU 3 Link Front & Double Triangulated 4 Link Rear Long Arm Bracket Kit
Product description
Kit Includes
Installation Instructions
Shipping

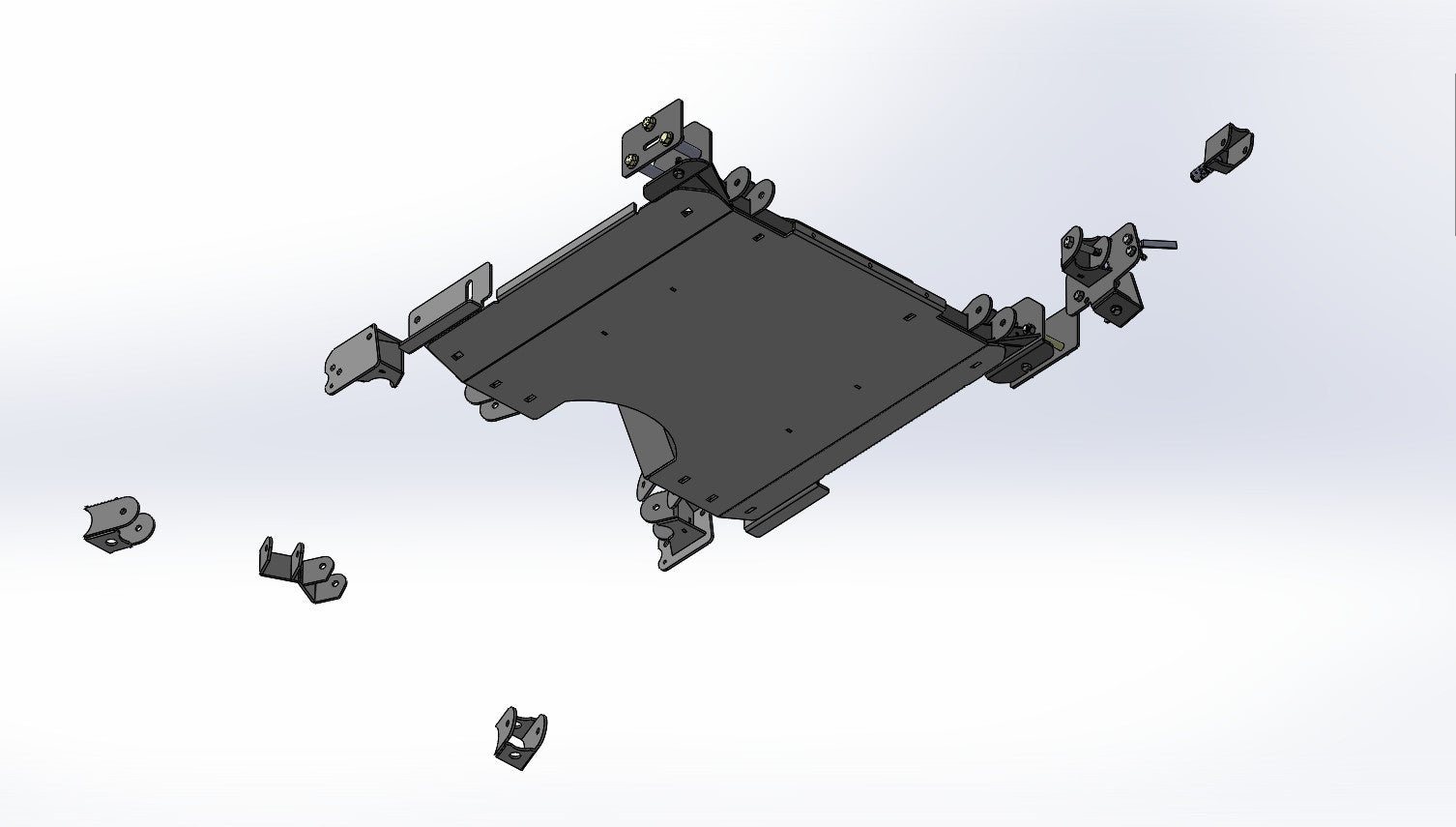

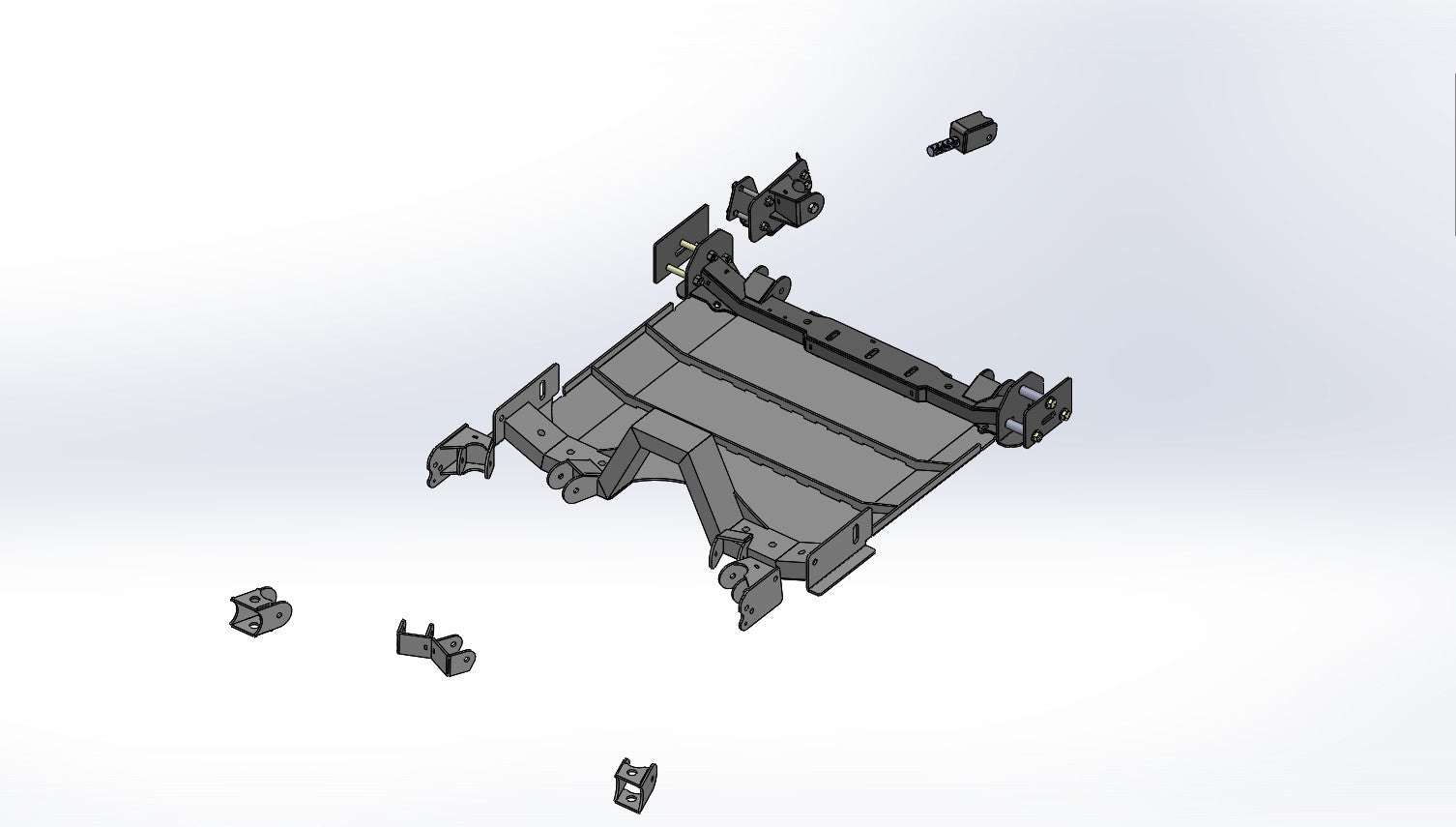

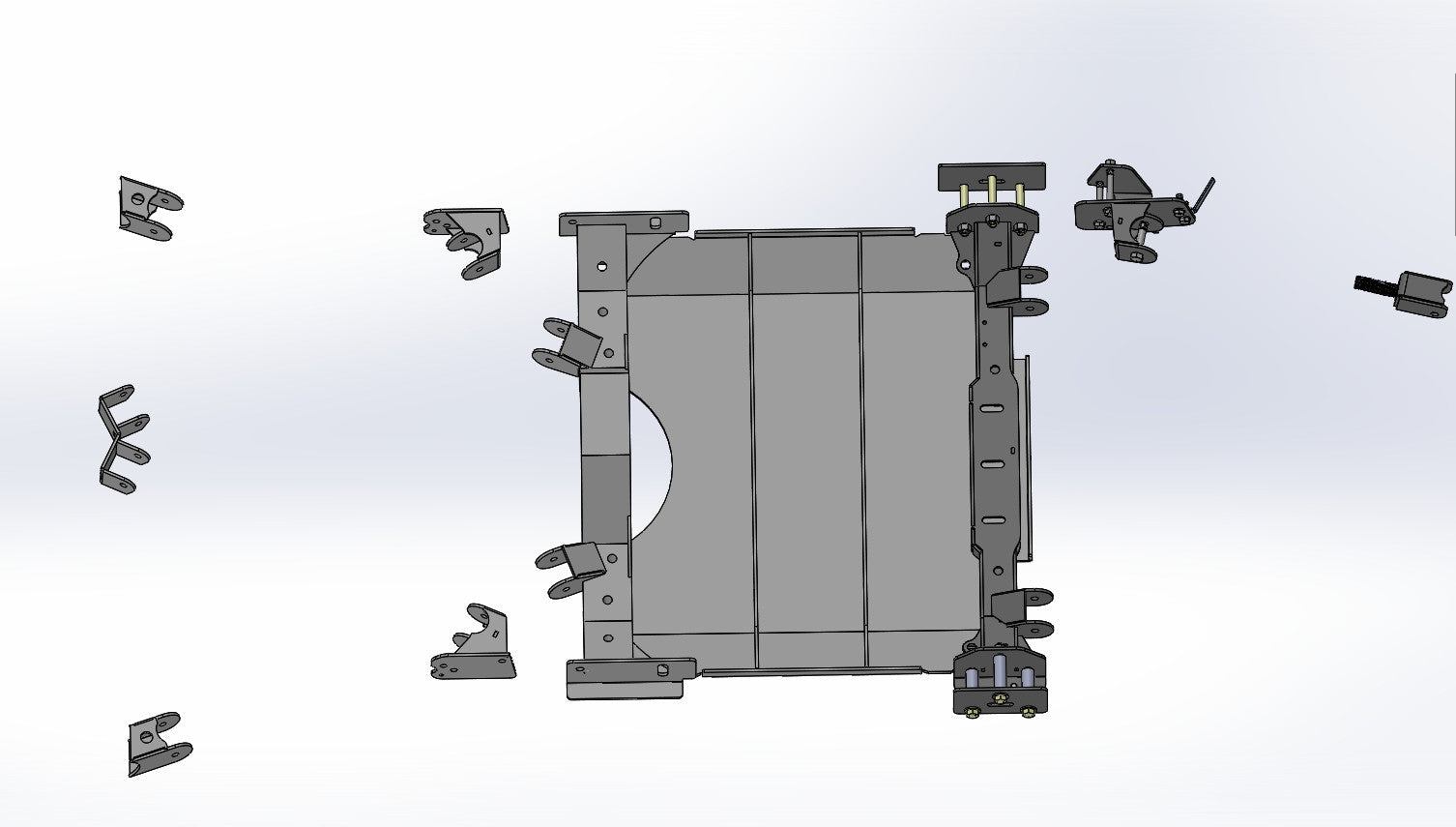

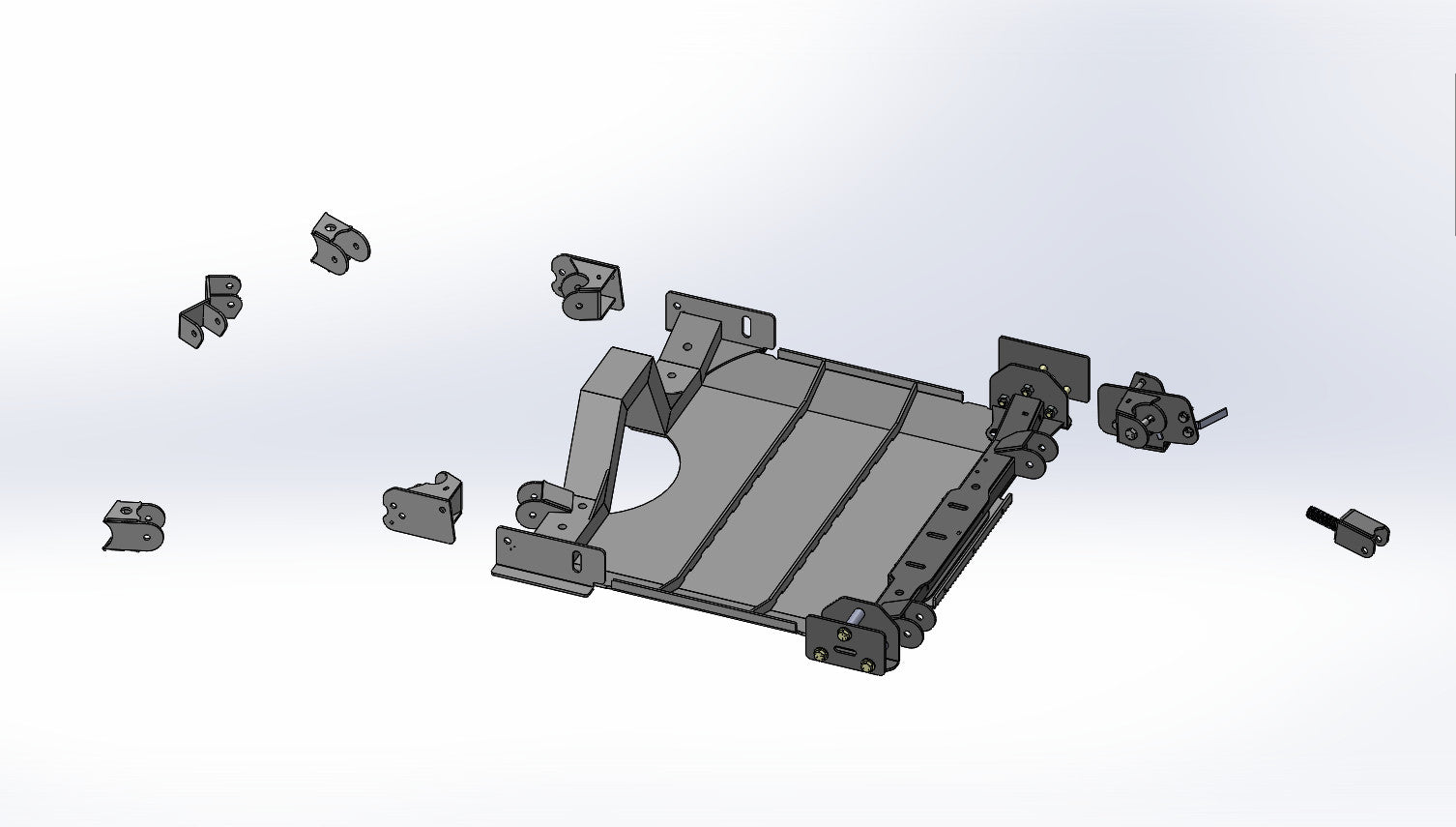

JLU 3-Link Front/4-Link Rear Double Triangulated Long Arm Bracket Kit
We set out 2 years ago to design a double triangulation for the JLU that solved many challenges and restrictions with the JL platform. We gave up a small amount of belly height (not a flat belly) to achieve better anti-squat and roll center numbers. The results were incredible and if our recommended rear axle separation is used a 94 anti-squat can be achieved on a JLU. There is no need to remove the body for installation.
****NOTE**** 3.6L Gas Engine users will need to install an Exhaust Loop Delete kit such as the AFE Part number 48-48024 or Magnaflow Part number 19432 or similar.
Please Note
- This kit requires:
- An exhaust modification. A Loop Delete is required.
- Drilling holes and welding
- The side JLU factory fuel tank be relocated
- Rear axle truss required and sold separately
- Our skid plate can be modified to work with other front crossmembers (call for details)
- Evaporative canister will need to be relocated
- Exhaust will need to be customized
- This kit DOES NOT INCLUDE control arms or joints. Build your own or order from us when you are ready!
- Diesel Owners call first
Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
