JKU Wrangler 4.5'' Ultimate Aluminum Long Arm Lift Kit

Regular price $5,999.99
Sale price $5,999.99 Regular price
Unit price
JKU Wrangler 4.5'' Ultimate Aluminum Long Arm Lift Kit

JKU Wrangler 4.5'' Ultimate Aluminum Long Arm Lift Kit

Product description
Kit Includes
Shipping

JKU Wrangler 4.5'' Ultimate Aluminum Long Arm Lift Kit

Ready to take your Jeep to the next level?
For around a decade, RPM Steering and Suspension has been manufacturing premium suspension components like our Ultimate 7075 T6 Aluminum control arms, track bars, and sway links. We are now bringing all of these parts together and pairing them with some of the top springs in the industry to bring complete RPM Steering and Suspension lift kits.

These kits will feature our USA-sourced and milled aluminum links with Rock Jock Narrow Johnny joints at each end for the best articulating long arms in the industry. At the same time, the Rock Jock ends provide a superior on-road feel and comfort. Our ultimate track bars have been performing for years using 1-3/8" .281 wall DOM for a perfect balance between comfort and strength with Rock Jock joints at both ends for industry-leading durability. As always, our parts come with our lifetime bend or break replacement warranty (see warranty page for details).
Now let's take that Jeep to the next level!

THIS KIT REQUIRES CUTTING AND WELDING:

  • Front cross member and supporting brackets are primarily bolt-on after some drilling and cutting away the factory control arm mounting brackets. (Front axle 3rd Link Mount requires welding)
  • Rear mounts require welding on the frame side and axle side.
  • Cutting away the factory control arm brackets is required.
  • The gas tank does NOT need to be removed.
  • Minor trimming of the gas skid is required and a few bolts will need to be removed to allow movement of the tank for easier access while welding.
MADE IN THE USA

****NOTE**** The front 3rd link mount for the axle side is designed for a non trussed axle tube. If you have a flat top truss please make a note so we can send a different weld on bracket to work with the truss.

****NOTE****2007-2011 will require a custom modified exhaust. 2012-2018 will require custom exhaust or a Magnaflow #19211 Y Pipe Assembly Kit

****NOTE***** Wheels must be 4.5'' backspace or less. Can be achieved with wheel spacers as well.

Ideal Shock Specs:

  • Front: 17.8'' Collapsed; 29.3'' Extended
  • Rear: 19'' Collapsed; 30.62'' Extended

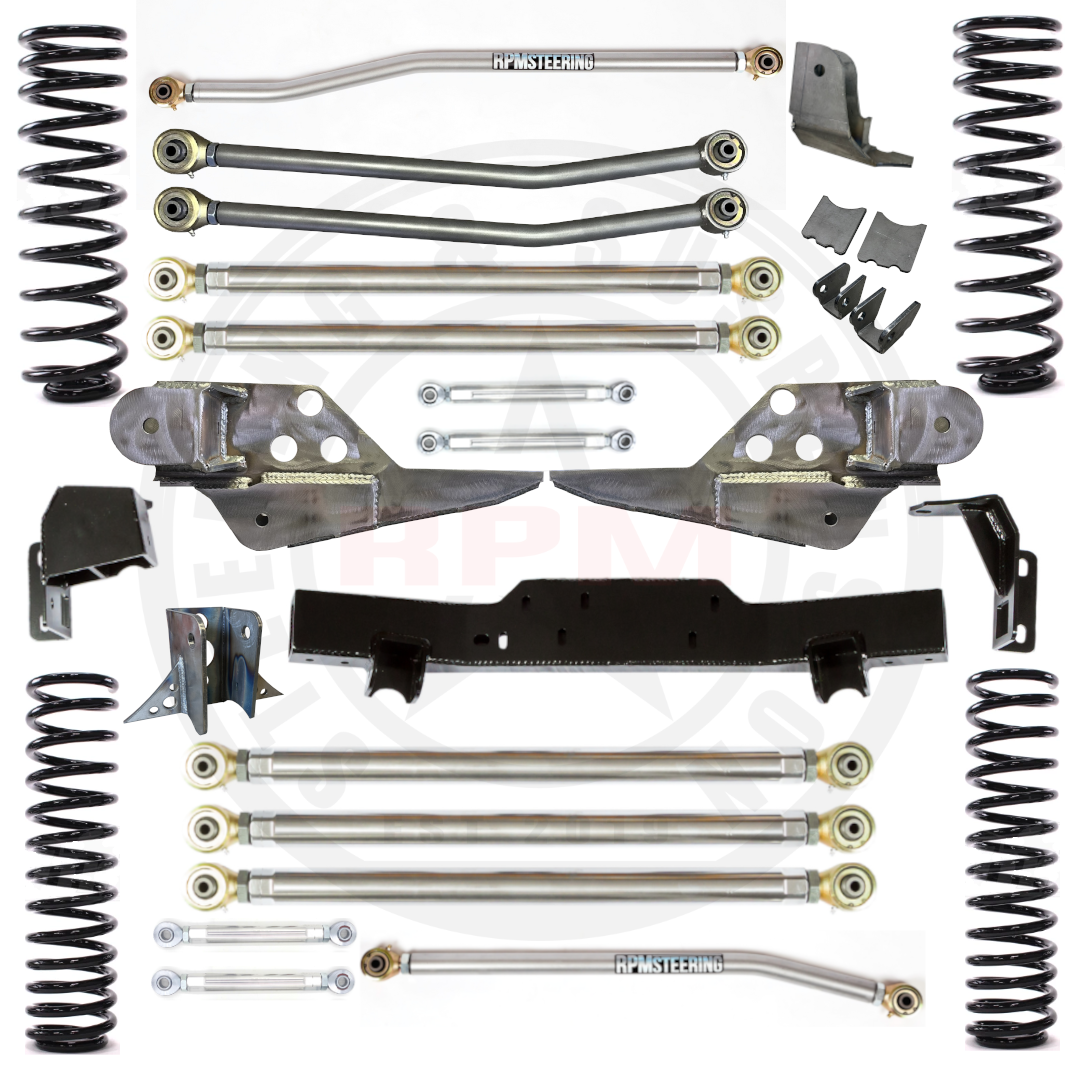

  • (2) Front Double Adjustable  2'' 7075 T6 Aluminum Lower Control Arms
  • (1) Front Double Adjustable 1.75'' 7075 T6 Aluminum Upper Control Arm
  • (1) Front Adjustable 1.375''.281 Wall DOM Steel Track Bar
  • (1) Front Quick Disconnect Sway Links (Optional Rubicon Aluminum Pro Links. Pictured in stock photo.)
  • (1) Front HD Crossmember with 3rd Link Mount and Supporting Brackets and Hardware
  • (1) Weld on Front 3rd Link Axle Mount
  • (4) Dual Rate Coil Springs and Pads
  • (2) Rear Long Arm Frame Side Upper/Lower Control Arm Brackets
  • (2) Rear Double Adjustable 2'' 7075 T6 Aluminum Lower Control Arms
  • (2) Rear Adjustable 1.375''.281 Wall DOM Steel Upper Control Arms
  • (1) Rear Adjustable 1.375''.281 Wall DOM Steel Track Bar
  • (1) Rear Weld on Track Bar Relocation Bracket
  • (2) Rear Weld on Shock Relocation Tabs
  • (2) Rear Weld on Lower Control Arm Mount High Clearance Caps
  • (4) Extended Brake Lines

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
