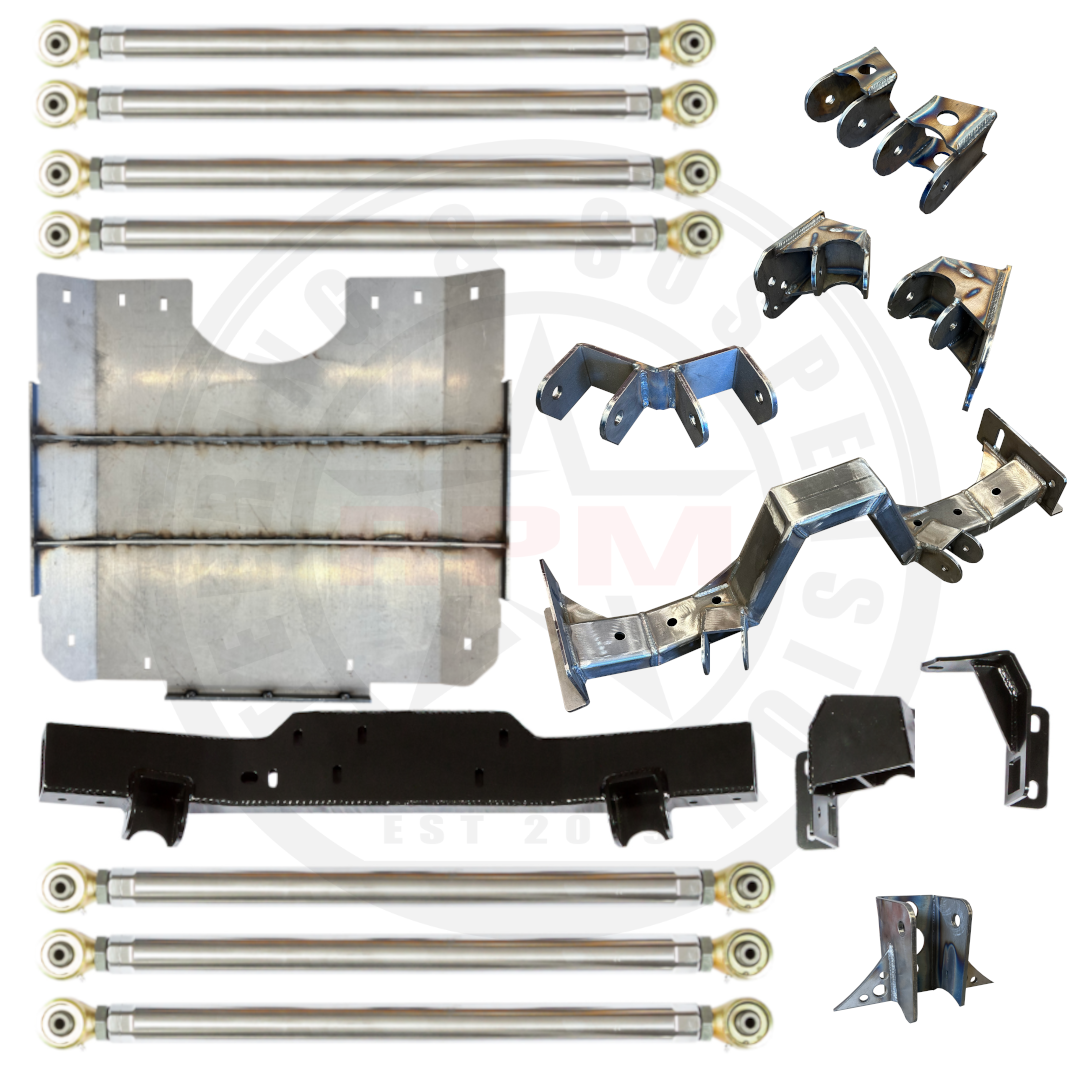

Kit Includes
Installation Instructions
Shipping

JKU Bolt-In 3-Link Front/4-Link Rear Double Triangulated Long Arm Upgrade

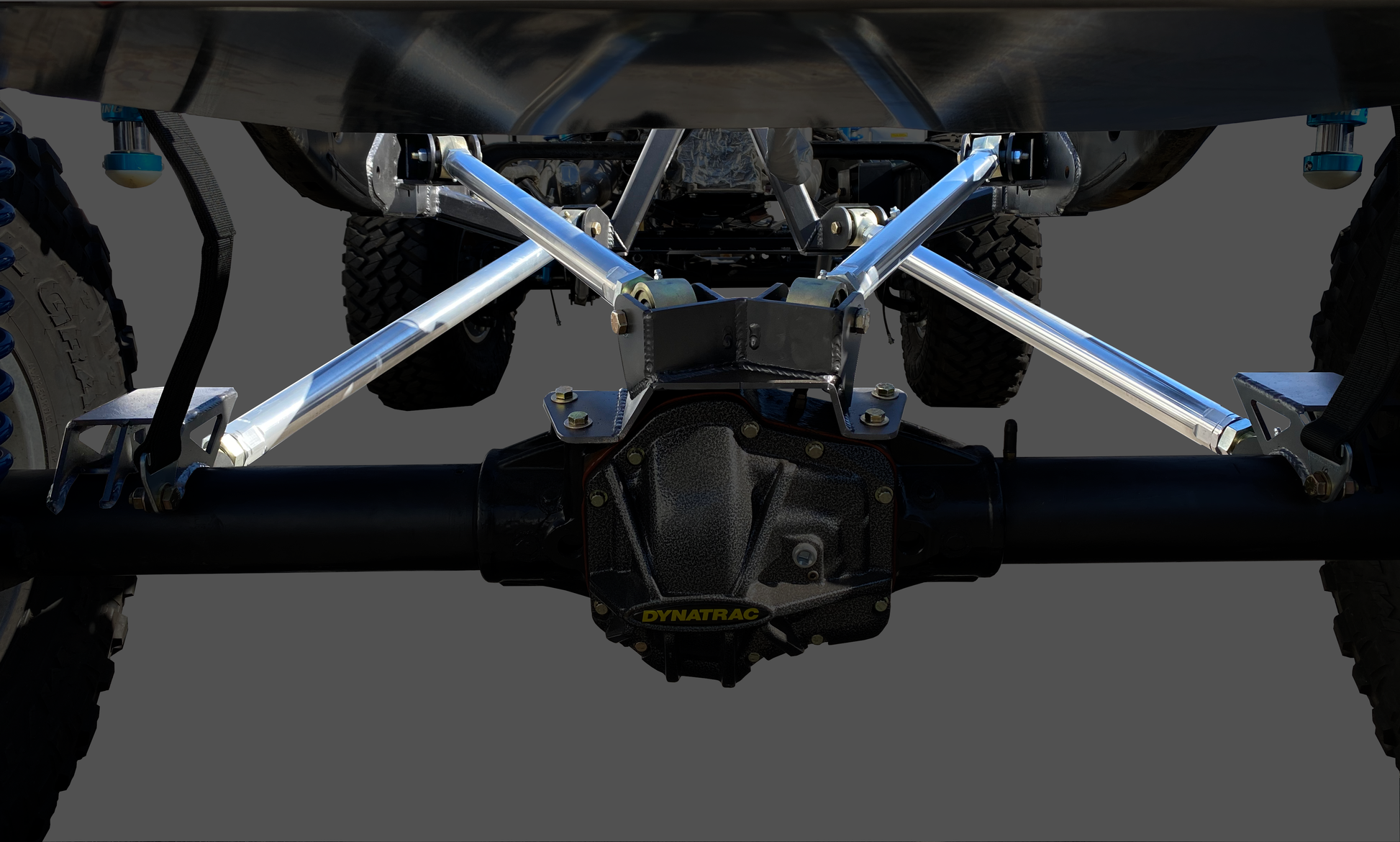

We set out 2 years ago to design a double triangulation for the JKU that solved many challenges and restrictions with the JK platform. We gave up a small amount of belly height (not a flat belly) to achieve better anti-squat and roll center numbers. The results were incredible and if our recommended rear axle separation is used a 94 anti-squat can be achieved on a JKU. There is no need to remove the body for installation.

Please Note

  • This kit requires:
    • An exhaust modification; moving the Y link behind the cross member (2012+ both Magnaflow and AEM make bolt-in Y pipe kits)
    • Drilling one hole and welding a third link mount on the axle or truss
    • The side JKU factory fuel tank be removed
    • Outboard coil overs
    • Rear axle to have a truss.
  • Our skid plate can be modified to work with other front crossmembers (call for details)
  • Evaporative canister will need to be relocated
  • Exhaust will need to be customized
  • Bolt-in front cross member with lower link mounts
  • Bolt-in passenger frame side third link mount
  • Bolt-in reinforcement brackets for driver side cross member
  • Choice of weld-on third link mount for axle side
  • 2" 7075 T6 aluminum lower links w/Rock Jock narrow joints at both ends
  • 1.75" 7075 T6 aluminum upper link w/Rock Jock narrow joints at both ends
  • Rear weld in laser cut crossmember with lower link mounts
  • Rear weld in upper link frame side mounts
  • Truss top 4-link mounts (truss not included)
  • Axle side lower control arm mounts
  • (2) 1.75" solid 7075 T6 aluminum links with narrow Rock Jock Johnny Joints
  • (2) 2" solid 7075 T6 aluminum links with narrow Rock Jock Johnny Joints
  • (1) Skid Plate 1/4" laser cut and CNC broke smooth bottom
  • Includes all grade 8/10.9 hardware
