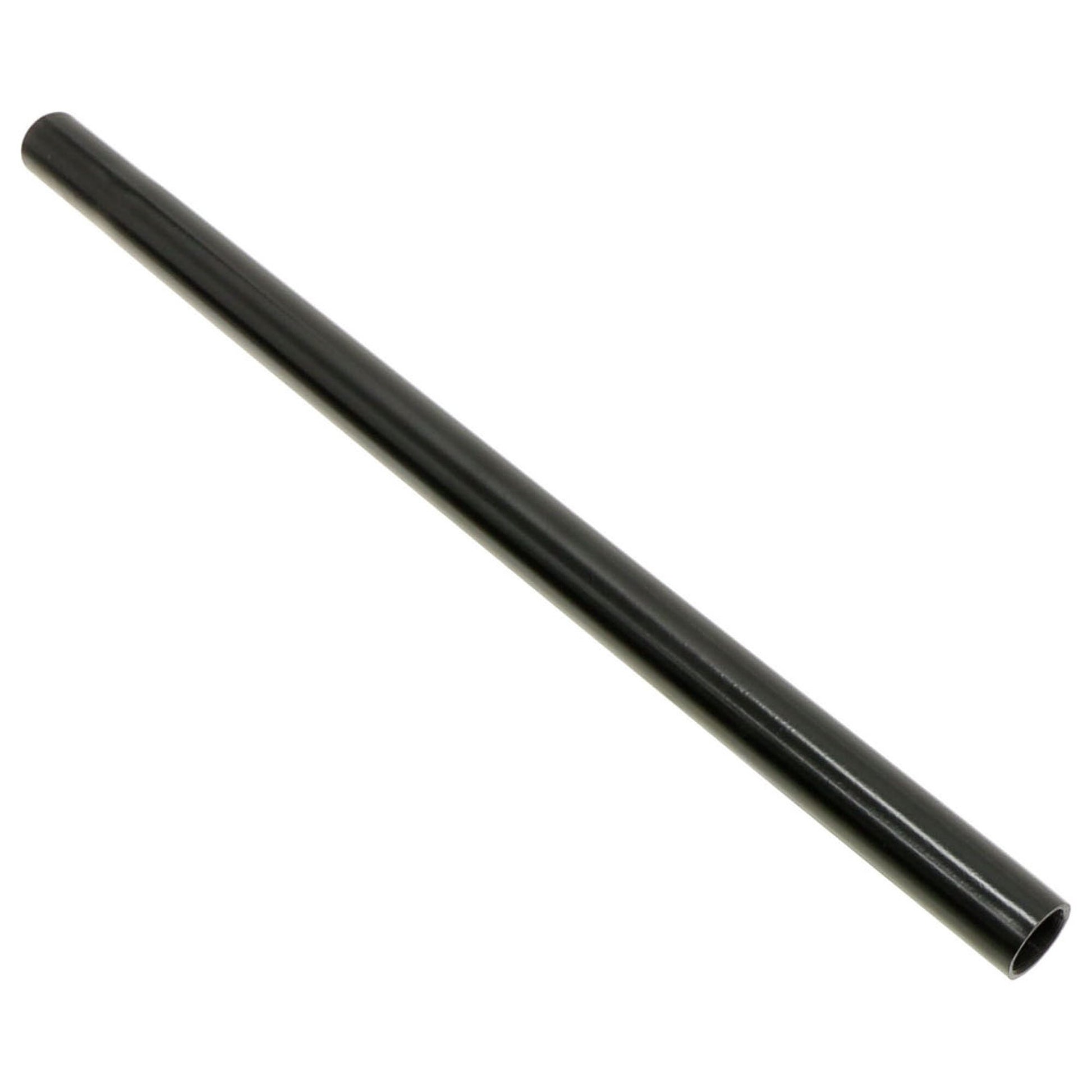

JK-9703TRS - Currectlync Modular Extreme Tie Rod Tube

RockJock’s Currectlync Tie Rod Tube for our Modular Extreme Duty Tie Rods is huge! In JL, JT and JK applications, this rod can be used on stock front axles or upgraded 1 ton axles.
Features include 1 5/8 in. OD x .375 wall 4340 heat treated chromoly steel tube construction, machined wrench flats, 1 1/4 in.-12 RH/LH threads and semi-gloss black powder coat finish.

Kit Fits:

• Included component in our JK-9703TR Tie Rod
• Included component in our JK-9703TRL Universal 1 Ton Tie Rod

Kit Includes:

• (1) Chromoly Tie Rod Tube

Component Specs.:

• Length  =  39 in.
• Material  =  1 5/8 in. OD x .375 wall 4340 chromoly, heat treated
• Thread Size  =  1 1/4 in.-12 RH/LH
• Thread Depth  =  3 1/2 in.
• Wrench Flats  =  req. 1 1/2 in. Wrench
• Finish  =  semi-gloss black powder coat
• Weight  =  11.72 lbs.

Adjustment Range:
*with our Modular Extreme Duty Rod Ends installed

• Closed  =  57.500 in.
• Open  =  60.500 in.

Notes:

• This tube is for use with our Modular Extreme Duty Rod End Forgings and Rod End Cartridges
