1 TON SUPER DUTY STEERING FOR ARTEC WELD-ON HIGH STEER

This is a BOLT ON, NO DRILL kit for the Artec Superduty Hi-Steer arms P/N HS6150.

Please Note

  • The kit will NOT work if you have already welded the center plate into the brackets this plate must be left floating to use our kit.
  • This is a JK kit however please call for specifics if installing on a TJ/LJ.

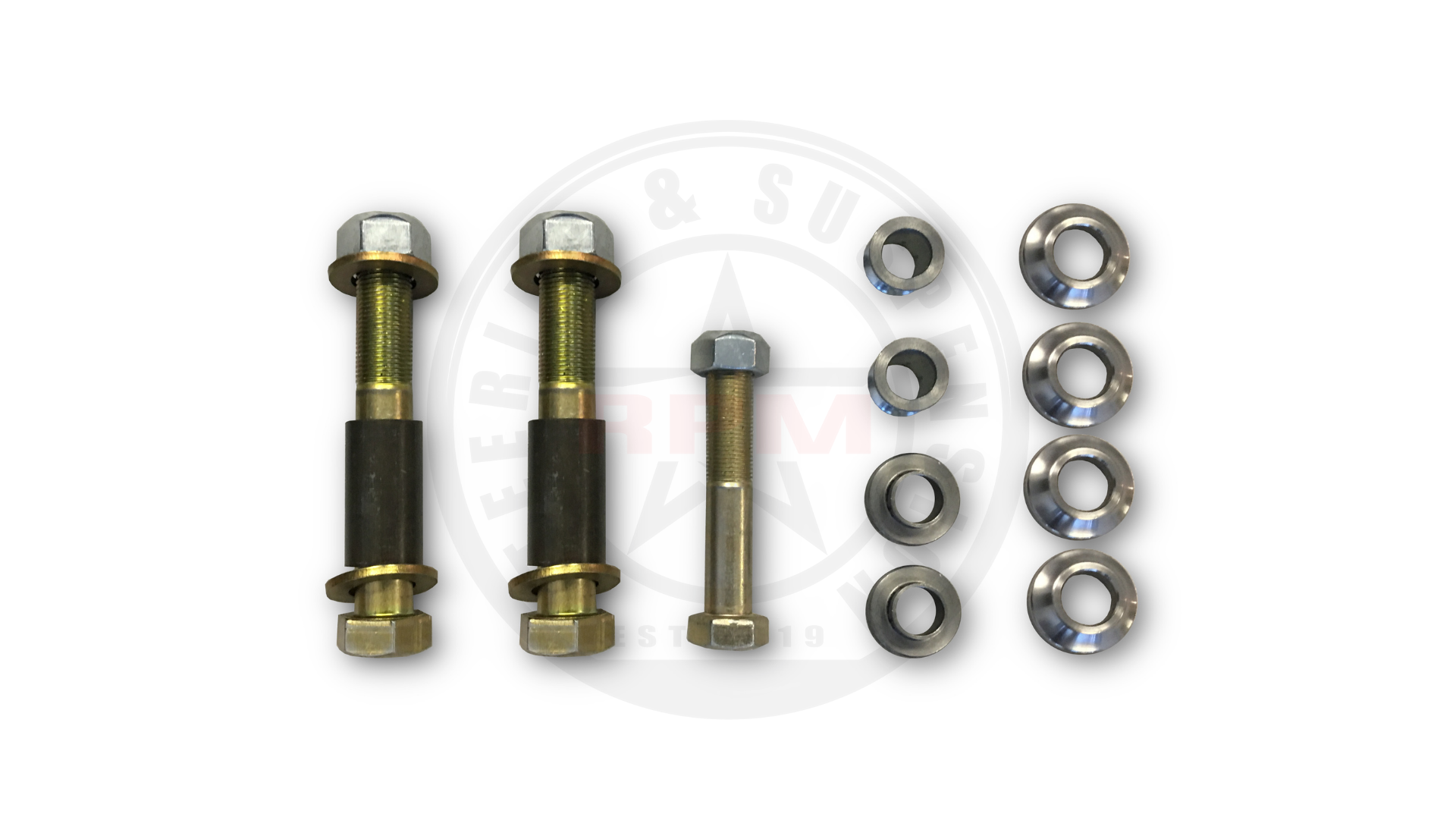

  • Kit includes all spacers, hardware, and misalignments for PROPER geometry

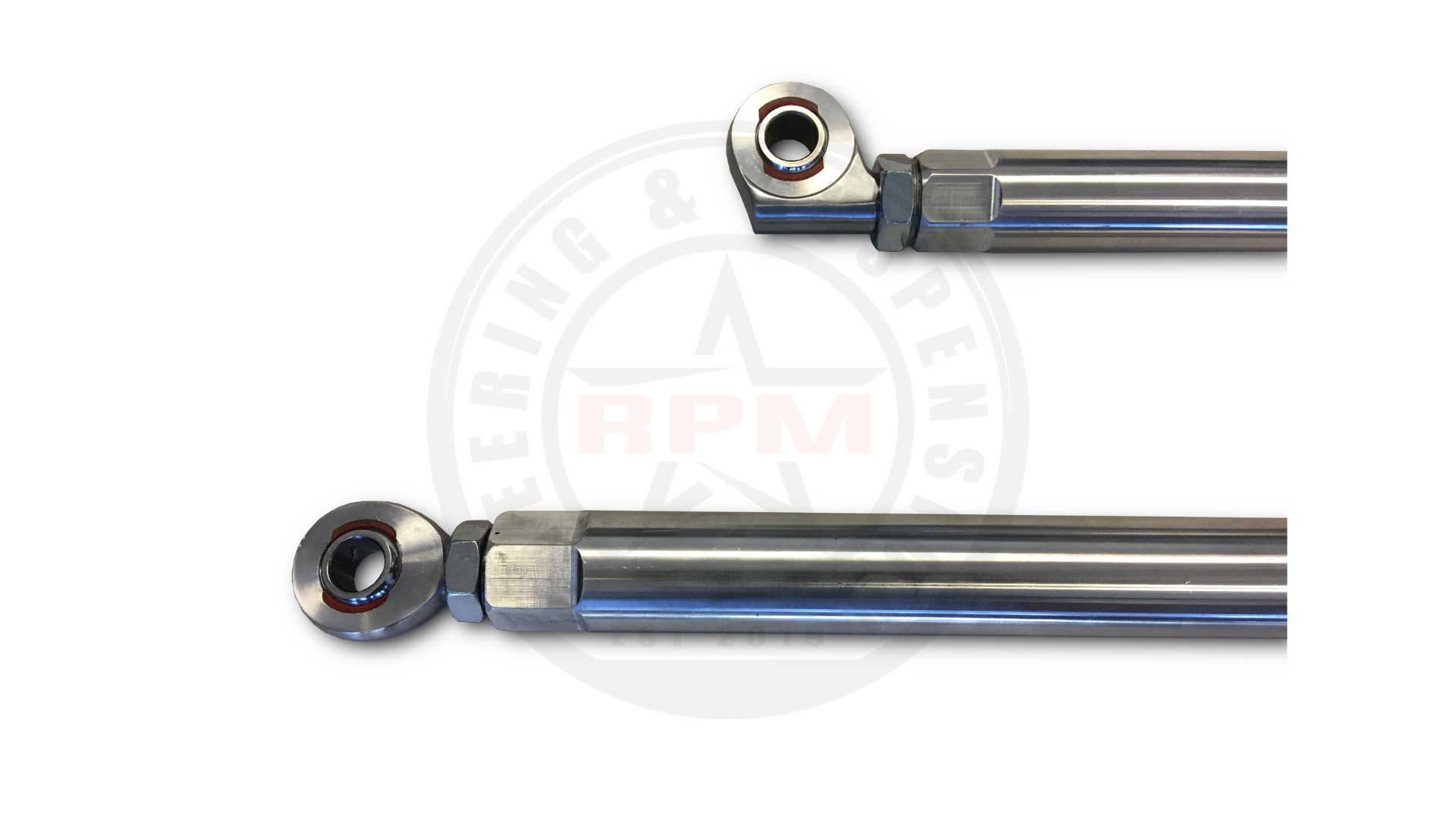

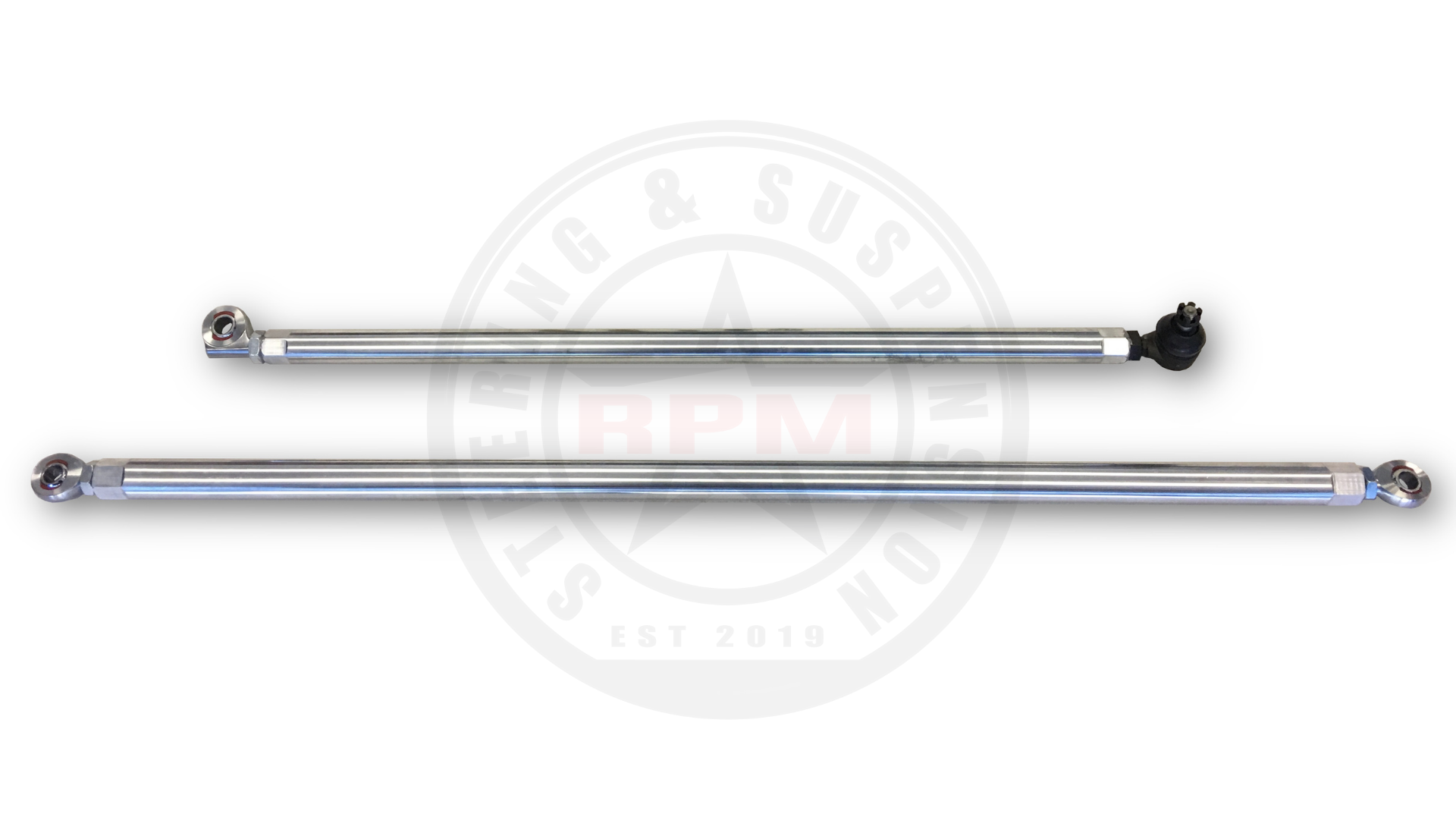

  • Drag link is 1.5" solid 7075 T6 cold aluminum with a wide swing 1-ton 7/8 TRE at the pitman arm for a true "NO DRILL installation and an offset 7/8 x 3/4 Chromoly Heim at the passenger knuckle for clearance with a straight drag link bar
  • Drag link features our exclusive correct high misalignment for maximum no-bind rotation at the knuckle
  • Tie rod is 1.75" solid 7075 cold aluminum with Chromoly 7/8 x 3/4 Heims with low misalignments for minimal tie rod roll
