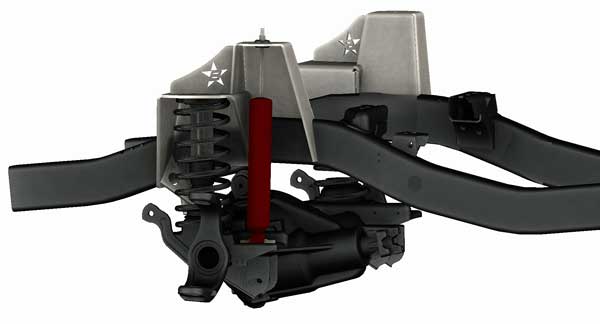

Jeep Wrangler TJ and LJ Suspension Stretch Front Frame Bracket Kit

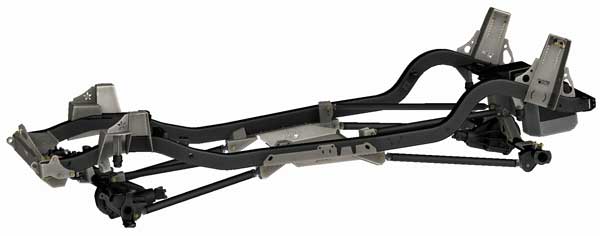

Barnes 4wd is proud to introduce our 1997-2006 Jeep Wrangler TJ and LJ Front Frame Bracket Suspension stretch kit!  This kit is designed to provide the trail capable wheelbase that your Jeep Wrangler needs, up to 106 inches with the complete front and rear system.  With this kit you can stretch your coil towers, bump stops, shock mounts, and track bar mount forward 4 inches.

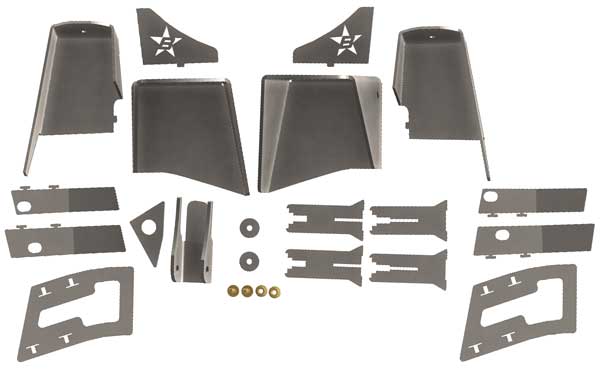

Front frame bracket kit highlights

• Stretches the frame side coil spring, shock, bump stops, and track bar mount forward 4 inches
• Allows use of existing coil springs, shocks, and track bar
• Must be used in conjunction with steering box stretch kit or full hydraulic steering
• Significant modifications to the frame are required including cutting, grinding, and welding
• 1 Inch body lift is recommended to minimize fender trimming and relocation of inner fender components
• This kit is not compatible with the factory sway bar
• New longer control arms are required

Please refer to the installation instruction links below for more detailed information

Vehicle Fitment:

1997-2006 Jeep Wrangler TJ & LJ

Front Frame Bracket Kit Stretch Instructions
