Hatchet Series Front Frame Chop Bumper w/Stinger for Jeep JK / JKU

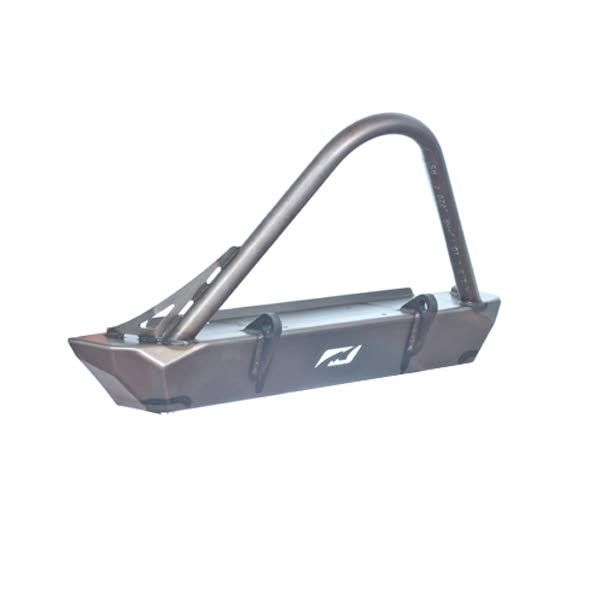

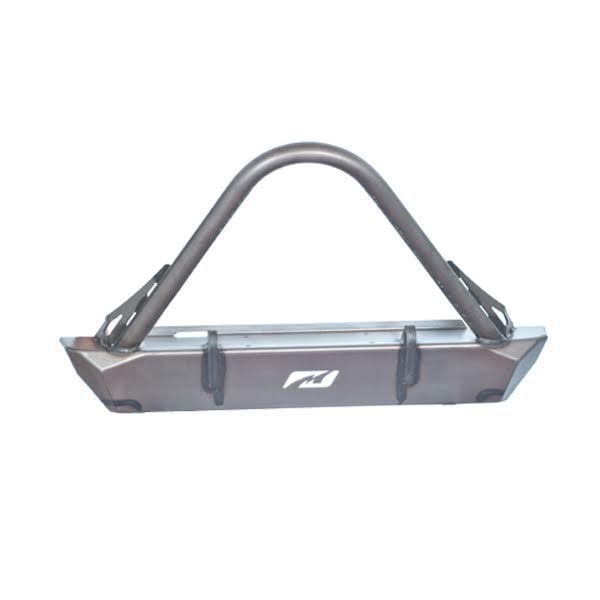

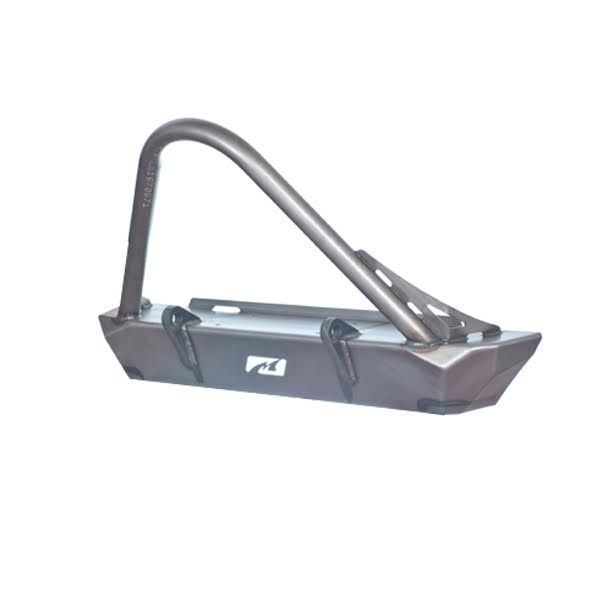

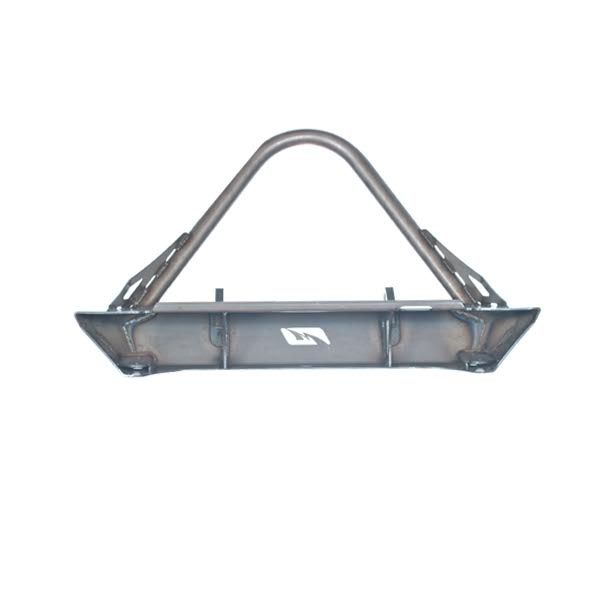

The Motobilt Hatchet Jeep JK Front Bumper with Stinger is an ultra-slim design for the front of your Jeep JK. The Hatchet is available in a few different configurations. This Hatchet configuration includes a stinger made from 1.75-inch DOM steel tube with integrated gussets. It has holes to mount your winch. The Hatchet includes 3/4-inch-thick steel D-Ring mounts that pass through the bumper and our welded inside and out for superior strength. The Hatchet is a total of 41-inch wide which allows for closer approach angles.  This is a frame chop design bumper.  The front frame horns have to be cut off approximately 2"s and the bottom crash bar has to be completely cut off and removed from the frame.  The areas that need to be cut are shown in the pictures.  Also, holes will have to be drilled through the frame rails in order to mount the bumper to the Jeep.

Important Information

• Frame Modification Required: Installation necessitates cutting of the frame, ensuring a perfect fit and superior performance.
• Stinger made from 1.75-inch DOM steel tube with integrated gussets.
• Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
• Sway Bar Compatibility: Works with all factory sway bars including Rubicon and works with Anti-Rock as well.
• Ships raw steel. Must be painted or powder coated to prevent rust.
• 2012 and newer Jeep JK frame modification required, and vacuum pump relocation is required PN MB2060

Compatible With:

JK, JKU
