Hatchet Series Front Frame Chop Bumper w/ Stinger and Fog Mounts for Jeep JK / JKU

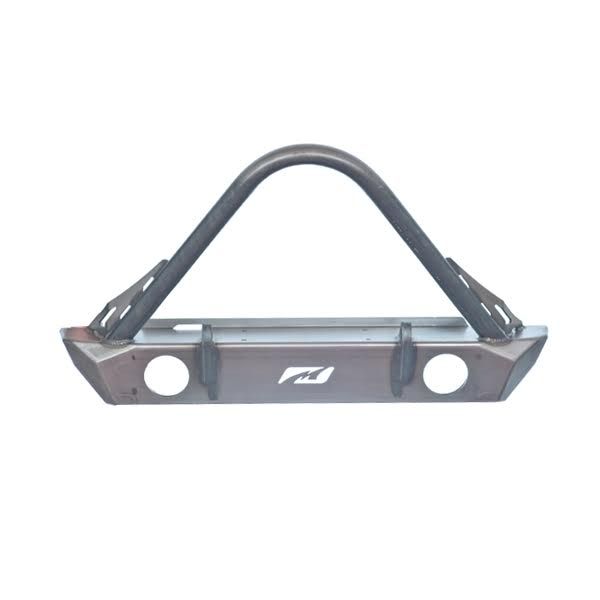

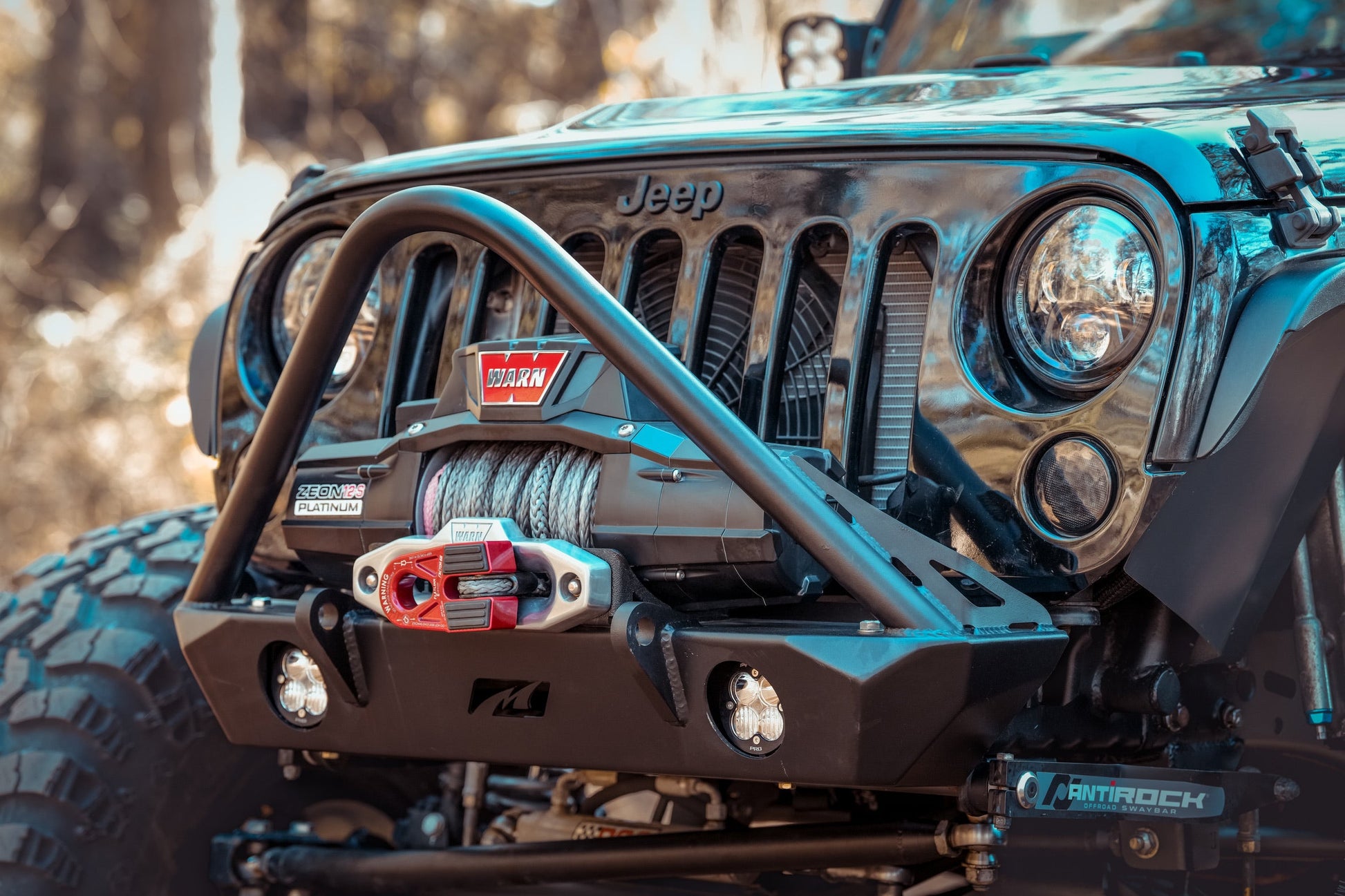

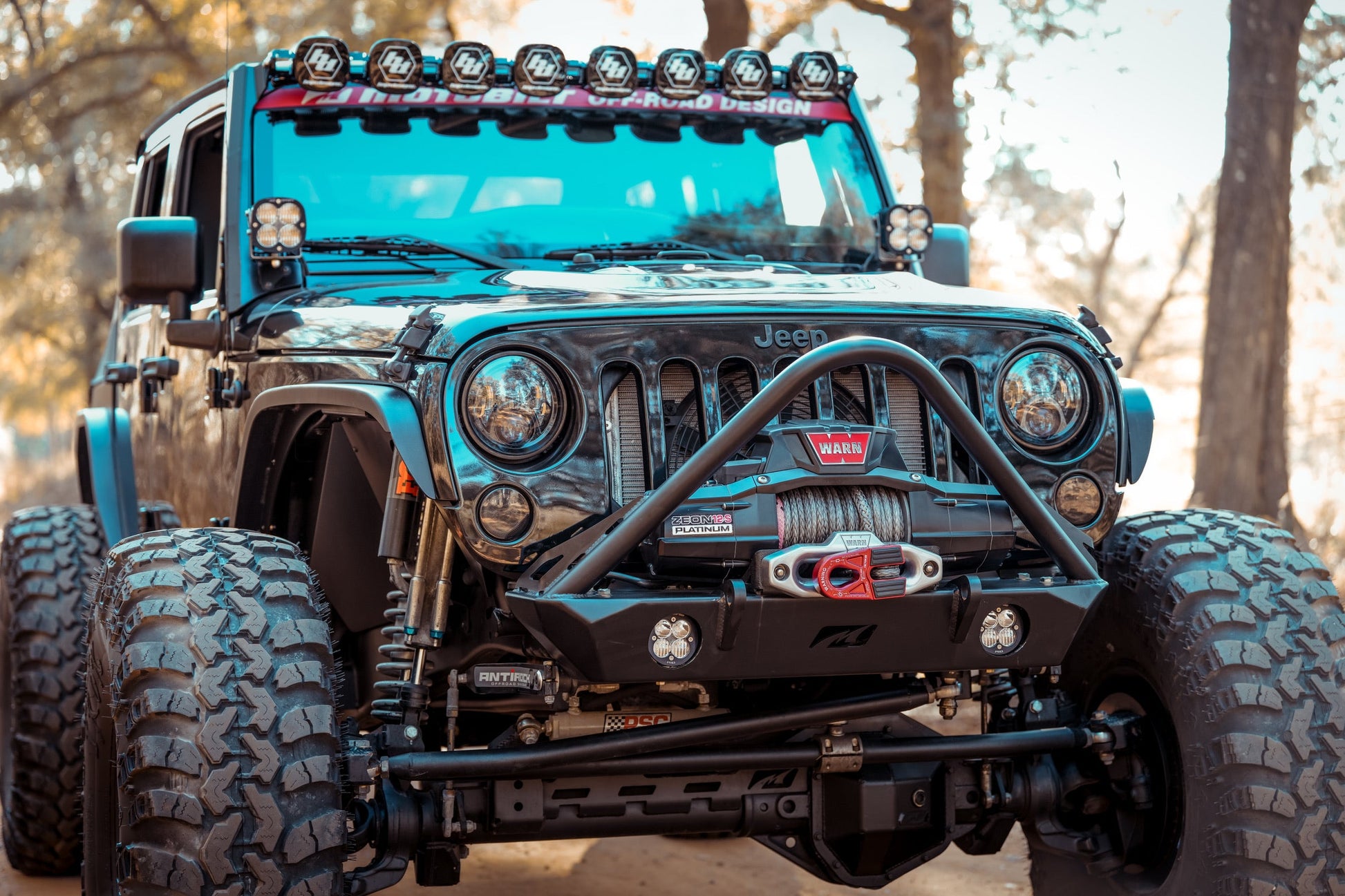

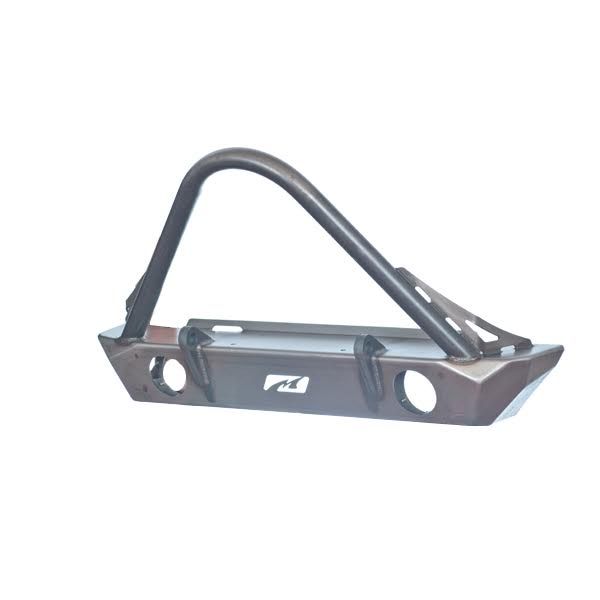

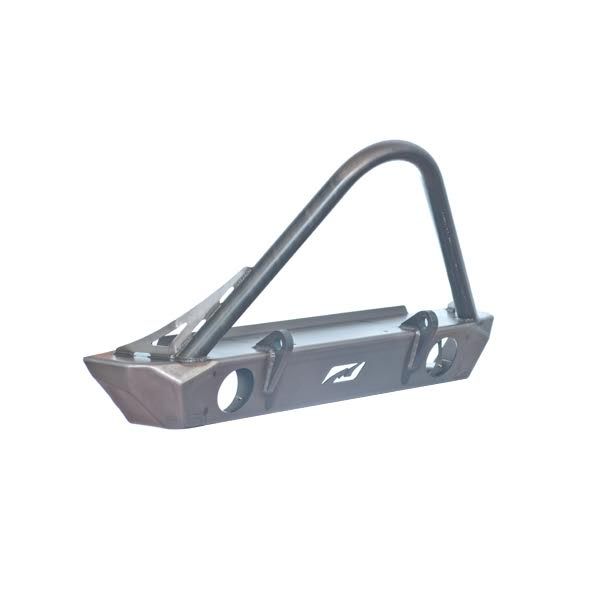

The Motobilt Hatchet Jeep JK Front Bumper is an ultra-slim design for the front of your Jeep JK. The Hatchet is available in a few different configurations. This Hatchet configuration features integrated factory or aftermarket LED fog lights and a stinger option. The Hatchet is a total of 41-inch wide which allows for closer approach angles.  This is a frame chop design bumper.  The front frame horns have to be cut off approximately 2"s and the bottom crash bar has to be completely cut off and removed from the frame.  The areas that need to be cut are shown in the pictures.  Also, holes will have to be drilled through the frame rails in order to mount the bumper to the Jeep.

Important Information

Frame Modification Required: Installation necessitates cutting of the frame, ensuring a perfect fit and superior performance.

• Winch: Our winch bumper is designed to fit a standard mounting pattern of 10" x 4.5" and has been tested with the Warn VR EVO and Zeon series winches. It may also fit other untested winches.
• Sway Bar Compatibility: Works with all factory sway bars including Rubicon and works with Anti-Rock as well.
• Ships raw metal so you can customize to your needs.
• 2012 and newer models requires frame modification and vacuum pump relocation in Jeep JK

Compatible With:

JKU
