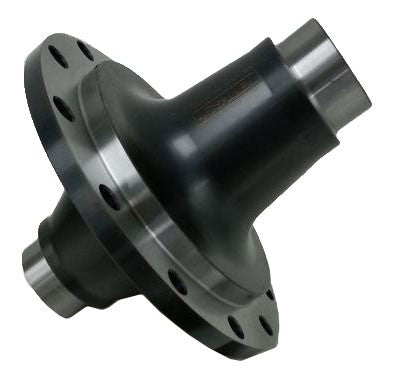

GM 14-Bolt 40 Spline Steel Spool

Mark Williams steel spools are precision machined from US Made 4140 steel forgings on CNC machinery for ultimate precision and accuracy. The ring gear register and bearing diameters are precision ground with the spool mounted on a special arbor to assure concentricity between the splines and the ground surfaces and final ground to ensures zero runout on the ring mounting surface. Engineered for maximum reliability, MW spools have an increased cross-section under the ring gear register to prevent ring gear deflection. MW spools are heat treated in-house with the same austemper through hardening heat treat process as our strongest in class MW Hi-Torque axles for ultimate strength.

The Mark Williams Advantage

• Through hardened alloy steel, not egg-shell-thin hardened case
• Ring gear mounting diameter is ground to precise press fit
• All mounting diameters concentric and square within .001"
• Increased cross section and generous radius under mounting prevents deforming
• Made in the USA! Forged, Ground, Machined, and Heat Treated in the USA!

Note requires MW C-Clip Eliminator kit or weld on housing ends and MW axles.

Instructions SB0046

Features

• To run 4.56 and numerically higher ratios on this spool you will need thick gears.
• Cut for standard Dana 40 Spline axles
• 4140 Through hardened steel
• Uses 12" bolts PN 14B-RG-KIT1
• Weighs 25 pounds
• Made in the USA

Service instructions can be found on Service Bulletin #0046.
