Front 3 or 4 Link Suspension Bracket Kit for Jeep JLU

Our MB7007 Front 3 or 4 Link Suspension Bracket Kit for Jeep JL & JLU takes all of the front geometry guesswork at the frame out of your build.

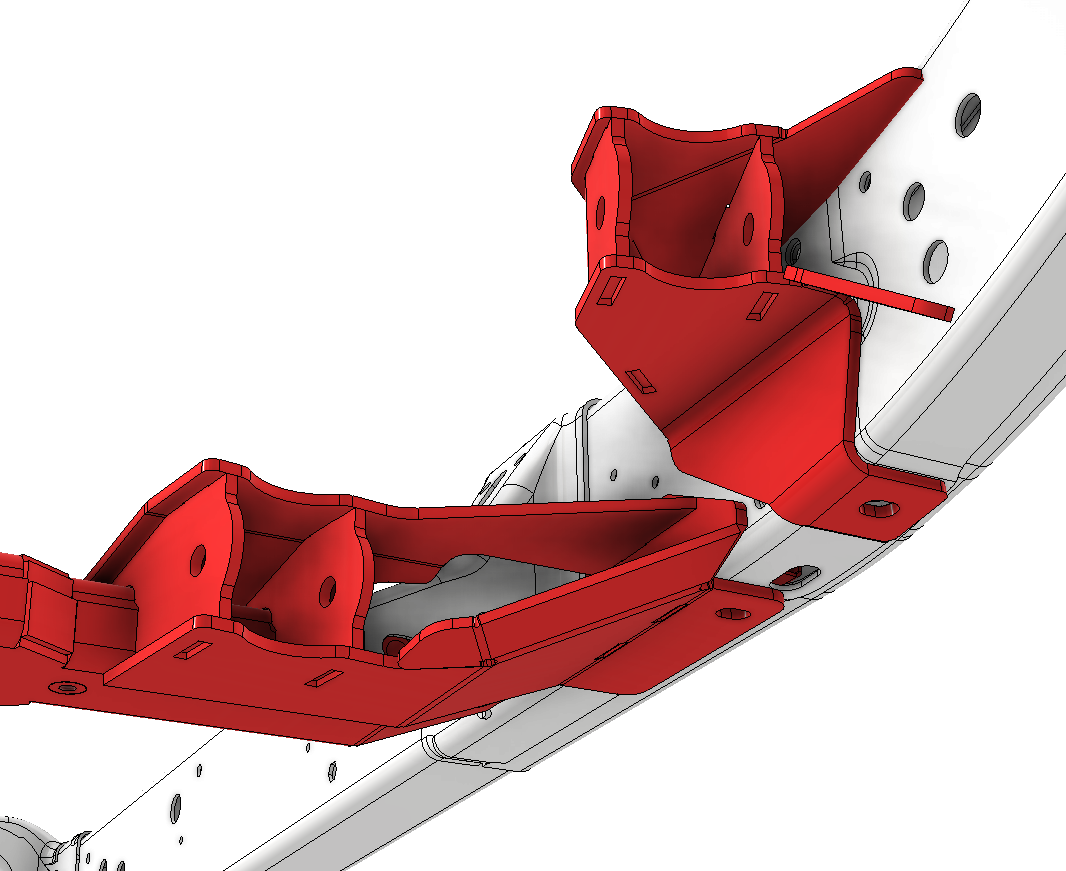

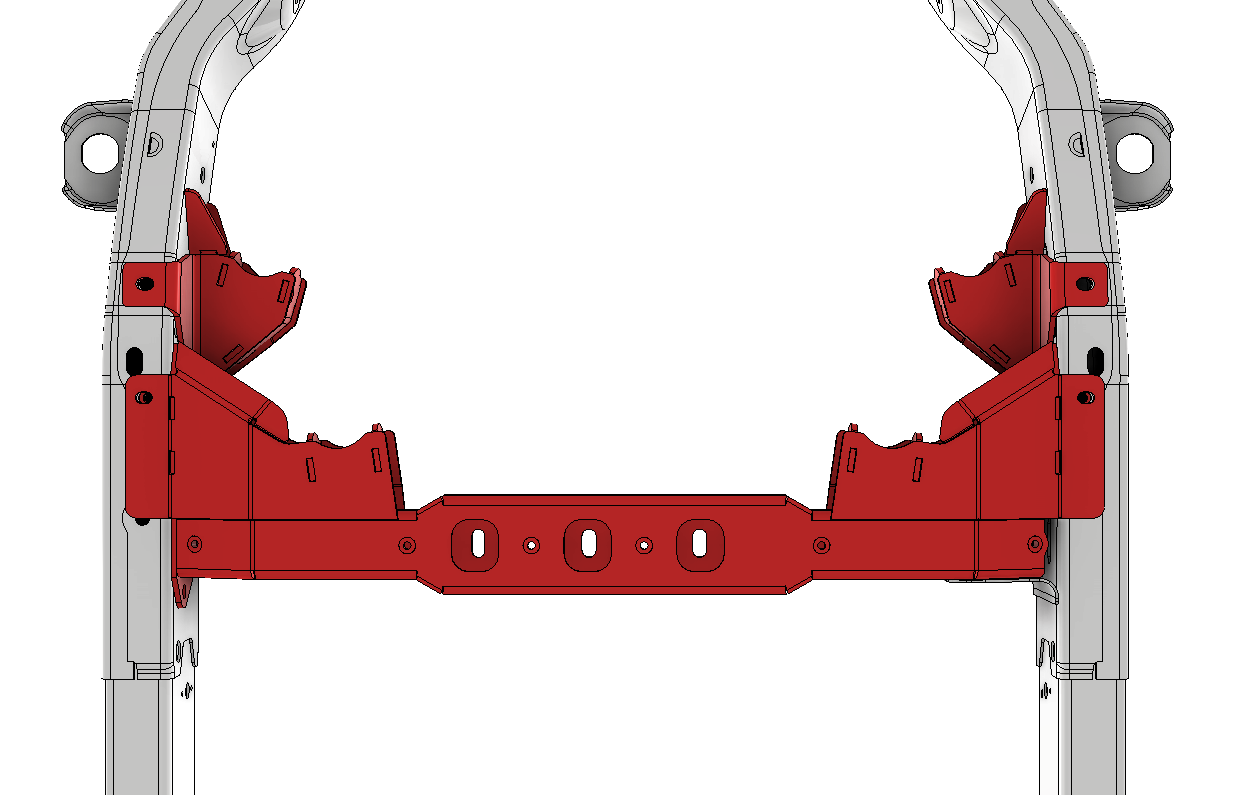

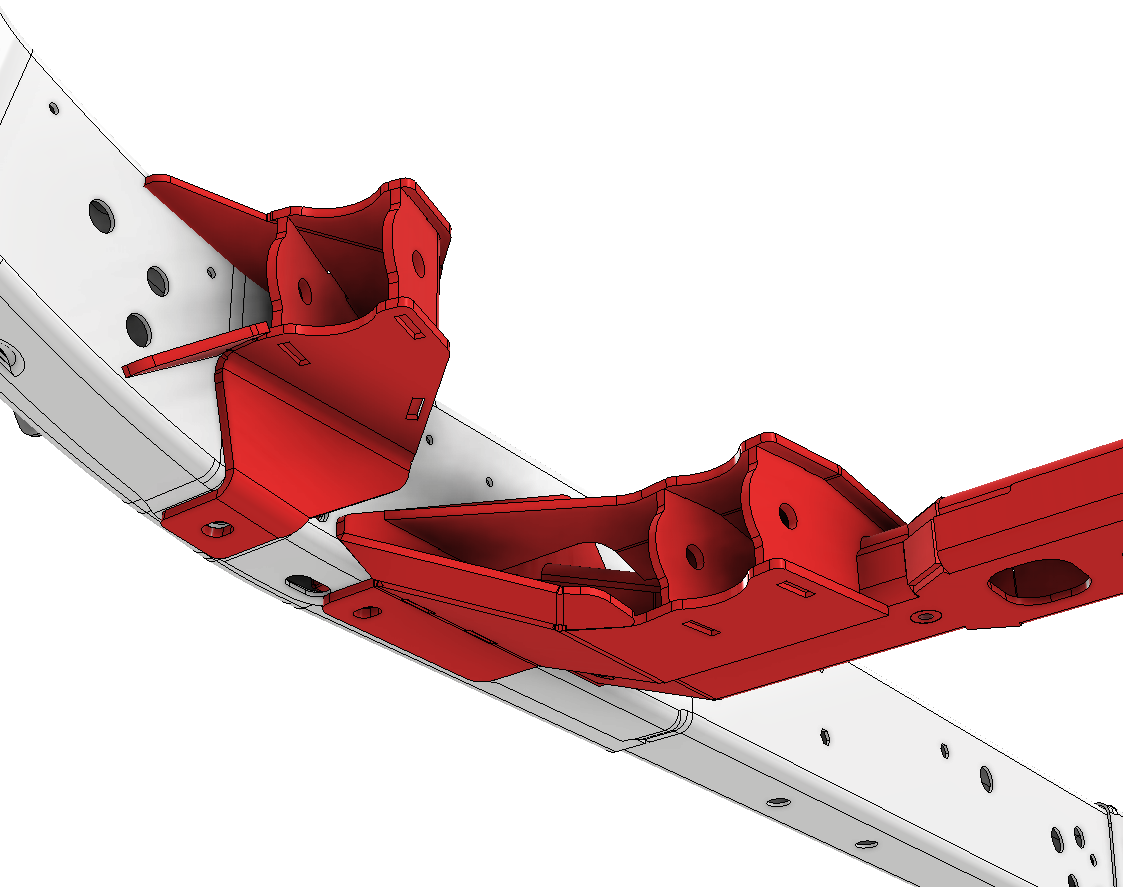

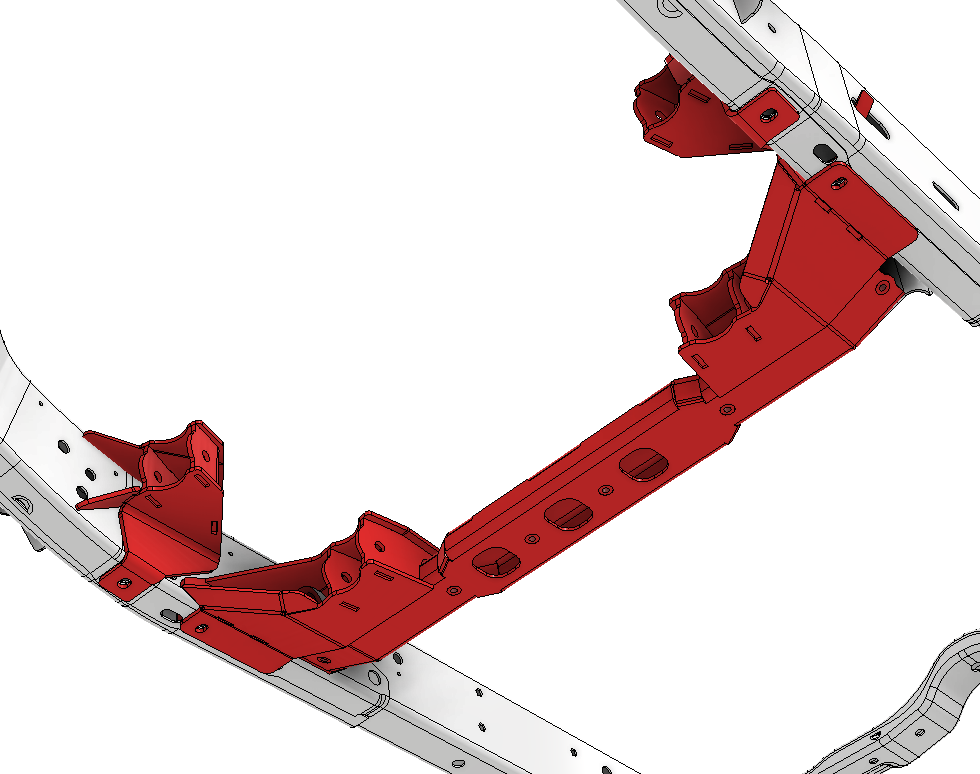

Our kit includes all of the front frame mounted bracketry to allow you to build either a triangulated 3 link front suspension with tracbar for mechanical steering or a triangulated 4 link front suspension for full hydro steering.

All front brackets are designed to accept 2-5/8” wide joints. All joint mounting holes measure 5/8” diameter which you can drill to a larger diameter, if you choose.

All joint pivot bolts are 100% recessed & protected, yet still easily accessible with standard tools for maintenance & future repair or service.

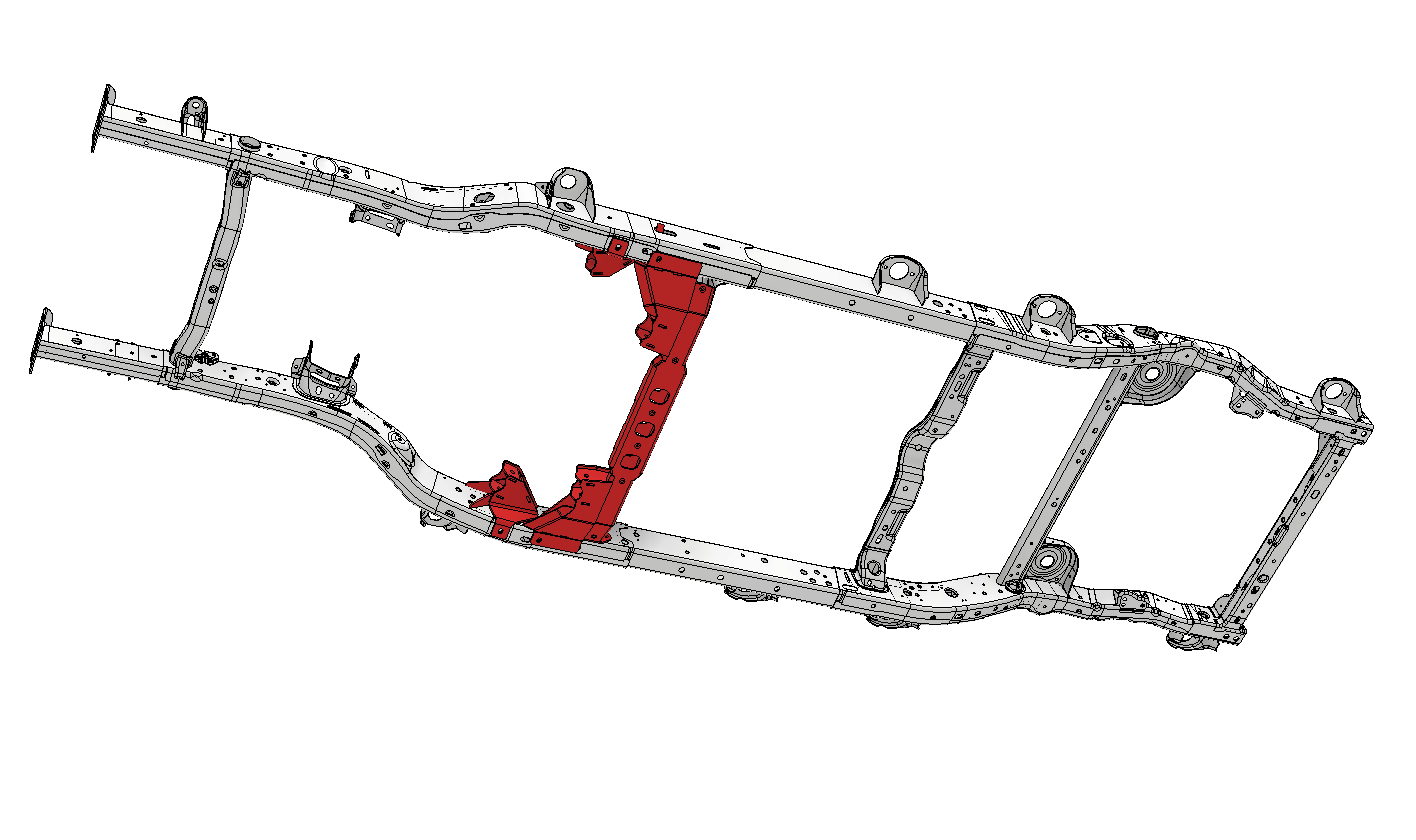

All front brackets are located using factory frame hole locations for ease of installation.

All plates are ¼” thick high grade steel & expertly designed to key together with self-jigging precision tabs & slots

Parts are shipped as fully welded sub-assemblies. Parts are shipped as raw steel. Requires professional welding of kit components to factory frame.

Compatible With:

JLU

Suggested Parts:

• CE-9114NL-28 & CE-9114N-28 Johnny Joints from RockJock 4x4

Instructions

Assembly Instructions
