Ford 10.25/10.5 Sterling Rear Axle Truss / Trail Version

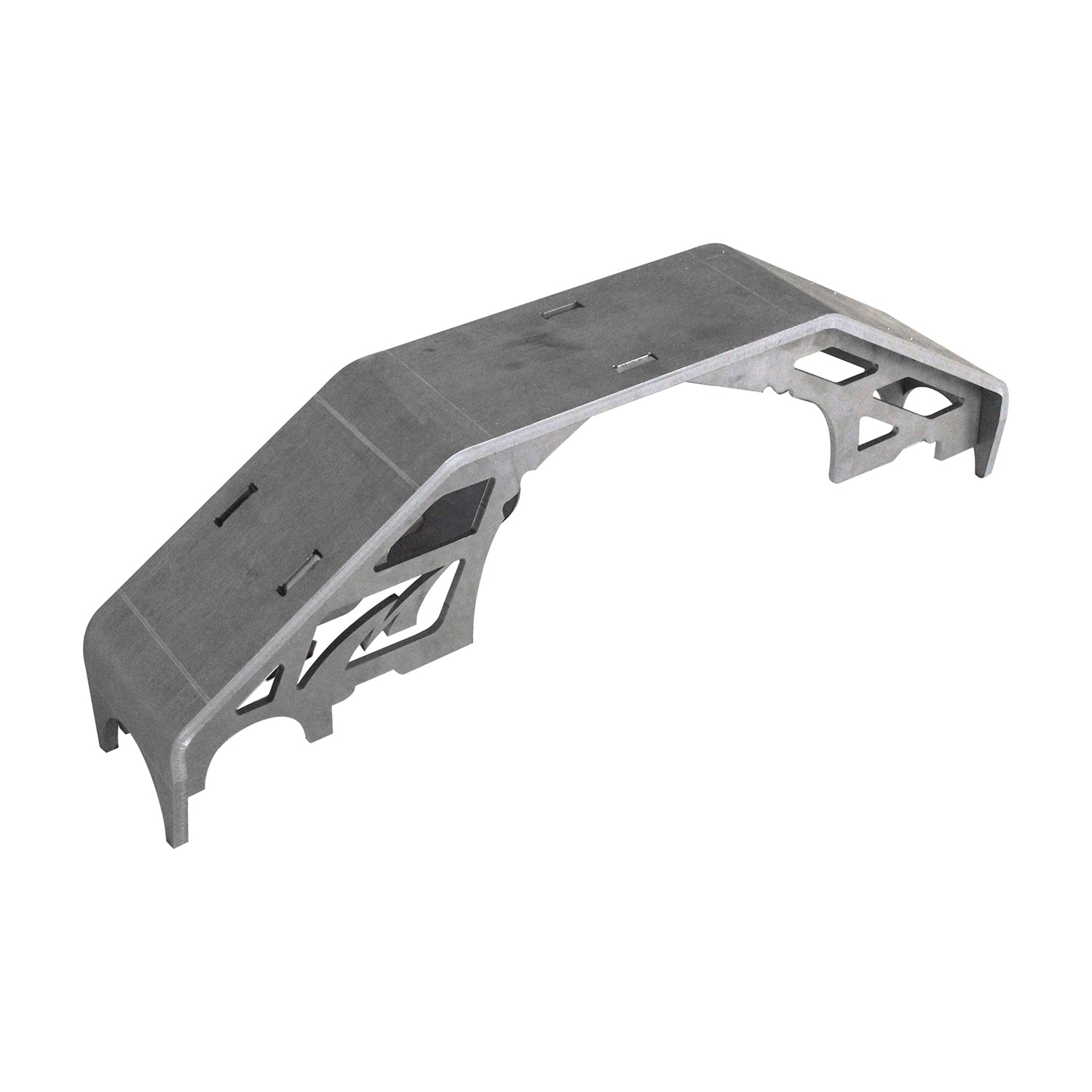

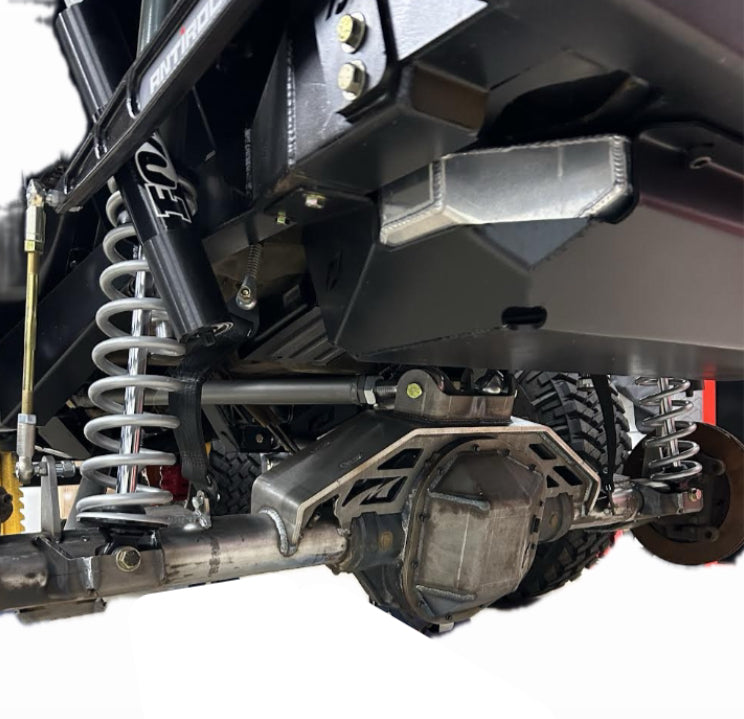

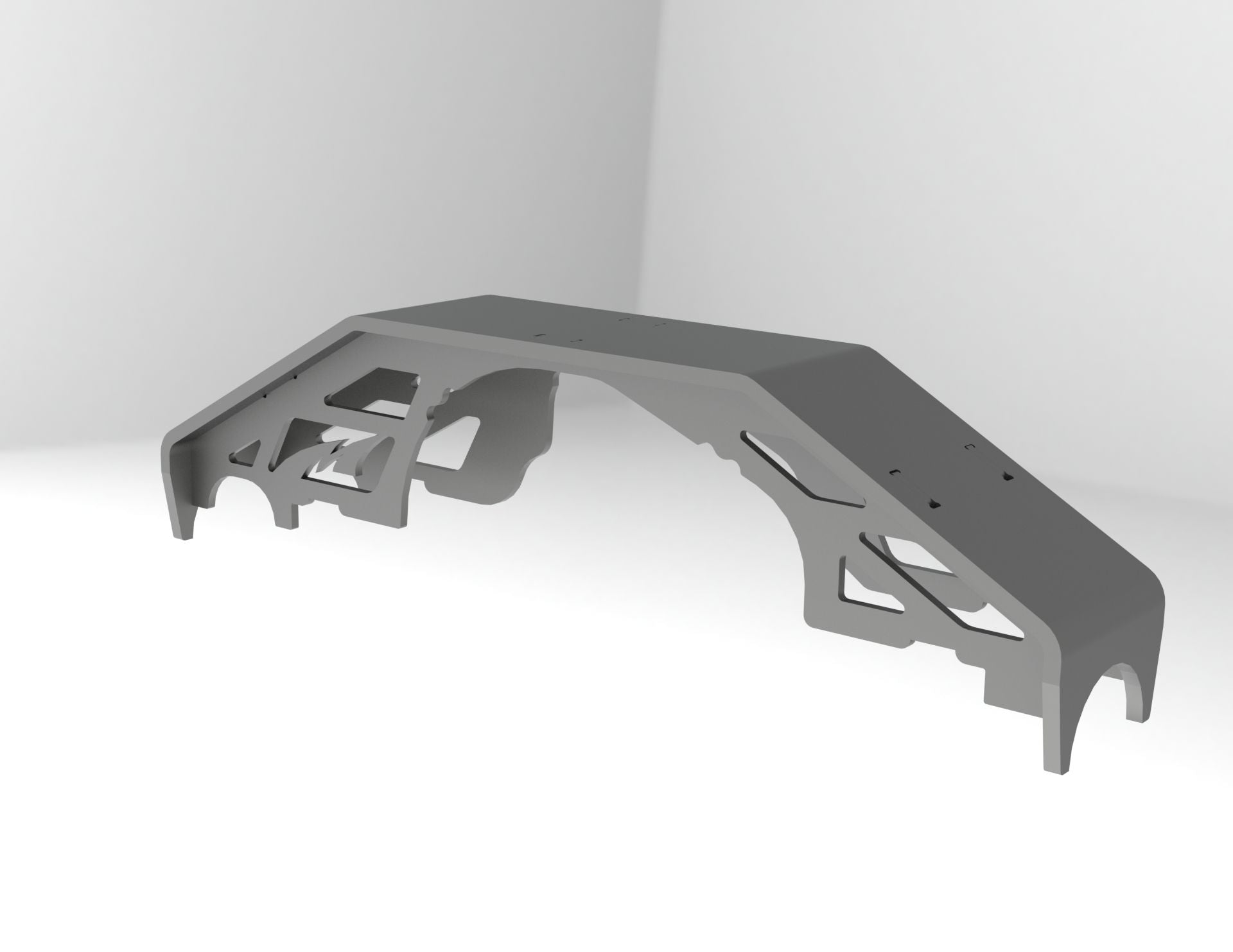

This rear axle truss fits the Ford 10.25 / 10.5 Sterling rear axle. This Ford trail truss main structure is made from laser cut 3/8 inch thick steel plate and the support structure from 1/4 inch steel plate. The over all length of the truss is 27.25 inches. This is a low profile design so you will have plenty of clearance when mounting link tabs on top of the axle. This will fit a centered 10.25 or 10.5 rear axle.

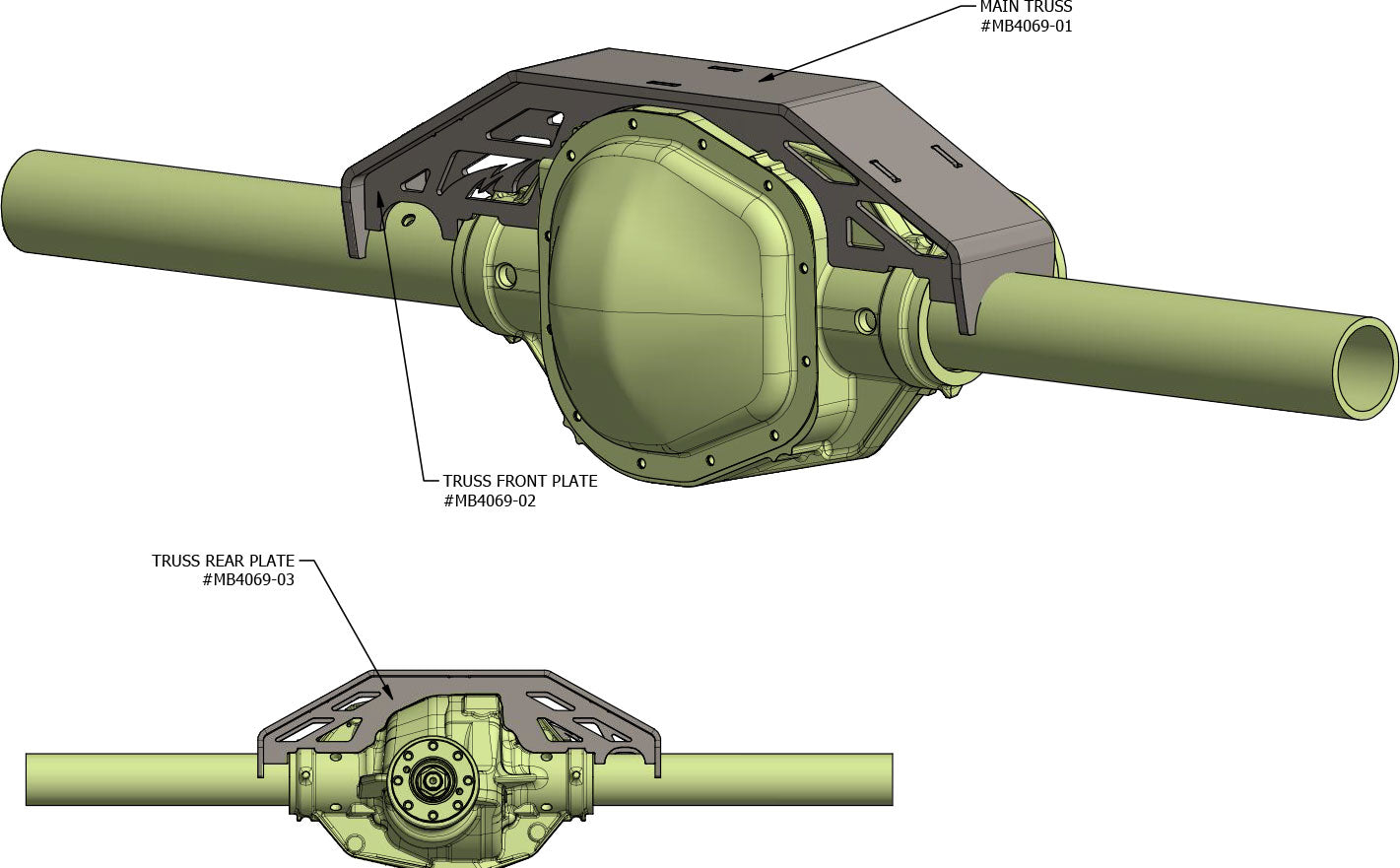

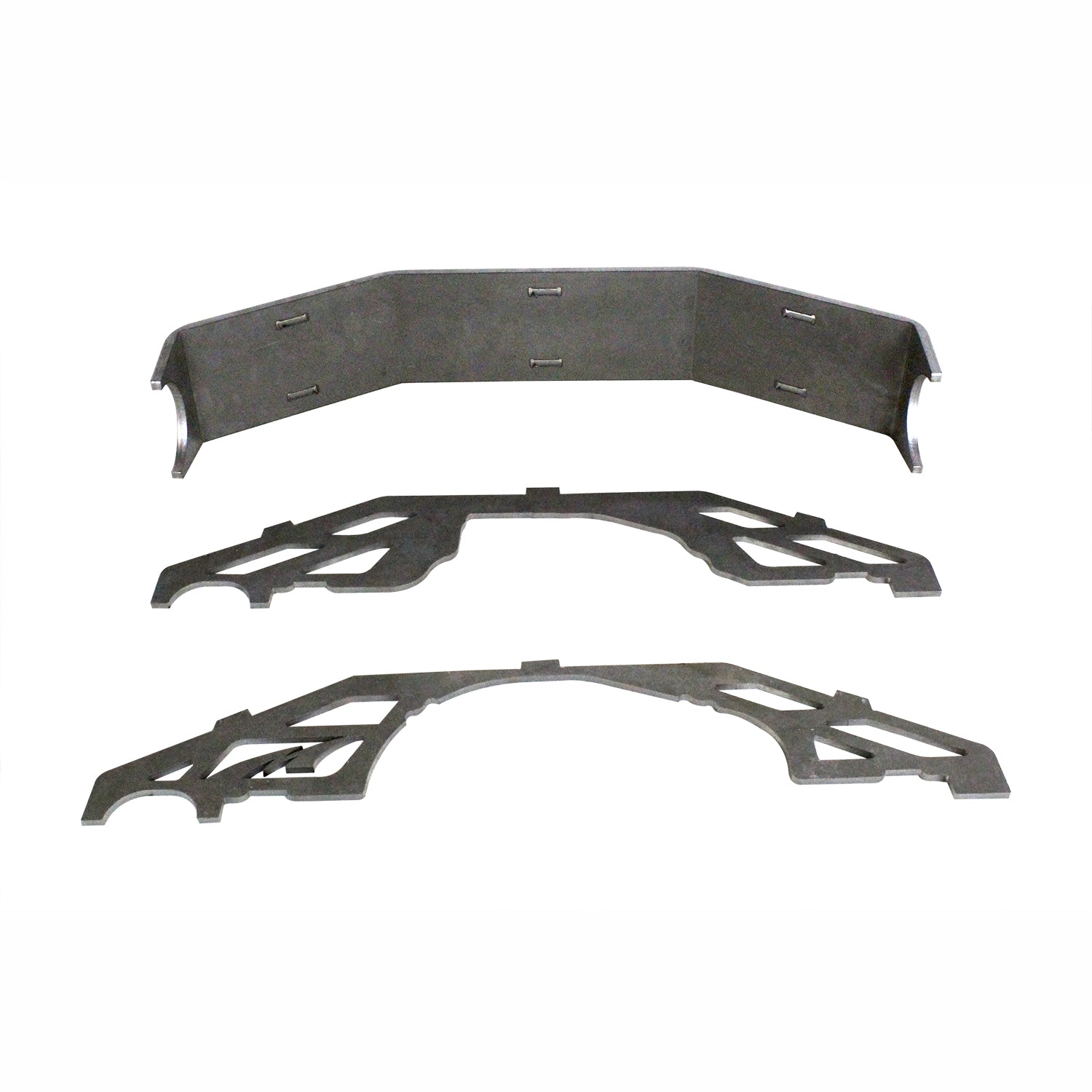

The truss follows the contours of the cast center section very closely so due to variances over the years there may be some trimming needed. Due to its narrow design it will work with a link suspension or with leaf springs. The low profile design also makes it much easier to fit in many custom applications. This is a weld on design and consists of a main bridge structure and 2 support plates. It ships raw steel.

Suggested Parts

• MB3049 -Rear Axle Upper Control Arm Link Mounts for Truss

• MB1571 -  Triangulated Lower link Mount for Rear Axle
• MB4032 - Sterling 10.25 & 10.5 Heavy Duty Diff Cover
