Chevy Dana 60 Front Axle Truss / Steering Ram Mount
Chevy Dana 60 Front Axle Truss / Steering Ram Mount

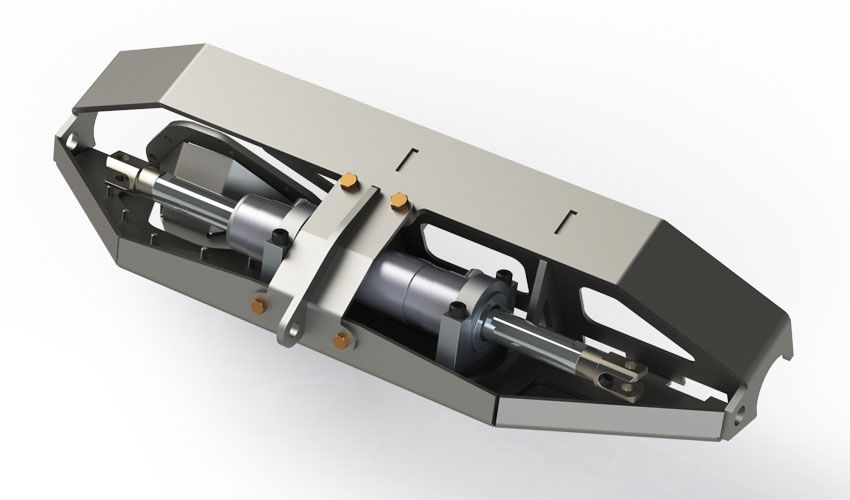

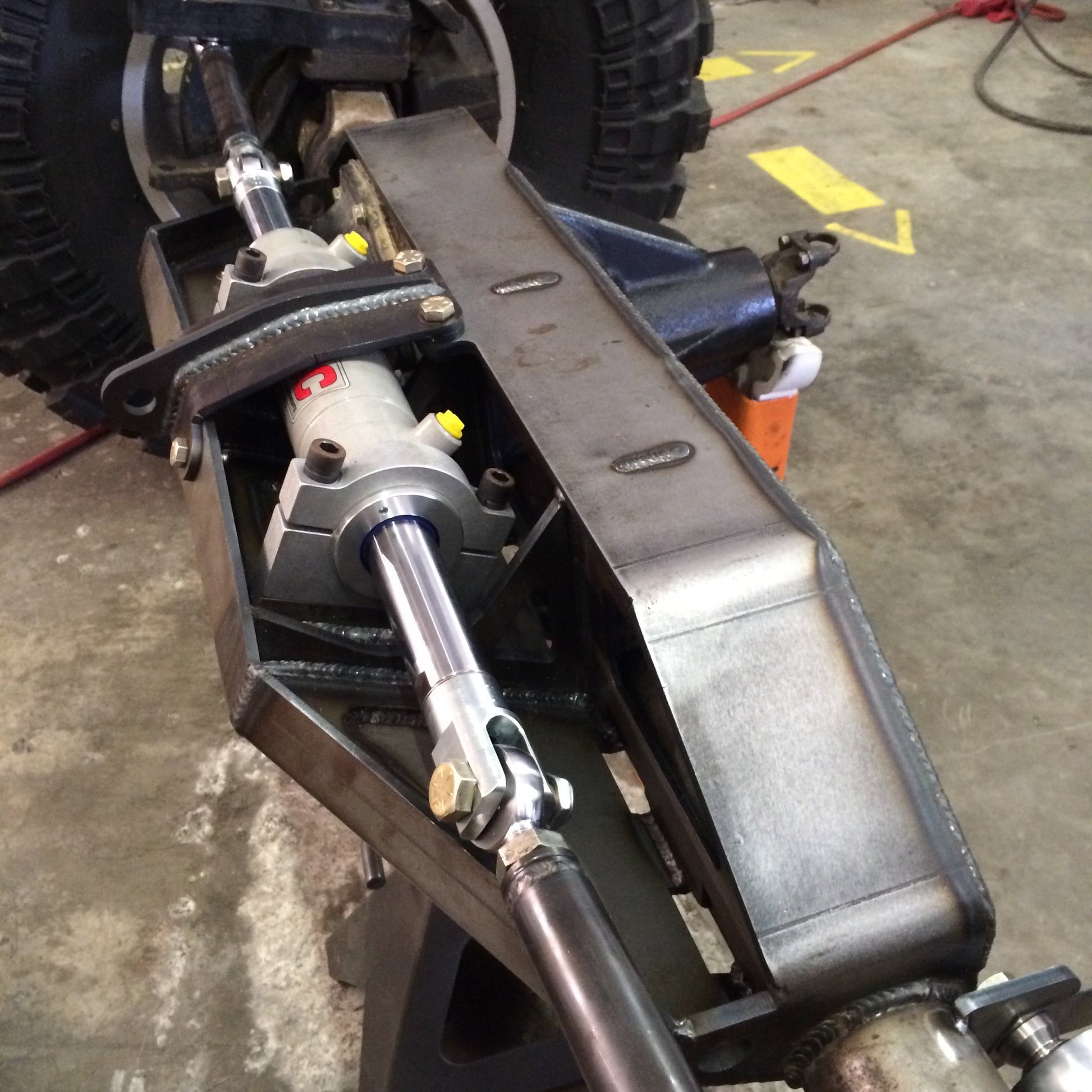

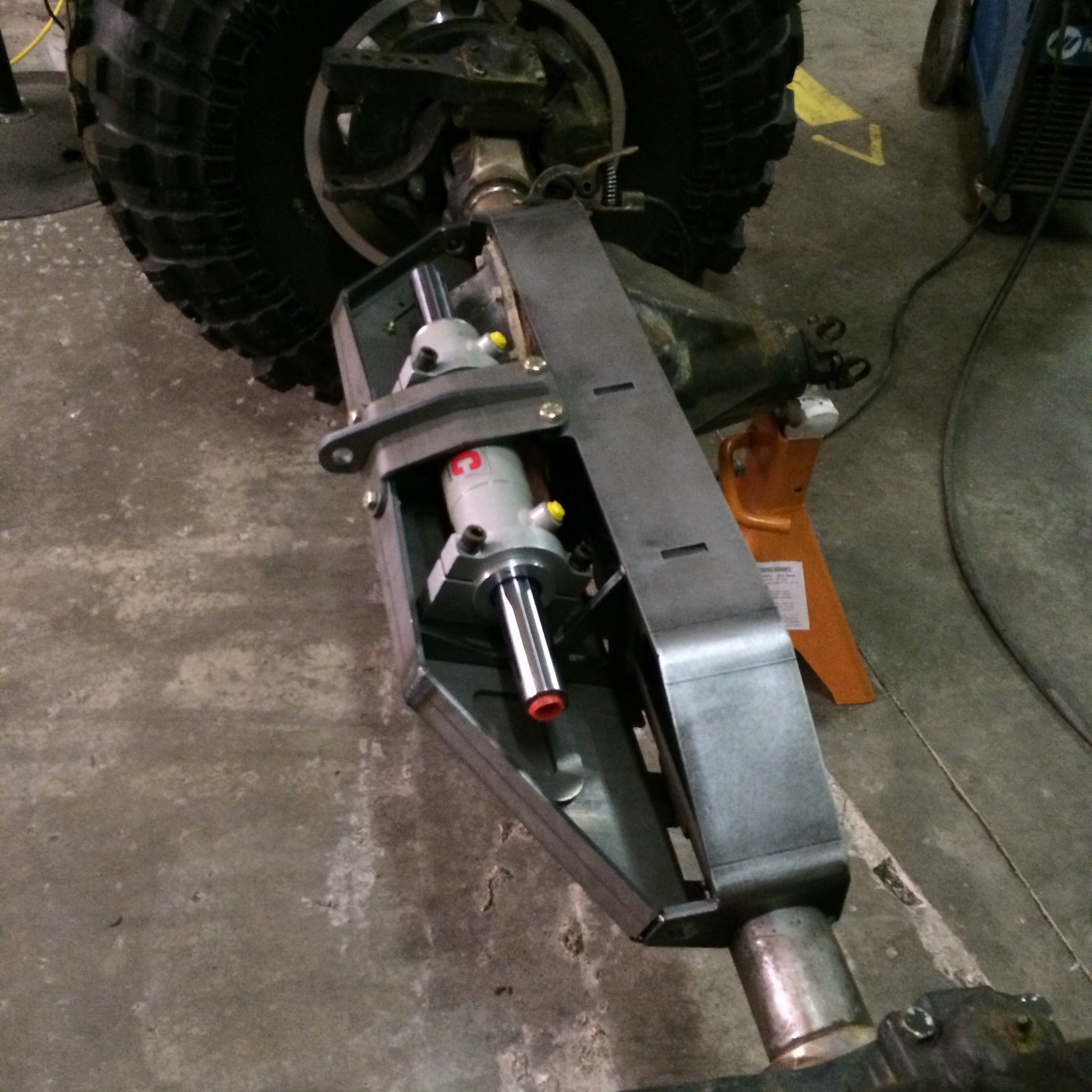

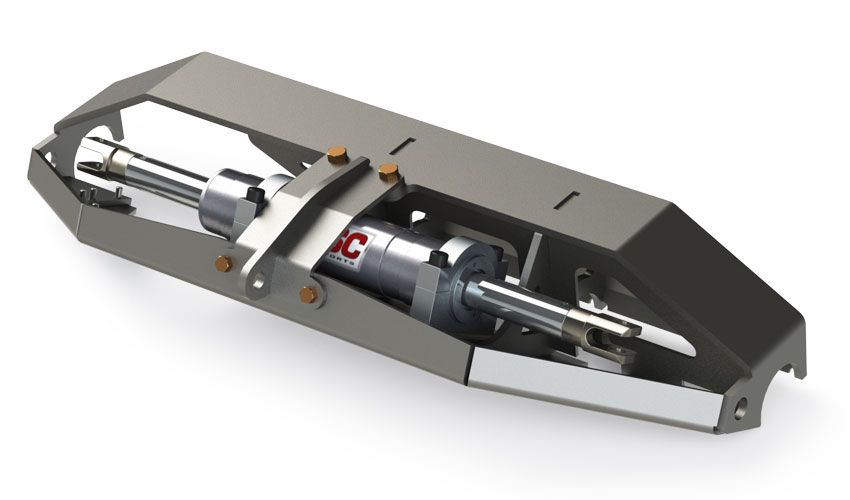

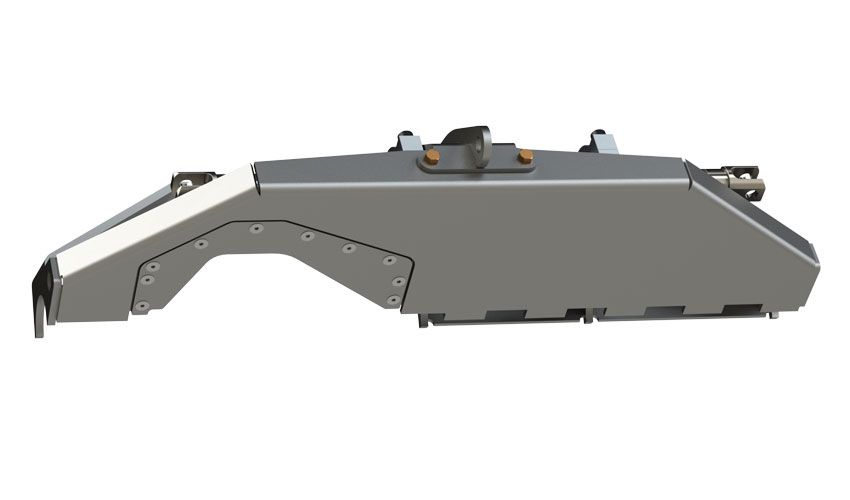

Chevy full width Dana 60 Axle Truss System with integrated double ended steering ram mount. The Motobilt Chevy Dana 60 axle truss is laser cut and bent out of 3/8 inch high strength steel for the main structure. The truss spans the length of the axle, and is included in an integrated hydraulic ram mount for full hydraulic steering.
The design is meant for a 2.5 inch double ended ram. The ram is completely protected from underneath with a full skid plate to keep it safe from rocks. The truss and steering ram mount are tied in together and a mount for a small clevis shackle is located on the front center of the steering ram mount. This mount is used to connect your winch to be used as a Suck Down winch point.
The entire system is designed with keyway fitments to ensure a true and straight forward install. Removable skid plate for diff cover is included for ease of access into the differential.
Suggested Parts:
- MB1568 - Universal Upper Triangulated Link Mount - Front Axle
- MB4006 - Dana 60 Angled Lower Link Mount Kit
- MB4010 - Dana 60 Heavy Duty Diff Cover
Compatible With:
YJ, CJ, LJ, TJ
Axle Truss Prep
