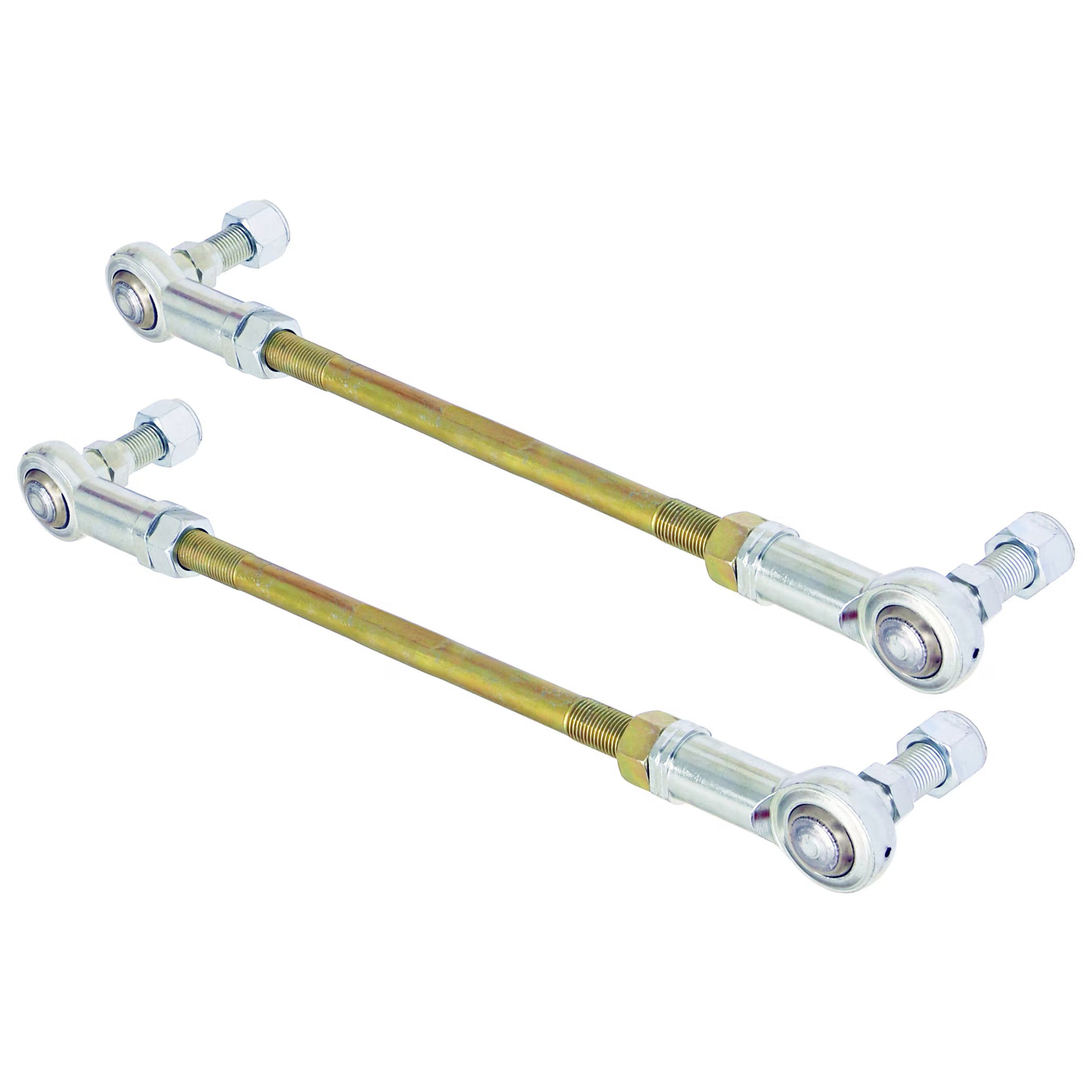

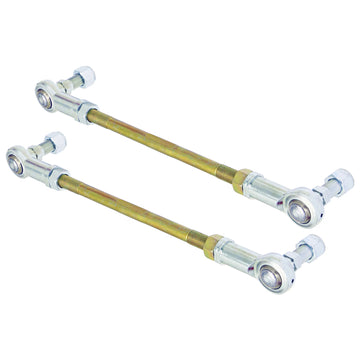

CE-99002 - Antirock Sway Bar End Links w/ Heims (8 1/2 in. Rods)

RockJock's Adjustable Sway Bar End Link Set features 8 1/2 in. long link rods with 2 5/8 in. of 1/2 in.-20 LH thread and 2 5/8 in. of 1/2 in.-20 RH thread, providing adjustment as-is and extra thread, allowing you to cut them shorter as deemed necessary by your application.
Link sets are included in our Antirock Sway Bar Kits, but are able to be used universally in many applications to replace non-adjustable sway bar links.
Additionally, if you have changed the lift amount on your vehicle you may need a different length of sway bar links to accommodate your new lift. You can simply buy a complete new link set to accommodate your needs.
The heim joints in this kit feature 1/2 in.-20 RH thread studs and nyloc nuts & jam nuts are included.

Kit Fits:

• Universal Use
• Included in JK Wrangler and Unlimited front Antirock Sway Bar Kits - All
• Included in TJ Wrangler and Unlimited (LJ) front Antirock Sway Bar Kits - All

Kit Includes:

• (2)  8 1/2 in. Link Rods (gold)
• (2)  1/2 in.-20 LH Studded Heim Joint Kit
• (2)  1/2 in.-20 RH Studded Heim Joint Kit

Adjustment Range:

• Closed – At maximum trimming of this rod (15/16 in. of thread left on each side and the heims & jam nuts screwed on til they meet the smooth area of the rod), C-C is 8 3/8 in.
• Extended – Uncut rods with heims installed safely adjust out to 11 3/4 in. C-C

Component Specs.:

• Gold Rod Length  =  8 1/2 in.
• Gold Rod Diameter  =  1/2 in.
• Gold Rod LH Threads  =  1/2 in.-20 x 2 5/8 in. Long
• Gold Rod RH Threads  =  1/2 in.-20 x 2 5/8 in. Long

• Gold Rod Center Smooth Area  =  3 1/4 in. Long
• Gold Rod Wrench Flat  =  req. 11mm wrench
• Heim Joints  =  req. 19mm wrench
• Jam Nuts  =  req. 3/4 in. wrench

Notes:

• These are the end links that we include in our JK, TJ and LJ front Antirock Sway Bar Kits

Parts List:

• 8 1/2 in. Link Rods (gold):  CE-9901RD4
• 1/2 in.-20 LH Studded Heim Joint Kit:  CE-99006LK
• 1/2 in.-20 RH Studded Heim Joint Kit:  CE-99006K
