CE-9200 - TJ/LJ/YJ 1 in. Raised Motor Mounts

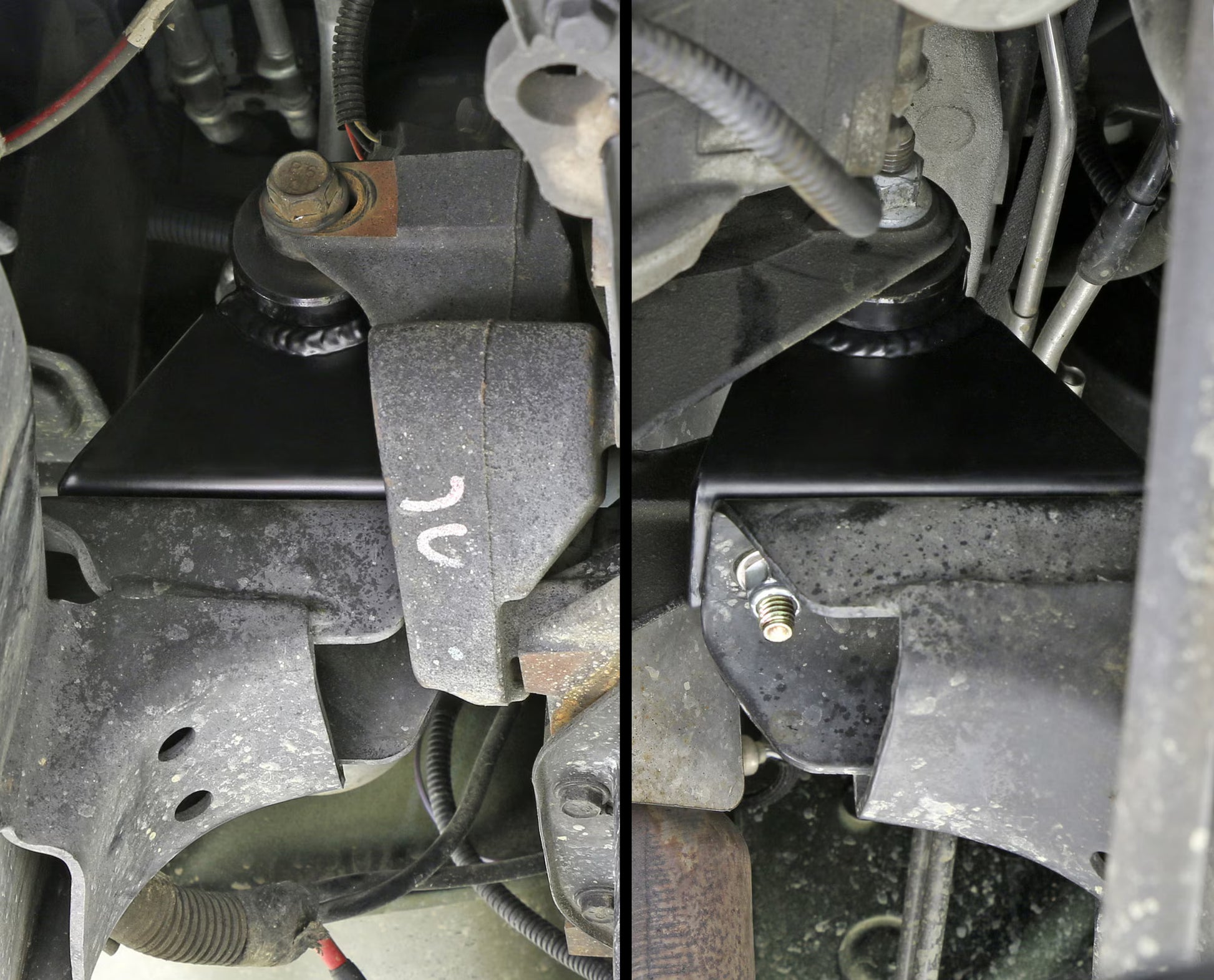

The RockJock 1 in. Raised Heavy Duty Motor Mounts for TJ and YJ Wranglers as well as TJ Unlimited (LJ) vehicles (with 4.0L engines) lifts the engine in the interest of reducing rear driveline angle.
These new fabricated steel components provide you with dramatically stronger motor mounts than the vehicle is equipped with stock and they feature large diameter urethane bushings with steel inner sleeves to absorb vibration.
Ideally these mounts are intended to be used in conjunction with our CE-9300 1 in. Body Lift. When used together, the body and the motor move up simultaneously, which keeps the fan lined up in the fan shroud properly, the a/c lines out of a bind situation and the shifter linkage in stock relation to the floor pan.
Finished is semi-gloss black powder coat and hardware is zinc plated.

Kit Fits:

• TJ Wrangler – All Models (w/ 4.0L 6 cyl. Engine)
• TJ Wrangler Unlimited (LJ) – All Models (w/ 4.0L 6 cyl. Engine)
• YJ Wrangler – All Models (w/ 4.0L 6 cyl. Engine)

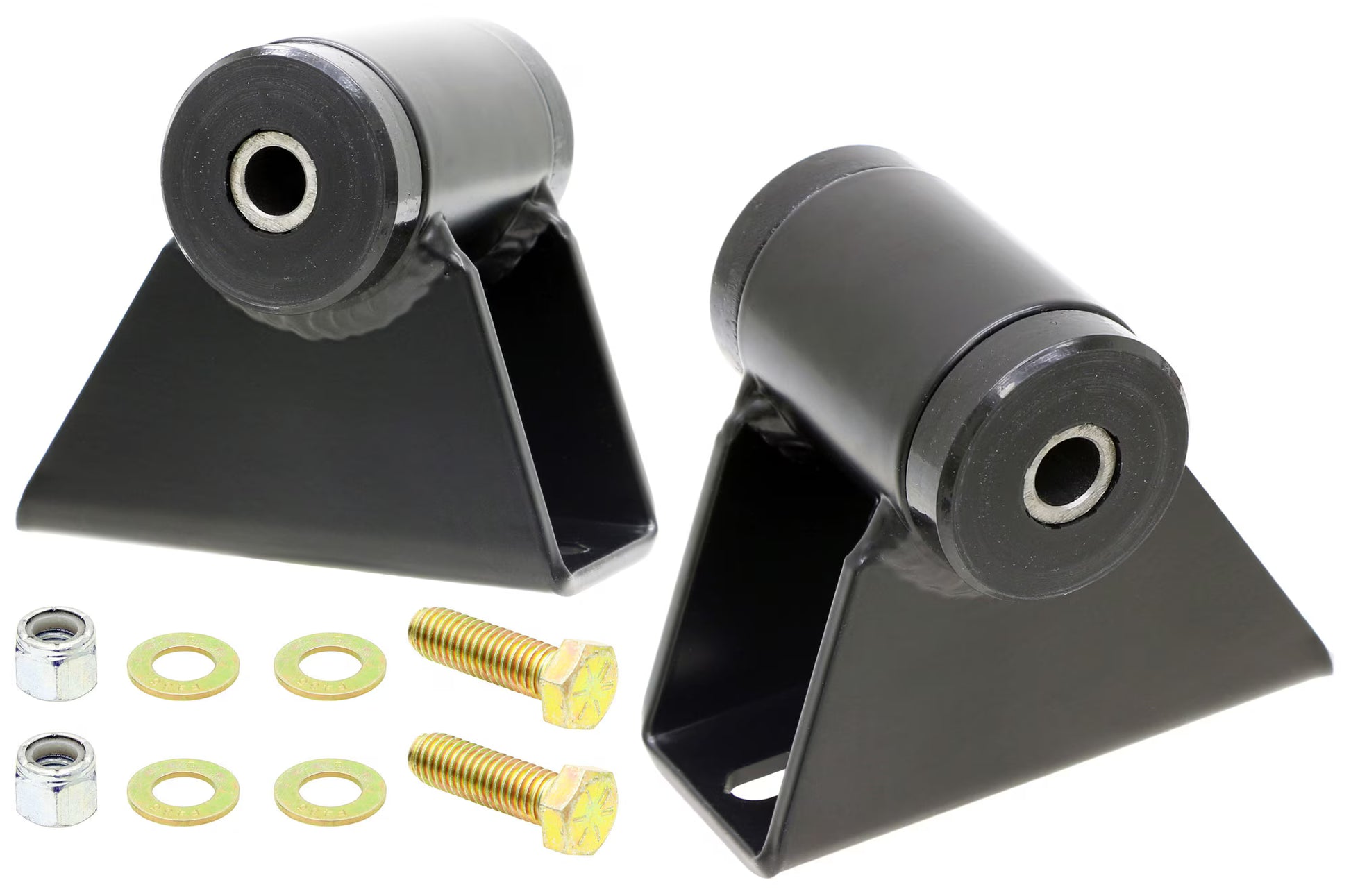

Kit Includes:

• (2)  Motor Mount bracket assemblies
• All necessary hardware

Notes:

• For use with 4.0L 6 cylinder engines only!
• Intended to be used in conjunction with our CE-9300 1 in. Body Lift.

Parts List:

• 1 in. Lifted Motor Mount Bracket:  CE-9200A
• Urethane Motor Mount Bushing Half:  CE-9201B
• Steel Bushing Inner Sleeve:  CE-9200C
• 3/8 in.-16 x 1 1/4 in. Long Hex Bolt:  CE-92620A626
• 3/8 in. Flat Washer:  CE-90108A415
• 3/8 in.-16 Nyloc Nut:  CE-90630A121
