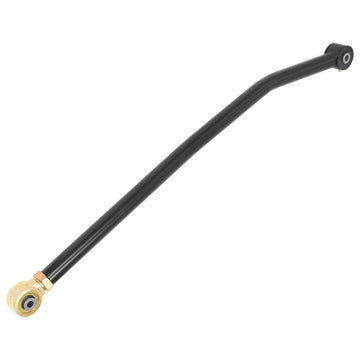

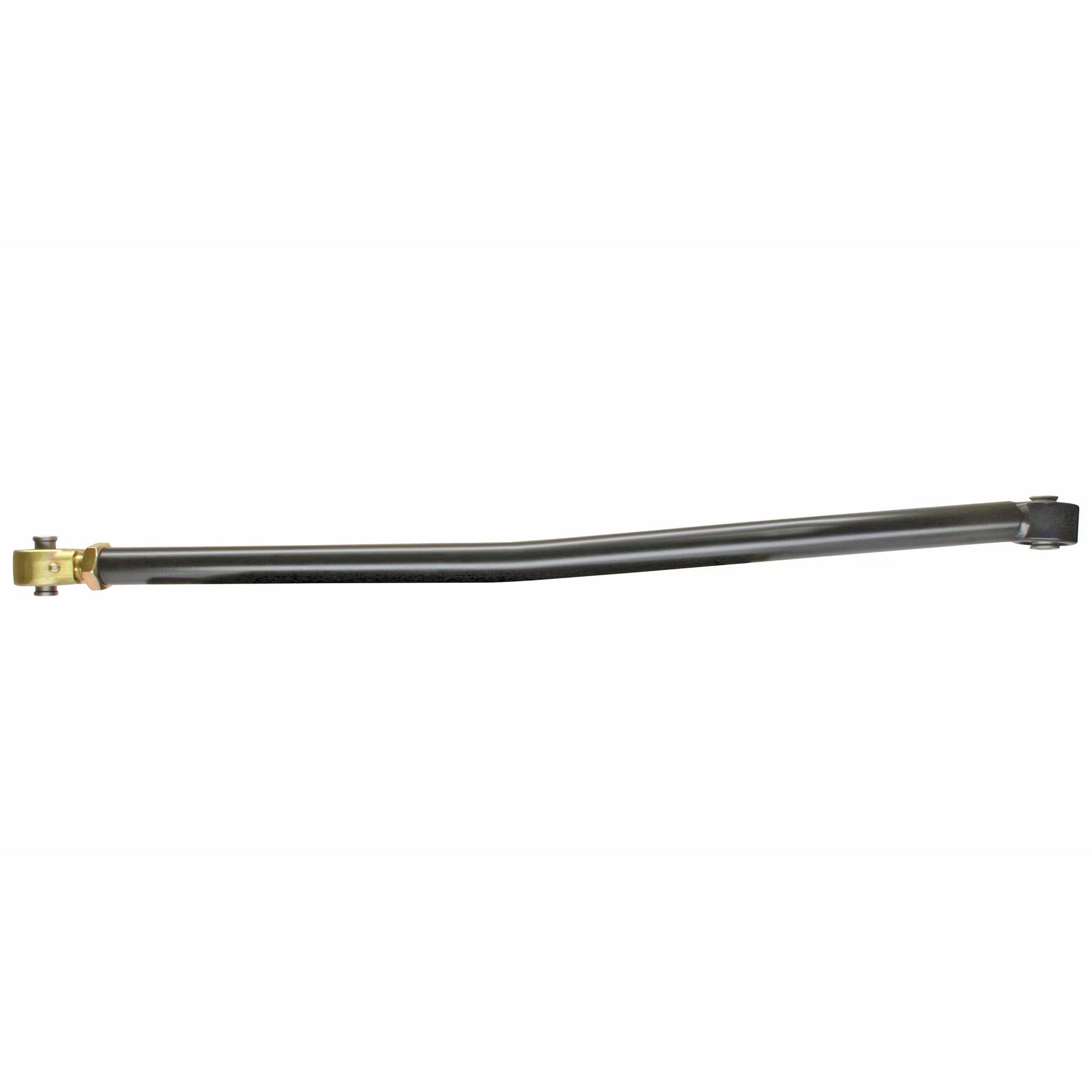

CE-9120RS - TJ/LJ Johnny Joint Rear Trac Bar

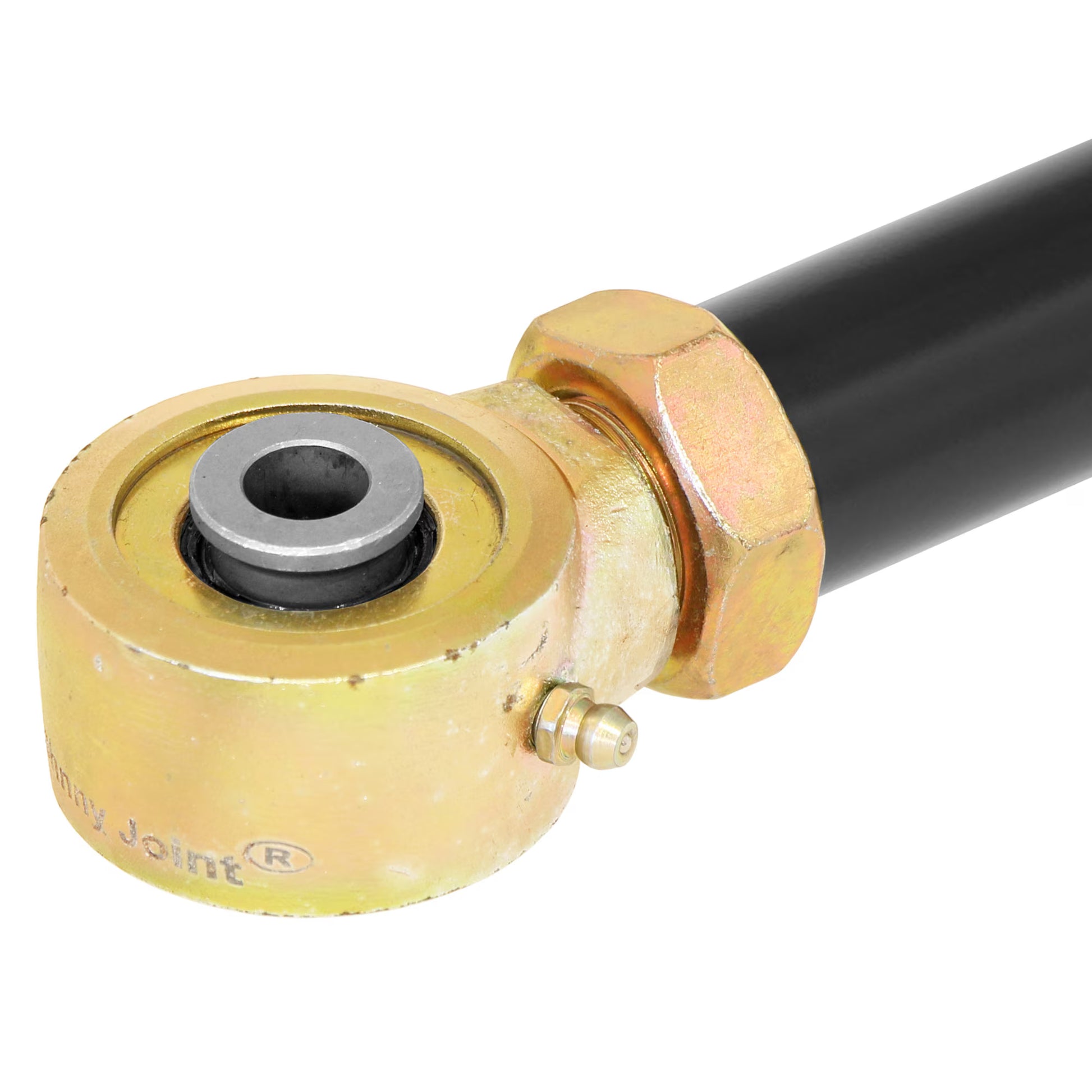

The RockJock Johnny Joint Adjustable Length Rear Trac Bar for TJ Wrangler and Unlimiteds (LJ) features our narrow body Johnny Joint rod ends at both ends. Johnny Joints provide maximum articulation in extreme off-road situations. The 1 1/4 in. x .250 in. wall 4130 chromoly bar incorporates precise bends in the interest of providing maximum clearance between large differentials and the bar itself.
This bar can be adjusted to work with stock rear differential trac bar brackets, aftermarket trac bar relocation brackets (such as our CE-9121N) or the trac bar brackets on aftermarket differentials.

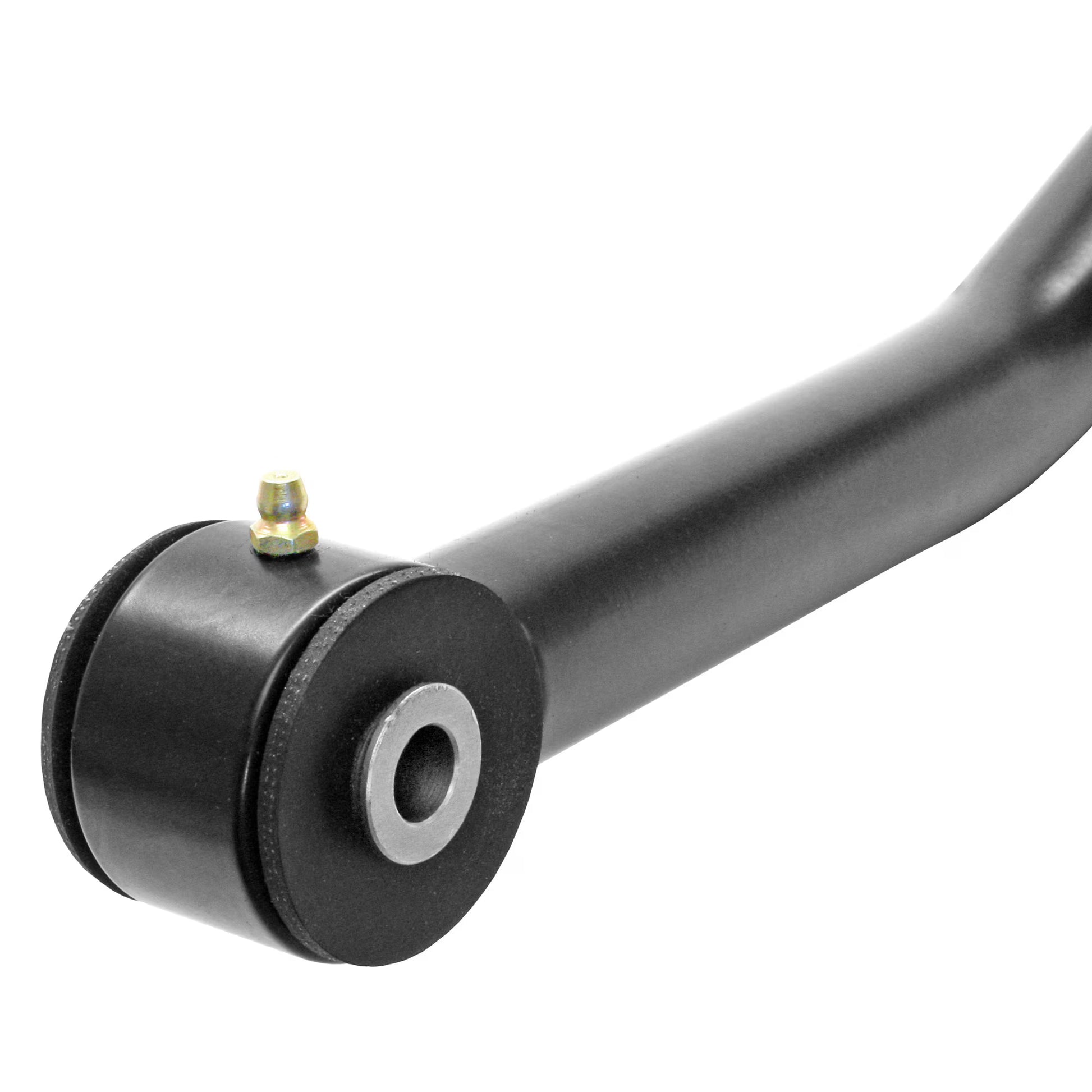

Bar is fully greasable via zerk fittings. Finish is semi-gloss black powder coat on the bar and gold zinc plating on the Johnny Joint adjuster end.
If you are currently in the market for a Rear Trac Bar Relocation Bracket, see our CE-9123 kit that includes this Trac Bar and our CE-9121N Rear Trac Bar Relocation Bracket!

Kit Fits:

• TJ Wrangler – All Models
• TJ Wrangler Unlimited (LJ) – All Models

Kit Includes:

• Johnny Joint Rear Trac Bar Assembly

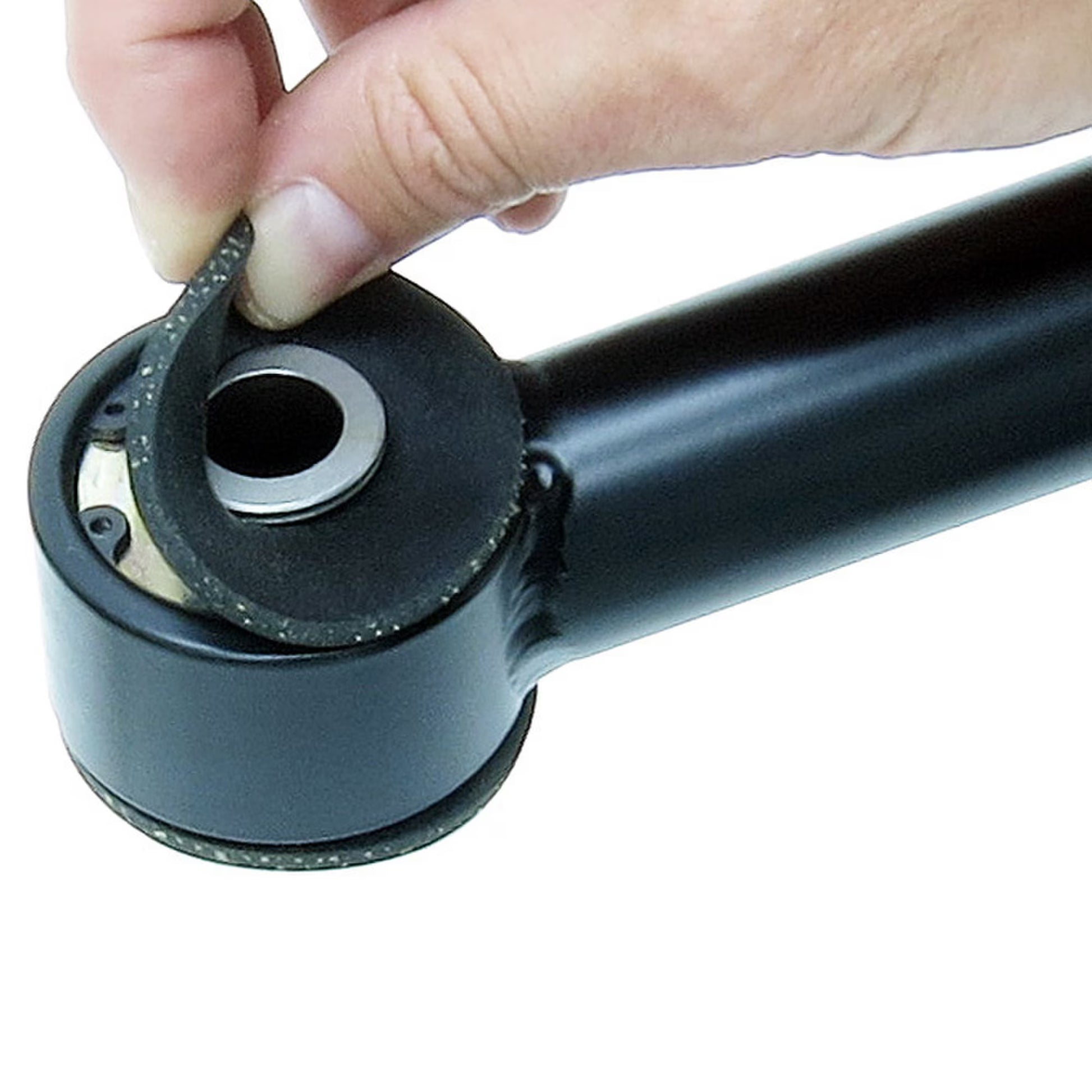

• (2)  Rubber Washers (outboard of the Johnny Joint at the chassis end to encourage the bar to re-center itself after articulating)

Adjustment Range:

• Closed – 31.062 in.
• Extended – 31.810 in.

Fitment Specs.:

• Intended to be used with 2 in. – 4 1/2 in. of lift

Notes:

• See RJ-510100-101
• Bar is fabricated from 1.25 in. x .250 in. wall 4130 chromoly tubing.
• Adjuster features 1 in.-14 RH threads.
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G
• Applicable Johnny Joint Tool for this Trac Bar:  CE-9112T

Instruction Manual:

• CE-9120RS Kit

Parts List:

• Complete Johnny Joint Adjuster End:  CE-9112N-15
• Johnny Joint Rebuild Kit (differential end):  CE-9112NRK
• Johnny Joint Pivot Ball (differential end):  CE-91122-5
• Rubber Washer:  CE-9120RW
• Zerk Fitting (either end):  CE-1103K21
