CE-9033TJ - TJ/LJ Tow Bar Mounting Kit

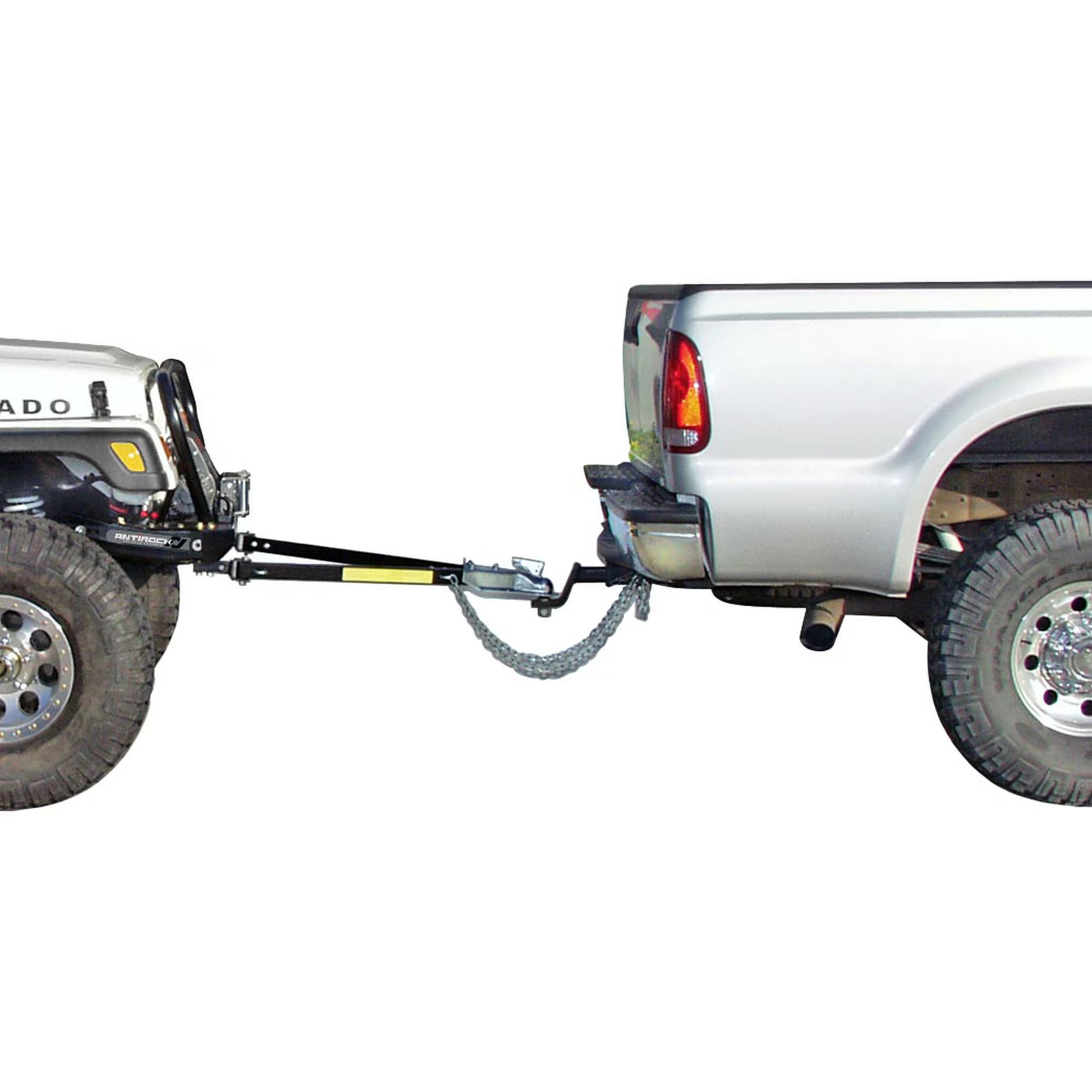

RockJock's TJ Wrangler and Unlimited (LJ) Tow Bar Mounting Kit provides you with heavy duty, easy to install tow bar mounting hardware that simply bolts to the bottom of the front of the frame rail (minor drilling required) and allows you to connect most common tow bars!
Extra holes in the main bracket and the add-on stepped brackets allow you to mix-and-match parts to adapt this kit to stock and most aftermarket bumper configurations.
Additionally, given the nature of this kit’s components, it has found it’s way onto many non-TJ and non-Jeep applications! It can be used universally in many applications that need a simple bolt on tow bar mounting point.

Kit Fits:

• TJ Wrangler
• TJ Wrangler Unlimited (LJ)

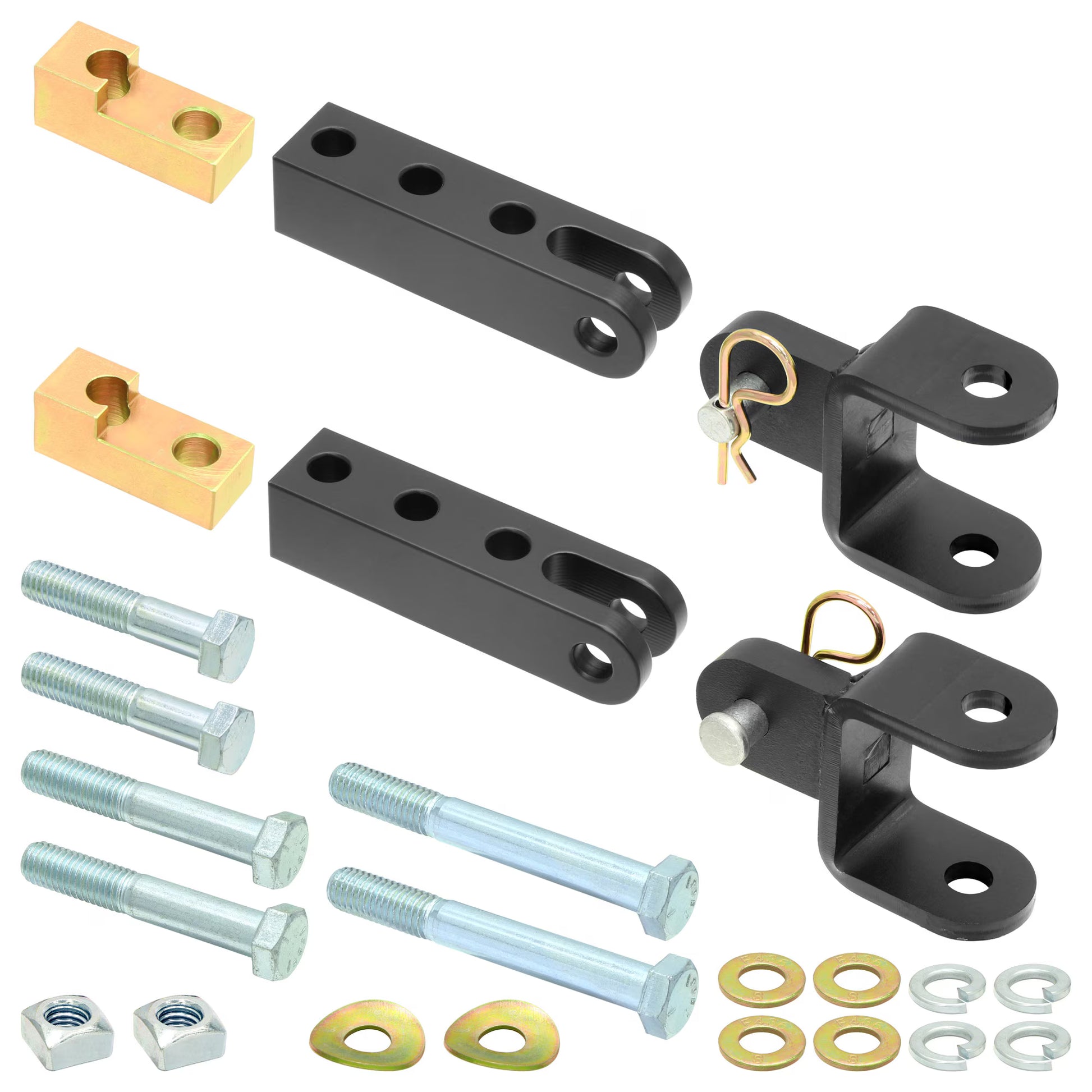

Kit Includes:

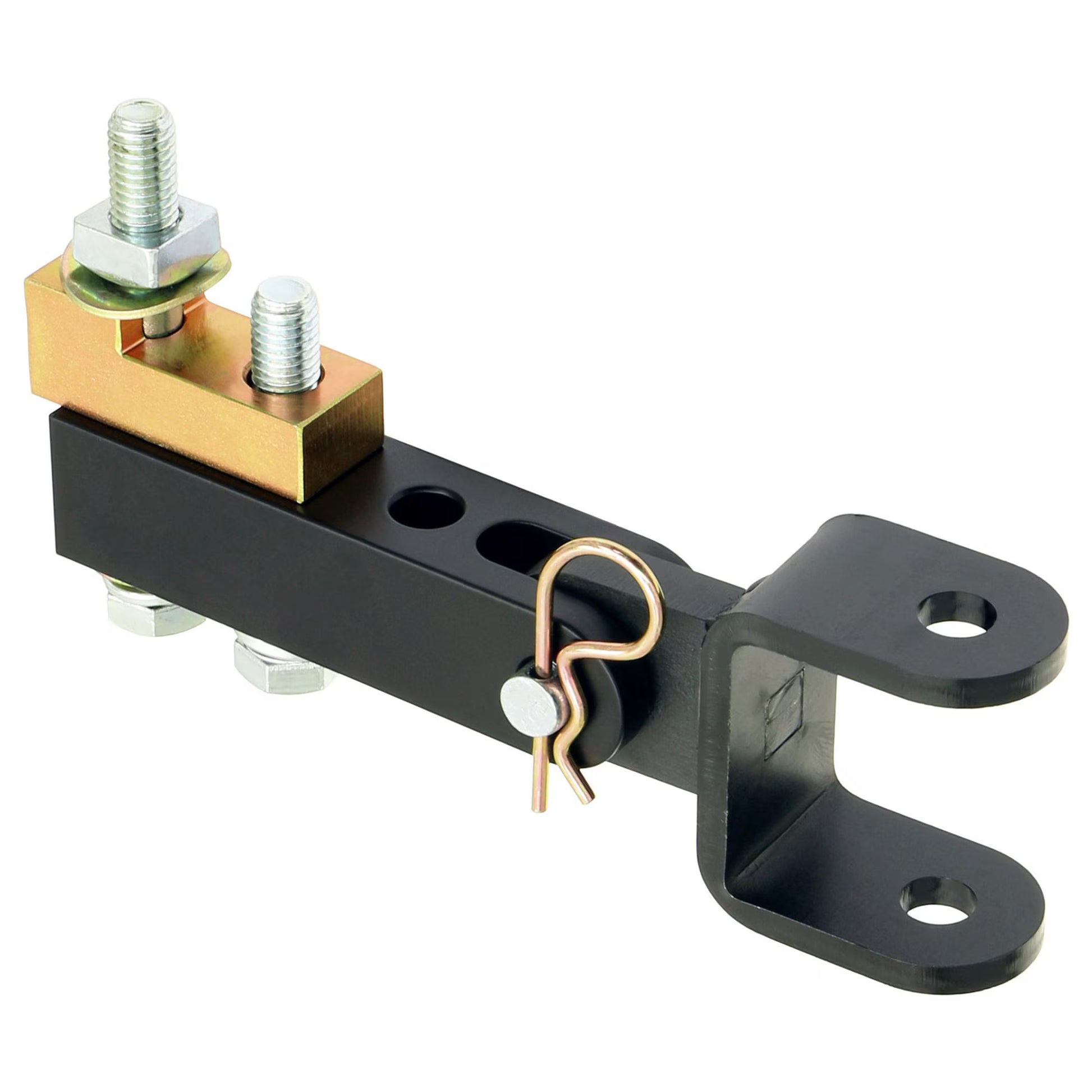

• Billet Steel Tow Bar Mounting Frame Brackets
• Gold Bumper Adapter Blocks
• Universal Tow Bar End Fork Brackets
• All Required Hardware and step-by-step instructions

Tow Bar Compatibility:

• Curt (RJ-19745)
• Blue Ox (most styles)
• Demco (most styles)
• Roadmaster (most styles)

Notes:

• This kit is applicable to vehicles with the factory installed bumper, as well as many aftermarket bumpers.
• This kit is not applicable aftermarket bumpers that feature tubes and such that hang below the bottom of the frame rail.
• Components are finished in semi-gloss black powder coat and zinc plating.

Instruction Manual:

• CE-9033TJ Kit

Parts List:

• Billet Steel Tow Bar Mounting Frame Bracket:  CE-9033B1
• Gold Bumper Adapter Block:  CE-9033B2
• Universal Tow Bar End Fork Bracket:  CE-9033B
• 1/2 in.-13 x 4 in. Long Hex Bolt:  CE-91247A728
• 1/2 in.-13 x 3 in. Long Hex Bolt:  CE-91247A724
• 1/2 in.-13 x 2 1/2 in. Long Hex Bolt:  CE-91247A722
• 1/2 in. Flat Washer (large OD, bent):  CE-9033TJW
• 1/2 in. Flat Washer:  CE-H0014
• 1/2 in. Lock Washer:  CE-91102A770
• 1/2 in.-13 Square Nut:  CE-98694A130
• 1/2 in. x 1 1/2 in. Long Clevis Pin:  CE-9033CP
• Hair Pin:  CE-9033H
