Big Bore Xd® Steering Gear - Jeep Wrangler Jk / Jku (2007-2018)

Regular price $1,450.00
Sale price $1,450.00 Regular price
Unit price
Big Bore Xd® Steering Gear - Jeep Wrangler Jk / Jku (2007-2018)

Big Bore Xd® Steering Gear - Jeep Wrangler Jk / Jku (2007-2018)

Product description
Fitment
Specs
Why you’ll love it
California Prop 65 Warning
Shipping

The stock JK steering box? It’s fine for stock tires and errands. But throw on 37s, a locker, and a weekend in Moab, and that thing’s begging for mercy. The BIG BORE XD is the fix—built with a beefy 45mm sector shaft and a reinforced case so it won’t twist, crack, or cry when you crank it hard. Pair it with a PSC High-Flow Pump Kit and you’ll feel the difference the first time you turn the wheel—smooth, strong, and no more arm wrestling at the trailhead.

Heads‑up for installers

  • Weight warning: This gear tips the scale at ~57 lbs. Use a jack or a buddy.
  • Track bar brace caution: If you’re running a Synergy MFG
  • Front Track Bar Brace (or similar), you must add PSC HWK-688-PP Bolt Kit (110mm). Using factory or PSC 100mm bolts can crack the case.
  • Pump matters: This gear needs a pump that can deliver ~1650 PSI and 50% more flow than stock. PSC pump kits are tuned for it.
  • Bleed it right: Front tires off the ground, engine off, cycle lock-to-lock, then recheck fluid.
  • Pitman arm note: Supplied arm has no extra drop. Some setups may need a drag link flip kit for proper geometry.
  • Recommended Tools:

    46mm Pitman Arm Nut Socket
    Pitman Arm Puller
    Tie Rod End Puller
    Axle Caster Gauge
    Pneumatic Anaerobic Thread Sealant

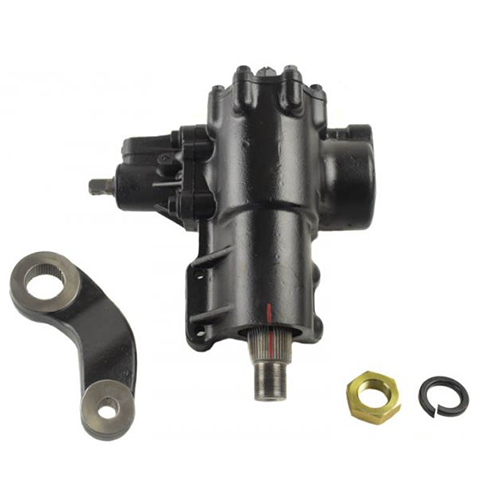

What’s included

  • BIG BORE XD® Steering Gear (SG688)
  • PSC proprietary Pitman arm

Use it with

  • PK38JP1 – High-Flow Pump Kit for 3.8L JK
  • PK36JP1 – High-Flow Pump Kit for 3.6L JK
  • PSC Cooler and Inline Filter (always a good idea on big steering systems)
  • PSC Cylinder Assist® Kit for JK (if you’re stepping up to 40s or hardcore trails

Ideal for

  • JKs on 35s–40s
  • Rigs with front lockers or heavy bumpers/winch setups
  • Daily drivers that double as weekend trail rigs
  • Builders planning for Cylinder Assist® down the road
  • 2007–2018 Jeep Wrangler JK & JKU
  • Direct bolt-on for factory steering gear location
  • Works with most aftermarket track bar braces (see bolt note above)
  • Sector Shaft: 45mm (stock is 35mm)
  • Gear Ratio: 16:1
  • Piston Size: 80mm
  • Ports: Metric O-ring (PSC includes adapters in kits if needed)
  • Case: Reinforced mounting pad and housing
  • Weight: ~57 lbs
  • Includes: PSC proprietary Pitman arm
  • 45mm sector shaft – nearly 30% bigger than stock for serious strength
  • 16:1 ratio with 80mm piston – more torque, better road feel
  • Includes PSC proprietary Pitman arm – no guessing, no mismatched splines
  • Bolt-on upgrade – fits JK/JKU with factory mounts
  • Handles 35s without assist – and Cylinder Assist® makes it unstoppable

This product can expose you to chemicals including lead and di (2-ethylhexyl) phthalate, which are known to the State of California to cause cancer, birth defects or other reproductive harm.

For more information, go to www.P65Warnings.ca.gov

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
