Adams Driveshaft Forged Front 26 Spline 1350 Half Round CV Transfer Case Yoke for a 231, 231J, NP231 fit's TJ, XJ, YJ, LJ
Adams Driveshaft Forged Front 26 Spline 1350 Half Round CV Transfer Case Yoke for a 231, 231J, NP231 fit's TJ, XJ, YJ, LJ

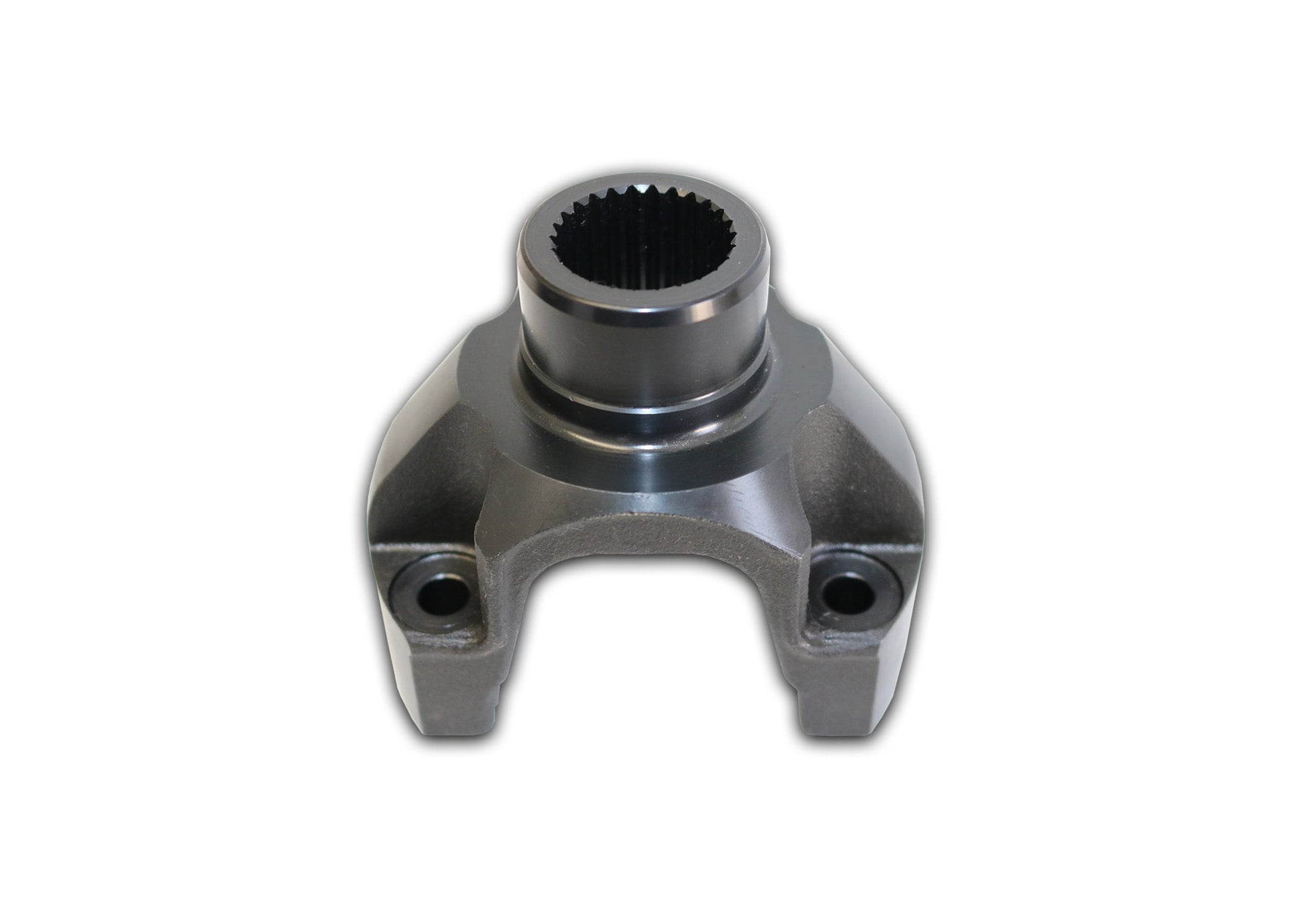

Part# ASD300-PMCV02 Adams Driveshaft Forged 1350 Series Half Round CV Transfer Case Yoke for a 231, 231J, NP231 Transfer Case with 26 Spline Outputs. Would fit the front of a TJ non Rubicon, LJ non Rubicon, XJ, or a YJ with a Adapter Seal. Only the YJ's needs a different seal.
This FORGED Transfer Case Yoke is the STRONGEST on the Market. It will allow you to install a 1350 Series Half Round CV Driveshaft to the Front of your TJ, XJ, YJ, or LJ Transfer Case.
In some cases the Yoke might hit the T-case Linkage. If this happens, then you may have to move , Adjust, or change to a Cable Linkage.
If you are buying this for a YJ, then you would also need to buy a front output seal. We sell it on our website or you could purchase it somewhere else. The following is the part number and Brands. CR Part # 15560 SKF Part #15560
Specs:
- Spline Count: 26
- Spline Diameter: 1.146
- Hub Diameter: 1.562
- Thru Hole: 1.500
- Centerline To End: 3.500
- U-joint Series: 1350
This Item will come with the Following Parts:
[1] Forged 1350 Series Half Round T-case Yoke.
[4] Grade 10 CV Bolts with smaller Heads for easier Installation.
[1] Pack of Red Threadlocker.
Yoke may come in Silver or Black.
