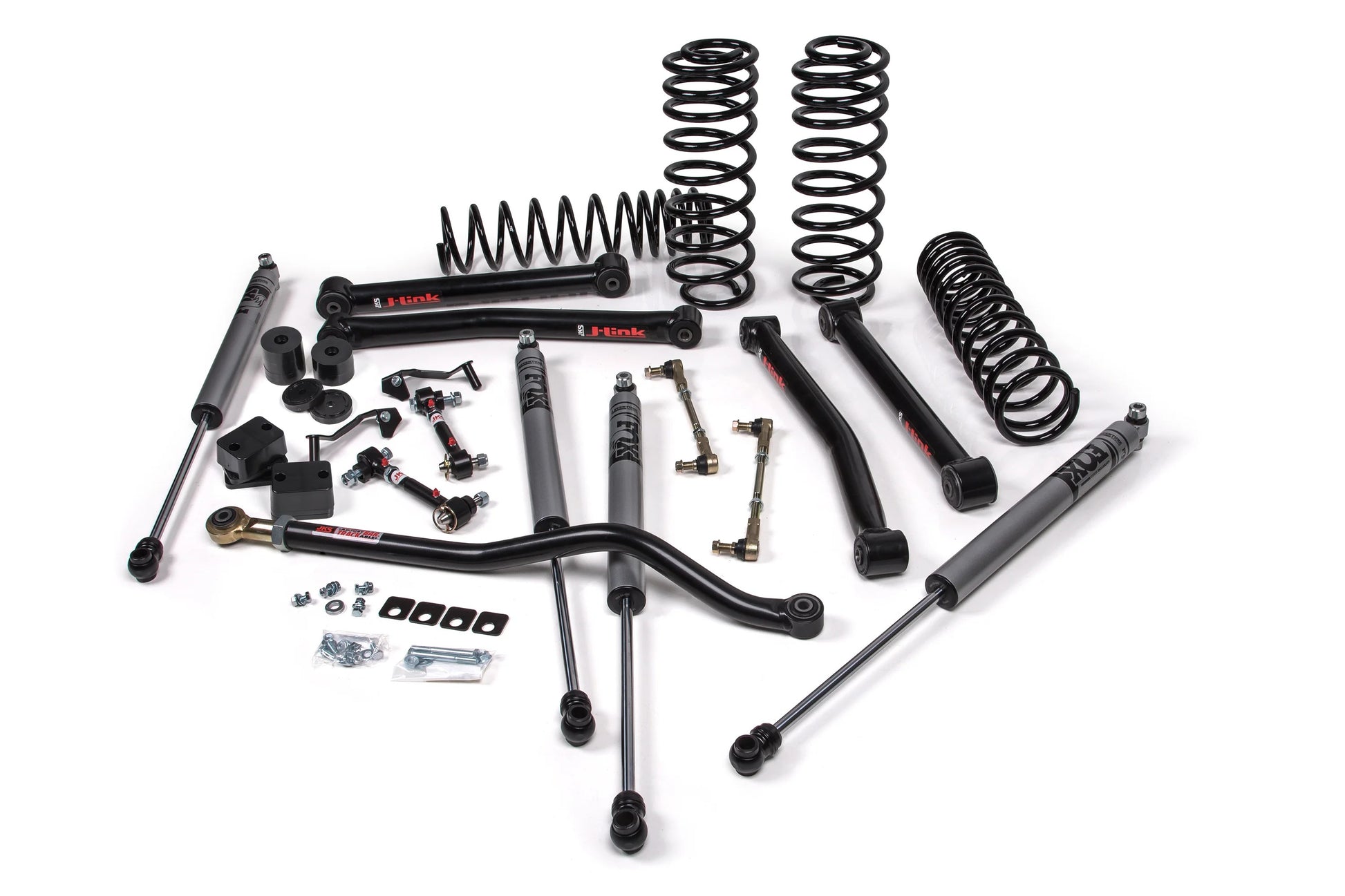

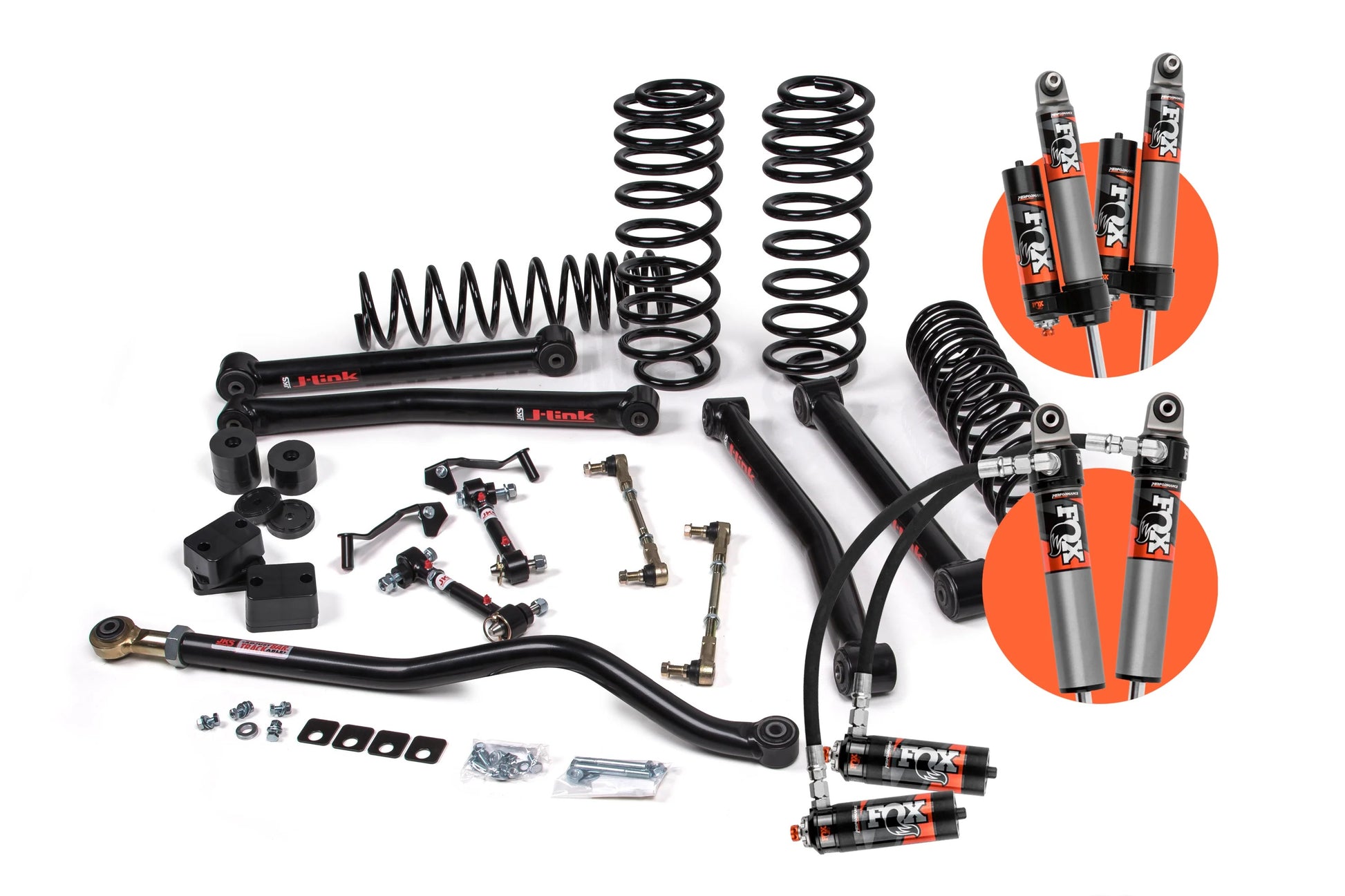

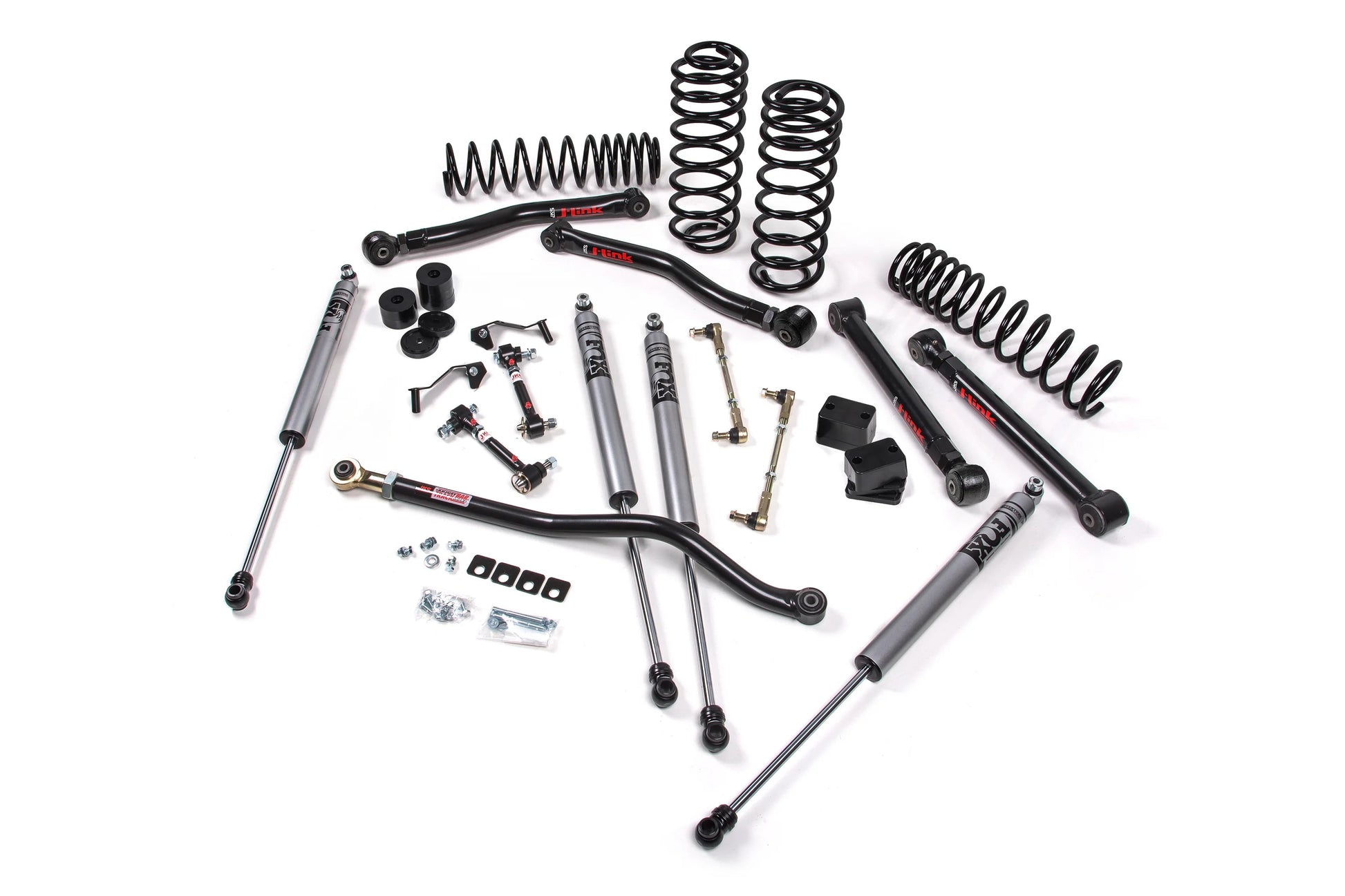

3" Lift Kit | J-Konnect | Wrangler JL 2-Door

Regular price $1,957.55
Sale price $1,957.55 Regular price
Unit price
3" Lift Kit | J-Konnect | Wrangler JL 2-Door

3" Lift Kit | J-Konnect | Wrangler JL 2-Door

Product description
Shipping & Return
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
FITMENT
For serious off-road use, step up to a JKS J-Konnect 3" suspension system for your Wrangler JL 2-Door. J-Konnectâ„¢ can tackle aggressive terrain including rocks and ruts without giving up street manners or breaking the bank. J-Konnect system takes suspension component strength and suspension geometry a step further by adding front and rear fixed-length J-Link lower control arms along with a rear track bar bracket (to correct axle positioning under vehicle). In addition to being significantly stronger than factory control arms, J-LINK lower control arms add front caster and rear wheelbase. Built from 2" x .250-wall DOM tubing, J-LINK control arms provide street-friendly NVH isolation with large factory style rubber bushings at both ends. The track bar brace adds strength and protection. Combined with the matched dual-rate coil springs, your choice of custom-valved JSPEC or FOX shocks, an adjustable track bar, Quicker Disconnect sway bar end links, and more. J-Konnect is ready for aggressive trail performance. Get connected with J-Konnect.

Features & Benefits

  • Front/Rear Dual Rate Coil Springs (standard or HD) designed to great ride quality across any terrain.
  • Front/Rear FOX Shocks, specifically valved for this suspension system for improved performance on and off-road.
  • Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
  • Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
  • Front/Rear Bump Stop Extensions to properly limit suspension up travel.
  • Front/Rear J-Link Lower Control Arms to add strength and correct caster.

Recommended Tires & Wheels

Rubicon Models
  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace
Non-Rubicon Models
  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

(Trimming may be required)

Picking the Right Coil Springs

JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.

Read our Shock Buyers Guide

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

  1. Factory wheels cannot be reinstalled without wheel spacers
  2. HD front springs recommended for applications with aftermarket winch/bumper combo
  3. HD rear springs recommended for applications with rear mounted full size spare tire
  4. Rear aftermarket driveshaft recommended for 2 Door models
  5. Shock extension brackets can be used on Rubicon models with stock FOX 2.5 shocks, however this will limit suspension down travel slightly.

Installation Guides :

Download Guide 1

Est. Install Time :

7 hrs

Difficulty Level :

Moderately Easy

  • Front Lift Method : Coil Spring
  • Front Lift Height : 3
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 3"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2018JeepWranglerRubiconALLGASFront and Rear3"
2018JeepWranglerSportALLGASFront and Rear3"
2018JeepWranglerSport SALLGASFront and Rear3"
2019JeepWranglerRubiconALLGASFront and Rear3"
2019JeepWranglerRubicon DeluxeALLALLFront and Rear3"
2019JeepWranglerSportALLGASFront and Rear3"
2019JeepWranglerSport SALLGASFront and Rear3"
2020JeepWranglerRubiconALLGASFront and Rear3"
2020JeepWranglerRubicon DeluxeALLALLFront and Rear3"
2020JeepWranglerSportALLGASFront and Rear3"
2020JeepWranglerSport SALLGASFront and Rear3"
2021JeepWrangler80th AnniversaryALLGASFront and Rear3"
2021JeepWranglerFreedomALLGASFront and Rear3"
2021JeepWranglerIslanderALLGASFront and Rear3"
2021JeepWranglerRubiconALLGASFront and Rear3"
2021JeepWranglerSportALLGASFront and Rear3"
2021JeepWranglerSport SALLGASFront and Rear3"
2021JeepWranglerWillysALLGASFront and Rear3"
2021JeepWranglerWillys SportALLGASFront and Rear3"
2022JeepWranglerRubiconALLGASFront and Rear3"
2022JeepWranglerSportALLGASFront and Rear3"
2022JeepWranglerSport SALLGASFront and Rear3"
2022JeepWranglerWillysALLGASFront and Rear3"
2022JeepWranglerWillys SportALLGASFront and Rear3"
2023JeepWranglerFreedomALLGASFront and Rear3"
2023JeepWranglerRubiconALLGASFront and Rear3"
2023JeepWranglerSportALLGASFront and Rear3"
2023JeepWranglerSport SALLGASFront and Rear3"
2023JeepWranglerWillysALLGASFront and Rear3"
2023JeepWranglerWillys SportALLGASFront and Rear3"
2024JeepWranglerRubiconALLALLFront and Rear3"
2024JeepWranglerRubicon XALLALLFront and Rear3"
2024JeepWranglerSportALLALLFront and Rear3"
2024JeepWranglerSport SALLALLFront and Rear3"
2024JeepWranglerWillysALLALLFront and Rear3"
2024JeepWranglerWillys SportALLALLFront and Rear3"
2025JeepWranglerRubiconALLALLFront and Rear3"
2025JeepWranglerRubicon XALLALLFront and Rear3"
2025JeepWranglerSportALLALLFront and Rear3"
2025JeepWranglerSport SALLALLFront and Rear3"
2025JeepWranglerWillysALLALLFront and Rear3"
