3.5" Lift Kit | J-Max | Wrangler JL

Regular price $7,754.50
Sale price $7,754.50 Regular price
Unit price
3.5" Lift Kit | J-Max | Wrangler JL

3.5" Lift Kit | J-Max | Wrangler JL

Product description
Shipping & Return
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
FITMENT

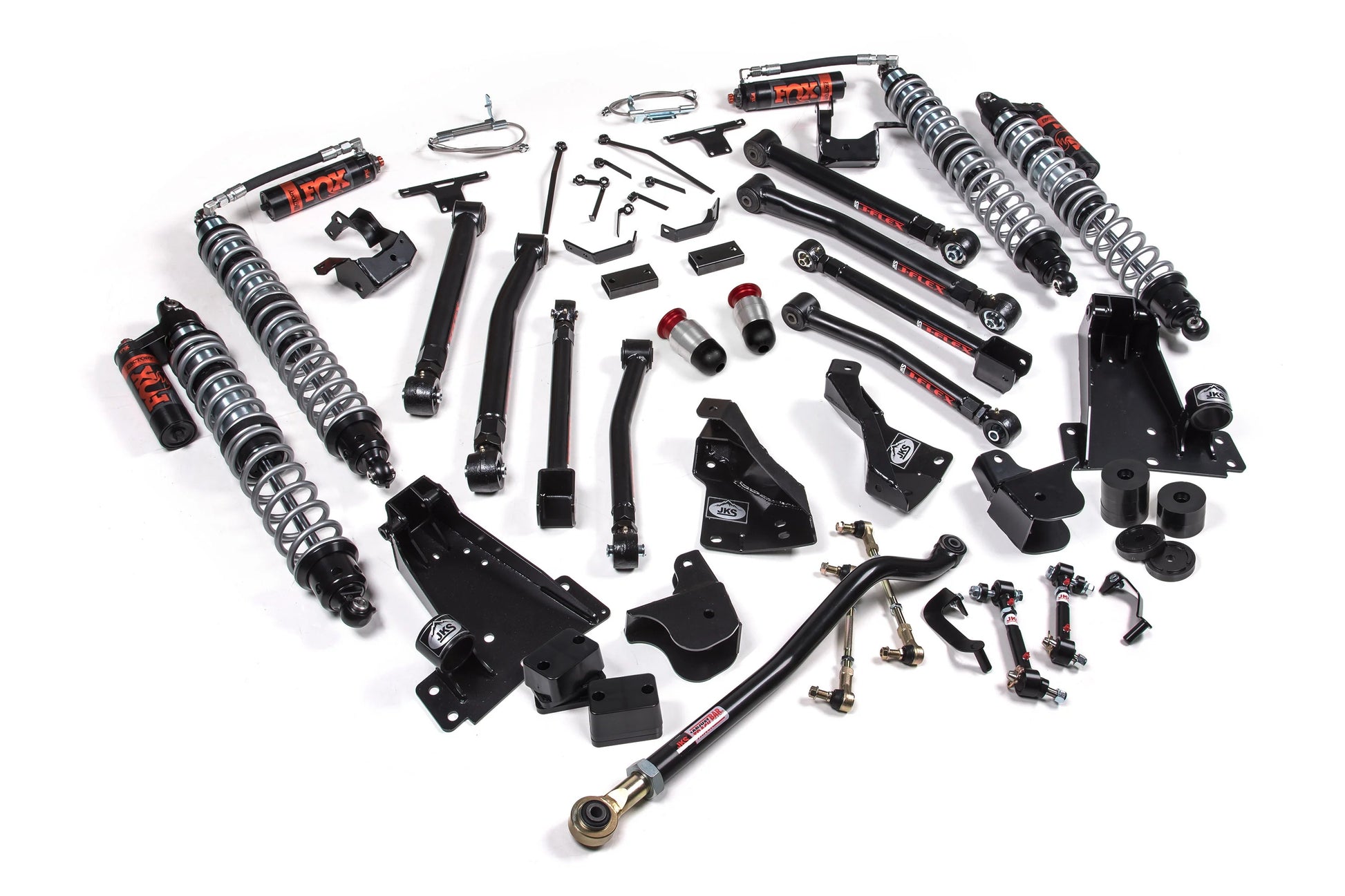

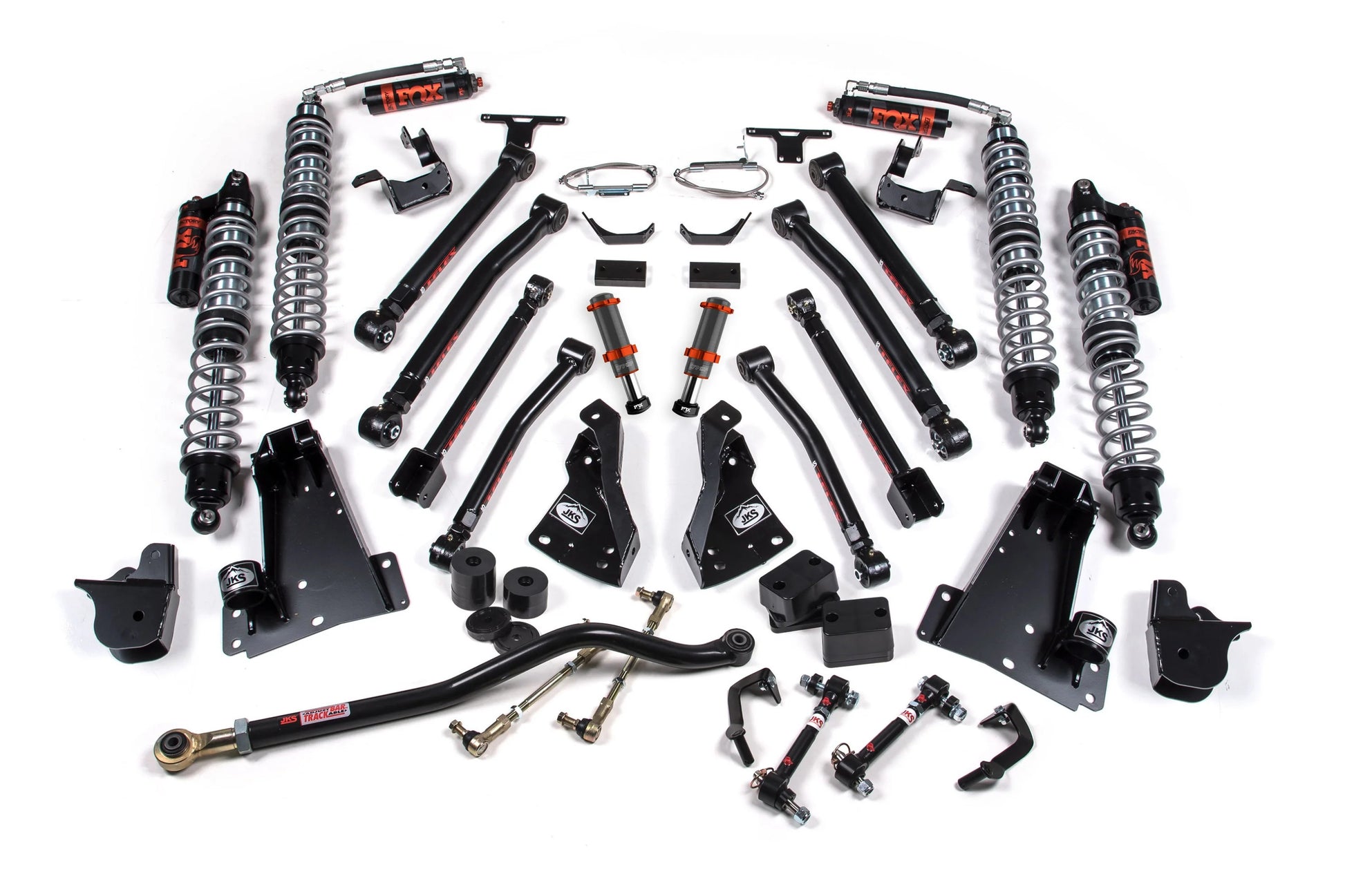

J-Max pulls out all of the stops to offer a truly performance driven suspension package. At each corner are custom tuned FOX 2.5 factory race series coilovers with DSC adjustment. These coilovers offer race proven technology with a larger 2.5” diameter body, dual rate springs and (DSC) dual speed compression adjustment for maximum tunability. Each of the 8 control arms, upper and lowers, front and rear are upgraded to J-Flex or J-Link adjustable control arm for improved strength, offroad performance and adjustability. In addition, these kits feature high strength bolt-on coilover mounting brackets, an adjustable front track bar, sway bar quicker disconnects and more offer take your Jeeps trail performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to additional travel capable.

Features & Benefits

  • Front FOX 2.5 Remote DSC Coilovers w/ Bolt-On Brackets for improved performance, strength and tunability.
  • Rear FOX 2.5 Piggyback DSC Coilovers w/ Bolt-On Brackets for improved performance, strength and tunability.
  • Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
  • Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased off road articulation.
  • Extended Length Braided Stainless Steel Rear Brake Lines.
  • Front/Rear J-Flex or J-Link Upper Control Arms to add strength and adjustability.
  • Front/Rear J-Flex or J-Link Lower Control Arms to add strength and adjustability.
  • Front/Rear Bump Stop Extensions to properly limit suspension up travel.

Recommended Tires & Wheels

  • 35 x 12.5 with 17 x 8 and 3.5 in. Backspace

    (Trimming may be required)

    Flex Ends:

    Forged flex end and jam nut Flex end design allows for 30-degrees of misalignment (15 in either direction) for impressive articulation and are greaseable to ensure long bushing life. Completely rebuildable and serviceable on the trail with our JKS Flex Joint tools (link to tool).

    Rubber bushings:

    Engineered specifically to reduce NVH characteristics (Noise, vibration, harshness), these factory style maintenance-free rubber bushings come pre-installed at both ends and will ensure a quiet, controlled ride with hassle-free operation in any environment.

    Rubber Bump Stop:

    Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe. They are great for road use and light to moderate offroading where the bump stops will be engaged at low speeds.

    FOX 2.0 Factory Race Series Hydro Bump Stop:

    Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension. Ideal for the avid offroader to take your Jeep to the next level in tackling big obstacles or taking on rough terrain at speed to maintain comfort and control.

    Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

    We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

    1. Factory wheels cannot be reinstalled without wheel spacers
    2. Aftermarket wheels with 3.5” backspacing are required for clearance
    3. Requires cutting/removal of factory frame mount brackets
    4. Front aftermarket driveshaft strongly recommended due to additional travel capability
    5. Removal of coilover preload required on 2Dr models to achieve a minimum 3.5” of lift
    6. Will NOT fit 4xe models
    7. Will NOT fit Rubicon 392 models
    8. Will NOT fit diesel models
    9. Fits Rubicon Models Only

    Installation Guides :

    Download Guide 1

    Est. Install Time :

    14hrs

    Difficulty Level :

    Very Diffcult

    • Front Lift Method : Coil-Over
    • Front Lift Height : 3.5"
    • Rear Lift Method : Coil-Over
    • Rear Lift Height : 3"
    • Shocks Included : Yes
    • Lift Height : 2-3.5"

    YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
    2018JeepWranglerUnlimited MoabALLALLFront and Rear3.5"
    2018JeepWranglerUnlimited RubiconALLGASFront and Rear3.5"
    2018JeepWranglerUnlimited SaharaALLGASFront and Rear3.5"
    2018JeepWranglerUnlimited SportALLGASFront and Rear3.5"
    2018JeepWranglerUnlimited Sport SALLGASFront and Rear3.5"
    2019JeepWranglerUnlimited MoabALLALLFront and Rear3.5"
    2019JeepWranglerUnlimited RubiconALLGASFront and Rear3.5"
    2019JeepWranglerUnlimited SaharaALLGASFront and Rear3.5"
    2019JeepWranglerUnlimited SportALLGASFront and Rear3.5"
    2019JeepWranglerUnlimited Sport SALLGASFront and Rear3.5"
    2020JeepWranglerUnlimited RubiconALLGASFront and Rear3.5"
    2020JeepWranglerUnlimited Rubicon DeluxeALLALLFront and Rear3.5"
    2020JeepWranglerUnlimited Rubicon XtremeALLALLFront and Rear3.5"
    2020JeepWranglerUnlimited SaharaALLGASFront and Rear3.5"
    2020JeepWranglerUnlimited SportALLGASFront and Rear3.5"
    2020JeepWranglerUnlimited Sport SALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited 80th AnniversaryALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited FreedomALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited High AltitudeALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited IslanderALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited RubiconALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited SaharaALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited Sahara AltitudeALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited Sahara High AltitudeALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited SportALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited Sport AltitudeALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited Sport SALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited WillysALLGASFront and Rear3.5"
    2021JeepWranglerUnlimited Willys SportALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited High AltitudeALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited RubiconALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited SaharaALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited Sahara AltitudeALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited Sahara High AltitudeALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited SportALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited Sport AltitudeALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited Sport SALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited WillysALLGASFront and Rear3.5"
    2022JeepWranglerUnlimited Willys SportALLGASFront and Rear3.5"
    2023JeepWranglerWillys SportALLGASFront and Rear3.5"
    2024JeepWranglerRubicon XALLALLFront and Rear3.5"
    2024JeepWranglerUnlimited RubiconALLALLFront and Rear3.5"
    2024JeepWranglerUnlimited SaharaALLALLFront and Rear3.5"
    2024JeepWranglerUnlimited WillysALLALLFront and Rear3.5"
    2025JeepWranglerUnlimited RubiconALLALLFront and Rear3.5"
    2025JeepWranglerUnlimited SaharaALLALLFront and Rear3.5"
    2025JeepWranglerUnlimited WillysALLALLFront and Rear3.5"
