3.5" Lift Kit | J-Krawl | Wrangler JK 2-Door

Regular price $2,727.50
Sale price $2,727.50 Regular price
Unit price
3.5" Lift Kit | J-Krawl | Wrangler JK 2-Door

3.5" Lift Kit | J-Krawl | Wrangler JK 2-Door

Product description
Shipping & Return
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
FITMENT

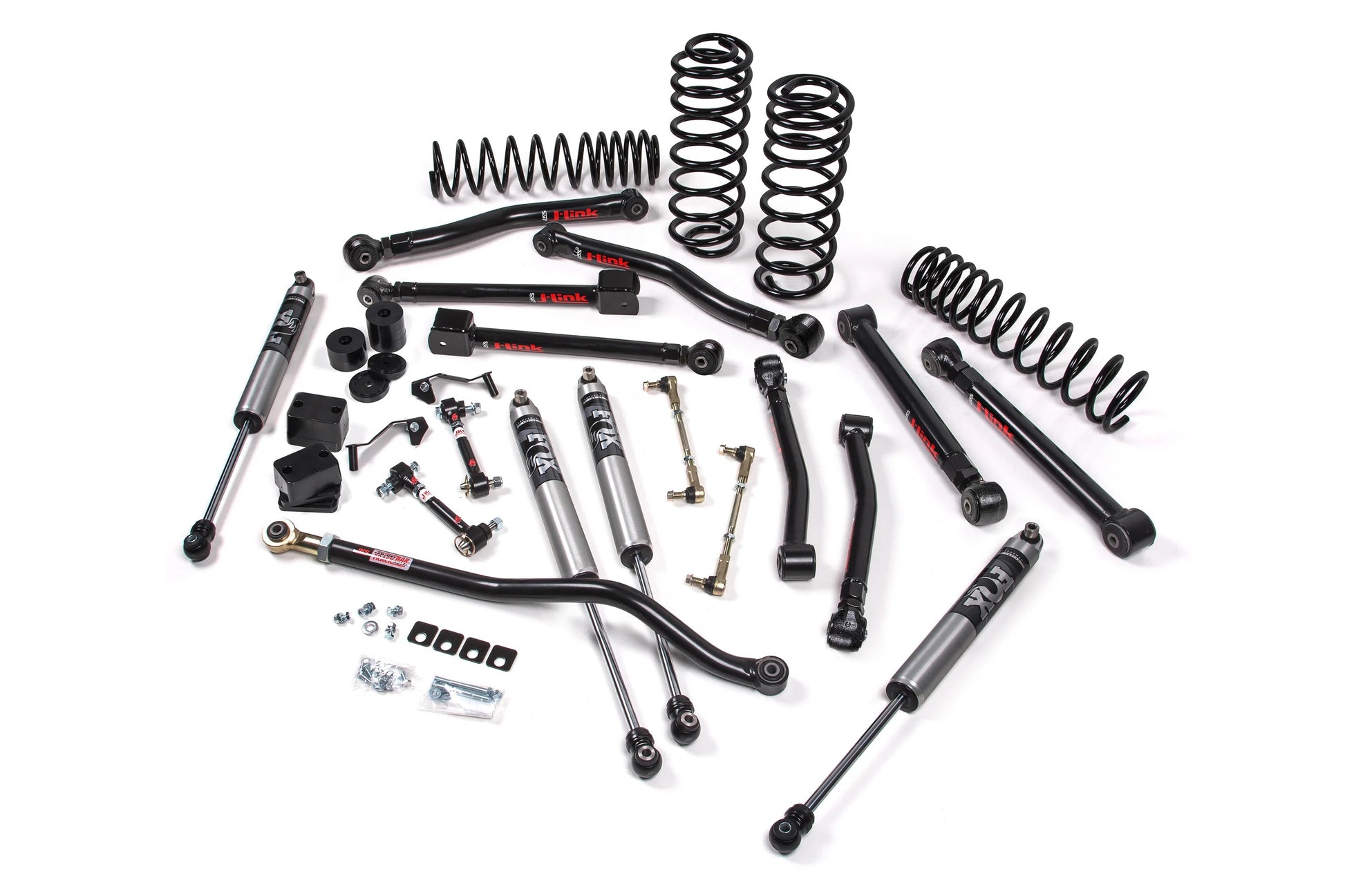

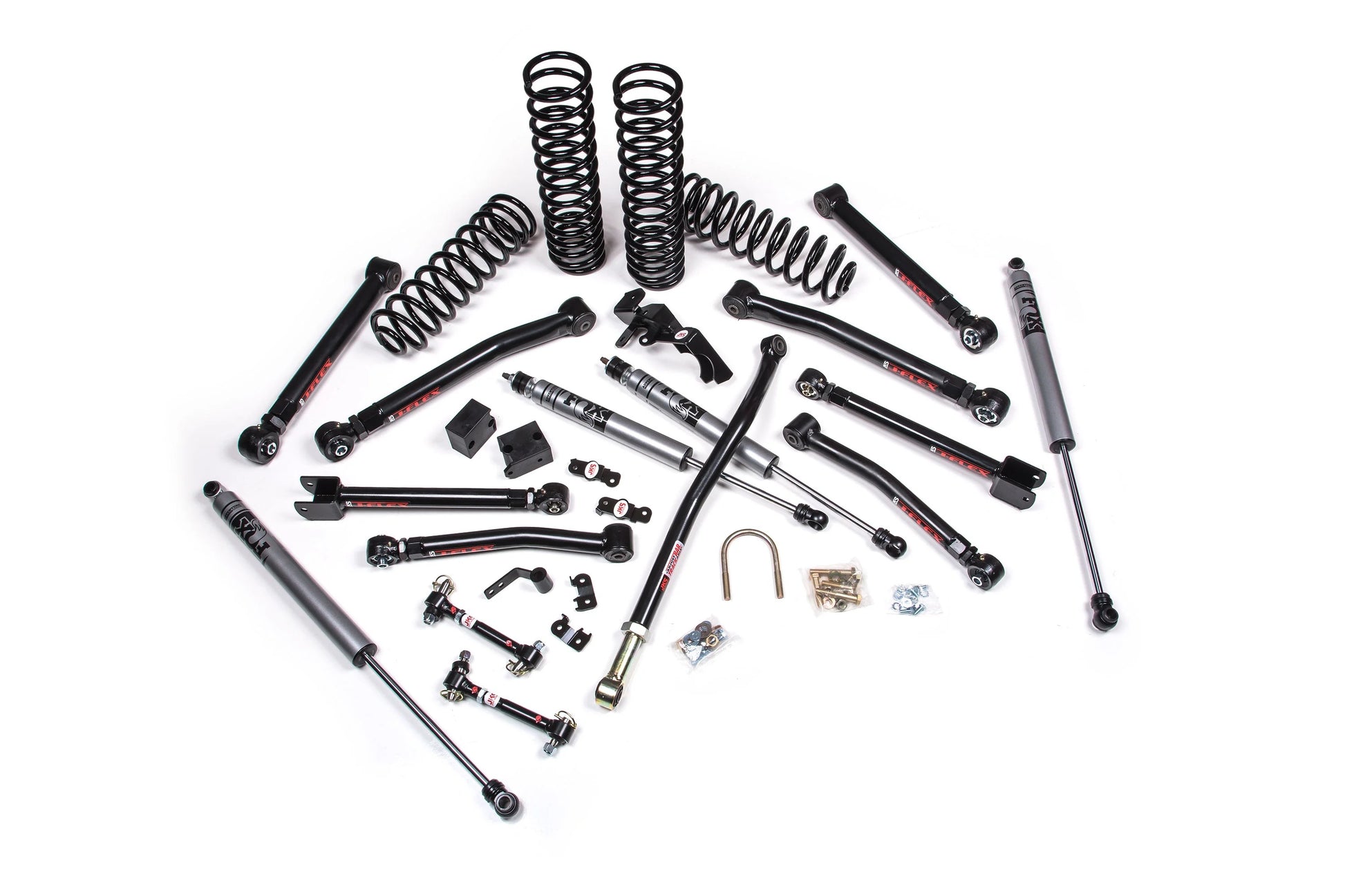

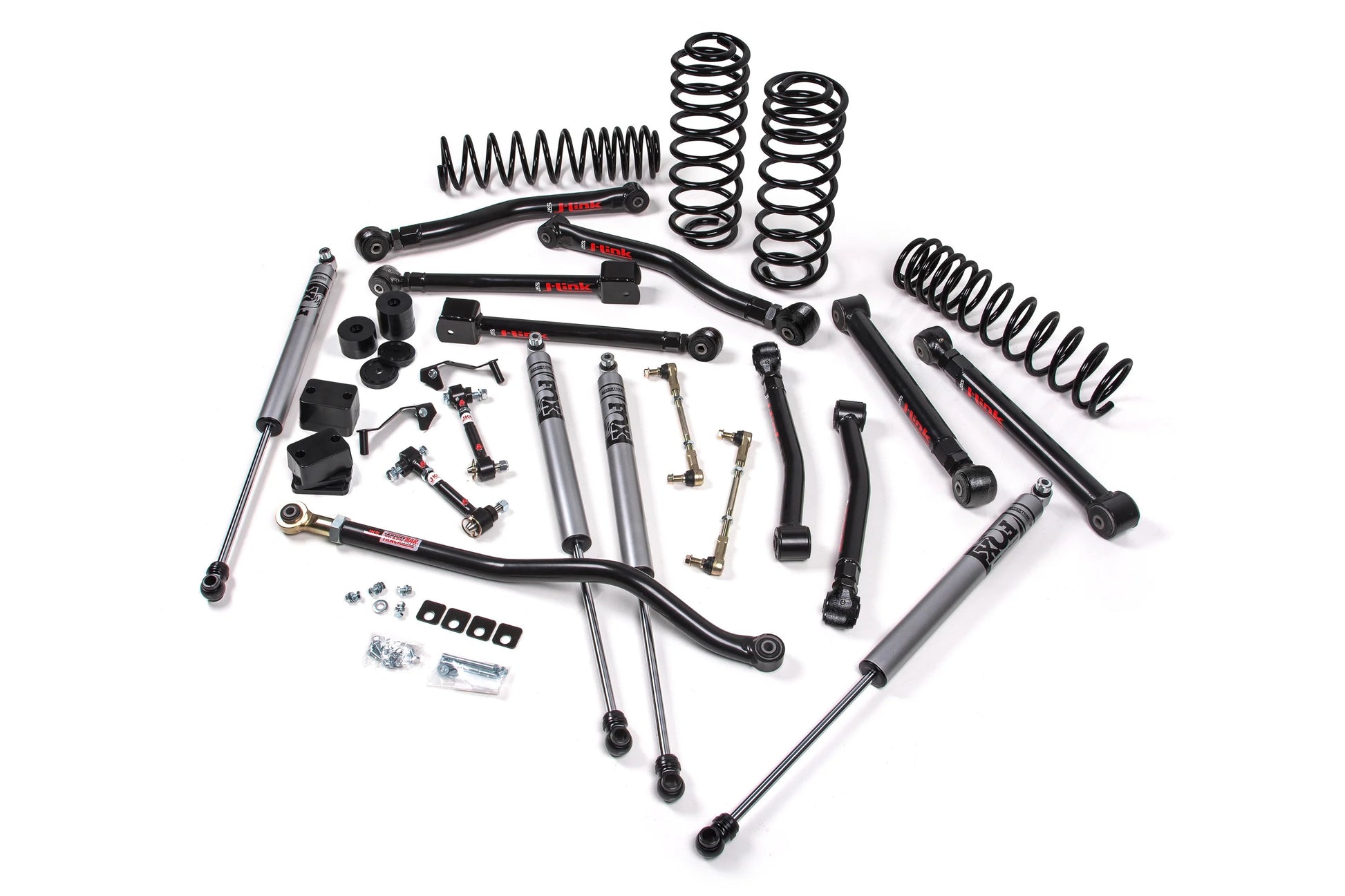

Build the ultimate adventure rig with a 3.5" lift kit J-Krawl suspension system. Fits 2-Door Jeep Wrangler JK. Designed for maximum articulation and adjustability, the complete suspension system includes dual rate coil springs, adjustable front track bar, rear track bar bracket and tuned FOX shocks. The heart of the J-Krawl design is a set of J-Flex or J-Link upper and lower control arms and sway bar Quicker disconnects. These systems build off Jeep's factory suspension mounting points and upgrades to front and rear, upper and lower J-Flex or J-Link adjustable control arms for maximum articulation along with more strength for trails and rock crawling brawn along with adjustability to dial in front caster, rear pinion and overall vehicle wheelbase. In addition to eight high strength adjustable control arms, the J-Krawl system features a variety of shock options tailored to your needs, including FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.0 Remote Reservoir and FOX 2.5 Elite Series shocks. Each setup ensures superior ride quality, letting you conquer rugged trails while maintaining daily driving comfort. An aftermarket front driveshaft is strongly recommended due to additional travel capable. Routine maintenance is required.

Features & Benefits

  • Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.

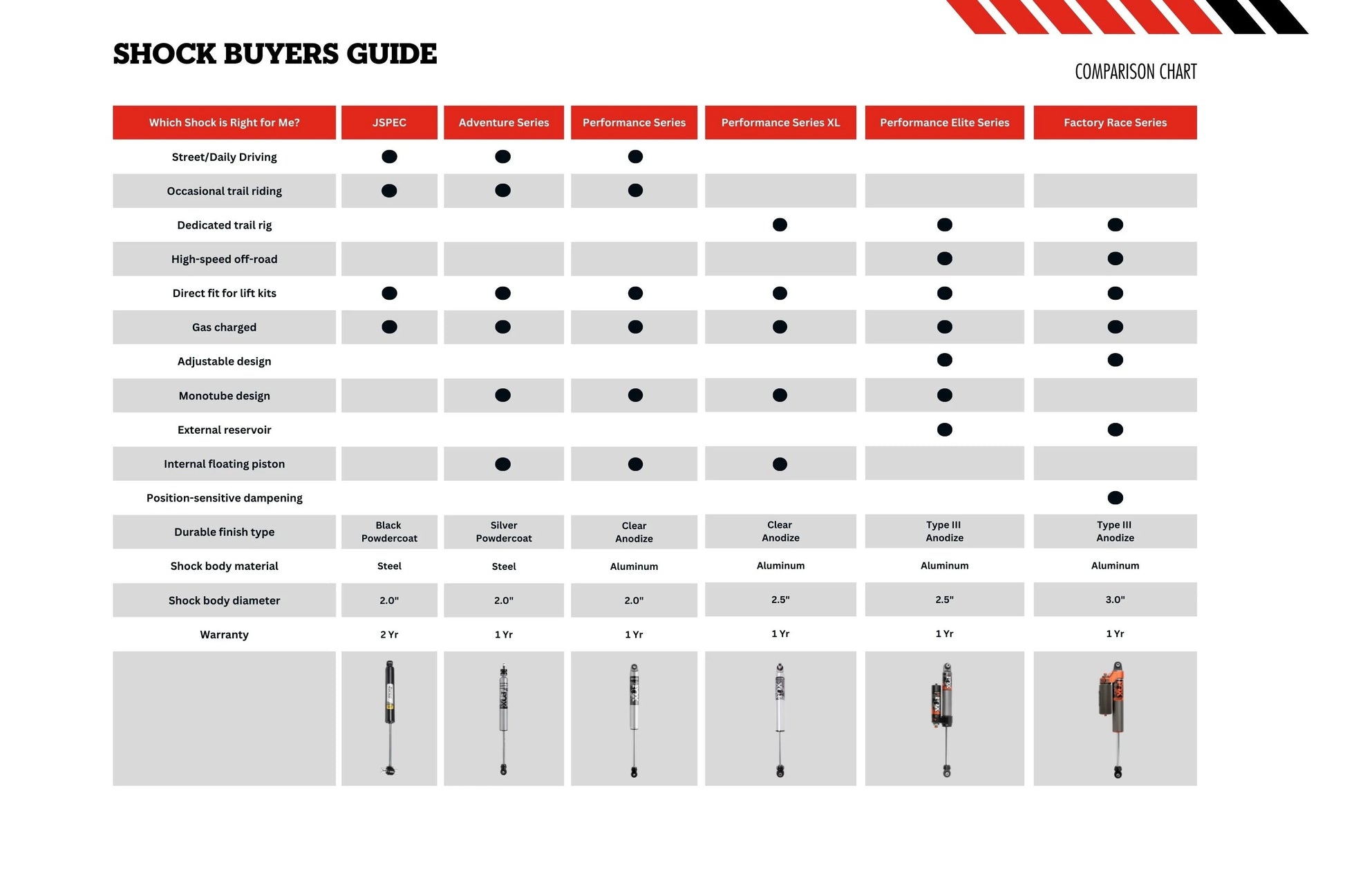

  • Front/Rear Gas Shocks (FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.0 Remote Reservoir, or FOX 2.5 Performance Elite) specifically valved for this suspension system for improved performance on and off-road.



  • Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
  • Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
  • Front+Rear J-Flex or J-Link Lower Control Arms for improved strength and caster correction.
  • Front+Rear J-Flex or J-Link Upper Control Arms for improved strength and caster correction.
  • Front+Rear Bump Stop Extensions to properly limit suspension up travel.

Recommended Tires & Wheels

  • 35 x 12.5 with 16 x 8 and 4.5 in. Backspace
  • 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

    (Trimming may be required)

    Picking the Right Coil Springs

    JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.

    Flex Ends:

    Forged flex end and jam nut Flex end design allows for 30-degrees of misalignment (15 in either direction) for impressive articulation and are greaseable to ensure long bushing life. Completely rebuildable and serviceable on the trail with our JKS Flex Joint tools (link to tool).

    Rubber bushings:

    Engineered specifically to reduce NVH characteristics (Noise, vibration, harshness), these factory style maintenance-free rubber bushings come pre-installed at both ends and will ensure a quiet, controlled ride with hassle-free operation in any environment.

    Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

    We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

    1. 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, useJKS8150 exhaust extensions.
    2. Rubicon sway bar link hardware included in kit.
    3. Requires 17" or larger wheels with 4.5" BS (or smaller) for steering clearance.

    Installation Guides :

    Download Guide 1

    Est. Install Time :

    6-8 hrs

    Difficulty Level :

    Moderate

    • Front Lift Method : Coil Spring
    • Front Lift Height : 3.5"
    • Rear Lift Method : Coil Spring
    • Rear Lift Height : 3-5"
    • Shocks Included : Yes
    • Lift Height : 2-3.5"

    YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
    2007JeepWranglerRubiconALLALLFront and Rear3.5"
    2007JeepWranglerSaharaALLALLFront and Rear3.5"
    2007JeepWranglerXALLALLFront and Rear3.5"
    2008JeepWranglerRubiconALLALLFront and Rear3.5"
    2008JeepWranglerSaharaALLALLFront and Rear3.5"
    2008JeepWranglerXALLALLFront and Rear3.5"
    2009JeepWranglerRubiconALLALLFront and Rear3.5"
    2009JeepWranglerSaharaALLALLFront and Rear3.5"
    2009JeepWranglerXALLALLFront and Rear3.5"
    2009JeepWranglerX-SALLALLFront and Rear3.5"
    2010JeepWranglerIslanderALLALLFront and Rear3.5"
    2010JeepWranglerRubiconALLALLFront and Rear3.5"
    2010JeepWranglerSaharaALLALLFront and Rear3.5"
    2010JeepWranglerSportALLALLFront and Rear3.5"
    2010JeepWranglerXALLALLFront and Rear3.5"
    2011JeepWrangler70th AnniversaryALLALLFront and Rear3.5"
    2011JeepWranglerRubiconALLALLFront and Rear3.5"
    2011JeepWranglerSaharaALLALLFront and Rear3.5"
    2011JeepWranglerSportALLALLFront and Rear3.5"
    2011JeepWranglerXALLALLFront and Rear3.5"
    2012JeepWranglerRubiconALLALLFront and Rear3.5"
    2012JeepWranglerSaharaALLALLFront and Rear3.5"
    2012JeepWranglerSportALLALLFront and Rear3.5"
    2013JeepWranglerRubiconALLALLFront and Rear3.5"
    2013JeepWranglerSaharaALLALLFront and Rear3.5"
    2013JeepWranglerSportALLALLFront and Rear3.5"
    2014JeepWranglerRubiconALLALLFront and Rear3.5"
    2014JeepWranglerSaharaALLALLFront and Rear3.5"
    2014JeepWranglerSportALLALLFront and Rear3.5"
    2014JeepWranglerWillys WheelerALLALLFront and Rear3.5"
    2015JeepWranglerRubiconALLALLFront and Rear3.5"
    2015JeepWranglerSaharaALLALLFront and Rear3.5"
    2015JeepWranglerSportALLALLFront and Rear3.5"
    2016JeepWrangler75th AnniversaryALLALLFront and Rear3.5"
    2016JeepWranglerRubiconALLALLFront and Rear3.5"
    2016JeepWranglerSaharaALLALLFront and Rear3.5"
    2016JeepWranglerSportALLALLFront and Rear3.5"
    2016JeepWranglerSport SALLALLFront and Rear3.5"
    2017JeepWranglerRubiconALLALLFront and Rear3.5"
    2017JeepWranglerSaharaALLALLFront and Rear3.5"
    2017JeepWranglerSportALLALLFront and Rear3.5"
    2018JeepWrangler JKRubiconALLALLFront and Rear3.5"
    2018JeepWrangler JKSaharaALLALLFront and Rear3.5"
    2018JeepWrangler JKSportALLALLFront and Rear3.5"
    2018JeepWrangler JKSport SALLALLFront and Rear3.5"
