3.5" Lift Kit | J-Krawl | Gladiator JT

Regular price $8,601.55
Sale price $8,601.55 Regular price
Unit price
3.5" Lift Kit | J-Krawl | Gladiator JT

3.5" Lift Kit | J-Krawl | Gladiator JT

Product description
Shipping & Return
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
FITMENT

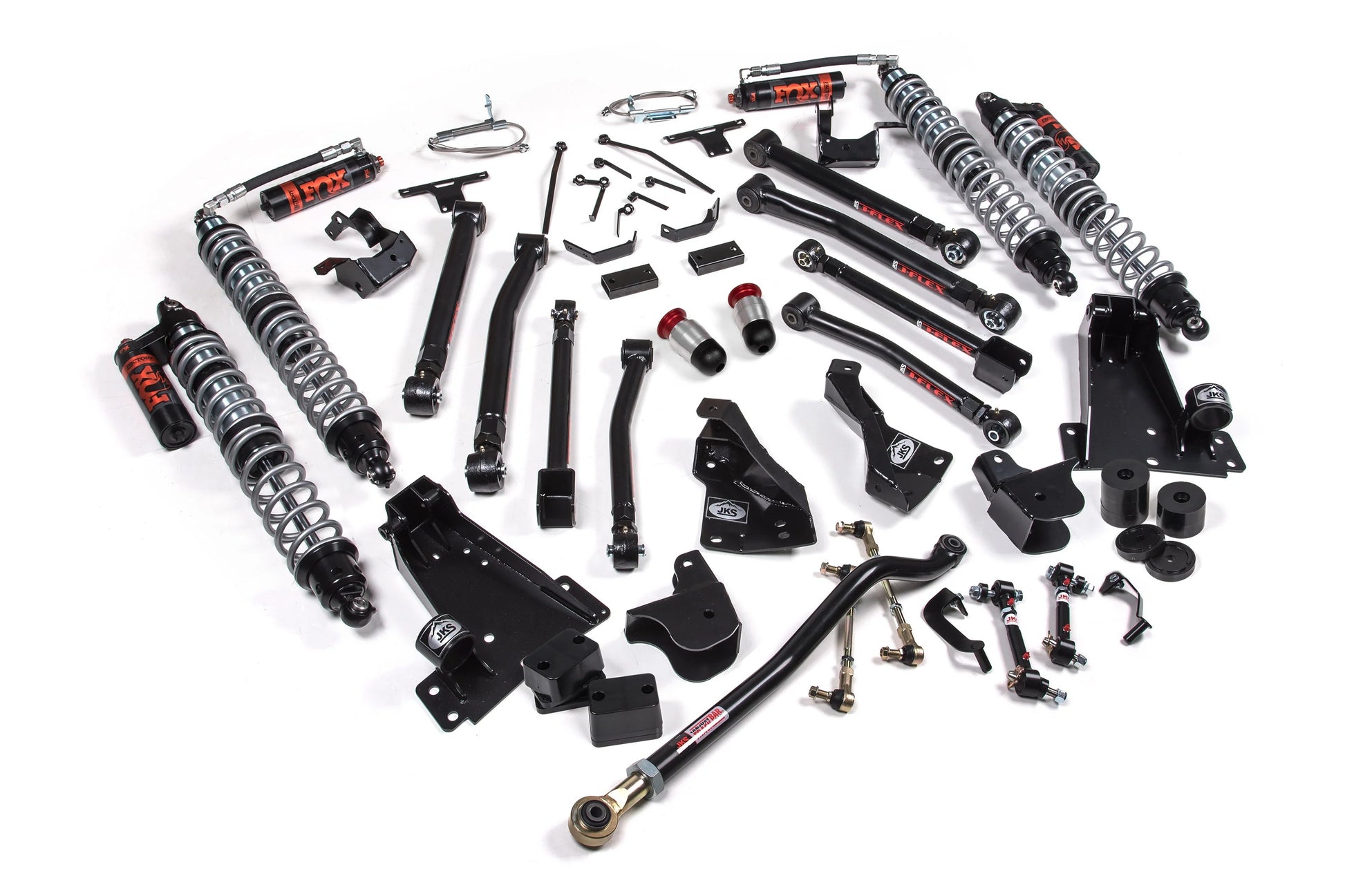

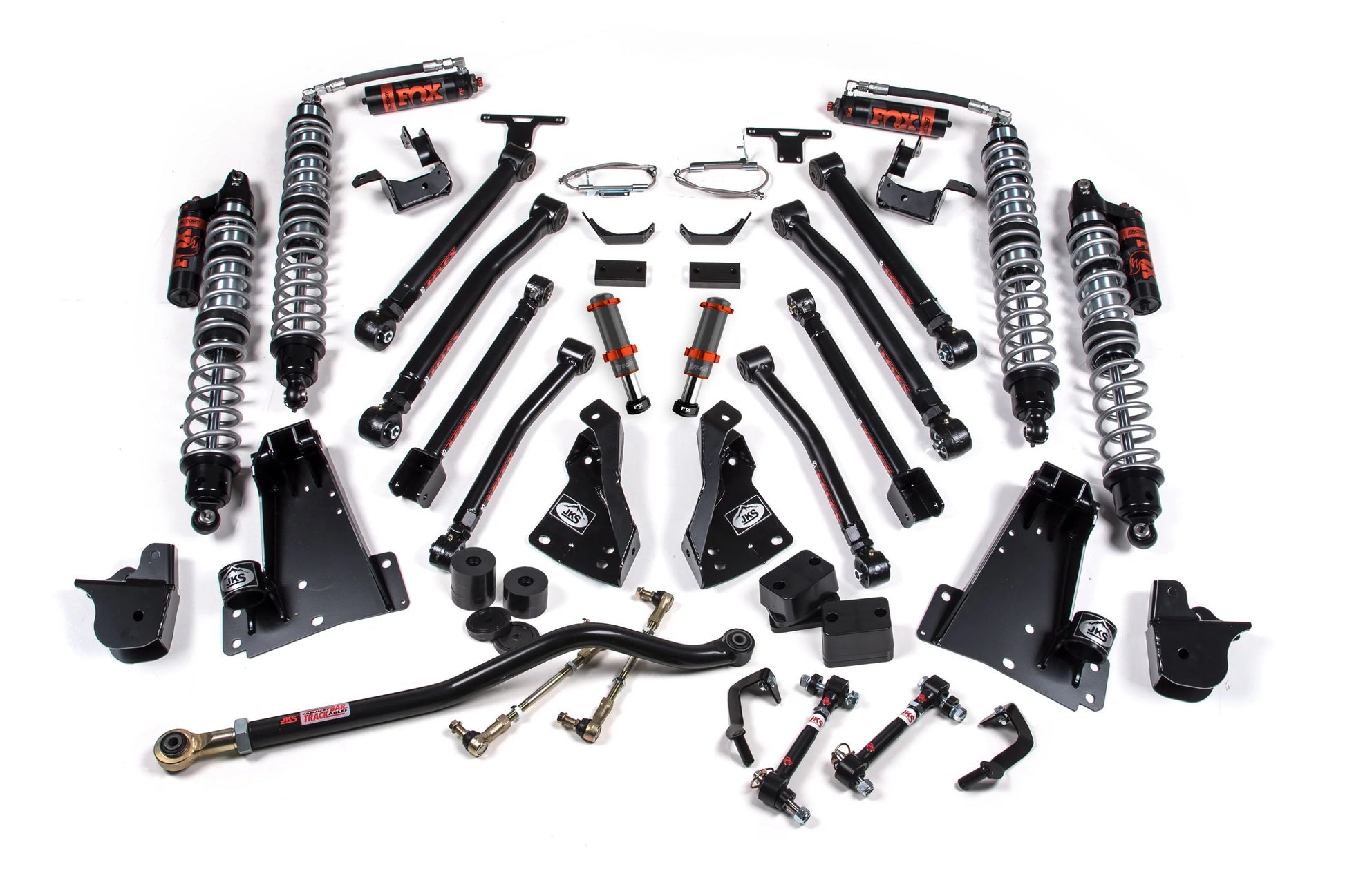

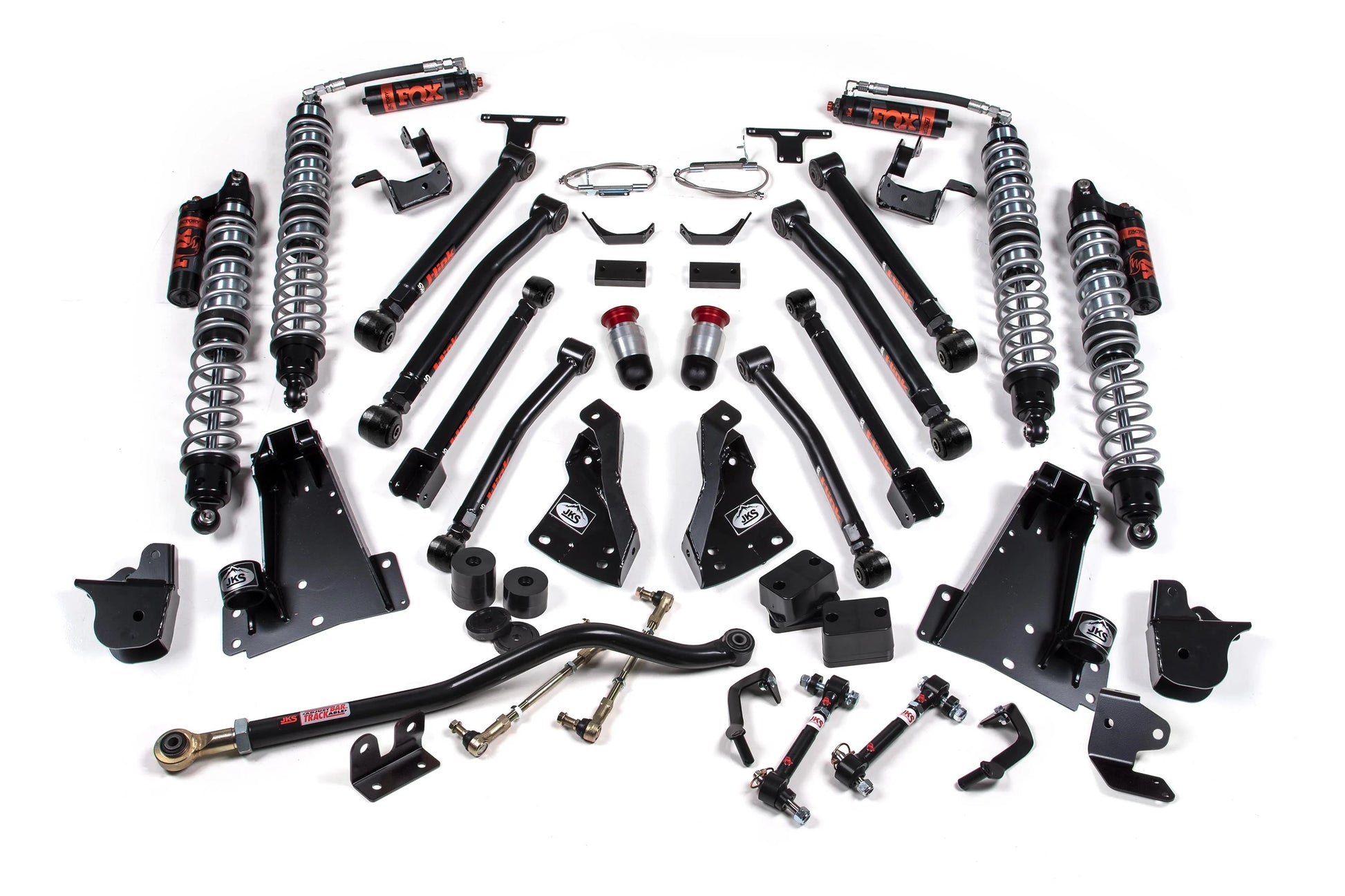

Designed for maximum articulation, improved strength, and adjustability, these complete J-Krawl systems are available for next-level performance. Components include your choice of J-Flex or J-Link upper and lower control arms, Jspec dual-rate coil springs at each corner designed to level out the stance, and a variety of shock options tailored to your needs, including FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.5 Performance Series, FOX 2.5 Elite Series and FOX 3.0 Factory Race Series shocks. Each setup ensures superior ride quality, letting you conquer rugged trails while maintaining daily driving comfort. Also included is an adjustable front track bar, quicker disconnect front sway bar end links, rear sway bar links, and bump stop extensions. J-Krawl builds off Jeep's factory suspension mounting points and upgrades everything front to rear. Adjustability is important for fine-tuning suspension geometry. J-Krawl delivers. Dial-in front caster, rear pinion, and overall vehicle wheelbase. The JKS Engineering team spent a lot of time dialing in the FOX shock valving and spring rates to suit J-Krawl's combination of parts as well as oversized wheels and tires. You'll be impressed with the stability and compression/rebound response. Take your Jeep's off-road performance and strength to the next level. It should be noted that an aftermarket front driveshaft is strongly recommended due to potential additional travel.

Features & Benefits

  • Front/rear dual-rate coil springs are designed to great ride quality across any terrain while lifting/leveling stance.
  • Front/Rear Gas Shocks (FOX Adventure Series, FOX 2.0 Performance Series, FOX 2.5 Performance Series, FOX 2.5 Performance Elite or FOX 3.0 Factory Race Series) specifically valved for this suspension system for improved performance on and off-road.
  • Front adjustable track bar to correct axle positioning under the vehicle.
  • Front sway bar quicker disconnects and rear sway bar links for increased off-road articulation.
  • Front/rear bump stop extensions to properly limit suspension up travel.
  • Front/rear J-Flex or J-Link upper control arms to add strength and adjustability.
  • Front/rear J-Flex or J-Link lower control arms to add strength and adjustability.
  • Creates leveled stance

Recommended Tires & Wheels

Rubicon Models
  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace
Non-Rubicon Models
  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

(Trimming may be required)

Read our Shock Buyers GuideHERE

Flex Ends:

Forged flex end and jam nut Flex end design allows for 30-degrees of misalignment (15 in either direction) for impressive articulation and are greaseable to ensure long bushing life. Completely rebuildable and serviceable on the trail with our JKS Flex Joint tools (link to tool).

Rubber bushings:

Engineered specifically to reduce NVH characteristics (Noise, vibration, harshness), these factory style maintenance-free rubber bushings come pre-installed at both ends and will ensure a quiet, controlled ride with hassle-free operation in any environment.

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

  1. Diesel models may achieve up to 1" less lift height
  2. Kit does not work with the Mojave model

Installation Guides :

Est. Install Time :

6 hrs

Difficulty Level :

Difficult

  • Front Lift Method : Coil Spring
  • Front Lift Height : 3.5
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 3-5"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2020JeepGladiatorAltitudeALLALLFront and Rear3.5"
2020JeepGladiatorLaunch EditionALLALLFront and Rear3.5"
2020JeepGladiatorMojaveALLALLFront and Rear3"
2020JeepGladiatorOverlandALLALLFront and Rear3.5"
2020JeepGladiatorRubiconALLALLFront and Rear3.5"
2020JeepGladiatorSportALLALLFront and Rear3.5"
2020JeepGladiatorSport SALLALLFront and Rear3.5"
2021JeepGladiator80th AnniversaryALLALLFront and Rear3.5"
2021JeepGladiatorHigh AltitudeALLALLFront and Rear3.5"
2021JeepGladiatorMojaveALLALLFront and Rear3"
2021JeepGladiatorOverlandALLALLFront and Rear3.5"
2021JeepGladiatorRubiconALLALLFront and Rear3.5"
2021JeepGladiatorSportALLALLFront and Rear3.5"
2021JeepGladiatorSport SALLALLFront and Rear3.5"
2021JeepGladiatorTexas TrailALLALLFront and Rear3.5"
2021JeepGladiatorWillysALLALLFront and Rear3.5"
2021JeepGladiatorWillys SportALLALLFront and Rear3.5"
2022JeepGladiatorAltitudeALLALLFront and Rear3.5"
2022JeepGladiatorHigh AltitudeALLALLFront and Rear3.5"
2022JeepGladiatorMojaveALLALLFront and Rear3"
2022JeepGladiatorOverlandALLALLFront and Rear3.5"
2022JeepGladiatorRubiconALLALLFront and Rear3.5"
2022JeepGladiatorSportALLALLFront and Rear3.5"
2022JeepGladiatorSport SALLALLFront and Rear3.5"
2022JeepGladiatorTexas TrailALLALLFront and Rear3.5"
2022JeepGladiatorWillysALLALLFront and Rear3.5"
2022JeepGladiatorWillys SportALLALLFront and Rear3.5"
2023JeepGladiatorFreedomALLALLFront and Rear3.5"
2023JeepGladiatorHigh AltitudeALLALLFront and Rear3.5"
2023JeepGladiatorMojaveALLALLFront and Rear3"
2023JeepGladiatorOverlandALLALLFront and Rear3.5"
2023JeepGladiatorRubiconALLALLFront and Rear3.5"
2023JeepGladiatorRubicon Blue SunriderALLALLFront and Rear3.5"
2023JeepGladiatorSportALLALLFront and Rear3.5"
2023JeepGladiatorSport SALLALLFront and Rear3.5"
2023JeepGladiatorTexas TrailALLALLFront and Rear3.5"
2023JeepGladiatorWillysALLALLFront and Rear3.5"
2023JeepGladiatorWillys SportALLALLFront and Rear3.5"
2024JeepGladiatorHigh TideALLALLFront and Rear3.5"
2024JeepGladiatorJeep BeachALLALLFront and Rear3.5"
2024JeepGladiatorMojaveALLALLFront and Rear3"
2024JeepGladiatorMojave XALLALLFront and Rear3"
2024JeepGladiatorNightHawkALLALLFront and Rear3.5"
2024JeepGladiatorRubiconALLALLFront and Rear3.5"
2024JeepGladiatorRubicon XALLALLFront and Rear3.5"
2024JeepGladiatorSportALLALLFront and Rear3.5"
2024JeepGladiatorSport SALLALLFront and Rear3.5"
2024JeepGladiatorTexas TrailALLALLFront and Rear3.5"
2024JeepGladiatorWillysALLALLFront and Rear3.5"
2025JeepGladiatorHigh TideALLALLFront and Rear3.5"
2025JeepGladiatorNightHawkALLALLFront and Rear3.5"
2025JeepGladiatorRubiconALLALLFront and Rear3.5"
2025JeepGladiatorRubicon XALLALLFront and Rear3.5"
2025JeepGladiatorSportALLALLFront and Rear3.5"
2025JeepGladiatorSport SALLALLFront and Rear3.5"
2025JeepGladiatorTexas TrailALLALLFront and Rear3.5"
2025JeepGladiatorWillysALLALLFront and Rear3.5"
