2007-2018 Rear 14'' Coilover Towers JKU

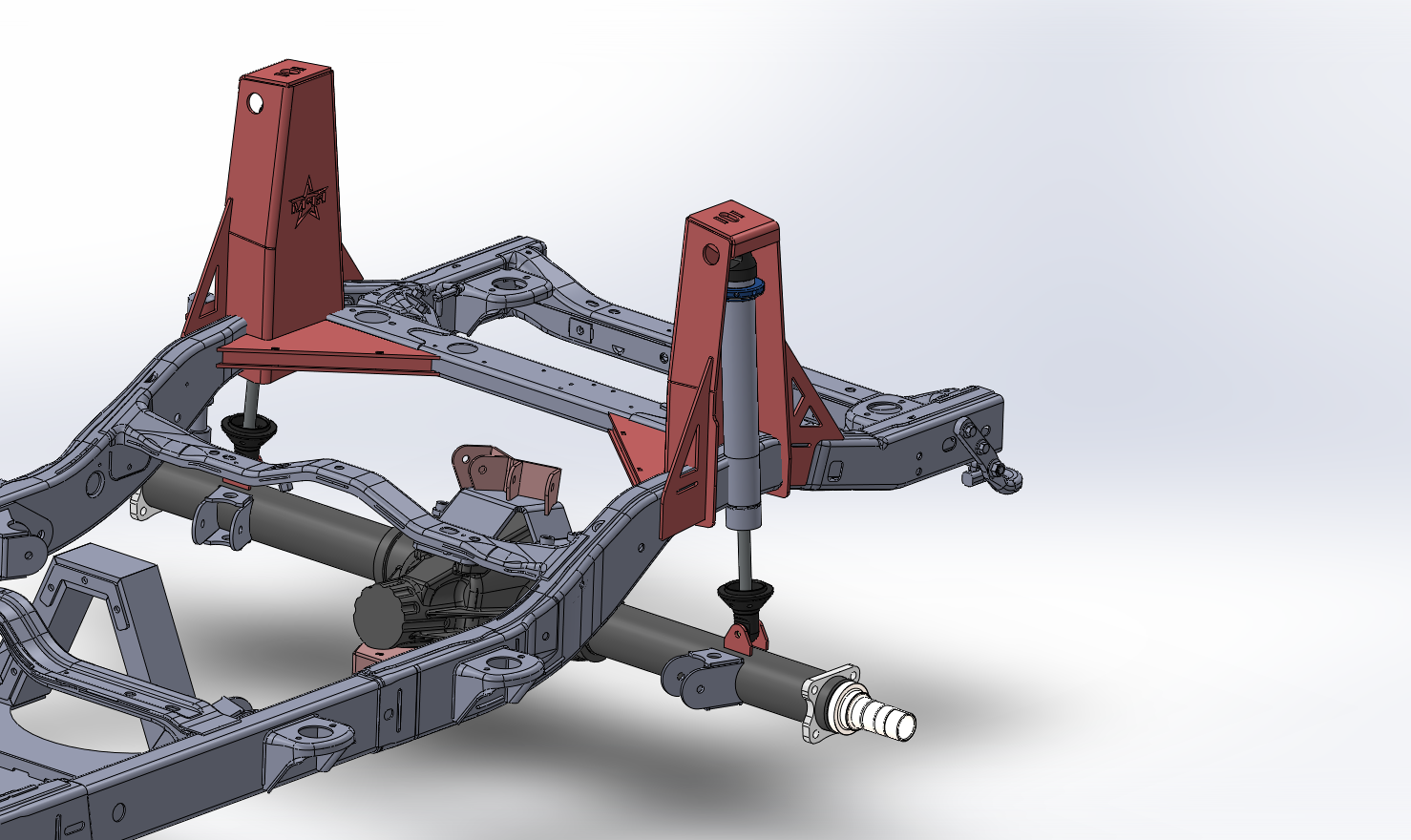

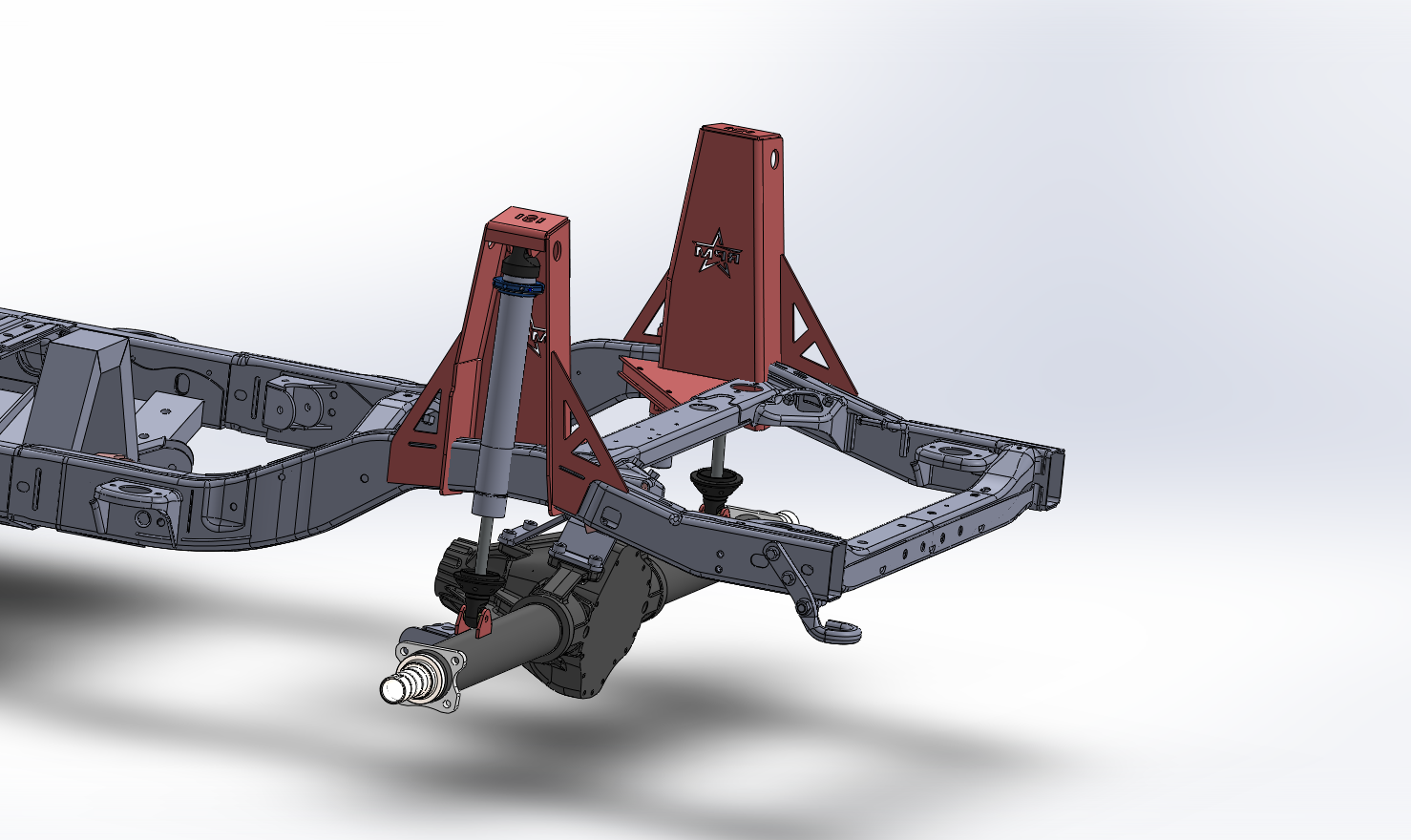

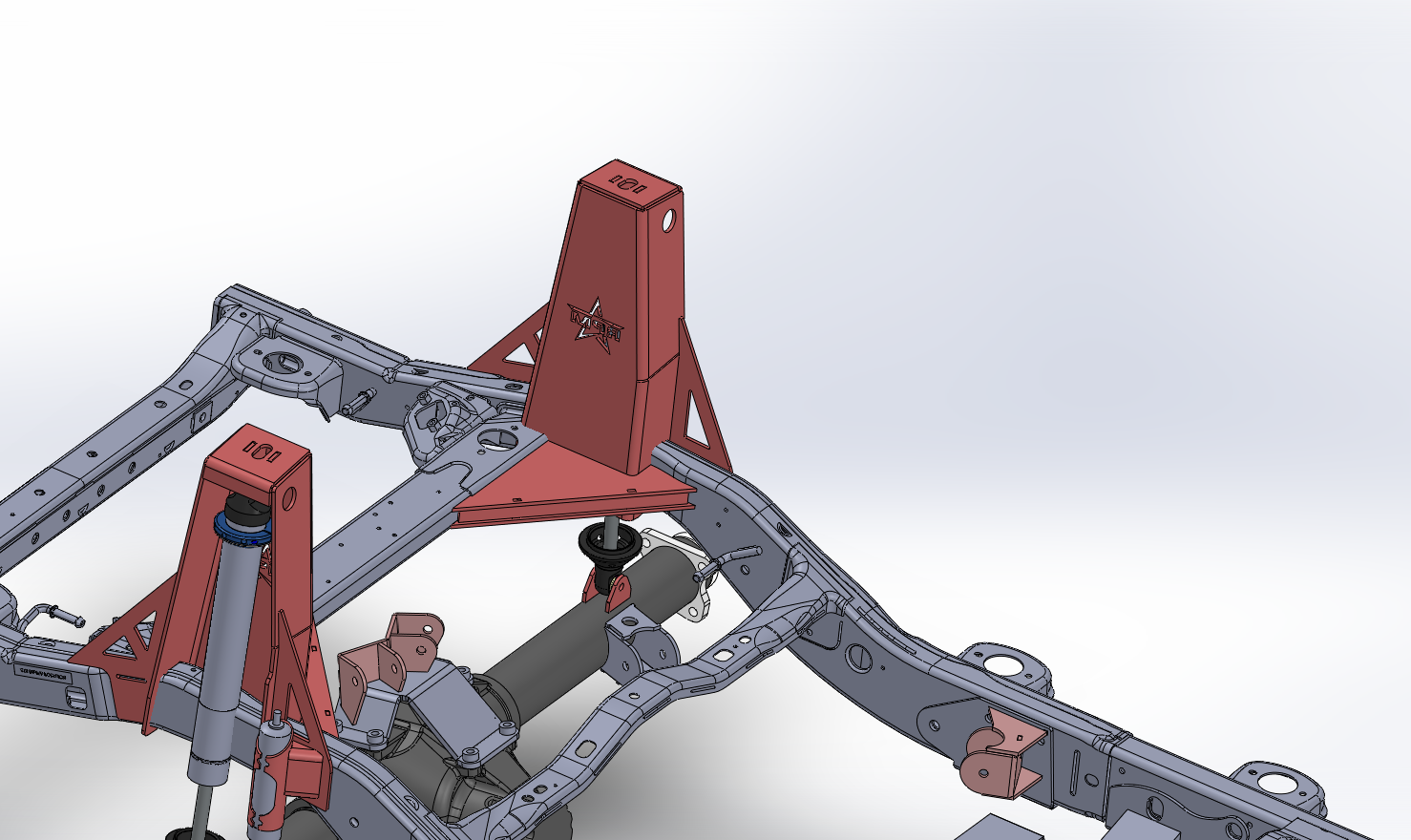

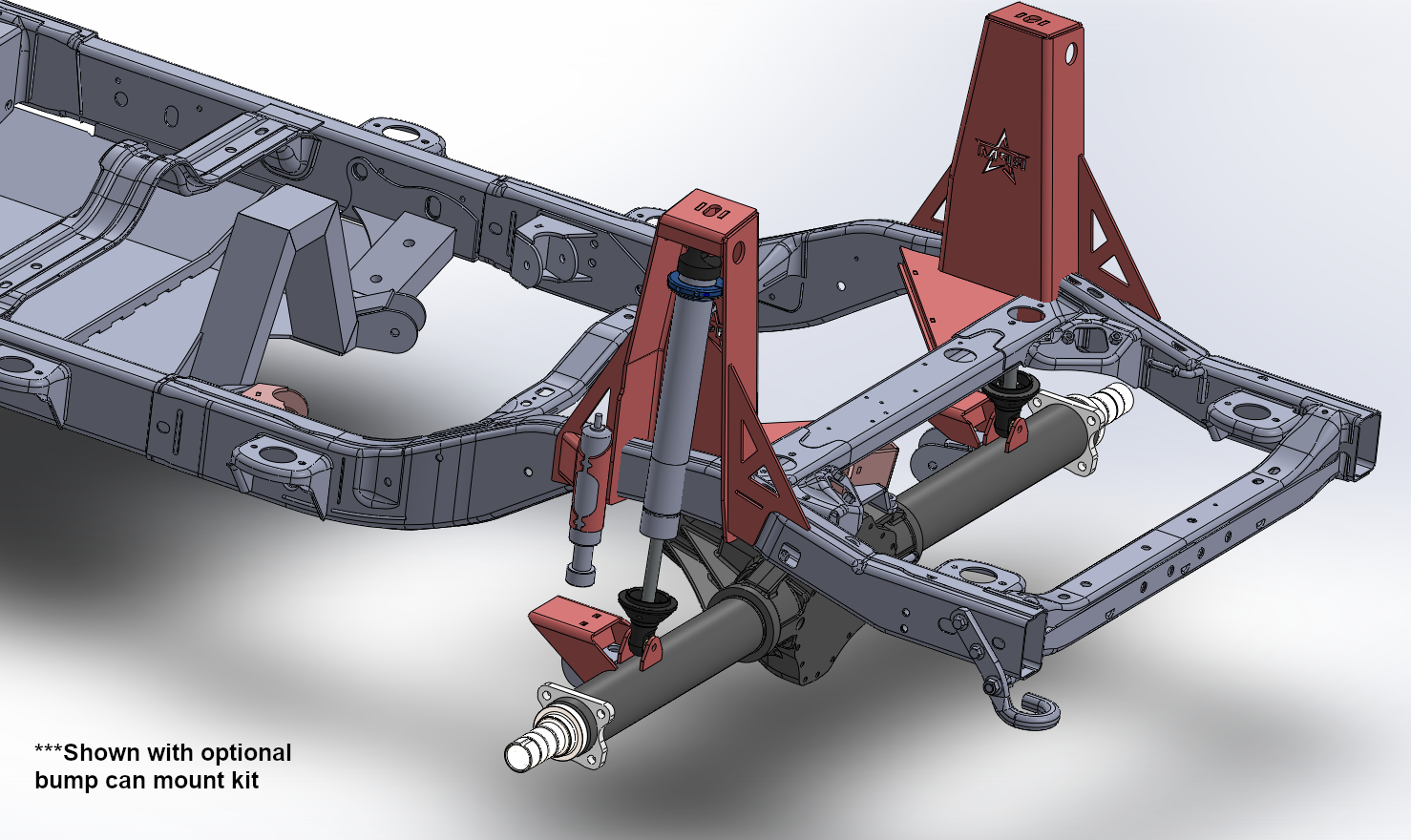

Our RPM Steering towers are designed with proper specifications to allow a 14" coilover full range of motion on a JK/JKU. In addition, we run an 8.5" wide base so that the coilover will not rub on the tower when moving front to rear. These 1/4" steel towers are pre-welded and ready for installation. Included with the price is a set of 1/4'' steel weld on lower coilover axle tab mounts. All required gussets/ supports included with kit. When set with our recommended shaft show of 4.5'' the vehicle should net approximately 4.5''of overall lift. Pair with our 12'' Front coilover tower setup for a perfectly dialed in setup with no guess work.
Please Note
- It comes with pre-welded top cap and shock tabs. Ready to weld to the frame.
- Sold as a pair.
- Shock tabs are 1/2'' bolt holes.
- 1.50'' tab spacing on Coilovers Towers.
- Pair of coilover axle tab mounts included
- Crossmember gussets included
- Frame to Tower gussets included
*************This setup deletes the track bar mount. Currently designed to work with Triangulated rear suspension only. You will need to make a custom track back mount rearward of the shock tower and a custom bent track bar if you wish to maintain a track bar for a non triangulated setup. This option will be available in the near future.
*************69'' wide axles minimum. Will not work with factory axles.
*************Cutting and welding required. recommended professional install.
