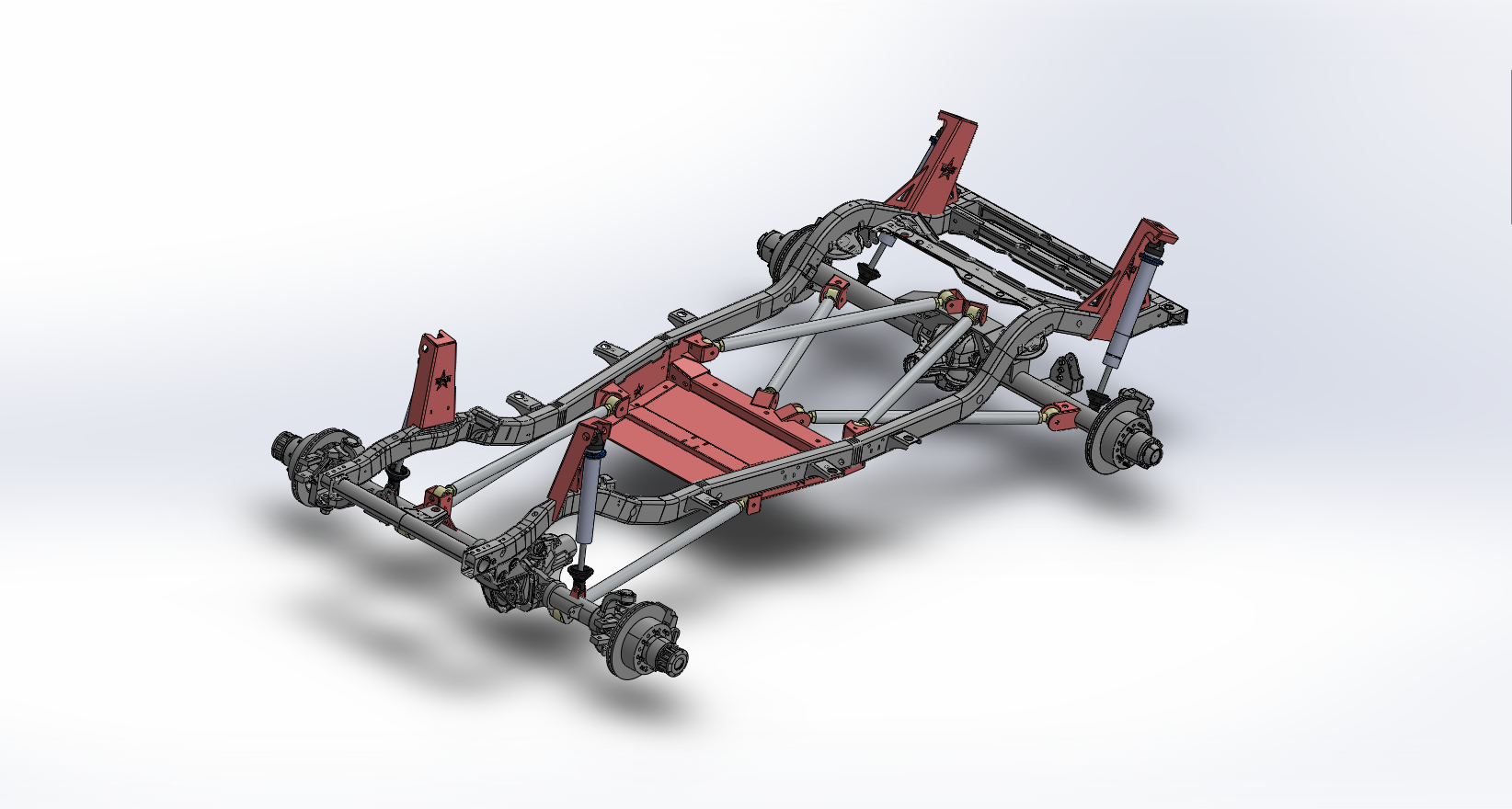

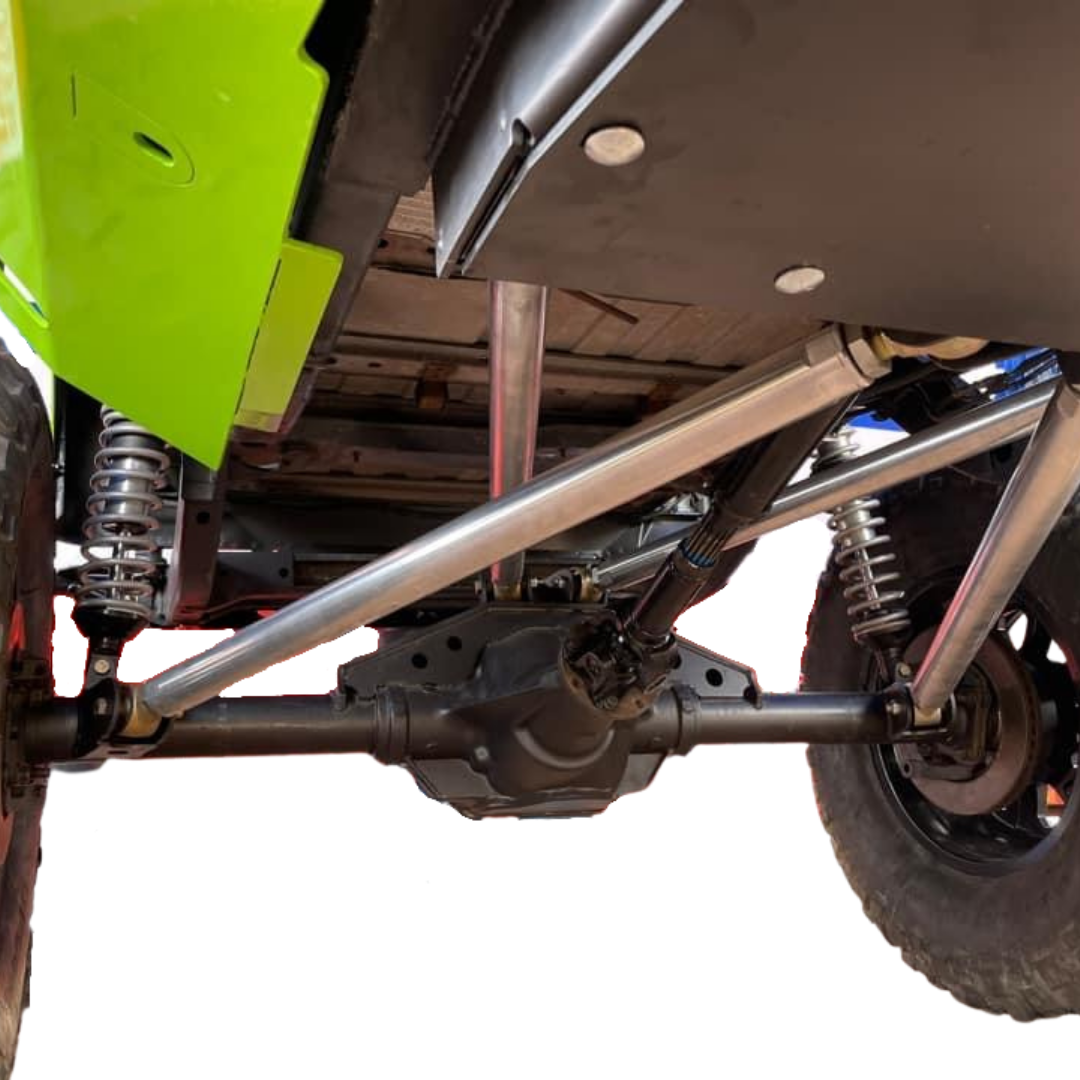

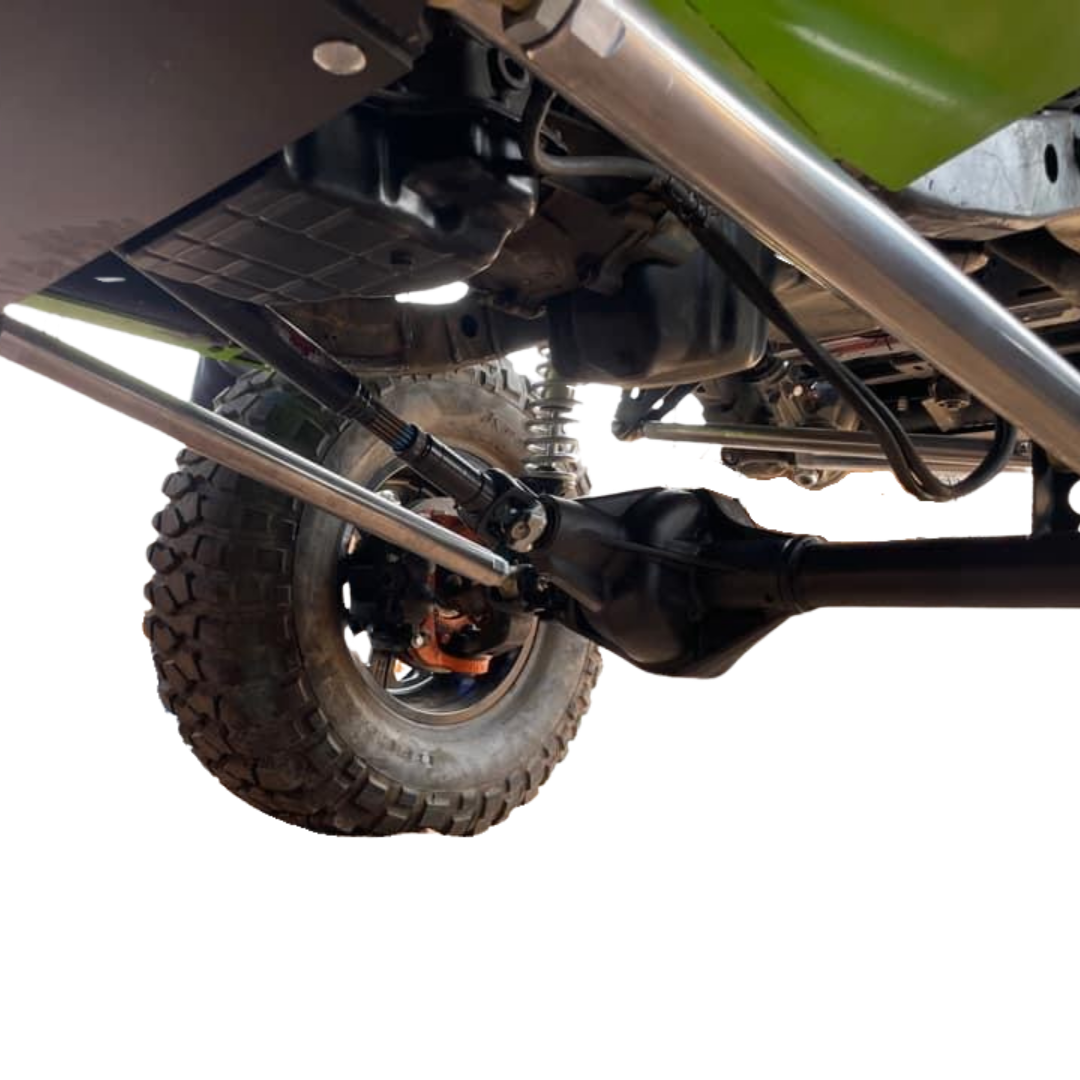

2004-06 LJ 3-Link Front/4-Link Rear Double Triangulated Long Arm Upgrade

We wanted to change the LJ suspension game. Our kit is a true double triangulated rear to minimize rear steer. We offer stock length, 4" and 7" rear stretch options. We made our skid plate so that it can be removed without holding up the transmission.
*****Coilover/ ORI Towers are not included in the kit base price but are available as an add on******

Please Note

  • This kit requires:
  • Welding brackets to frame and axles
  • Factory fuel tank must be relocated for stretch kits
  • Rear axle to have a truss (not included)
  • Evaporative canister will need to be relocated with stretch kits
  • Exhaust will need to be customized
  • Weld-in side brackets with integrated front link mounts
  • Third link mount for axle side
  • Bolt-in rear crossmember for double triangulation
  • Truss top 4-link mounts (truss not included)
  • Axle side lower control arm mounts
  • Bolt-in transmission mount cross member
  • (1) Skid Plate 1/4" laser cut and CNC smooth bottom
  • (4) 2" 7075 T6 aluminum lower links w/Rock Jock narrow joints at both ends
  • (1) 1.75" 7075 T6 aluminum upper link w/Rock Jock narrow joints at both ends
  • (2) 2" solid 7075 T6 aluminum upper links with narrow Rock Jock Johnny Joints
  • Includes all grade 8/10.9 hardware

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
