2.5" Lift Kit | J-Konnect | Wrangler JL 4-Door

Regular price $1,957.55
Sale price $1,957.55 Regular price
Unit price
2.5" Lift Kit | J-Konnect | Wrangler JL 4-Door

2.5" Lift Kit | J-Konnect | Wrangler JL 4-Door

Product description
Shipping & Return
IMPORTANT NOTES
INSTALLATION
SPECIFICATION
FITMENT

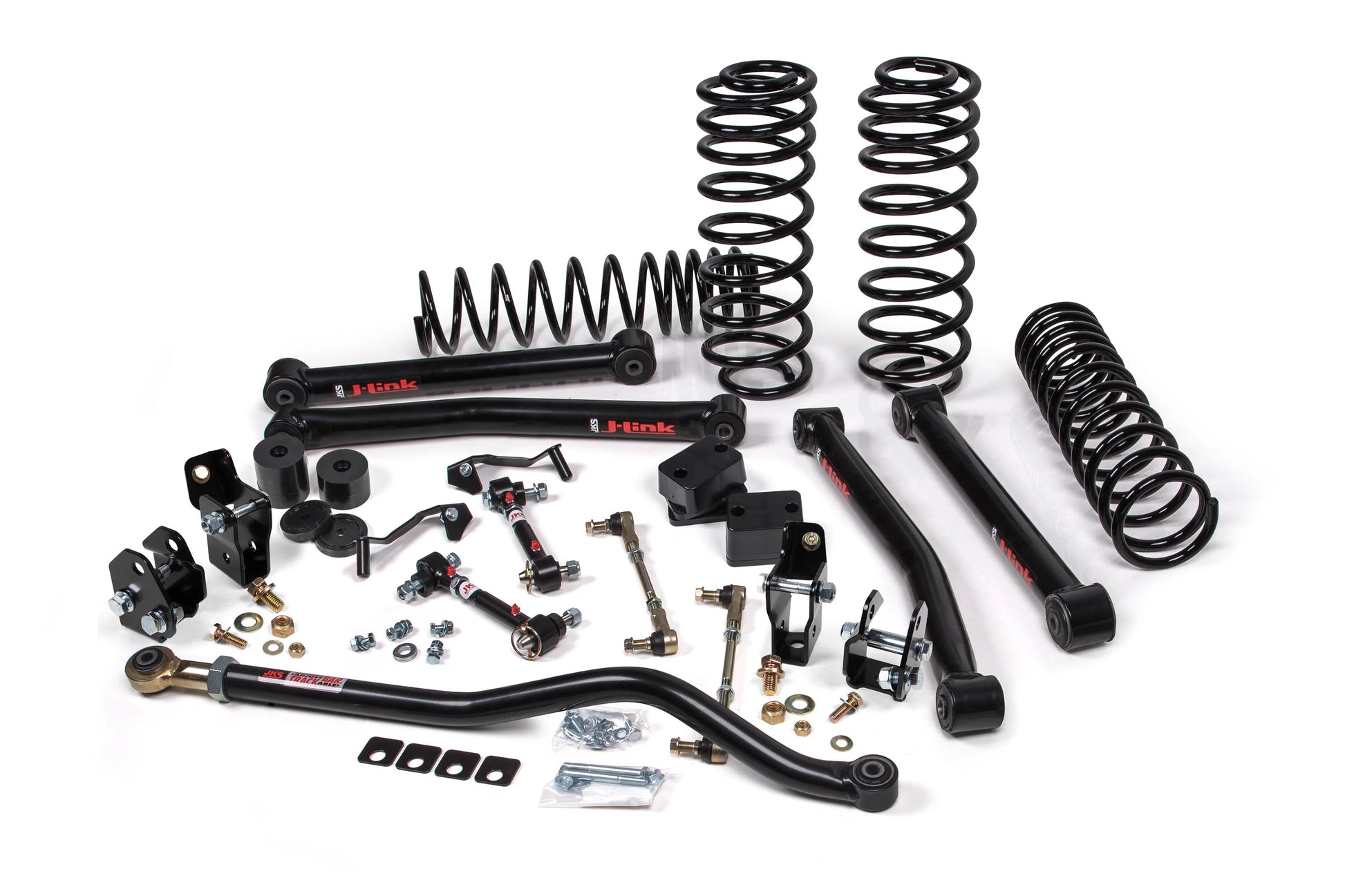

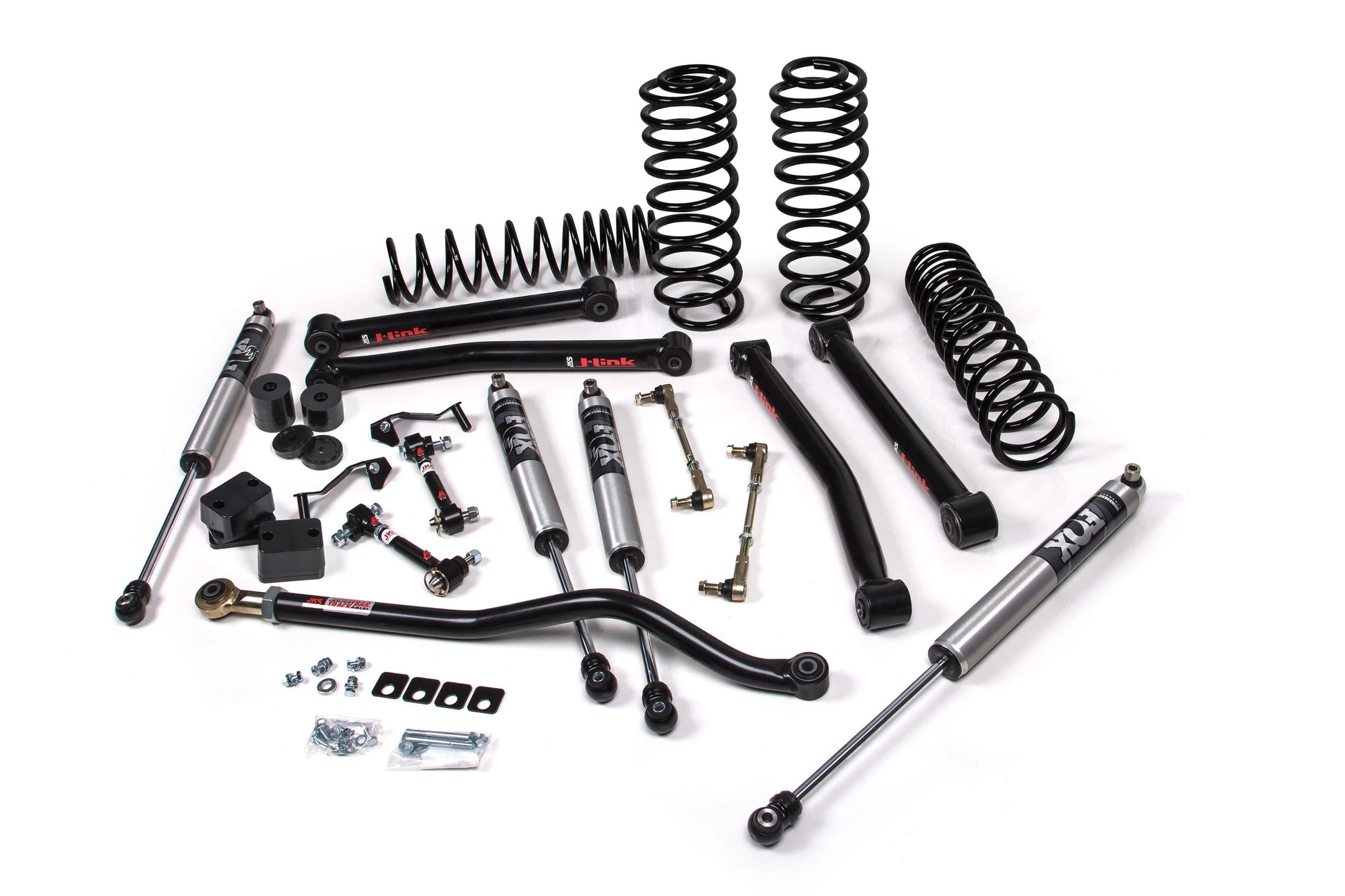

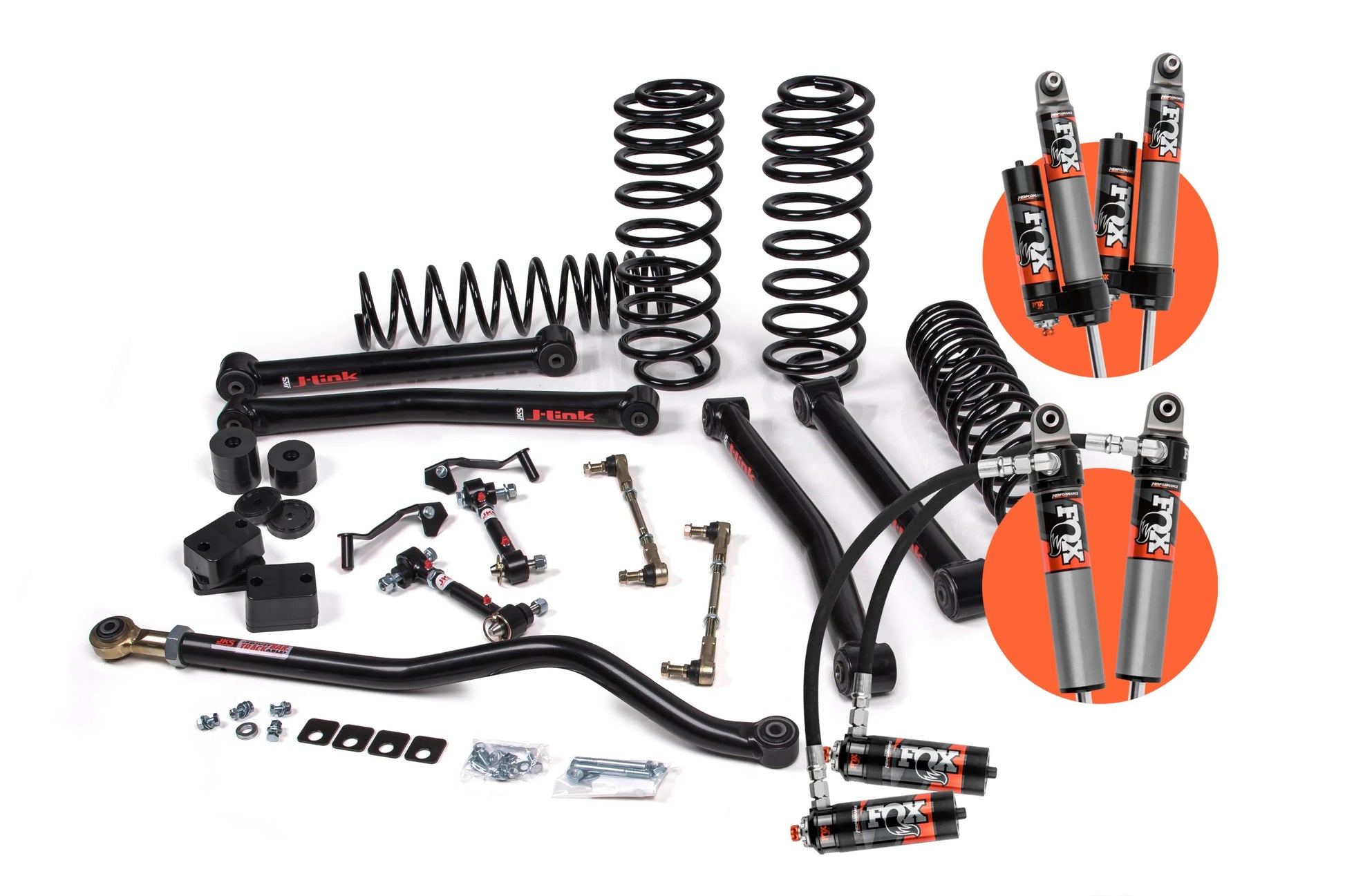

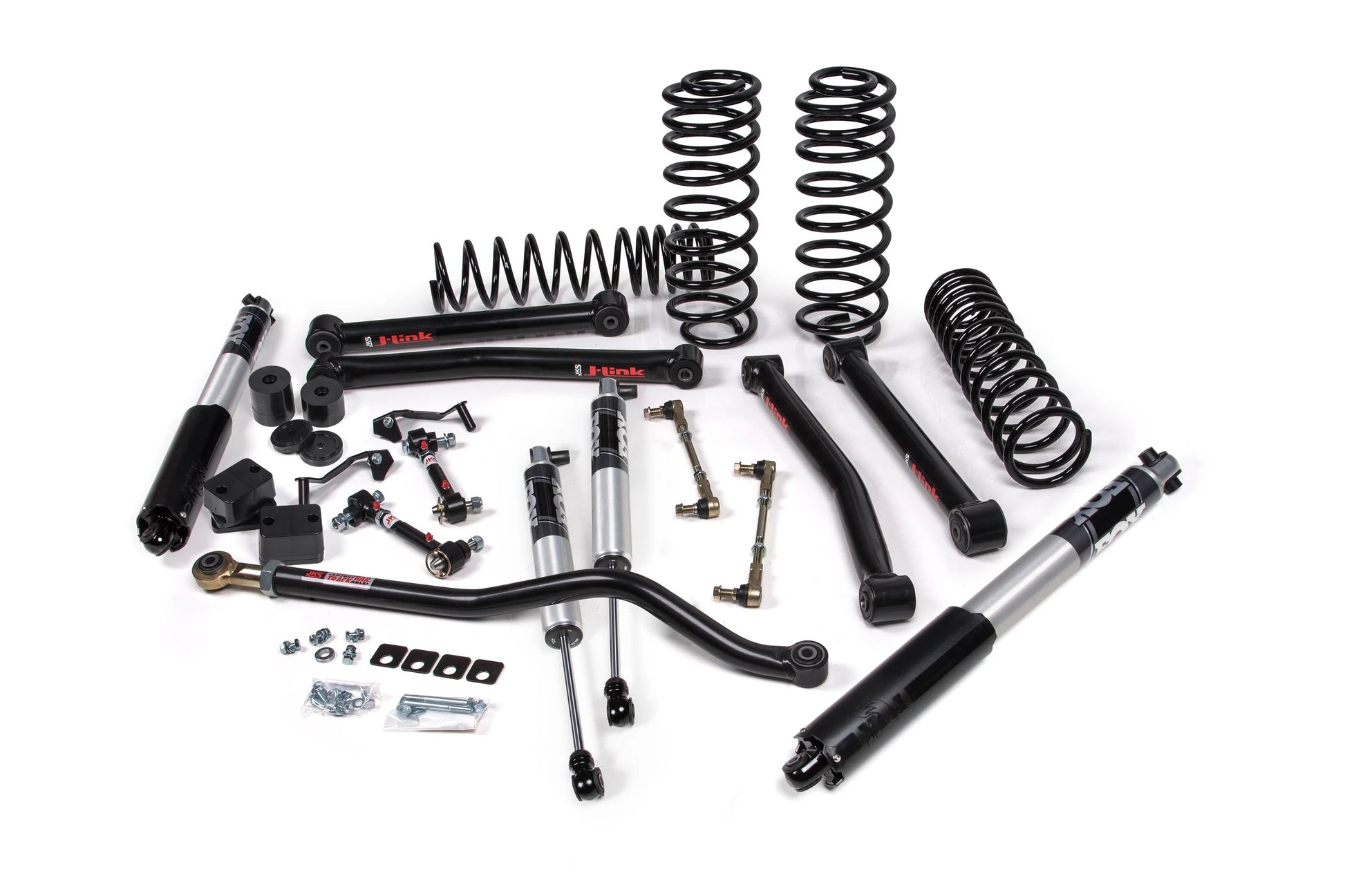

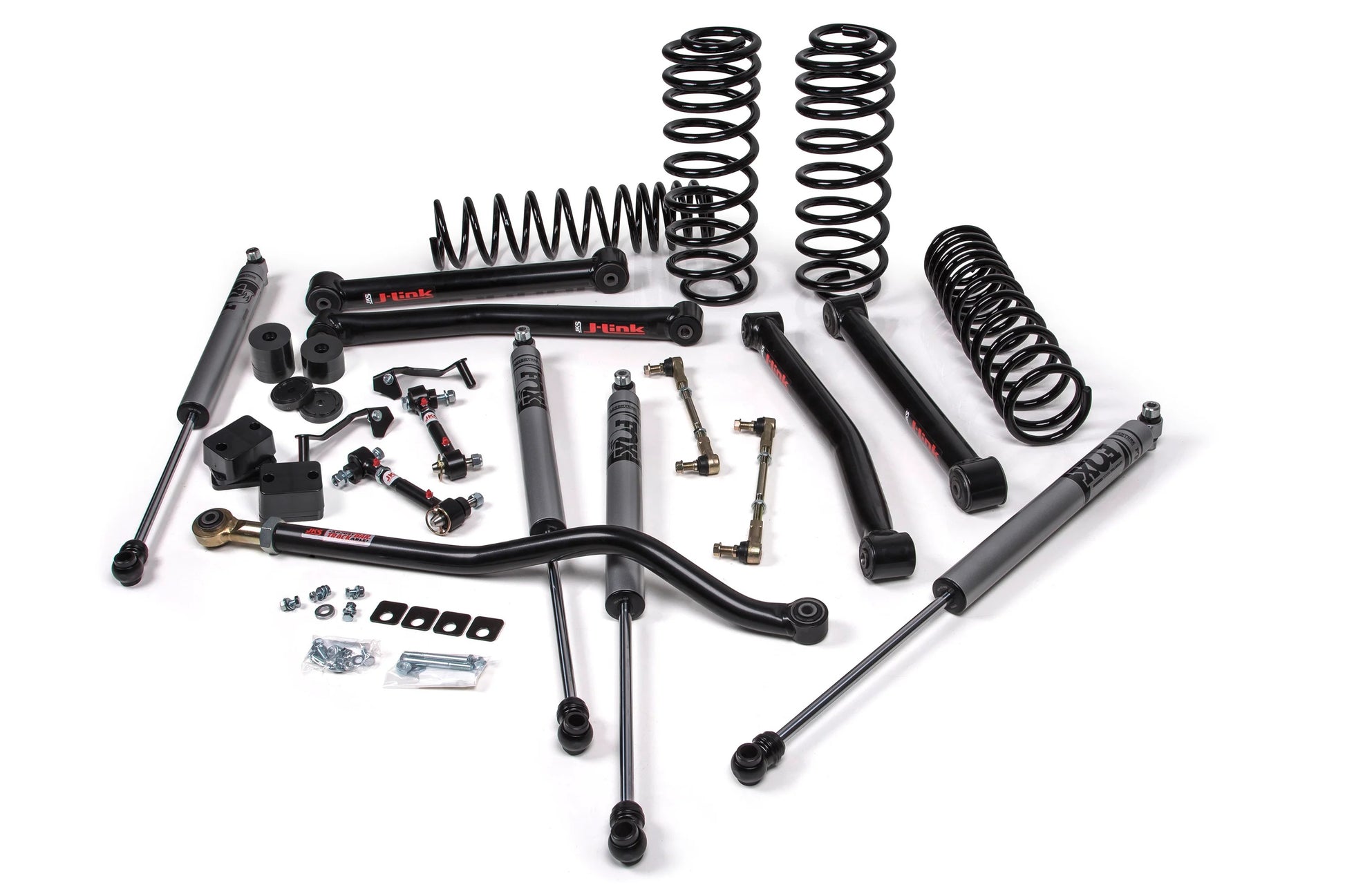

For serious off-road use, step up to a JKS J-Konnect 2.5" suspension system for your Wrangler JK 4-Door. J-Konnect can tackle aggressive terrain including rocks and ruts without giving up street manners or breaking the bank. J-Konnect system takes suspension component strength and suspension geometry a step further by adding front and rear fixed-length J-Link lower control arms along with a drag link flip kit and track bar braces. In addition to being significantly stronger than factory control arms, J-LINK lower control arms add front caster and rear wheelbase. Built from 2" x .250-wall DOM tubing, J-LINK control arms provide street-friendly NVH isolation with large factory style rubber bushings at both ends. The drag link flip kit flattens the steering angle to mimic factory angles, while the track bar adds strength and protection. Combined with the matched dual-rate coil springs, and your choice of a selection of custom-valved FOX shocks, an adjustable track bar, Quicker Disconnect sway bar end links, and more. J-Konnect is ready for aggressive trail performance. Get connected with J-Konnect.

Features & Benefits

  • Front/Rear Dual Rate Coil Springs (standard or HD) designed to great ride quality across any terrain.
  • HD springs offer additional load capacity for vehicles equipped with winch bumper, fullsize spare, roof rack, etc.
  • Front/Rear Gas Shocks (FOX) specifically valved for this suspension system for improved performance on and off-road.
  • Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
  • Front Sway Bar Quicker Disconnects and Rear Sway Bar Links for increased offroad articulation.
  • Front/Rear Bump Stop Extensions to properly limit suspension up travel.
  • Front/Rear J-Link Lower Control Arms to add strength and correct caster.

Recommended Tires & Wheels

Rubicon Models
  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace
Non-Rubicon Models
  • 35 x 12.5 with 17 x 9 and 5 in. Backspace
  • 35 x 12.5 with 18 x 9 and 5 in. Backspace
  • 35 x 12.5 with 20 x 9 and 5 in. Backspace

(Trimming may be required)

Picking the Right Coil Springs

JKS J-Rated Suspension Systems feature custom wound, progressive rate coil springs. That means the spring rate increases as the spring is compressed. You and your Jeep enjoy a plush ride during low load driving scenarios such as highway cruising with increased performance as each spring compresses. If you carry a significant amount of extra gear in your Jeep, some J-Rated suspension systems are available with optional high-rate coil springs to support the additional weight.

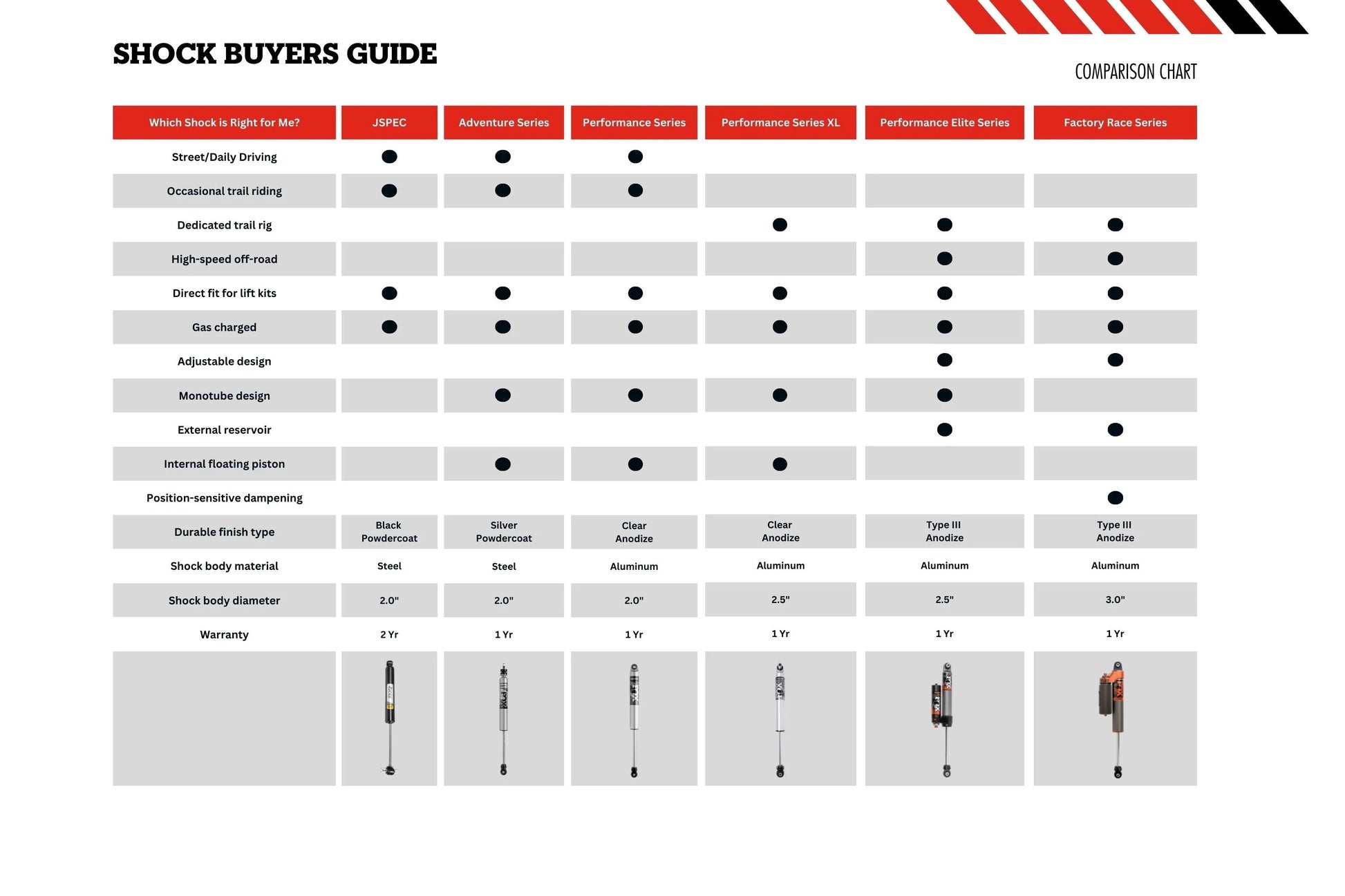

Read our Shock Buyers Guide

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.

We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.

  1. Factory wheels cannot be reinstalled without wheel spacers
  2. HD front springs recommended for applications with aftermarket winch/bumper combo
  3. HD rear springs recommended for applcations with rear mounted full size spare tire
  4. Will not fit 4xe models
  5. Will not fit Rubicon 392 models

Installation Guides :

Download Guide 1

Est. Install Time :

7 hrs

Difficulty Level :

Moderately Easy

  • Front Lift Method : Coil Spring
  • Front Lift Height : 2.5
  • Rear Lift Method : Coil Spring
  • Rear Lift Height : 2.5"
  • Shocks Included : Yes
  • Lift Height : 2-3.5"

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2018JeepWranglerUnlimited MoabALLALLFront and Rear2.5"
2018JeepWranglerUnlimited RubiconALLGASFront and Rear2.5"
2018JeepWranglerUnlimited SaharaALLGASFront and Rear2.5"
2018JeepWranglerUnlimited SportALLGASFront and Rear2.5"
2018JeepWranglerUnlimited Sport SALLGASFront and Rear2.5"
2019JeepWranglerUnlimited MoabALLALLFront and Rear2.5"
2019JeepWranglerUnlimited RubiconALLGASFront and Rear2.5"
2019JeepWranglerUnlimited SaharaALLGASFront and Rear2.5"
2019JeepWranglerUnlimited SportALLGASFront and Rear2.5"
2019JeepWranglerUnlimited Sport SALLGASFront and Rear2.5"
2020JeepWranglerUnlimited RubiconALLGASFront and Rear2.5"
2020JeepWranglerUnlimited Rubicon DeluxeALLALLFront and Rear2.5"
2020JeepWranglerUnlimited Rubicon XtremeALLALLFront and Rear2.5"
2020JeepWranglerUnlimited SaharaALLGASFront and Rear2.5"
2020JeepWranglerUnlimited SportALLGASFront and Rear2.5"
2020JeepWranglerUnlimited Sport SALLGASFront and Rear2.5"
2021JeepWranglerUnlimited 80th AnniversaryALLGASFront and Rear2.5"
2021JeepWranglerUnlimited FreedomALLGASFront and Rear2.5"
2021JeepWranglerUnlimited High AltitudeALLGASFront and Rear2.5"
2021JeepWranglerUnlimited IslanderALLGASFront and Rear2.5"
2021JeepWranglerUnlimited RubiconALLGASFront and Rear2.5"
2021JeepWranglerUnlimited SaharaALLGASFront and Rear2.5"
2021JeepWranglerUnlimited Sahara AltitudeALLGASFront and Rear2.5"
2021JeepWranglerUnlimited Sahara High AltitudeALLGASFront and Rear2.5"
2021JeepWranglerUnlimited SportALLGASFront and Rear2.5"
2021JeepWranglerUnlimited Sport AltitudeALLGASFront and Rear2.5"
2021JeepWranglerUnlimited Sport SALLGASFront and Rear2.5"
2021JeepWranglerUnlimited WillysALLGASFront and Rear2.5"
2021JeepWranglerUnlimited Willys SportALLGASFront and Rear2.5"
2022JeepWranglerUnlimited High AltitudeALLGASFront and Rear2.5"
2022JeepWranglerUnlimited RubiconALLGASFront and Rear2.5"
2022JeepWranglerUnlimited SaharaALLGASFront and Rear2.5"
2022JeepWranglerUnlimited Sahara AltitudeALLGASFront and Rear2.5"
2022JeepWranglerUnlimited Sahara High AltitudeALLGASFront and Rear2.5"
2022JeepWranglerUnlimited SportALLGASFront and Rear2.5"
2022JeepWranglerUnlimited Sport AltitudeALLGASFront and Rear2.5"
2022JeepWranglerUnlimited Sport SALLGASFront and Rear2.5"
2022JeepWranglerUnlimited WillysALLGASFront and Rear2.5"
2022JeepWranglerUnlimited Willys SportALLGASFront and Rear2.5"
2023JeepWranglerWillys SportALLGASFront and Rear2.5"
2024JeepWranglerRubicon XALLALLFront and Rear2.5"
2024JeepWranglerUnlimited RubiconALLALLFront and Rear2.5"
2024JeepWranglerUnlimited SaharaALLALLFront and Rear2.5"
2024JeepWranglerUnlimited WillysALLALLFront and Rear2.5"
2025JeepWranglerUnlimited RubiconALLALLFront and Rear2.5"
2025JeepWranglerUnlimited SaharaALLALLFront and Rear2.5"
2025JeepWranglerUnlimited WillysALLALLFront and Rear2.5"
