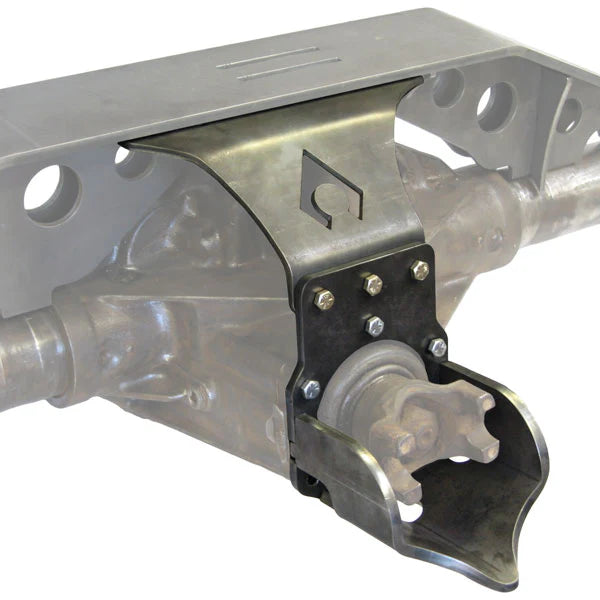

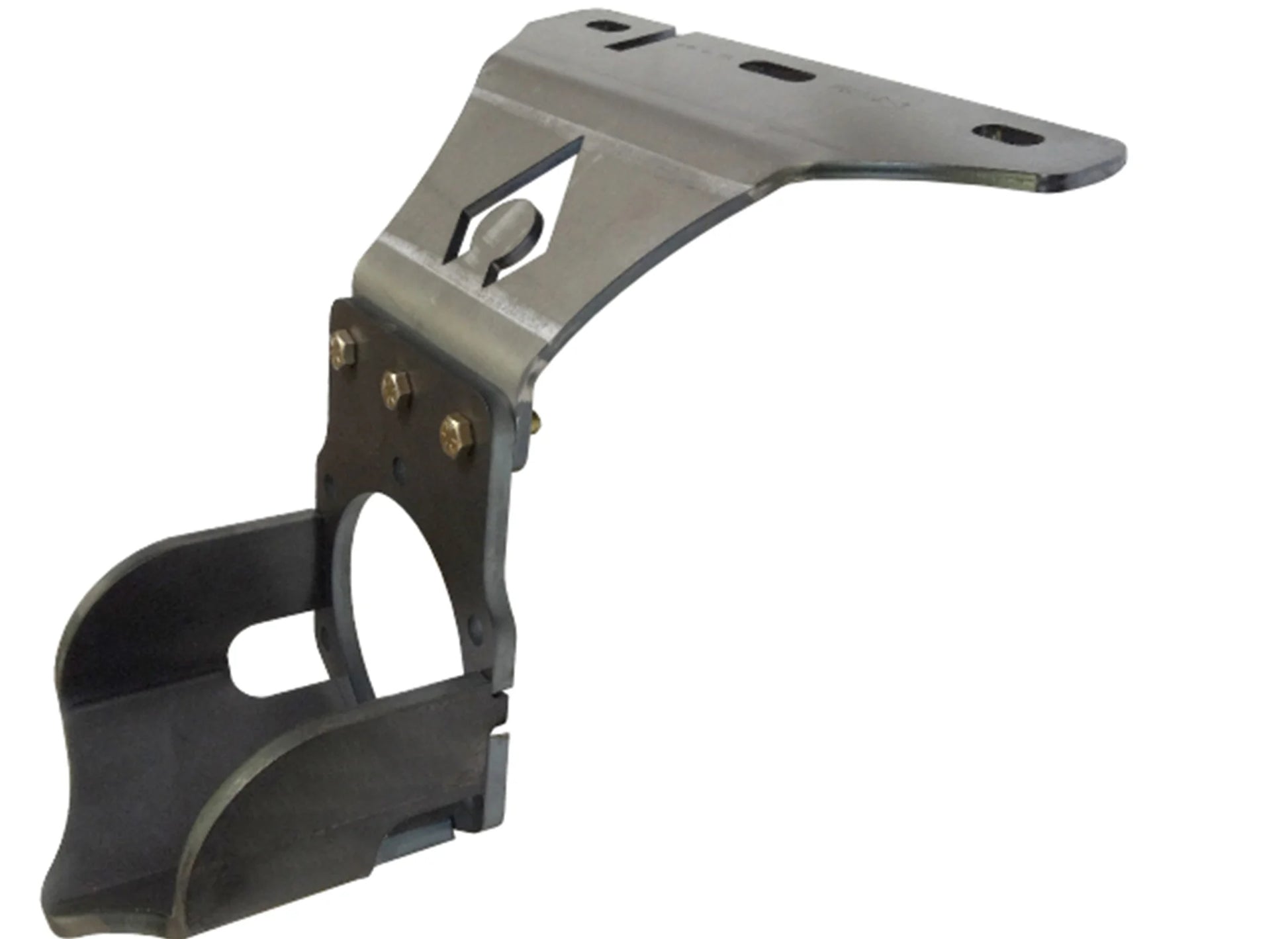

14 bolt Pinion Guard with Bridge

Regular price $186.99
Sale price $186.99 Regular price
Unit price

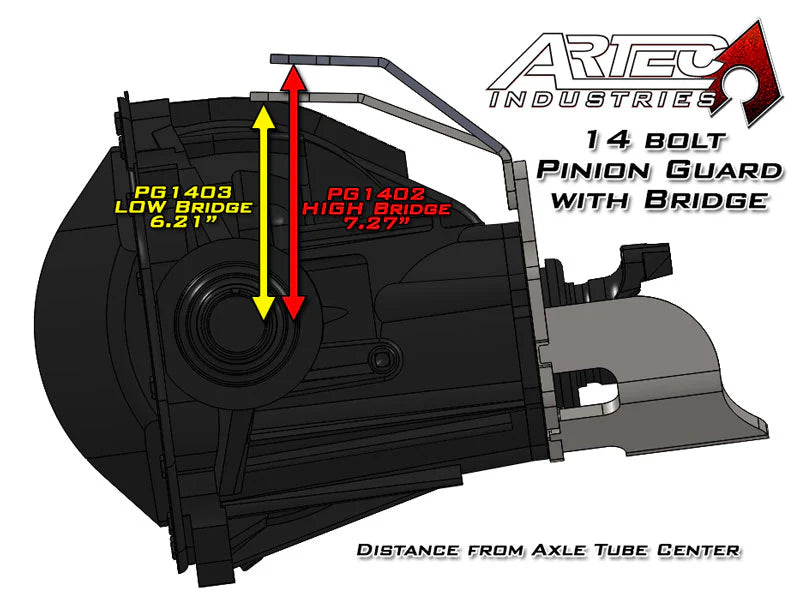

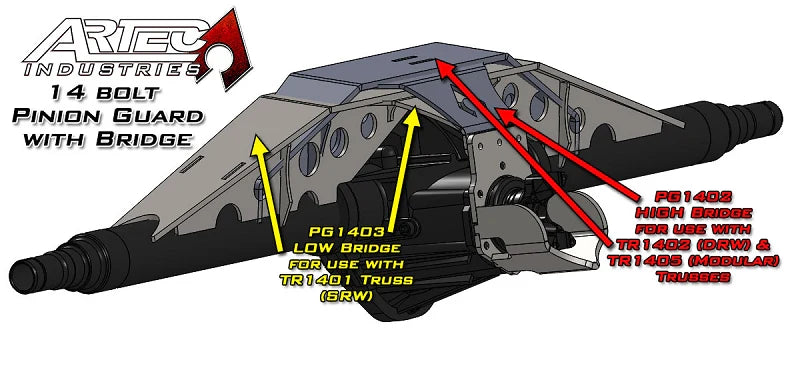

LOW MOUNT - Use with TR1401 or TR1406
HIGH MOUNT- Use withTR1402 or TR1405
14 bolt Pinion Guard with Bridge

14 bolt Pinion Guard with Bridge

Product description
Features
Install Instructions
Shipping

Artec Industries 14 Bolt Modular Axle Truss reinforces and mounts upper links. High-clearance shock mounts and perches are available. Add-on pinion guard with bridge recommended.

Artec Industries' 14 Bolt Modular Axle Truss is designed for one-ton swaps. Its versatile heavy-duty design reinforces your axle and provides a flat surface to mount your upper links. The 3/8" thick truss top and 1/4" thick gussets are built to withstand serious abuse. The truss is available with add-on leaf or coil spring perches and new high clearance shock mounts. For ultimate protection, we recommend adding the 14 bolt Pinion Guard with bridge, which keeps your vulnerable pinion out of the rocks. Note: the leaf spring option is for SOA, not SUA, and the kit does not include u-bolts.

NOTES

Notes : TRIMMING ON THE BRIDGE MAY BE NECESSARY DEPENDING ON THE PINION ANGLE YOU CHOOSE FOR THE TRUSS AND WHAT TRUSS YOU USE.

  • 3/8" and 1/4" steel construction
  • Low profile for ideal geometry
  • Includes Truss Bridge
  • Reinforced with interlocked gussets
  • Sleek and easy to fit
  • Made in the USA.

Warning:  Installing this product requires Welding and Fabrication skills, If you are not confident in your abilities to complete this task please have this installed at an qualified off-road shop .

Step 1.

Inventory all parts to ensure you have all of the correct pieces

Step 2.

Slip the PG1401-1 plate into the key ways on PG14xx-2  and tack weld into place

Step 3.

Using the 4 supplied bolts bolt the PG14xx-3 onto the PG14xx-2

Step 4.

Test fit the Pinion guard on the axle  Depending on your pinion angle you may need to trim the PG14xx-3 bracket . Using a marker mark the top of the PG14xx-3   remove the pinion guard from the axle and trim were needed .  Prep the truss for welding by removing any paint, rust, or grime.

Step 5.

Fully weld the PG14xx-1 & PG14xx-2 together  ,  Now weld the PG14xx-3 to the truss.

Step 6.

Paint all bare surfaces .
