14 Bolt One Ton Conversion Truss w/ pinion guard for Jeep JK Rear

Regular price $579.00
Sale price $579.00 Regular price
Unit price
14 Bolt One Ton Conversion Truss w/ pinion guard for Jeep JK Rear

14 Bolt One Ton Conversion Truss w/ pinion guard for Jeep JK Rear

Regular price $579.00
Sale price $579.00 Regular price
Unit price
Product description
Specifications
Notes
Shipping

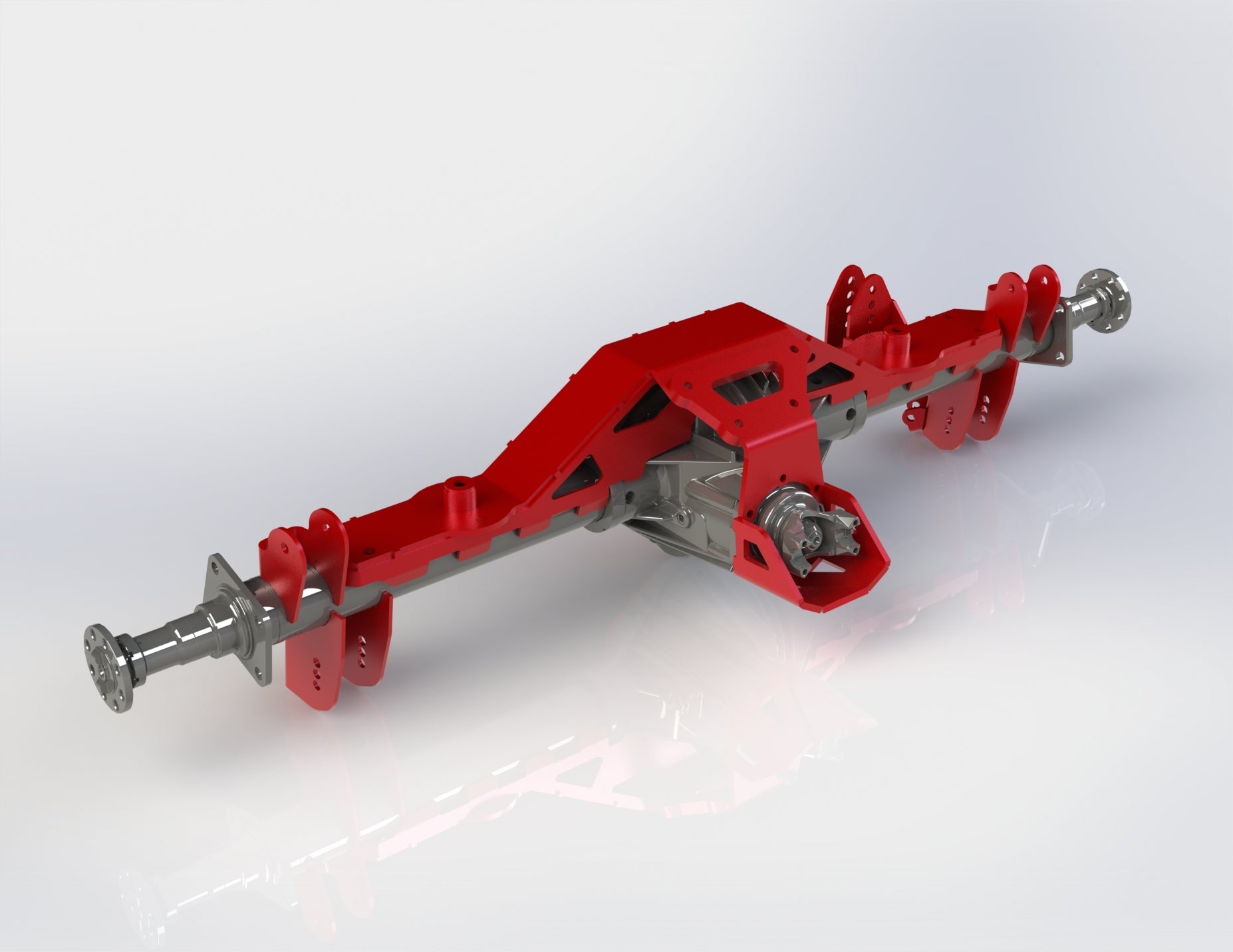

The Motobilt Jeep JK rear 1 ton axle swap with pinion guard makes installing a beefy rear axle in your Jeep a breeze. When designing our kit we wanted it to be easy to install. Whether you are a professional shop or are a DIY fabricator at home, this kit will save you time and money. Our kit spans much further across the axle than other kits on the market. This allowed us to incorporate the spring mounts into the truss. You will simply bolt the pinion support onto the axle and then set all of the other components onto the top. With the aligning tabs and slots, the installation is foolproof.

The kit was designed to work with the GM 14 bolt rear axle that was found in 1996-2006 GM 2500 and 3500 Single Rear Wheel axle trucks. The wheel mounting surface (WMS) will be 68 inches wide and the casting on the center differential has lots of ribbing. Do not use an axle from a van as the differential is offset. When installing this axle, remember that you will need to address things such as the 8x6.5 bolt pattern vs. the Jeep's factory 5x5 bolt pattern.

Compatible With:

JK, JKU

Product Components

Instructions

Assembly Instructions

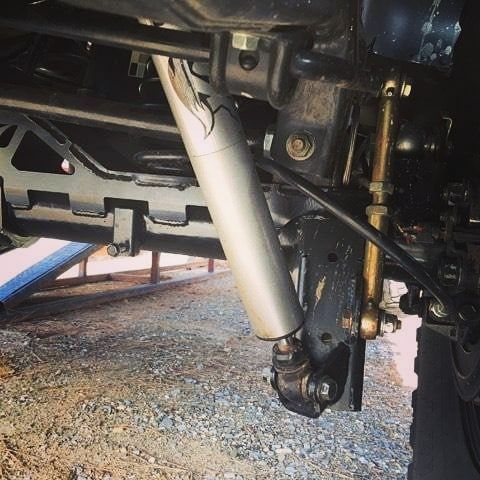

Check out this blog post showing how one of our customers installed their 14 bolt one ton conversion truss.

  • JK Rear 1 Ton axle swap with pinion guard
  • Designed to work with the GM 14 bolt rear axle that was found in 1996-2006 GM 2500 and 3500 Single Rear Wheel axle trucks
  • The axle truss ships raw steel and will require professional welding
  • Laser cut and CNC formed from 1/4 inch thick steel plate
  • Integrated coil spring mounts with truss
  • Easy install with no measurements needed
  • Track bar includes 4 mounting locations in case you change up your suspension
  • Main truss body is one solid piece with several support beams made of 1/4 inch steel plate
  • Coil spring mounts have a built-in threaded nut to use with a spring retainer
  • Upper and lower link mounts are formed so that your suspension is still in alignment once the wider axles are installed
  • Can easily be changed if you want to run a custom suspension design
  • Sold as kit
  • Weight: 80lbs (approx.)
  • The pinion guard will hit the factory gas tank unless you stretch the wheelbase, move the rear axle back, relocate the gas tank, or do not install the pinion guard.

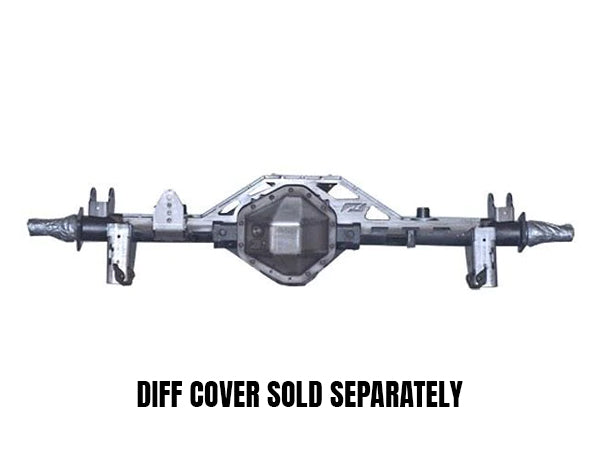

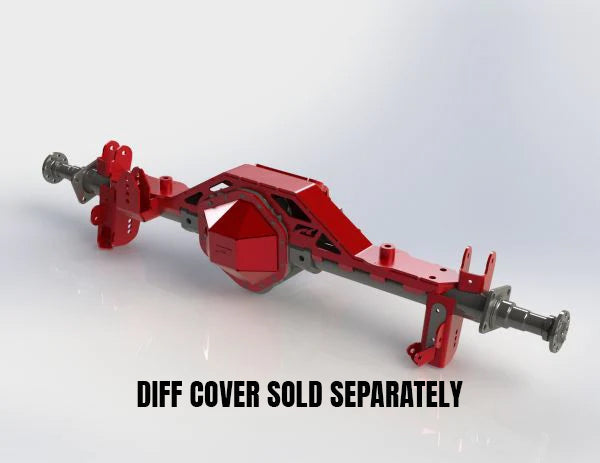

  • Optional HD steel diff cover (MB4012) is NOT included but available separately in the related parts tab.
  • Brake components such as the tone rings and ABS sensors will need to be addressed as they are not included in this kit
  • Axle assembly shown is NOT included and is only shown for demonstration purposes.

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
