14 bolt MODULAR truss

Regular price $279.99
Sale price $279.99 Regular price
Unit price
14 bolt MODULAR truss

14 bolt MODULAR truss

Regular price $279.99
Sale price $279.99 Regular price
Unit price
Product description
Features
Shipping

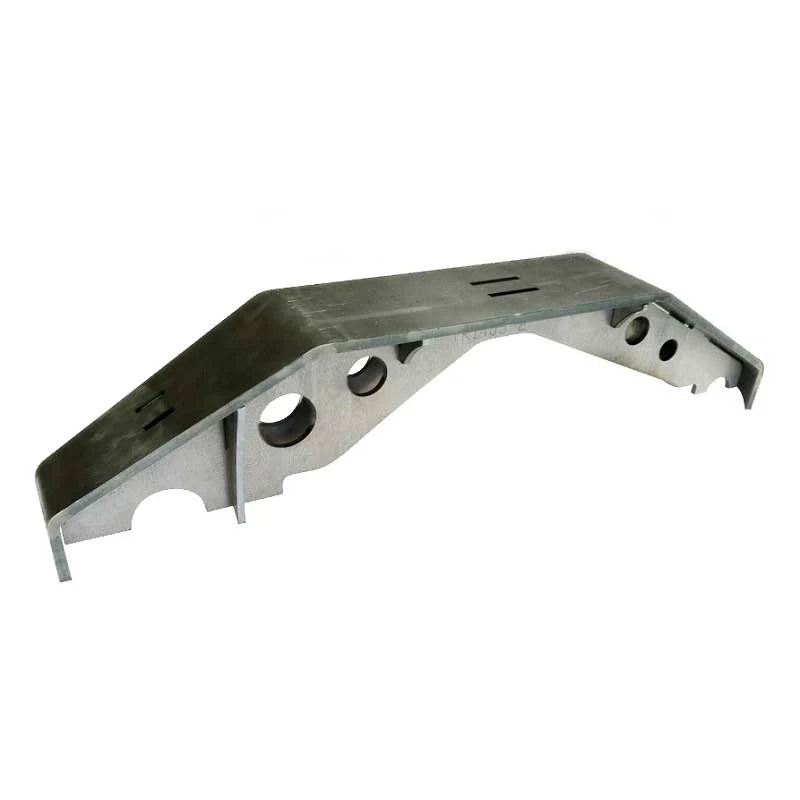

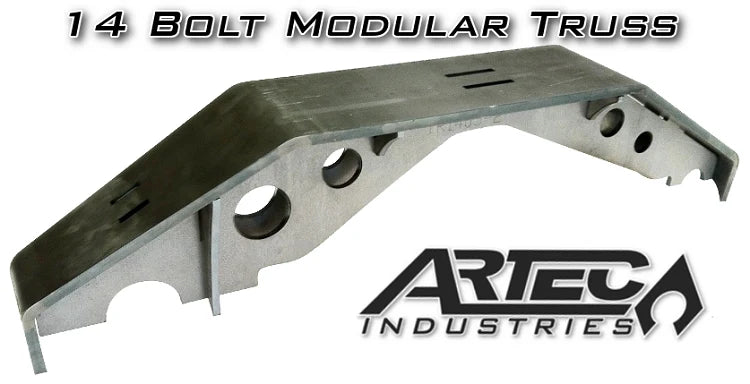

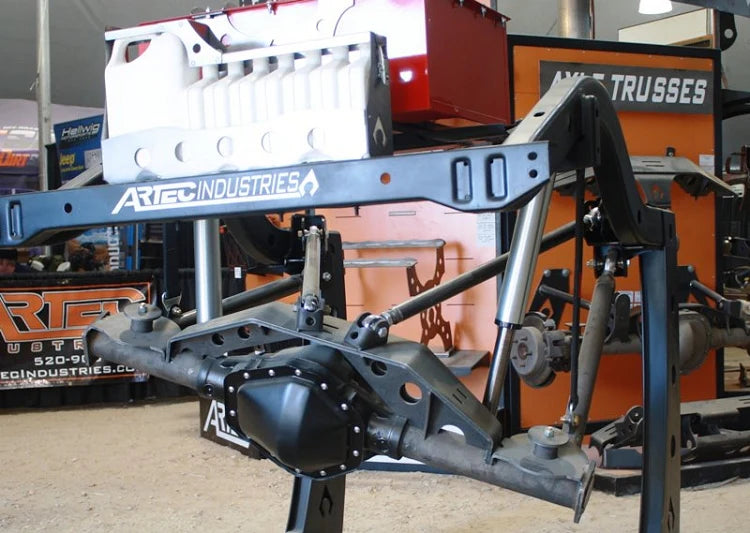

Upgrade your vehicle with Artec Industries 14 Bolt Modular Axle Truss, the ultimate versatile truss for one-ton swaps on the popular 14 bolt axle. Our heavy-duty truss system reinforces the axle, providing a flat surface for upper link mounting. With a 3/8" thick truss top and 1/4" thick gussets, the unique design strengthens the axle and link mounting surface. Add leaf spring perches for YJ Wrangler or coil spring perches for rear TJ Wrangler, and high clearance shock mounts for optimal ground clearance. For added protection, consider the Artec Industries 14 bolt Pinion Guard with bridge

Artec Industries' 14 Bolt Modular Axle Truss: the ultimate versatile truss for one-ton TJ/YJ swaps. Heavy-duty design, add-on perches, high clearance shock mounts, and optional Pinion Guard with bridge.

  • 3/8" thick steel truss top, 1/4" steel gussets: CNC cut and bent for perfect fitment
  • Low profile design: optimal link joint mounting geometry, 8" from axle centerline

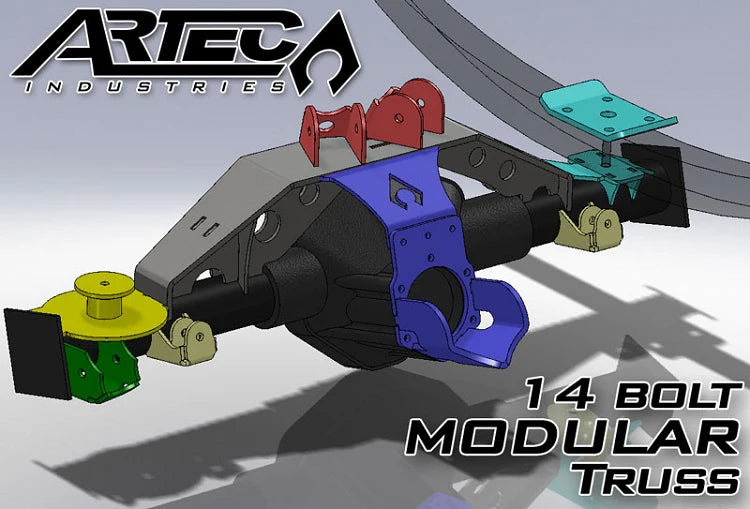

  • Modular truss: compatible with factory leaf spring perches or add-on coil/leaf spring perches
  • Flexible design: easy transition from leaf spring to coil spring, no full truss removal needed
  • Reinforced with interlocked 1/4" thick gussets: maximum strength, easy assembly

    3/8" thick mild steel truss top and 1/4" mild steelgussets. Precision CNC cut and bent for great fitment.*

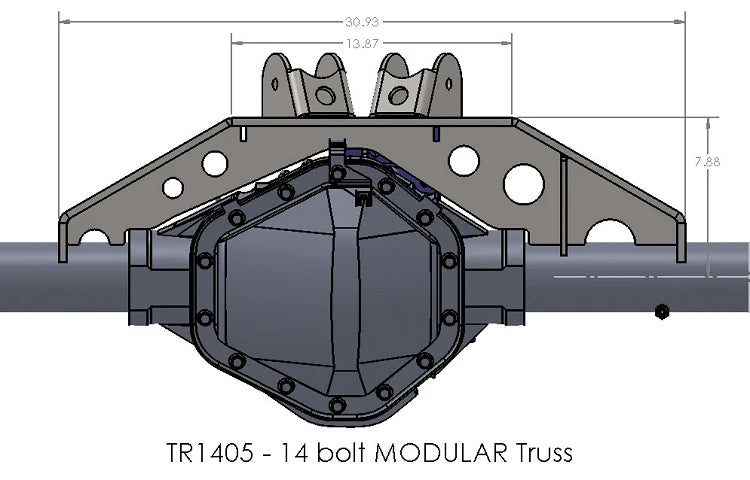

    Truss is low profile allowinglink joints to be mountedwith ideal geometry - about 8 inches from the axle centerline.

    This Modular truss is shorter to allow use with factory leaf spring perches or our add-on coil or leaf spring perches. This flexibility means that if you change from leaf spring to coil spring, you don't have to remove the whole truss, just the end brackets.

    Truss is reinforced using interlocked 1/4 thick gussets for maximum strength and easy assembly.

    Overall low profile design means your axle is stronger, sleaker, easier to fit into any vehicle, and less likely to interfere with vehicle components.

Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
