14 bolt APEX Pinion Guard with Bridge

Regular price $186.99
Sale price $186.99 Regular price
Unit price
14 bolt APEX Pinion Guard with Bridge

14 bolt APEX Pinion Guard with Bridge

Regular price $186.99
Sale price $186.99 Regular price
Unit price
Product description
Features
Install Instructions
Shipping

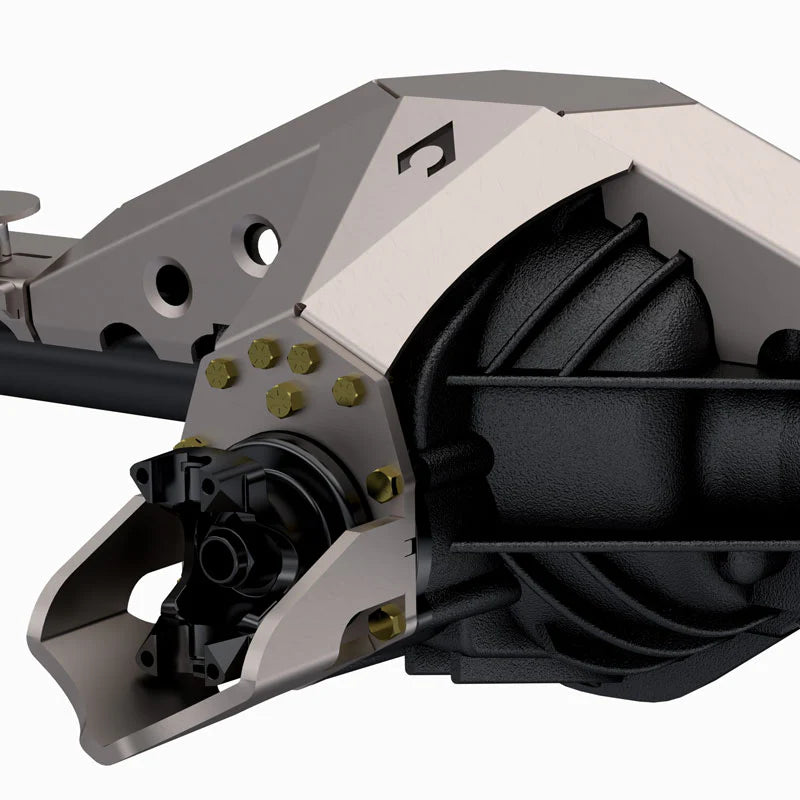

Artec Industries 14 Bolt Modular Axle Truss reinforces and mounts upper links. High-clearance shock mounts and perches are available. Add-on pinion guard with bridge recommended.

Artec Industries' 14 Bolt Modular Axle Truss is designed for one-ton swaps. Its versatile heavy-duty design reinforces your axle and provides a flat surface to mount your upper links. The 3/8" thick truss top and 1/4" thick gussets are built to withstand serious abuse. The truss is available with add-on leaf or coil spring perches and new high clearance shock mounts. For ultimate protection, we recommend adding the 14 bolt Pinion Guard with bridge, which keeps your vulnerable pinion out of the rocks. Note: the leaf spring option is for SOA, not SUA, and the kit does not include u-bolts.

NOTES

Notes : ONLY FOR USE WITH 14B APEX SHORT TRUSS. USE IN A JK OR JL SWAP KIT WILL RESULT IN THE PINION GUARD CONTACTING THE GAS TANK.

  • 3/8" and 1/4" steel construction
  • Low profile for ideal geometry
  • Includes Truss Bridge
  • Reinforced with interlocked gussets
  • Sleek and easy to fit
  • Made in the USA.

Warning:  Installing this product requires Welding and Fabrication skills, If you are not confident in your abilities to complete this task please have this installed at an qualified off-road shop .

Step 1.

Inventory all parts to ensure you have all of the correct pieces

Step 2.

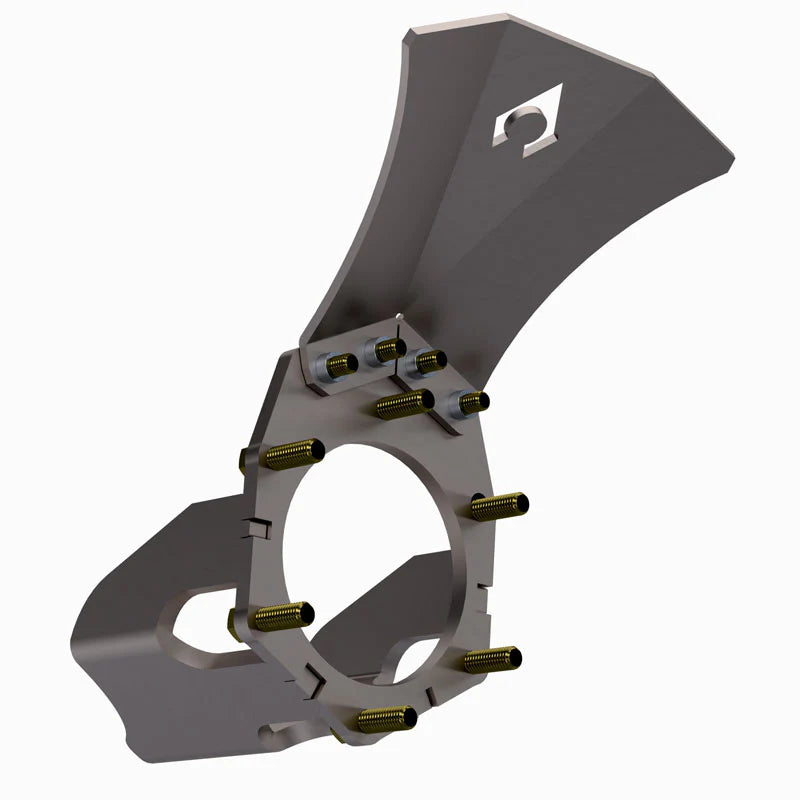

Slip the PG1401-1 plate into the keyways on PG1404-2  and tack weld into place

Step 3.

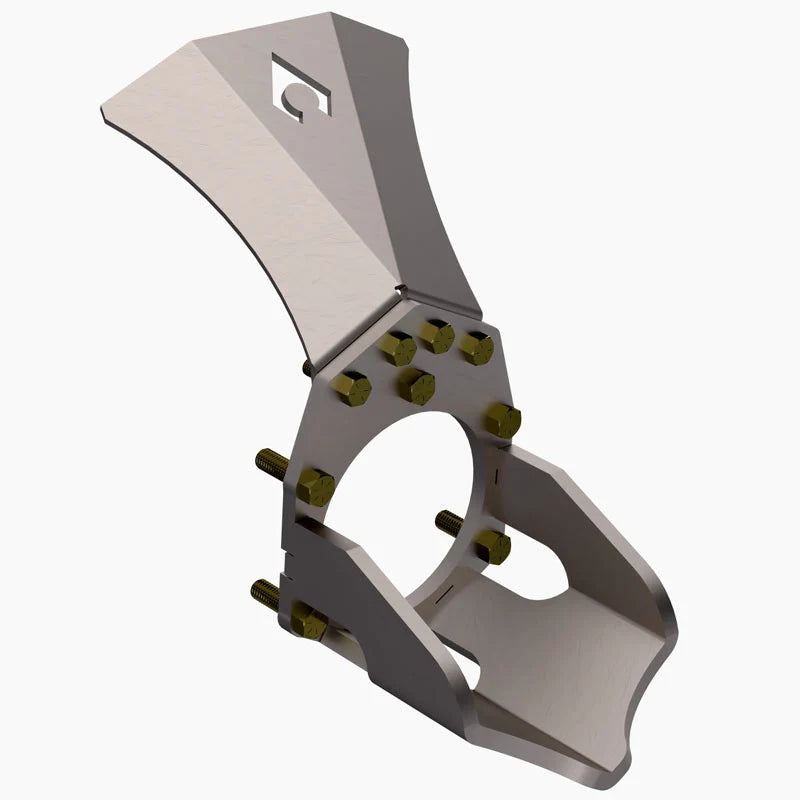

Using the 4 supplied  HW0058 bolts  bolt the PG1404-3 onto the PG1404-2

Step 4.

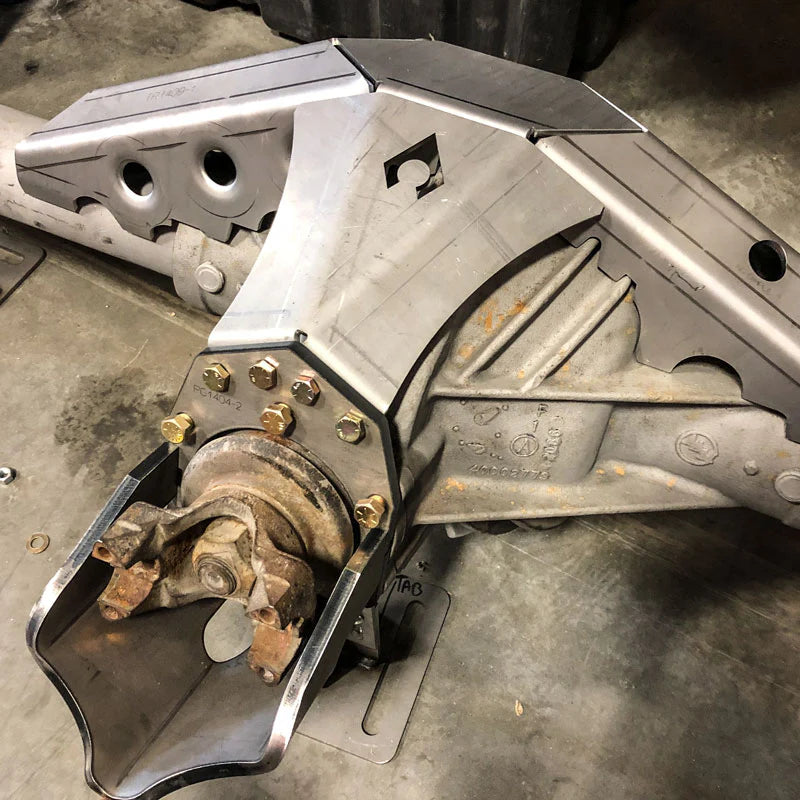

Test fit the Apex Pinion guard on the axle  Depending on your pinion angle you may need to trim the PG1404-3 bracket . Using a marker mark the top of the PG1404-3   remove the pinion guard from the axle and trim were needed .  Prep the Apex truss for welding by removing any paint, rust, or grime.

Step 5.

Fully weld the PG1404-1 & PG1404-2 together  ,  Now weld the PG1404-3 to the apex truss.

Step 6.

Paint all bare surfaces .
